Commercial Audio - Bose Professional FreeSpace 3 Series I Acoustimass Bass Module

Click to expand

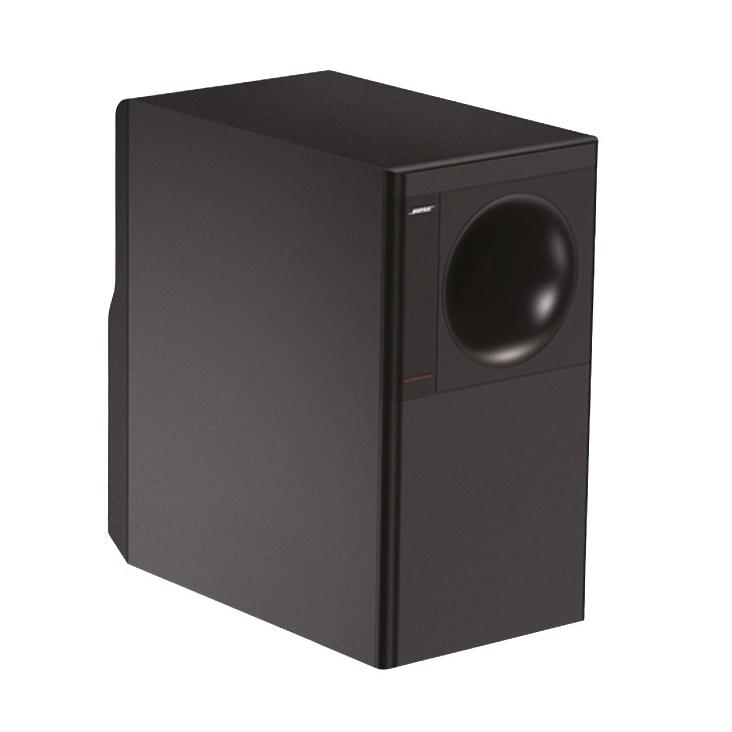

Bose Professional FreeSpace 3 Series I Acoustimass Bass Module

The Bose Professional FreeSpace 3 Series I Acoustimass bass module is designed to provide surface-mount bass enhancement for new and existing background music systems. Ideal for use with the Freespace 3 surface-mount or flush-mount satellite loudspeakers.

This subwoofer speaker is fitted with one 5.25-inch (133 mm) woofer delivering deep bass down to 40 Hz without audible distortion.

Acoustimass speaker technology filters out audible distortion to deliver non-localized bass.

The modular design of the FreeSpace 3 bass module allows parallel connection of multiple bass modules and can accommodate two or four FreeSpace 3 satellites per bass module.

Suitable for use on either 70/100V or low impedance loudspeaker circuits.

For indoor applications only.

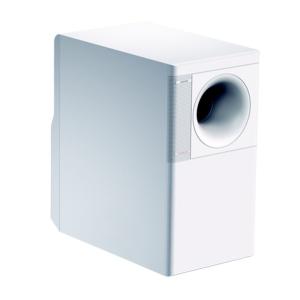

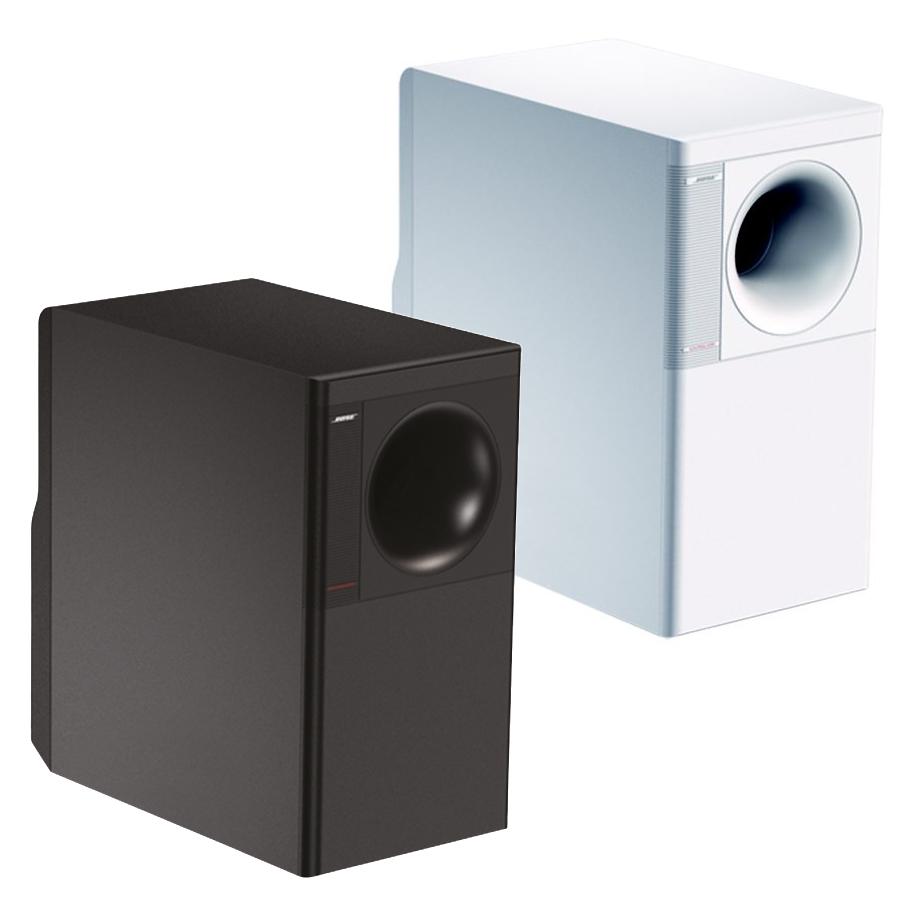

Available in Black or White.

Warranty: 5 Years

For further information, please download the Datasheet and/or User Manual. To see more of the range, please download the current Bose Professional Product Catalogue and don't hesitate to contact us for further information.

List Ex VAT: £449.00

SPECIFICATIONS

Frequency Range (-10 dB)	40 Hz – 315 Hz
Maximum SPL at 1 m	Per channel: 96 dB continuous, 102 dB peak / Mono: 102 dB continuous, 108 dB peak
Nominal Impedance	5 Ω mono direct (transformer bypassed)
Power Handling, Continuous	70/100 V: 200 W mono / Low impedance: 50 W per channel stereo or 100 W mono
Power Handling, Peak	70/100 V: 800 W peak mono / Low impedance: 200 W peak per channel stereo or 400 W peak mono
Recommended Signal Processing	Recommended
Sensitivity (SPL/1 W at 1 m)	Per channel: 76 dB / Mono: 79 dB
Transformer Taps, 70V/100V	25 W, 50 W, 100 W, 200 W
Coverage, Horizontal/Vertical	Omnidirectional below 200 Hz
Driver Protection	Recommended high-pass filter 40 Hz high-pass filter
Low-Frequency Transducer Quantity and Size	5.25 in (133 mm) dual-voice-coil low-frequency driver
Enclosure Material	High-density wood composite with solid colour PVC laminate
Mounting/Rigging Provisions	Wall-mount bracket, pre-attached
Net Weight	17.5 lb (7.9 kg)
Product Dimensions (H×W×D)	14.0 in × 7.5 in × 13.6 in (356 mm × 191 mm × 345 mm) / width with bracket: 8.8 in (222 mm)

DOWNLOADS

FreeSpace 3 Loudspeaker Manual

FreeSpace 3 Combined Datasheet

Related Products

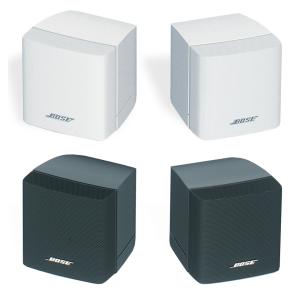

Bose Professional FreeSpace 3 Surface-Mount Satellites (Pair)

Pair of miniature surface mount satellite loudspeakers for use with Freespace 3 Bass Module.

List Ex VAT: £203.00

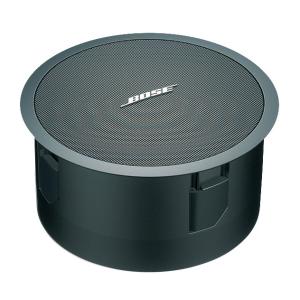

Bose Professional FreeSpace 3 Series II Acoustimass Bass Module

Flush mount subwoofer / bass module for use with Bose Professional Freespace 3 satellite loudspeakers.

List Ex VAT: £417.00

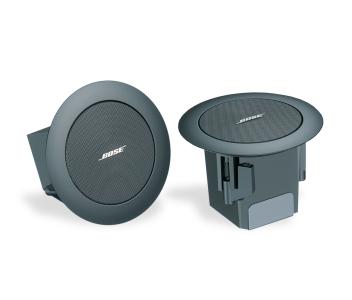

Bose Professional FreeSpace 3 Flush-Mount Satellites (Pair)

Pair of miniature flush mount satellite loudspeakers for use with Freespace 3 Bass Module.

List Ex VAT: £203.00
