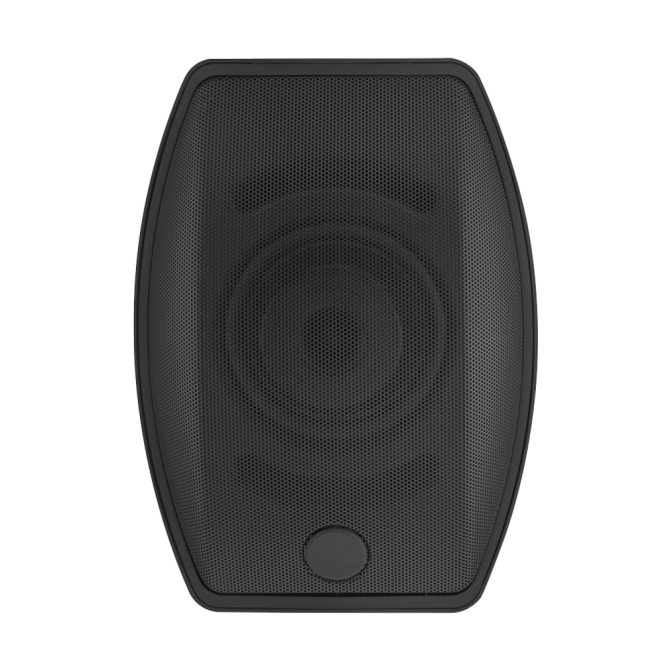

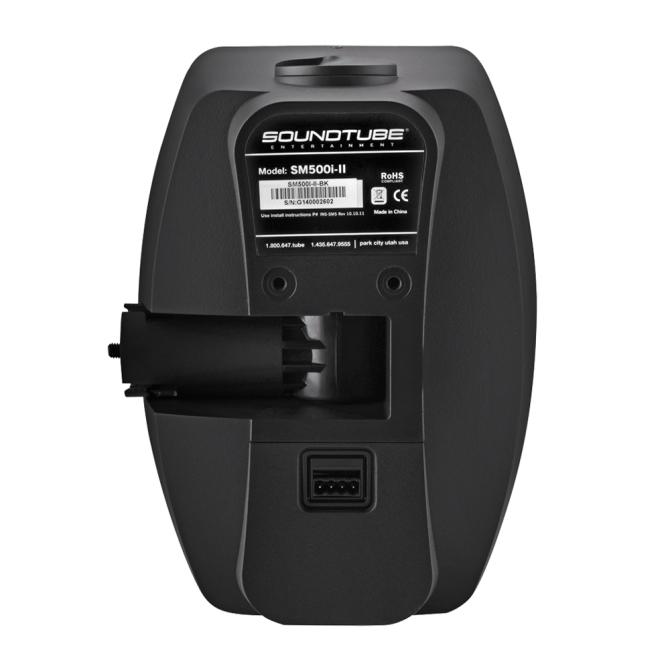

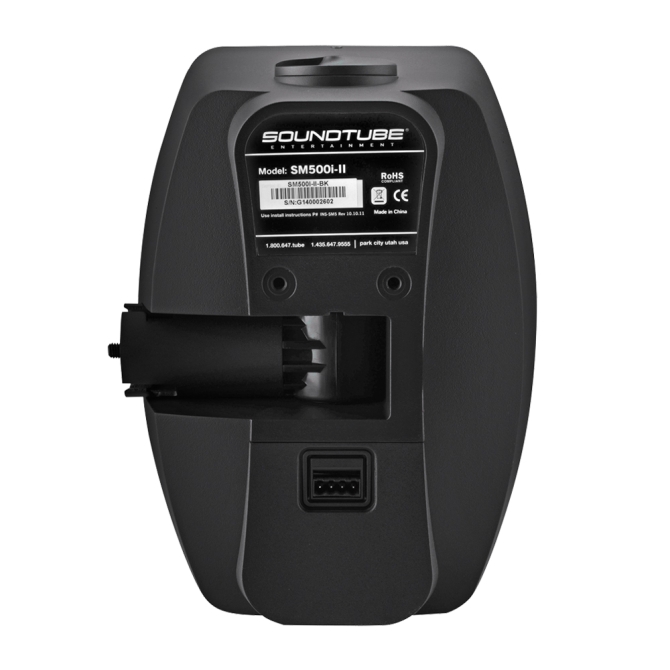

Soundtube SM500i-II-WX-BK
Click to expand

Soundtube SM500i-II-WX-BK

Soundtube SM500i-II-WX-BK 5.25″, coaxial, wide dispersion surface mount loudspeaker features SoundTube's WX Weather Guard technology which utilizes a dual layer hydrophobic material inside the speaker grille to keep water from the drivers and internal electronics in even the most extreme weather conditions.

It is suitable for use with both low impedance and high impedance (100 volt line or 70.7 volt line) public address sound systems. The high sensitivity makes it ideal for areas with raised ambient noise levels such as retail, amusement, restaurants, airports, hotels, schools and casinos.

The smart design cabinet is constructed from glass reinforced ABS with a powder coated aluminium grille. Finished in black, also available in white - see SM500i-II-WX-WH.

The versatile mounting bracket with integral safety cable is included for an easy and flexible installation, in horizontal or verrtical orientation.

  • BroadBeam® waveguide technology delivers a consistent dispersion pattern up to 10 kHz for maximum coverage area per speaker.
  • One 5.25 inch (133 mm) polypropylene woofer and one 1.0 inch (25 mm) convex titanium tweeter with FerroFluid™ cooling.
  • 86 dB average sensitivity offers high output capabilities and reduced amplification costs.
  • Includes stainless steel screws and rust free grille for weather resistance outdoors. Rated IP44.
  • Easy access, six-position selectable tap switch for 25-, 70.7- and 100-volt applications with transformer bypass position.
  • PatentedZeroReflection™ enclosure technology for optimal sound reproduction and cabinet rigidity.
  • Aluminum grille with powder-coat finish
  • Includes the new SM500i-II-WX Stealth™ bracket mounting system.

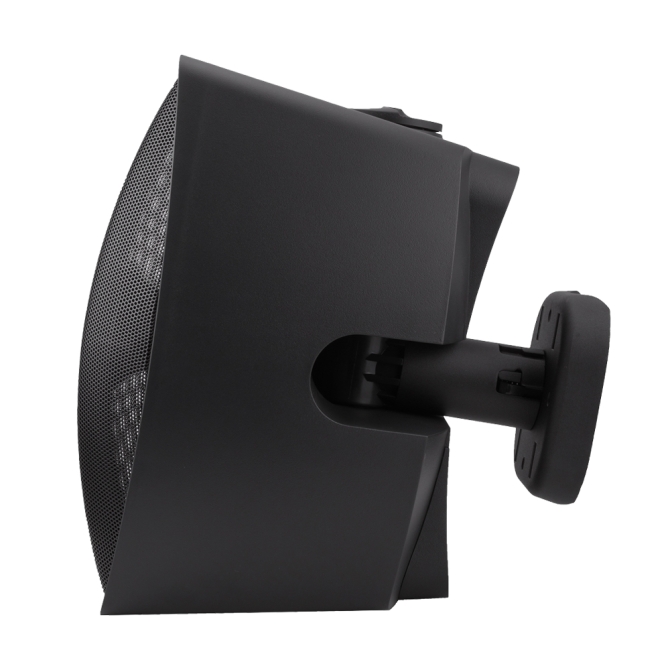

  • Vertical and horizontal pivoting allow the SM500i-II-WX to be aimed anywhere within the installation space.
  • Low profile enclosure design keeps the speaker close to the wall.
  • UL1480A approved.
  • High-quality black or white paint finish.
  • Included Accessories: Safety cable with speaker mounting bolt, Euroblock connector, wall-mount bracket and terminal weather boot.
  • Warranty: 5 Years
1a: 100V IPxx 1c: 4ohms
List Ex VAT: £374.00
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Frequency Response (-3 dB)

86 Hz - 22 kHz

Low Frequency (-10 dB)

60 Hz - 22 kHz

Sensitivity dB @ 2.83 V / 1 M

86 dB

Sensitivity dB @ 1 W / 1 M 2 83 dB

Max Continuous Power RMS

75 W

Max SPL dB @ 1 M

102 dB

Nominal Impedance

4 ohm

Tweeter

1" / 25 mm Convex Titanium with BroadBeam® Waveguide

Woofer

5.25 in / 133 mm Polypropylene cone, Butyl rubber surround

Transformer Options

25 / 70.7 / 100 V, 4 Ohm direct

Height

289.6 mm (11.40 in)

Width

212.3 mm (8.36 in)

Depth

266.2 mm (10.48 in)

Weight

4.3 kg (9.5 lbs)

Colour

Black or White

Related Products

Soundtube SM500i-II-WX-WH

Coaxial, wide dispersion cabinet speaker for extreme weather use. 5.25" + 1", 64W at 100V & 75W at 4 Ohms. White.

see more
List Ex VAT: £374.00
Soundtube SM400i-BK

Wide dispersion cabinet speaker. 4" driver + 1" tweeter, 20 watts, 100 Volt line or 4 Ohms. Black.

see more
List Ex VAT: £251.00

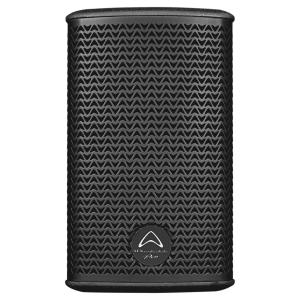

Wharfedale Pro Programme-X105

Trapezoidal cabinet speaker with 5" woofer & 1" titanium dome tweeter. 80 watts, 8 ohm.

Priced and sold individually.

see more
List Ex VAT: £154.17
Wharfedale Pro Programme-X105T

Trapezoidal speaker with 5" woofer & 1" titanium dome tweeter. 60 W, 100 volt line.
Priced and sold individually.

see more
List Ex VAT: £215.83

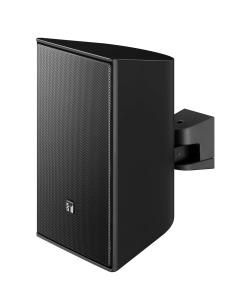

TOA F-05BT / F-05WT
