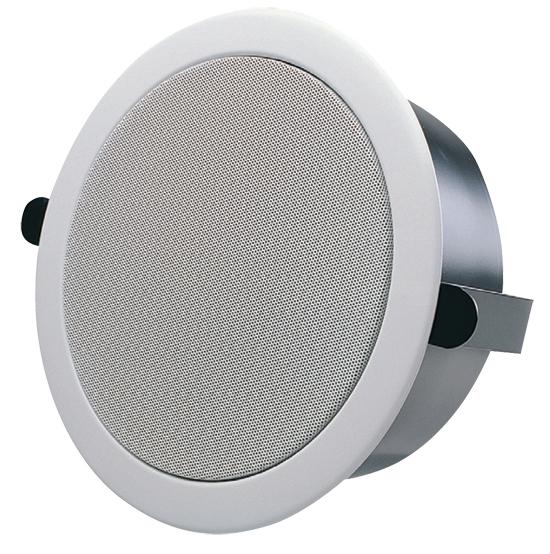

Penton RCS8FT/ENC

The Penton RCS8FT/ENC ceiling loudspeaker is designed for use in voice alarm systems and is compliant with EN54-24 & BS5839 part 8.

It's fitted with a 8” driver and rated at 10 Watts for use on 100 Volt line loudspeaker circuits. Ideal for background music and speech as part of a PA/VA system, supplied with a metal firedome and fitted with a capacitor for DC line monitoring.

Stylish yet unobtrusive, the RCS8FT/ENC features a pressed steel epoxy coated chassis incorporating a twin cone driver, offering a wider frequency response than a standard single cone for superior performance.

The spring mount design ensures a quick and easy installation and 100V transformer tappings are provided at 10, 5, 2.5 & 1.25W for plenty of adjustment.

Finished in white, RAL9016.

Other loudspeaker sizes are available in a matching design for a smart and coherent finish across your project.

A standard, non EN54-24 compliant version is also available -  see RCS8/T.

100V Evac
List Ex VAT: £83.47
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Rated power

10 Watts

Tappings, 100 volt line

10, 5, 2.5 & 1.25 Watts

Transformer Impedance

1k/2k/4k/8k Ohms (100V)

Tappings, 70.7 volt line

5/2.5/1.25/0.625 Watts

Driver impedance

8 Ohms

Effective Frequency Range

150Hz - 17KHz

S.P.L. 1watt/1m

93dB

Max S.P.L. rated/1m

103dB

Dispersion at 1k/2k Hz

159/81 Degrees

IP Rating

21

Dimensions (mm)

Height 126, Ø280

Net Weight

2.2 Kg

Colour

White RAL9016

Material

Steel

Mounting

Torsion Springs

Cut-out diameter

246mm
