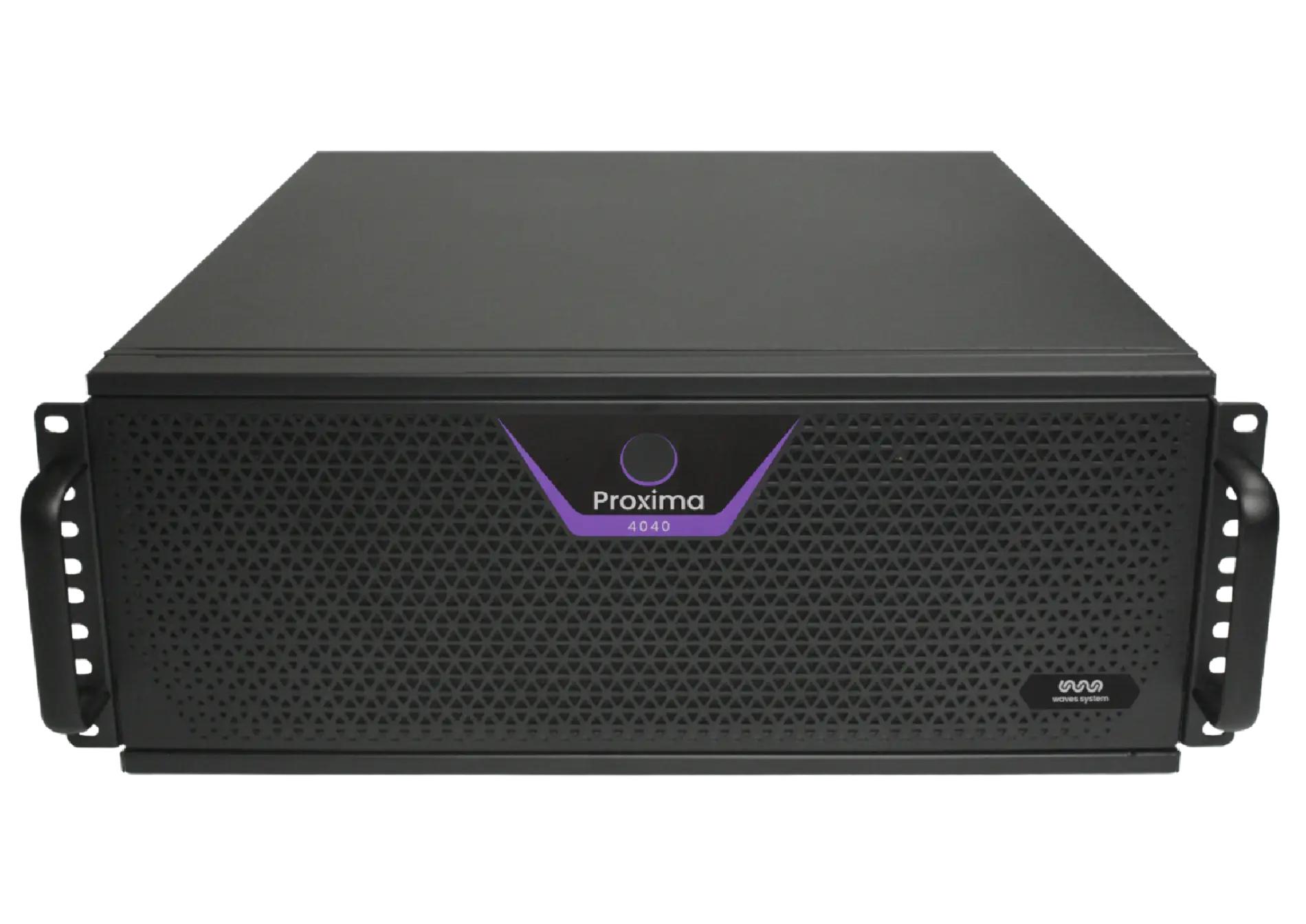

Waves System Proxima 4040

The Waves System Proxima 4040 media server features the most intuitive video mapping software on the market. Connect to Proxima Composer from your remote desktop and easily produce a video projection with 4 video projectors and create an immersive experience for your audience with 8 audio channels*.

The Proxima 4040 & Composer software enables you to import videos, create masks and shaders, adjust your grid, create soft edges and broadcast your show on 4 HDMI outputs. Edge blending features enable seamless large-scale video projections using 4 projectors.

The soft-edge and sync frame functions offer exceptional rendering and the Proxima Composer also includes a 15×15 warping grid to conform the video to a 3D structure.

The NDI input allows the import of streams from other machines such as generative and interactive video engines. Combine sequences with perfect loops and fade transitions to ensure broadcast continuity. Activate sequences on events or along a timeline.

When integrated with other systems, the OSC API enables control of the media server via UDP protocol to wake-up, enter into standby or start new sequences. Compatible with MIDI / OSC / DMX / Art-Net.

The Proxima 4040 is ideal for creating large scale video mapping in theme parks, museums and retail spaces as well as feature walls in restaurants or engaging product launches.

  • 4 x WUXGA media server for professional applications in museums, retail & theme parks.
  • Synchro frame.
  • Embedded Soft edge and warping.
  • Control the media server from Crestron automaton or Control4 with OSC API.
  • Designed and manufactured in France by Waves System.

For smaller projects, please see the Proxima 4020 - the compact media server for installations with up to 2 streams.

*8 Channel audio is a new feature currently being added to this model - please contact us for up to date availability.

2U
List Ex VAT: £7,271.82
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Mapping:

• Positioning, rotation, scaling, snapping, cropping, managing the opacity of display areas and masks
• 15x15 warping and real-time media slicing
• Ability to import own shaders

Blending & Warping:

• 4 corner warping, and up to 15 x 15 per video output
• Edge blending in horizontal or vertical
• Generation of a calibration grid
• Orientation 0°, 90°, 180°, 270°

Containers & Codec:

• .mp4 / .mov / mkv

• .jpg / .png / .tiff

• .wav / .mp3

• H.265 / H.264

• HAP, HAP Alpha, HAP Q

• Motion JPEG

• Apple ProRes

Control & Interactivity:

• Unlimited number of interactive playlists and sequences

• Control through MIDI, UDP (OSC) and Art-Net protocols

• Configuration through a remote web administration

• Composer remotely accessible on the local network thanks to a VNC client

OS:

• Linux based

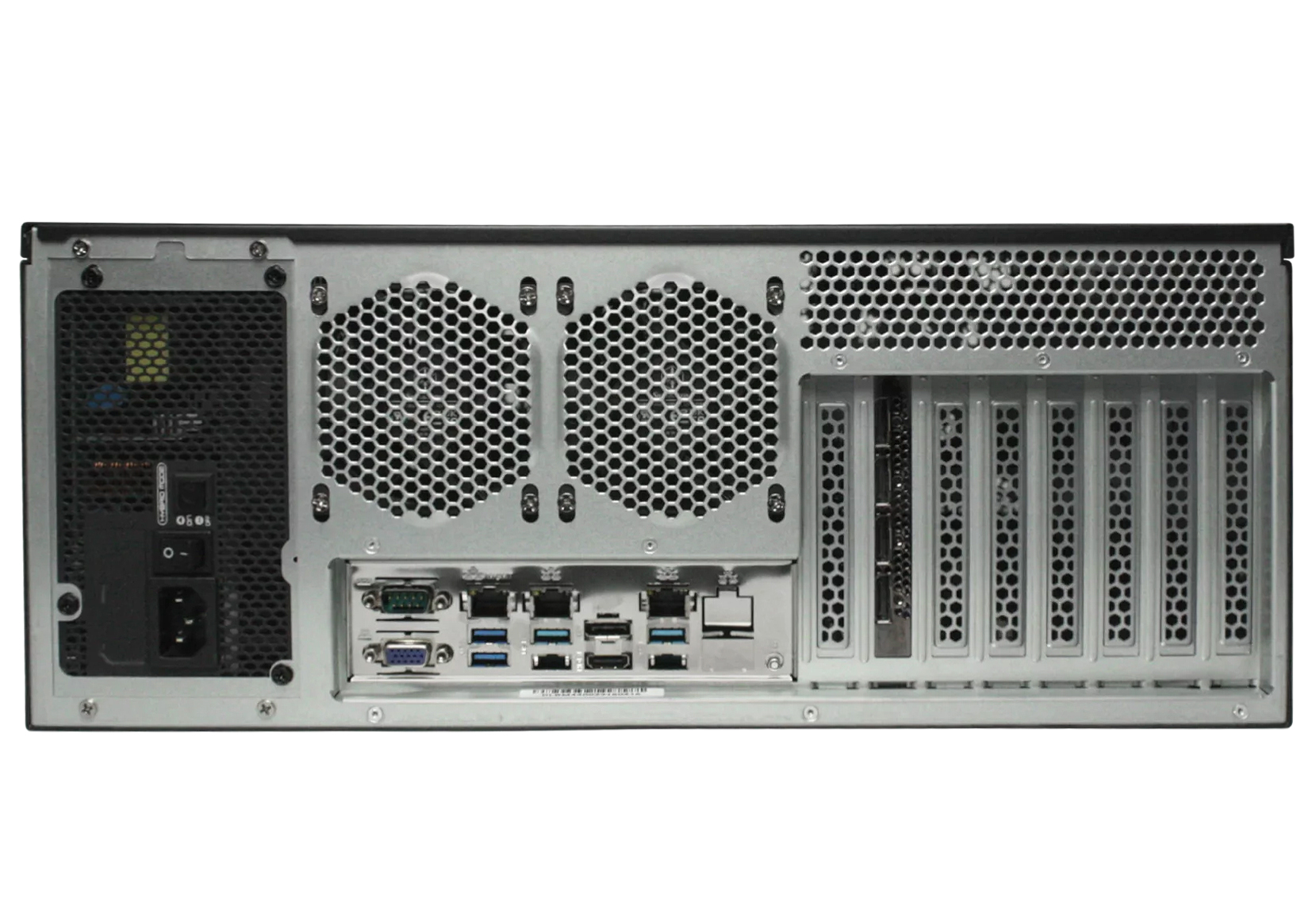

Interfacing & connectivity:

• 4 HDMI 2.1 video outputs, type-A receptacle connector (up to 4x4K@60Hz)

• Power switch and clear CMOS buttons

• Stereo audio output on a standard 3.5 mm (TRS) jack

• 2 x 1 Gbps Ethernet on RJ45 connector with status LEDs (Network, Activity)

• 4 USB Host 3.2 Gen 1, type-A receptacle

• 2 USB Host 3.0 High Speed (5 Gbps), type-A receptacle in front panel

Storage & Memory:

• 1 TB SSD NVME M.2

• 2 x 16 GB SO-DIMM DDR5 5600MHz

Network :
  • OSC API & Embedded UDP /OSC server for video control
  • Wake On Lan
  • Embedded TCP /IP server for server shutdown (Q1 ‘24)
  • Support input NDI stream
  • Embedded NTP client to synchronize the clock
  • IPv4 and IPv6
  • IPv4: static or DHCP address

Misc. :
  • AC Power supply 100V-240V/9-4.5A /50-60Hz
  • 19-inch / 4U rackable
  • CE, FCC

Dimensions:
  • Width: 440mm x Depth: 468mm x Height: 176mm
  • Weight: 13.9kg

DOWNLOADS

Waves System Proxima 4040 Datasheet
