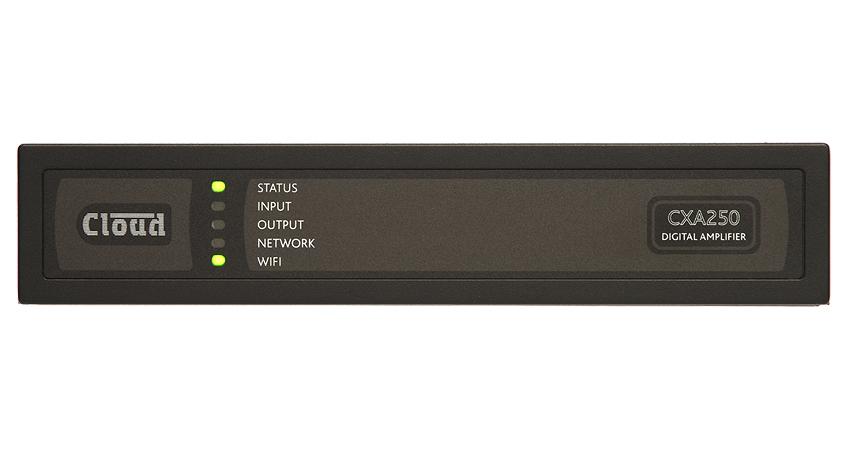

The Cloud CXA250 is a DSP-enabled Class-D compact amplifier which is able to drive both low impedance (4Ω to 16Ω) as well as high impedance (70V/100V) loudspeaker circuits, with an output of 2 x 125W at 4/8ohms or 1 x 250W at 70V/100V line. The 250W overall output on low impedance may be shared across the 2 output channels as required.

The built in web browser / wireless access point enables the amp to be set up, adjusted and controlled remotely via an App or over a network. This access facilitates effortless customisation of even the most detailed audio/voice systems and management of multiple DSP configurations and tuning features, such as multi-zone setup, input mixing, priority and ducking, restriction, input and output EQ, S/PDIF output routing, high-pass filter, speaker management and presets, delay, wall mounted controller configuration, Sine generator, and much more.

Four analogue inputs are available via RCA Phono and Euroblock style connectors.

The CXA250 can be placed on a desk or mounted into a 19” equipment rack with optional rack mount kits. (See HALF-U RACK KIT & REAR RACK KIT). The space saving ½ rack width, 1U high chassis enables 2 CXA’s to be mounted side by side in only 1 Rack Unit of space.

• Compact size – ½ rack width, 1U
• Full-matrix DSP configuration via web app (built-in)
• Hybrid power distribution in both Lo-Z and Hi-Z Powered
• Power Efficient, Class-D technology
• Flexible power sharing across output channels (Lo-Z only)
• S/PDIF digital input/output
• Configurable GPIO
• ErP and Energy Star compliant

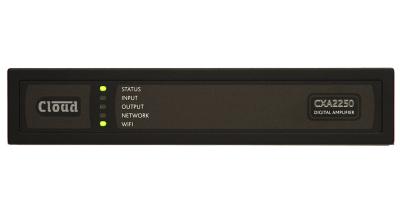

The Cloud Electronics CXA series of amplifiers offers a variety of output levels to suit your project – please see related products.
