The TASCAM BD-MP1MKII is a robust, versatile 1U multi-media video player for professional applications.

This high-definition video / audio player can be controlled via LAN, RS-232C and a wireless remote control, making it an ideal component of integrated media systems and a reliable video player for commercial AV, education, house of worship, boardroom and other high-stress installs or live touring.

The BD-MP1MKII can automatically play back content in a wide range of file formats via Blu-ray, DVD, CD, USB Flash Memory and SD card.

Its extensive range of file formats includes video formats like MPEG1, MPEG2, MPEG4 AVC, VC-1, AVCHD and WMV, image formats like JPEG, GIF and PNG as well as audio formats like LPCM, MP3, AAC and WMA.

Two USB memory ports, one on the front panel and one on the back panel, allow fixed or interchangeable access to USB memory data for playback versatility.

The Power-on Play feature allows the BD-MP1MKII to start playing desired content immediately on power-up. With Repeat Mode activated, content will automatically start, loop and play continuously until power is turned off.

Panel lock, IR and tray lock functions prevent accidental or user-error operation or alteration of pre-set controls in commercial environments.

The monitor display can be set to show a black screen during start up rather than the manufacturer’s screen with menu items, creating an elegant and non-distracting visual start-up each time the system is turned on.

A standard HDMI output provides easy, reliable plug-and-play connection to any HDMI-compatible monitor display, projector or television. This output supports HDMI CEC which allows the connected display to be switched on/off in correct order.

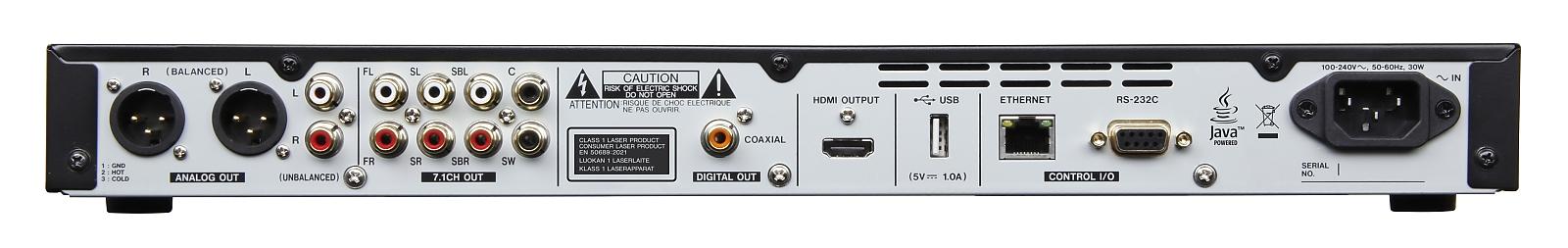

Highlighting its appeal to commercial installation environments, the BD-MP1MKII offers professional-grade XLR balanced stereo analogue outputs as well as RCA unbalanced stereo outputs for versatility in audio routing, connection and setup.

The BD-MP1MKII provides support for professional-grade digital audio output formats including Dolby, DTS, and others via its rear-panel coaxial output. Playback of two-channel linear PCM is also supported.

7.1 Surround Sound System provides immersive and full, rich audio playback in any commercial installation.The BD-MP1MKII provides support for professional-grade digital audio output formats including Dolby, DTS, and others via its rear-panel coaxial output. Playback of two-channel linear PCM is also supported.

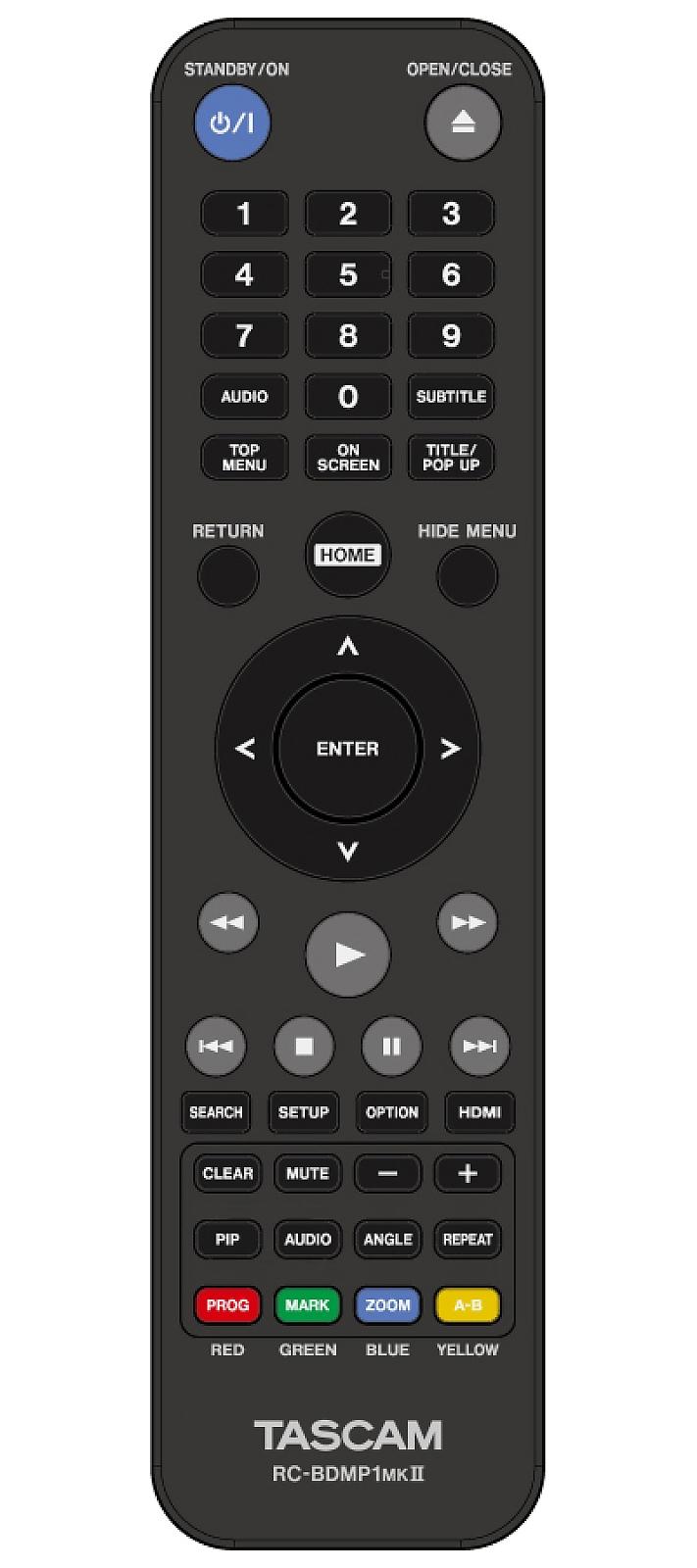

External Remote Control is possible via LAN and RS-232CIR Remote Control & the included IR remote control allows easy access to most of the functions and menus.

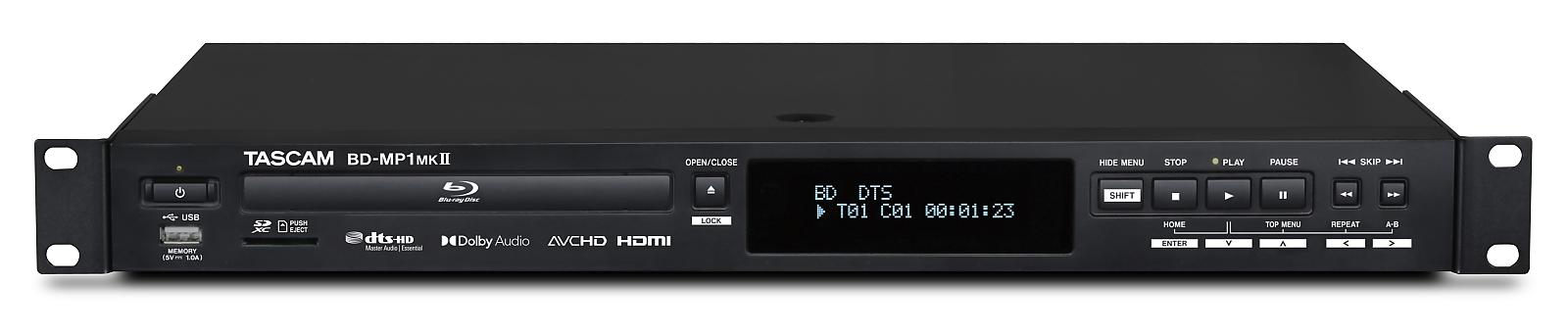

Playback functions and menu navigation is also possible via the front-panel control buttons which can be locked as desired to avoid inadvertent operation.

• Single-rackspace Blu-ray, DVD, CD and solid-state player
• Controllable via Ethernet network (Telnet), RS-232C or wireless remote control
• Plays video and audio material stored on following media:
  • BD25, BD50, BD-ROM, BD-R, BD-RE
  • DVD, DVD+R, DVD-R DVD+RW, DVD-RW
  • CD, CD-R, CD-RW
  • SD cards (up to 512 GB)
  • USB flash media
• Support for a wide range of file formats
• NTSC/PAL conversion
• BD-Live function
  HDMI high-definition audio/video out, supports HDMI CEC which allows the connected display to be switched on/off in correct order
• Separate 7.1 surround sound outputs
• XLR balanced and RCA unbalanced stereo outputs
• Up to 40 dB attenuation for analogue and digital stereo outputs
• Coaxial digital audio output (SPDIF, Dolby, DTS)
• Power-on play (start playback when power comes up)
• Resume (continue after power cycle)
• Repeat (chapter, title, A–B)
• Instant replay (10 seconds)
• Lock function (panel, tray, or IR remote)
• On-screen information switchable on or off
• Dimmable front-panel display
• Firmware update via disc or USB memory
• Infrared remote control included as standard
