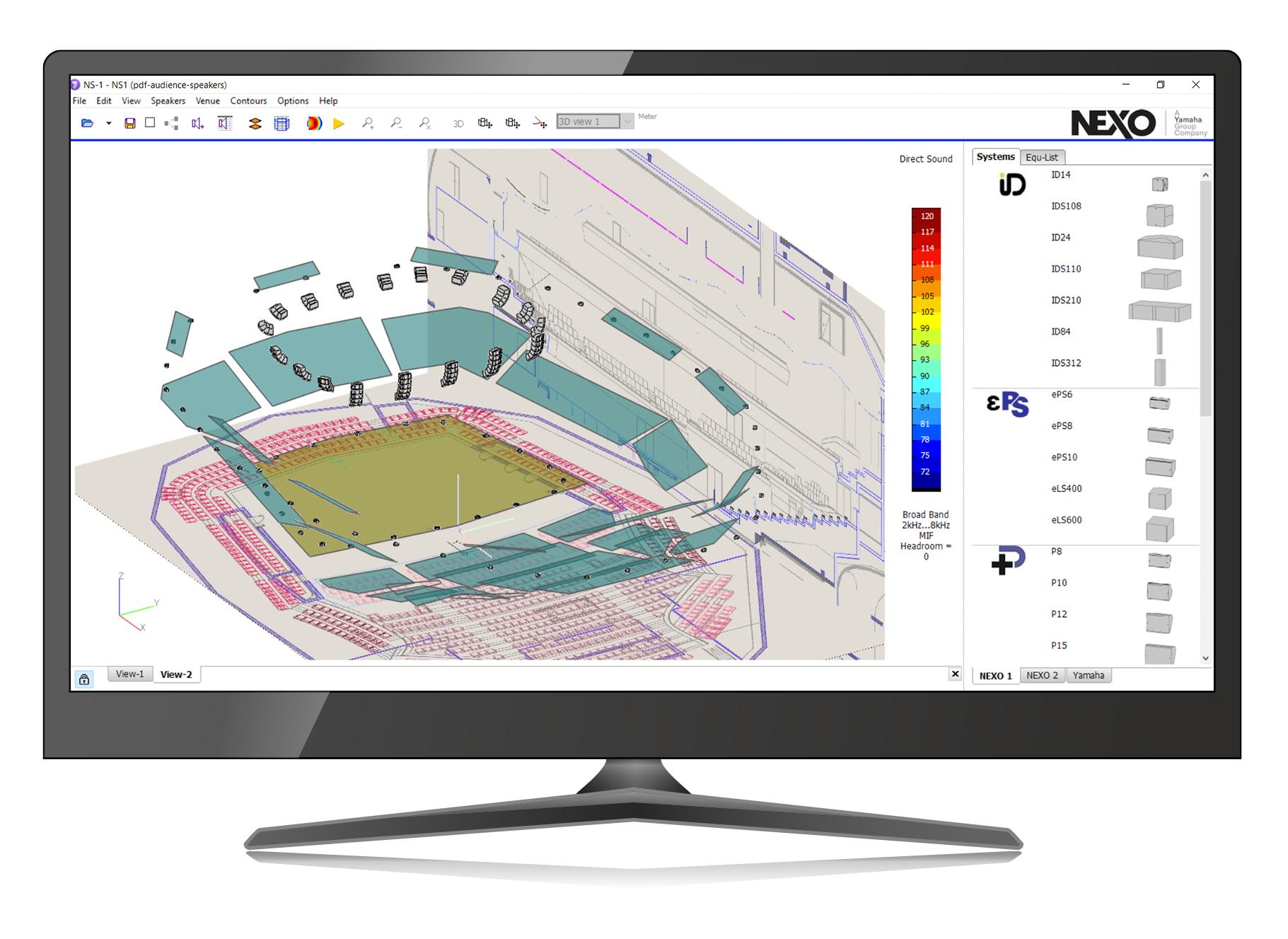

Available to download free of charge, The NEXO NS-1 software suite (Windows only) is a powerful and intuitive system configuration and simulation tool enabling NEXO users to configure and optimise the performance of any NEXO system by predicting its behaviour in any venue to ensure uniform SPL coverage.

An intuitive drag and drop interface includes all NEXO systems and sub bass cabinets, with measured speaker data processed along with complex mathematical data to predict SPL and delay coverage in 3 dimensions. NS-1 combines full acoustical and mechanical computations along with tools for optimising curved vertical array design. A Help section defines mechanical constraints to establish flown system safety, and generates reports for system dimensions, weight, gravity centre position, forces, moments, working load and safety factors.

NS-1 also supports a wide range of Yamaha professional audio speakers and includes AFC Design Assistant, which works closely with Yamaha’s AFC Image to deliver high end immersive audio.

Please download the NS-1 brochure for more details.

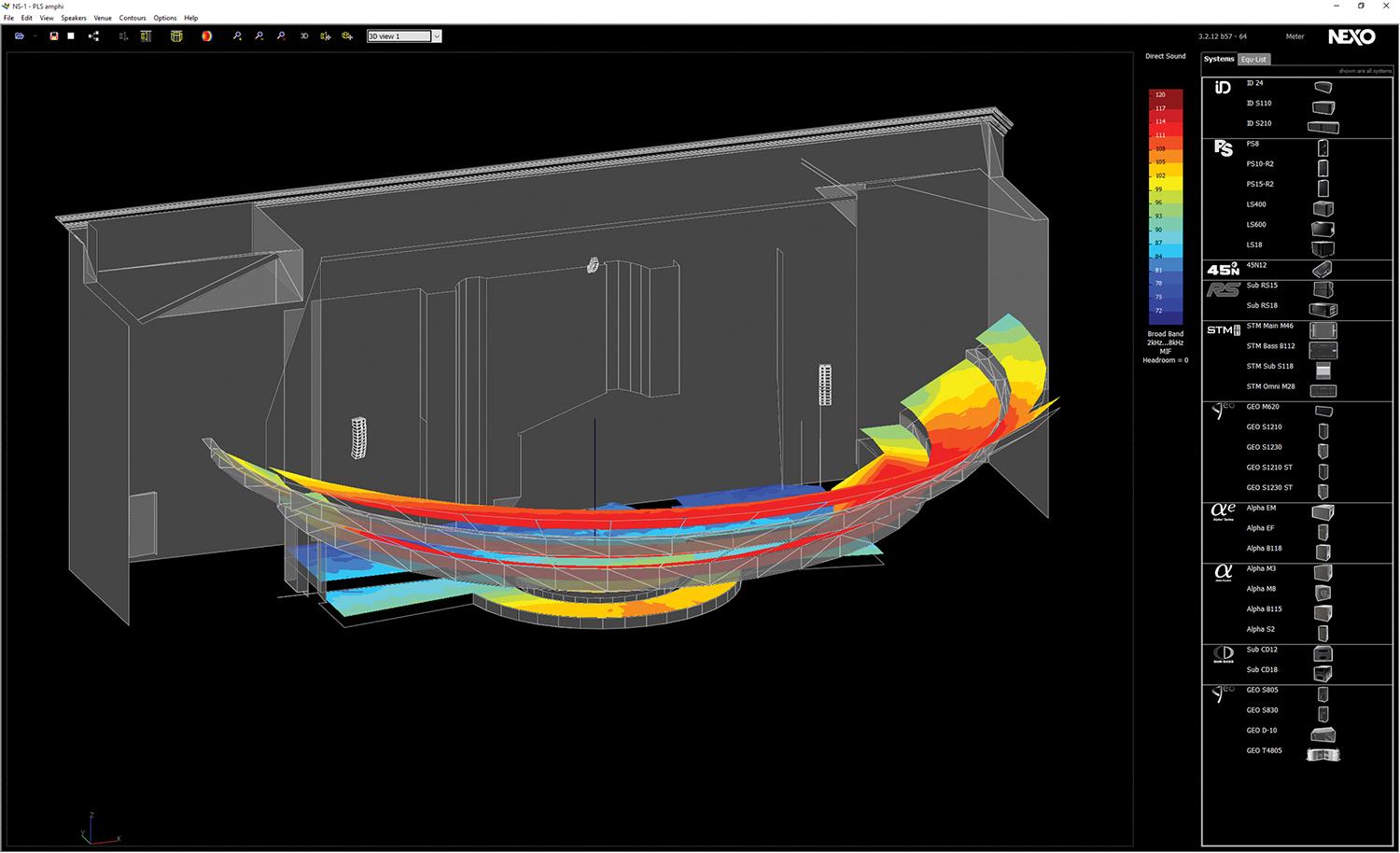

This video shows how NS-1 software can be used to create & simulate the acoustic design for a theatre.
