Powerful and flexible, the NEXO GEO M Series utilises unique and patented NEXO technologies to achieve extraordinary levels of performance from compact, lightweight cabinets. The GEO M Series comprises three systems: GEO M6, M10 and M12 – each with variable horizontal dispersion and each with a dedicated and proportionally-sized sub bass cabinet. By sharing the same sonic signature and ‘plug & play’ amplification and processing solution, it’s easy to mix and match GEO M systems in a single application, for instance GEO M12 for the main PA and GEO M10 for the delays.

The GEO M range includes the following models - please download individual datasheets or download the NEXO GEO M Brochure for a detailed look at the whole range.

GEO M620 - Full-range unit for stand-alone, curved array or line array application with long-excursion high-efficiency 6.5" LF driver and a 1" throat driver.

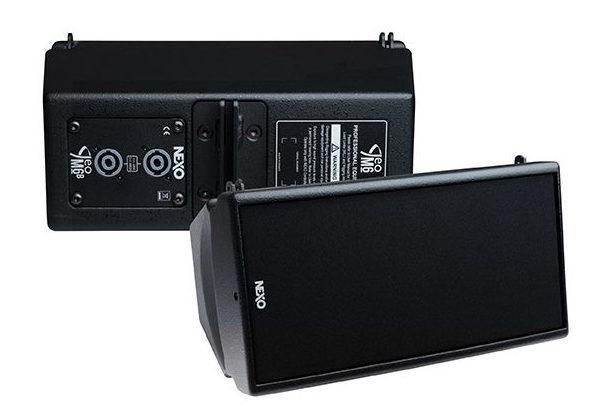

GEO M6 - Low and mid-frequency partner module to the GEO M620 with one 6.5" 8Ω long-excursion driver.

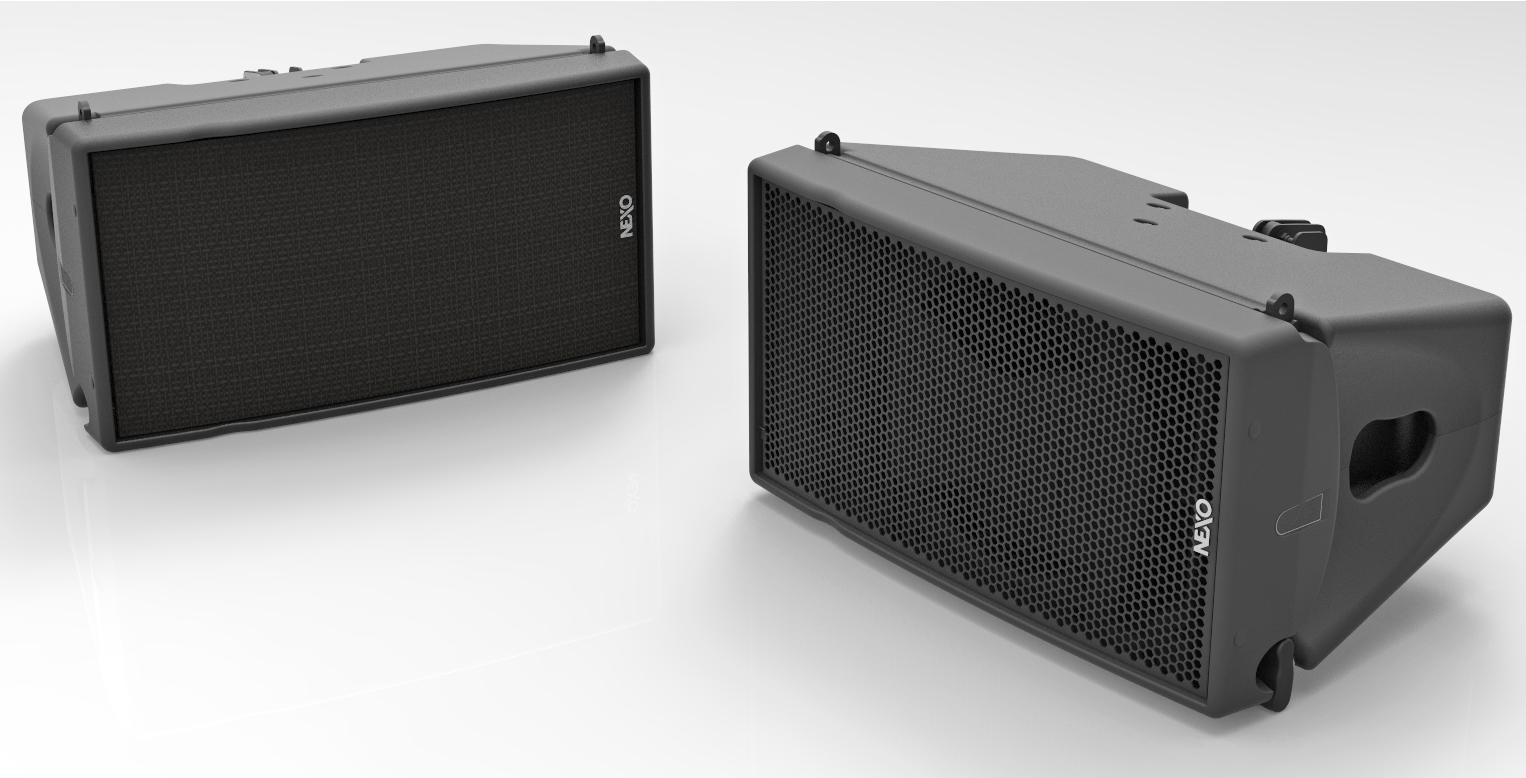

GEO M10 - Line array element, 2 way passive, with 10” LF and 1.4” HF.

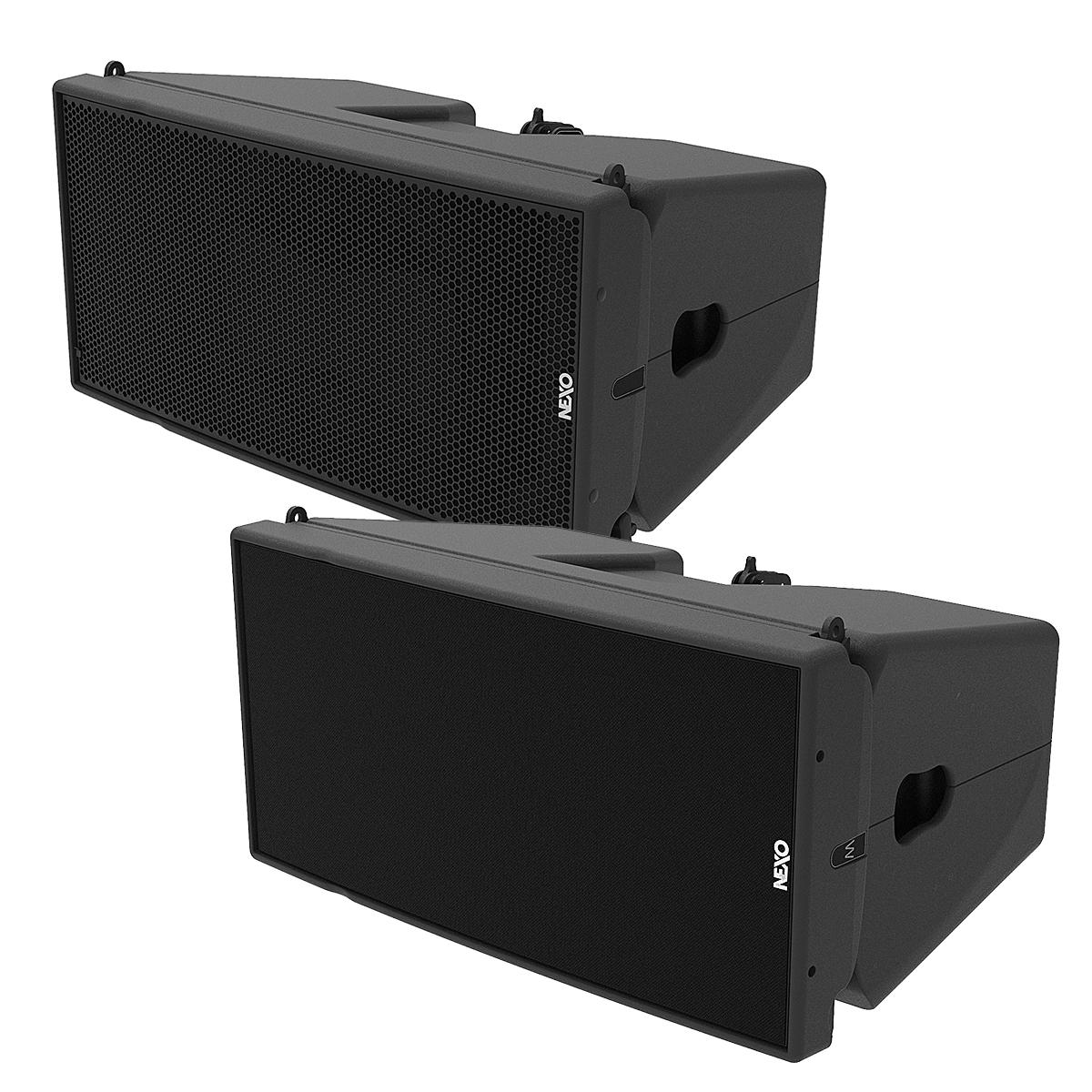

GEO M12 - Line array element, 2 way passive or active, with 12” LF and 3” voice coil / 1.4” throat HF.

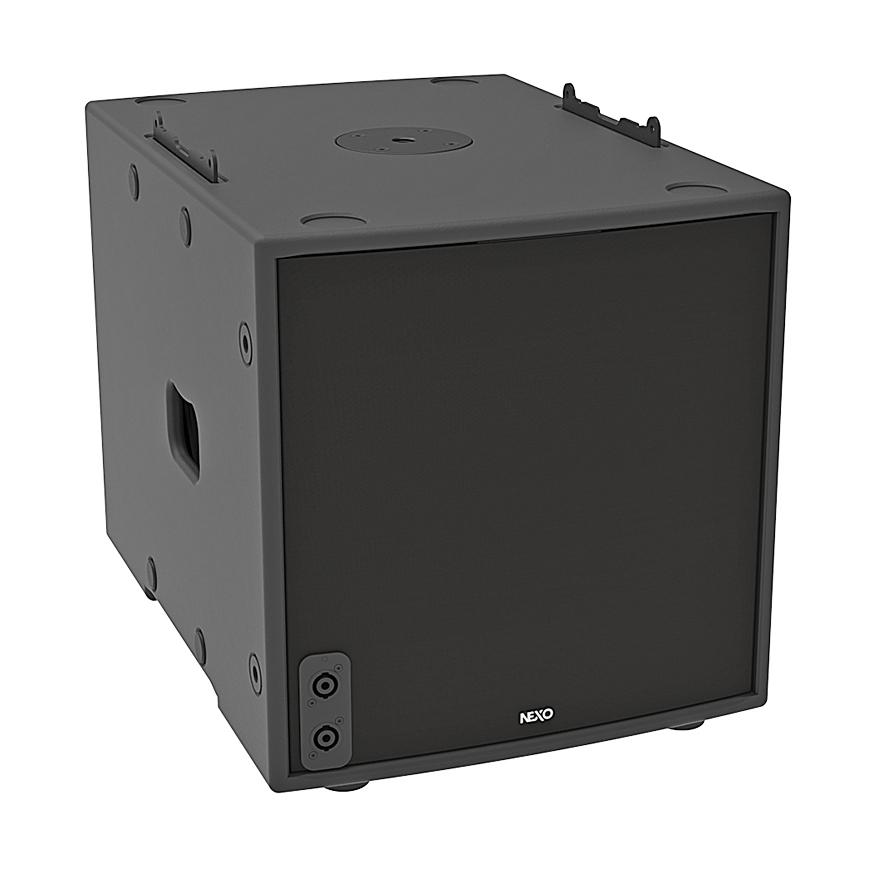

MSUB12 - Arrayable Sub, bass reflex, with 15” Neodymium driver.

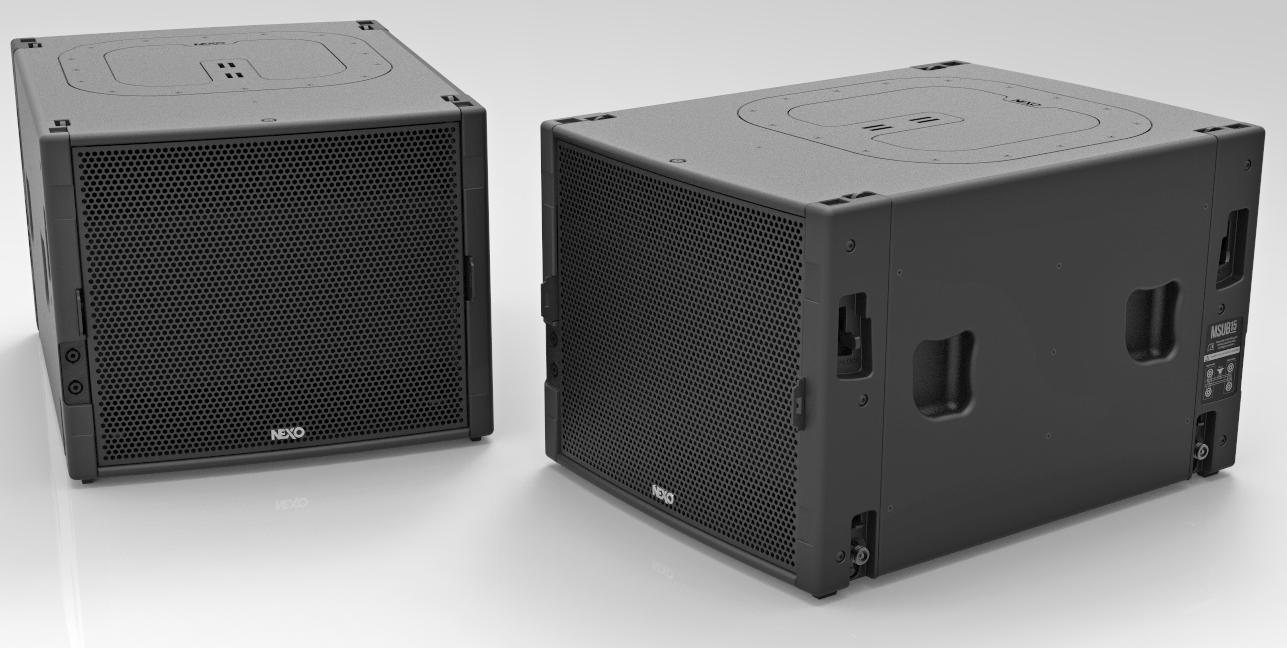

MSUB15 - Arrayable Sub, hybrid band pass, with 15” Neodymium driver.

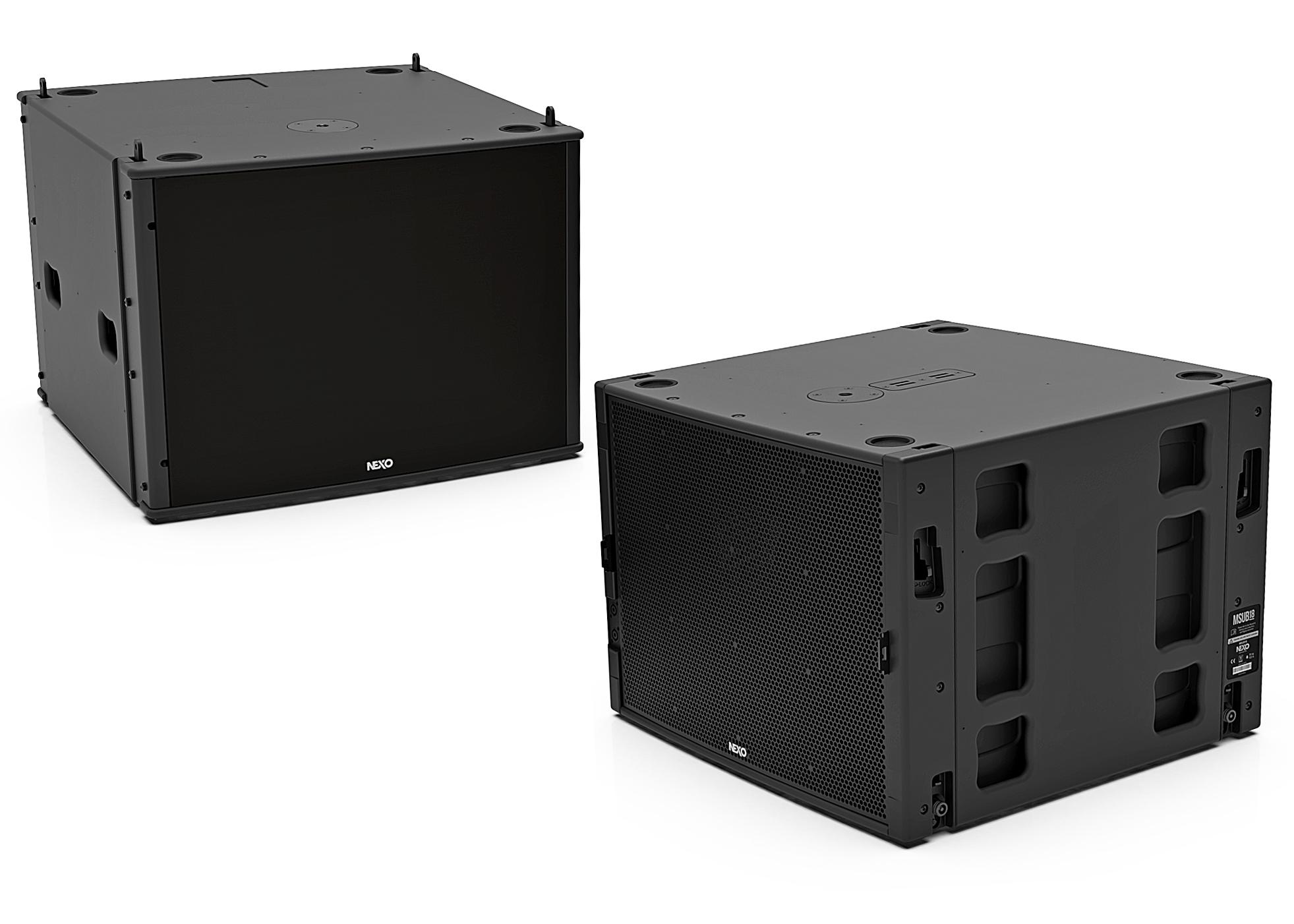

MSUB18 - Arrayable Sub, hybrid band pass, with 18” Neodymium driver.

Designing and configuring the perfect GEO M system is easy using free NS-1 software – a powerful and intuitive system configuration and simulation tool with an intuitive drag and drop interface, ensuring uniform SPL coverage of any NEXO system in any venue.

Whether ground stacked or flown, simple rigging angle adjustment and integral ‘Autorig’ systems make set up quick and easy whilst the ingenious ‘NEXOskeleton’ rigging system maintains cabinet integrity for safe flying.

The MSUB12, MSUB15 and MSUB18 sub-bass cabinets can be deployed in standard Omni mode with the option for cardioid set-up whether stacked or flown.

ACOUSTIC COUPLING OF CABINETS UP TO 20KHZ WITHOUT INTERFERENCE
NEXO’s patented Hyperbolic Reflector Waveguide converts the spherical wavefront generated by a high frequency compression driver into a flat or convex wavefront using an acoustic reflector, allowing speaker cabinet acoustical coupling without interference up to 20kHz.

REDUCED MID-BAND DISTORTION
Another NEXO innovation, the Phase Directivity Device (PDD) splits the radiating surfaces of an LF driver into two, essentially halving the acoustic distance between coupled devices, enabling crossover points with high frequency drivers to be increased by one octave which significantly reduces mid-band distortion.

VARIABLE DIRECTIVITY OPTIONS
Simple but extremely effective, the Configurable Directivity Device (CDD) superimposes flanges to a horn or waveguide to modify its dispersion, providing installers with a choice of 80° or 120° horizontal coverage.

PATENTED PORT PROFILE
NEXO’s patented cabinet vent profiling absorbs the radiated higher order harmonics that are detrimental to on-axis frequency response and consistent directivity (GEO M10 and M12 only).

LIGHTWEIGHT POLYURETHANE COMPOSITE CABINETS
Polyurethane composite cabinets moulded in a honeycomb configuration ensure that GEO M modules are exceptionally rigid and strong, while also being light in weight.

ONE AMPLIFIER POWERS UP TO 16 BOXES
With a variety of networking options, NEXO NXAMPMK2 powered TD controllers provide a flexible and cost effective power and processing solution. A single 4 channel amplifier can power up to 16 boxes and presets are instantly available for all NEXO cabinets, making it easy to mix and match GEO M systems in a single application.

TOURING OR INSTALLATION
GEO M10 and M12 modules are available in touring and installation versions. The Touring versions use a magnetically fixed front steel grill with a back mesh and the connection plate features NL4 connectors. The Installation versions keep the same acoustic design but come with a fixed front steel grid covered by an acoustic cloth. IP54 rated connectivity is made through cable gland and captive four core cables (IP Cover used on GEO M6).
