LD Systems Roadman 102HSB6 Portable Sound System
Click to expand

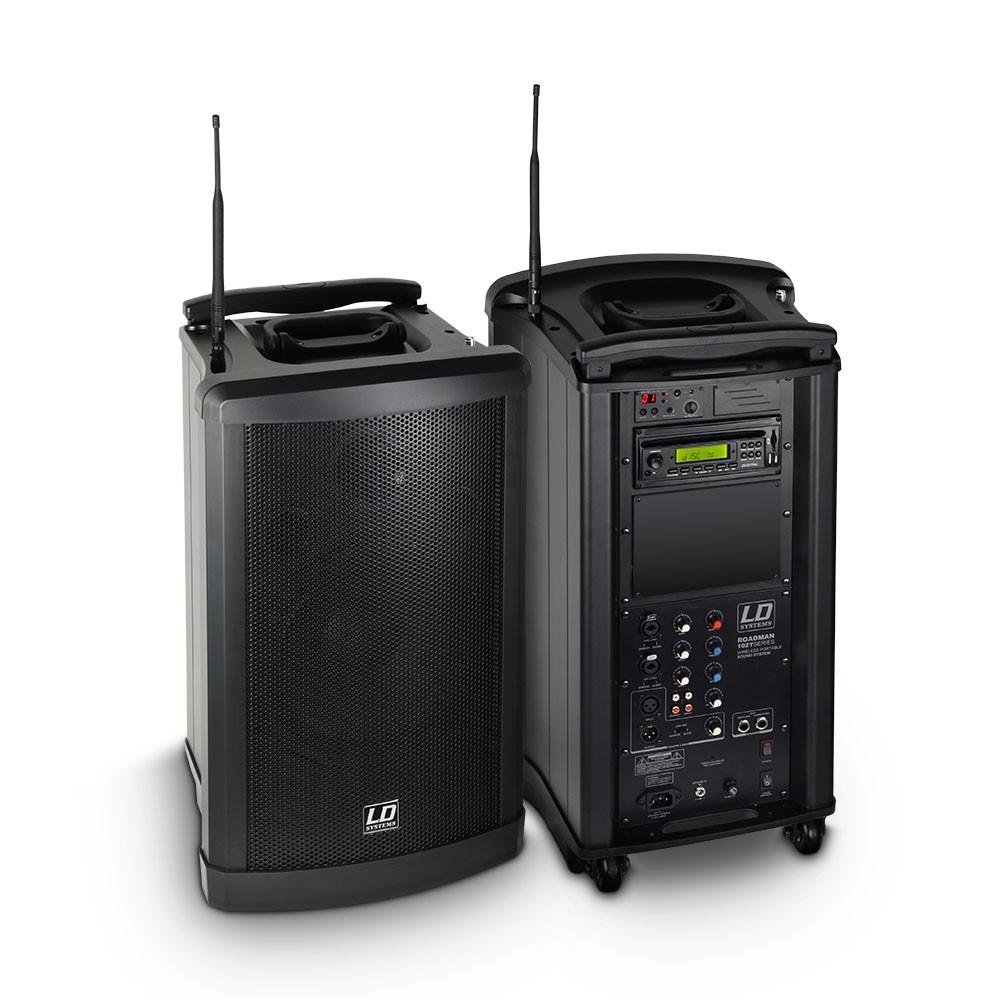

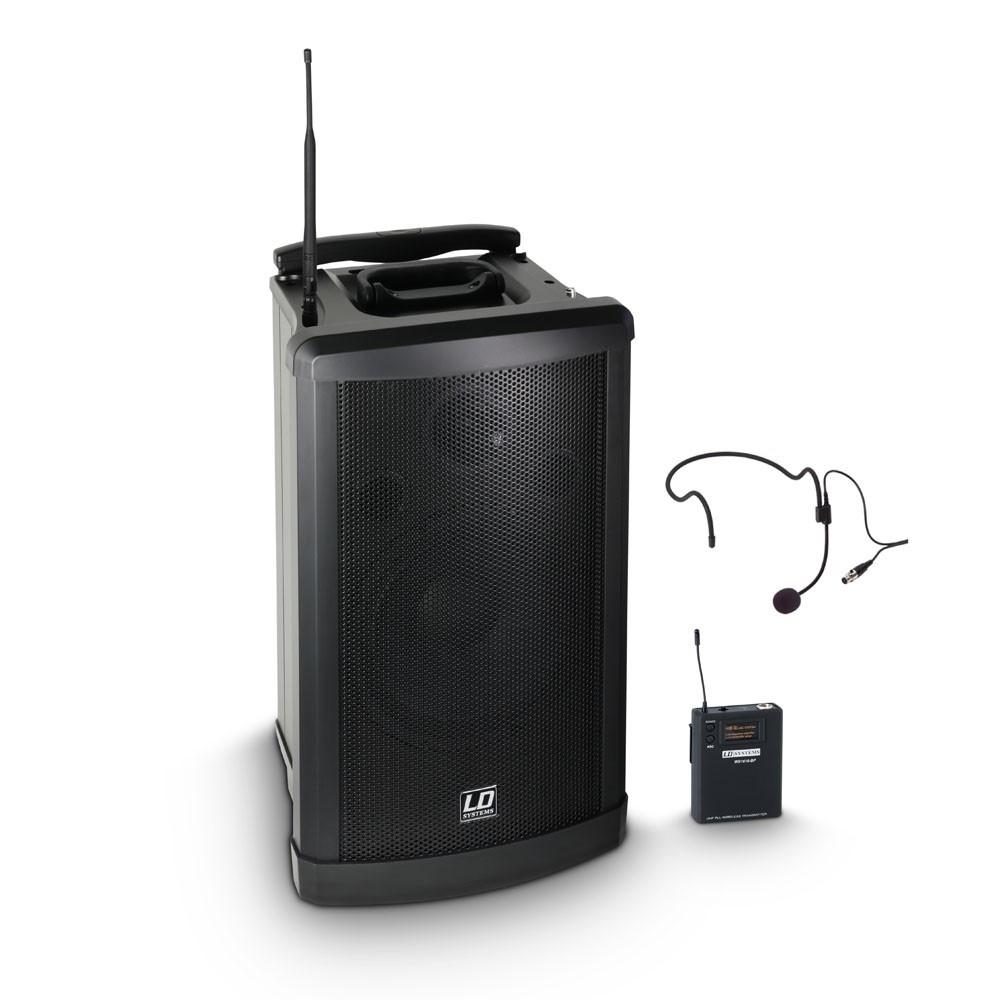

LD Systems Roadman 102 HS

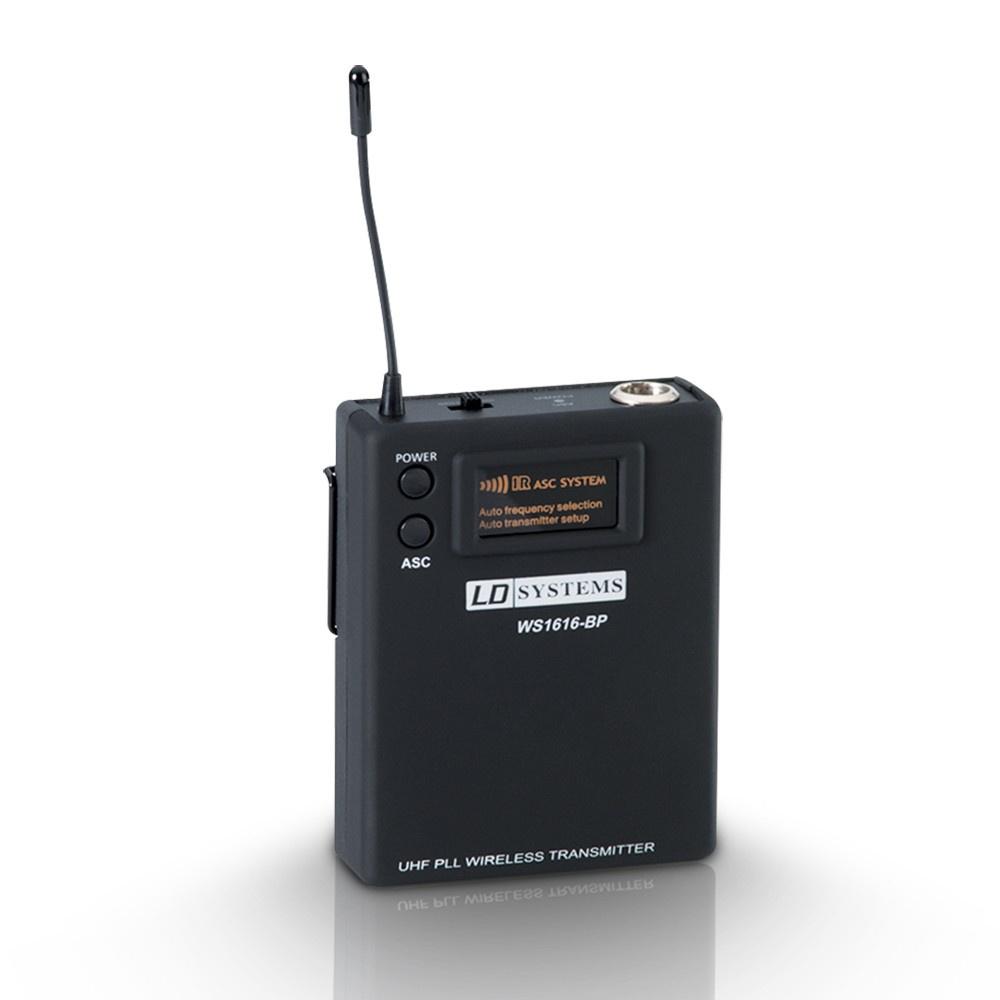

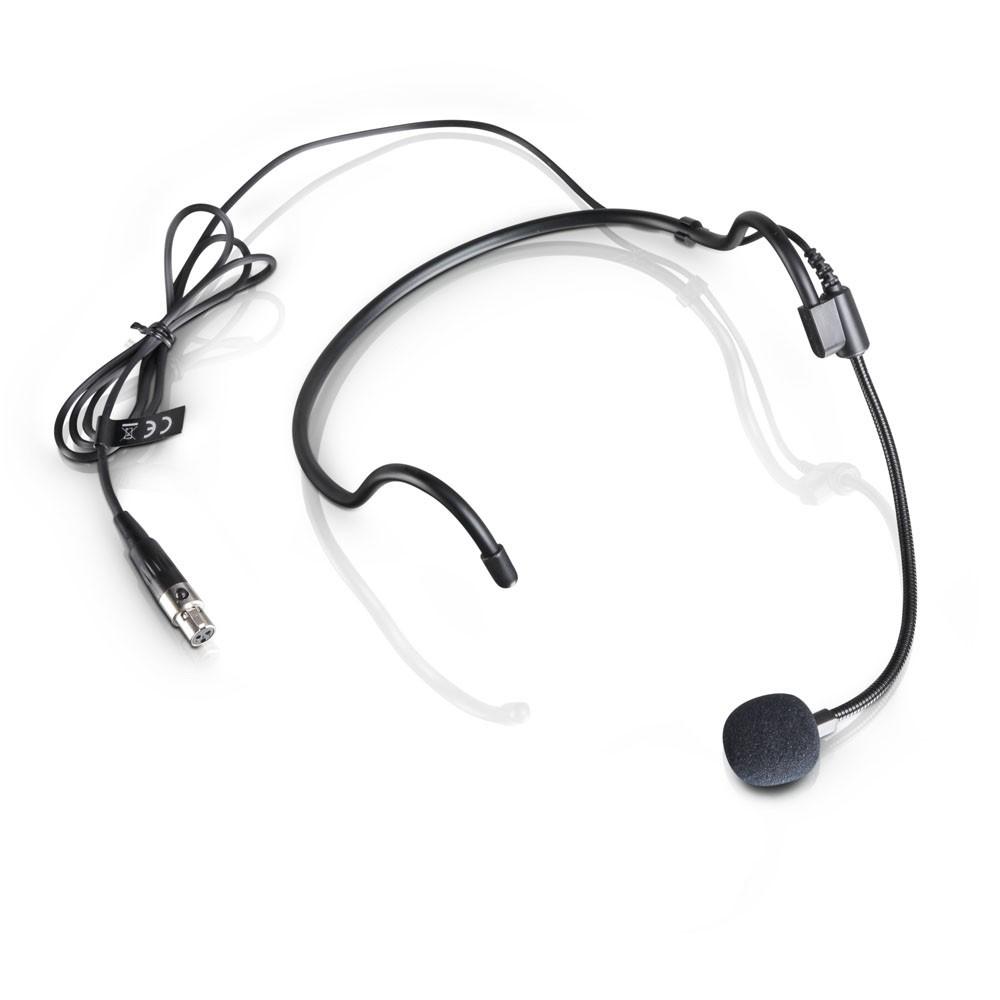

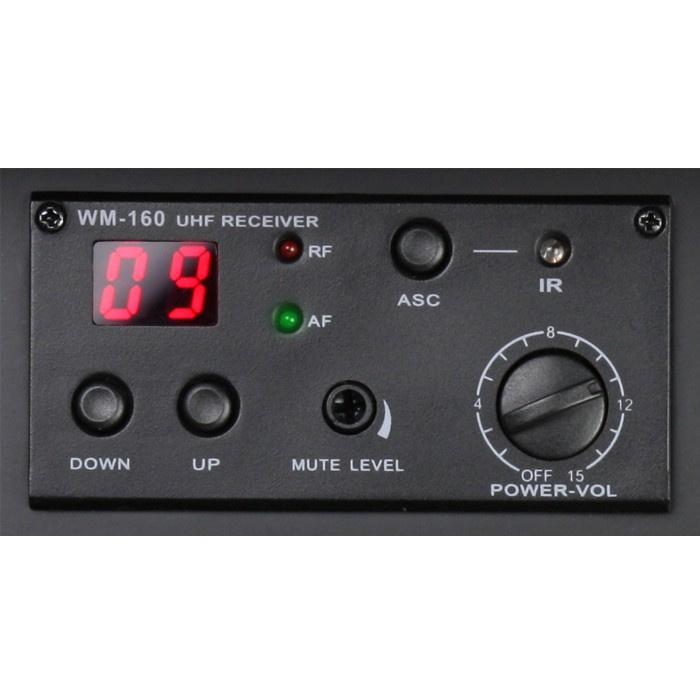

The LD Systems Roadman 102 HS portable PA sound system offers a mobile PA solution with integrated rechargeable battery, receiver module, wireless beltpack transmitter and headset mic. A second receiver can be fitted in order to add another wireless microphone. (Please see ‘Related Products’)

Limited stock available - please contact us for up to date availability.

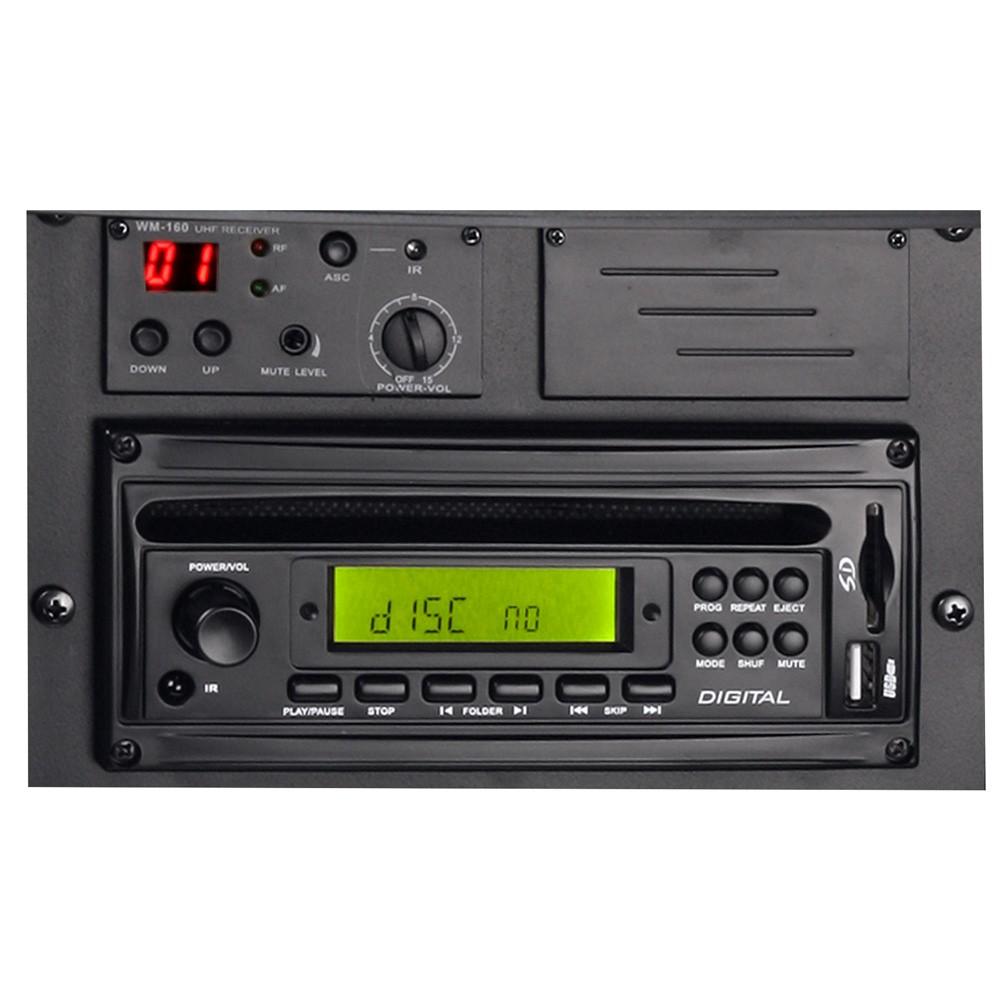

A CD player with SD card slot and USB input is also built in, providing playback options for not only audio CD’s but MP3 audio files as well. Playback functions & volume can be accessed directly on the unit or via the supplied infra-red remote control.

An Auxilary input and mic/line level combi inputs provide further playback options. There is a facility to link multiple Roadman units or an optional slave speaker can be added to expand the system for larger venues.

With an output power of 80 watts RMS, a 10” woofer and 1” HF driver, the Roadman102HS is ideal for solo entertainers, churches, schools, business conferences and presentations where versatility is required.

A voice priority switch enables automatic lowering of the music level when the microphone is used.

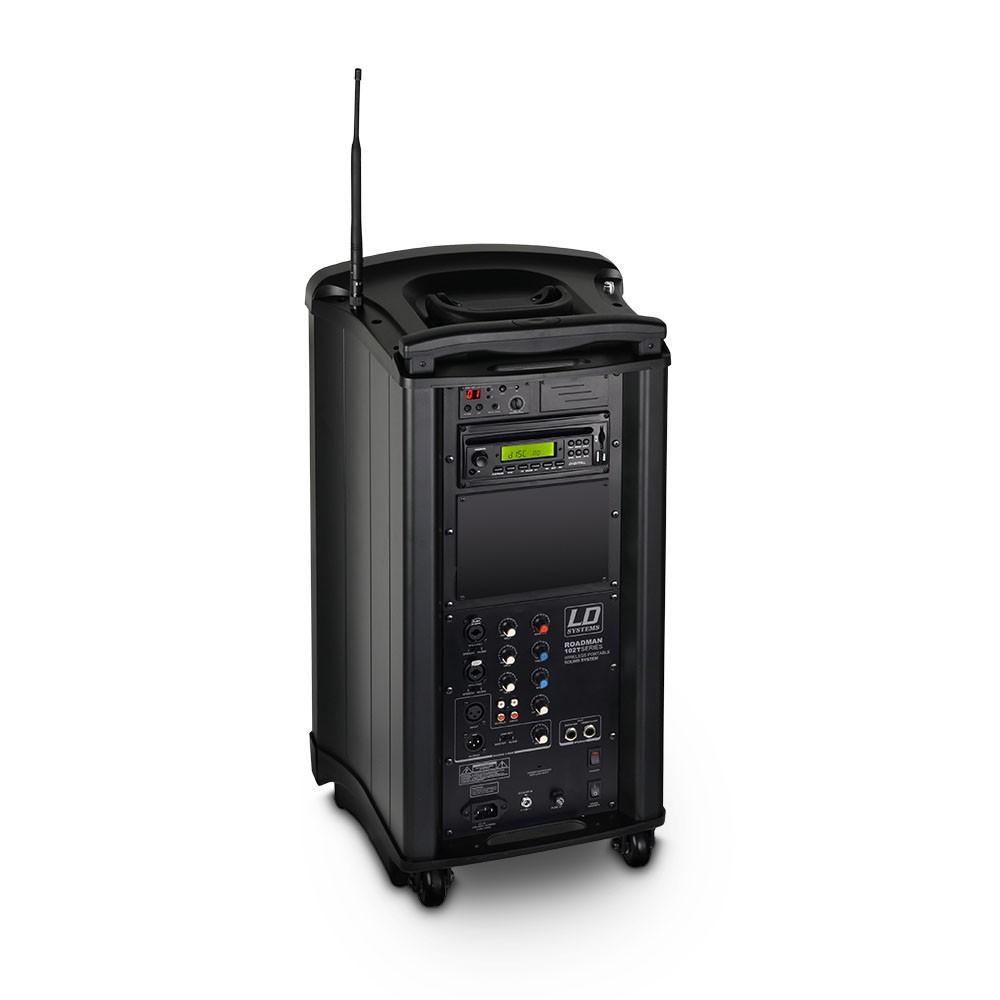

A retractable handle and castor wheels facilitate easy movement and storage of the unit.

Use freestanding or mount on a speaker tripod stand via the 36mm pole mount in the base.

  • Warranty: 2 Years
CH70 UHF SD USB Wireless
Log in for Trade Prices

Please contact us for availability

CONTACT US

SPECIFICATIONS

Low/mid Woofer dimensions

10 " / 254mm

HF driver dimensions

1 " / 25.4mm

Output Power

RMS: 80W / Peak: 320W

Frequency response

70Hz – 16000kHz

SPL (1W/1m) / Max

95 dB / 115 dB

Protection circuits

Short circuit

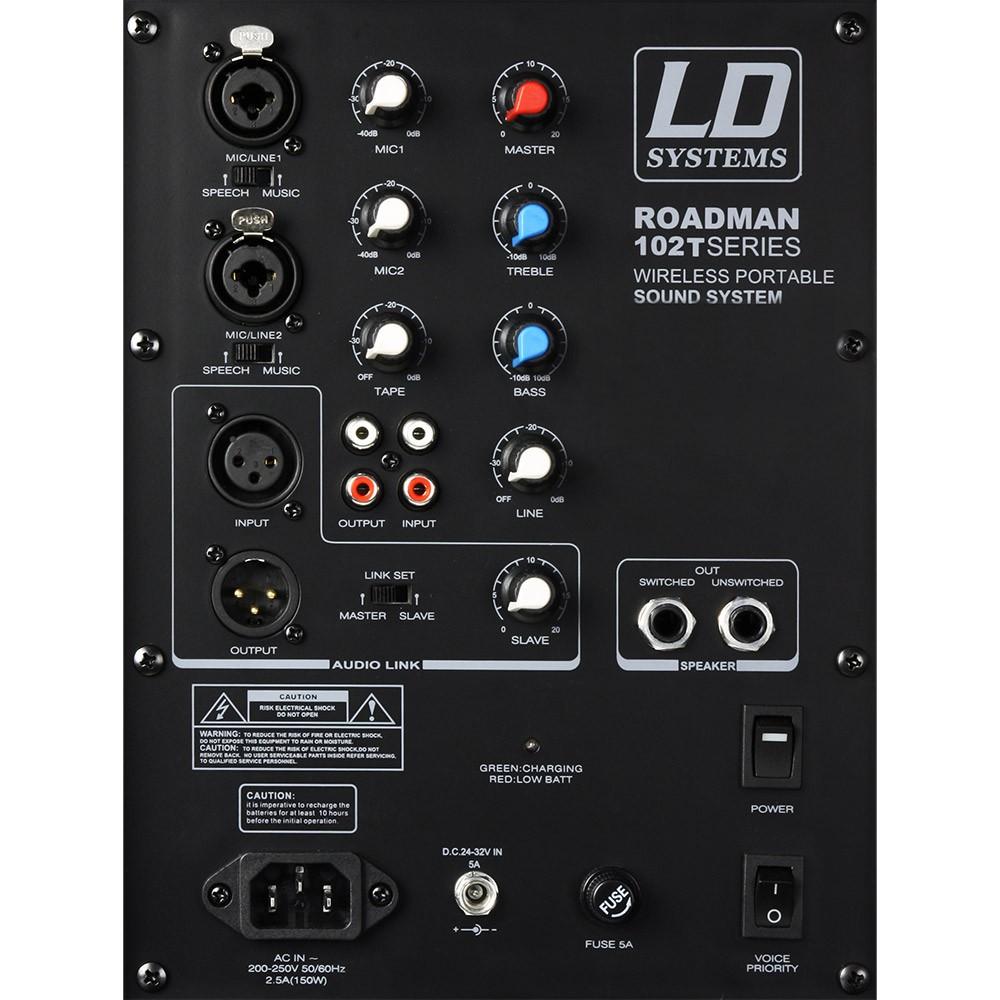

Controls

Audio-Link Follower Volume, Audio-Link Set ( Main / Follower), Bass, Line Gain, Main, Power, Speech / music switch (Mic / Line 1), Speech / music switch (Mic / Line 2), Treble, Value Down, Voice priority on / off, Volume Mic 1, Volume Mic 2

Indicators

Charge/battery status, Power

Supported media

Audio-CD, CD-R, CD-R/W, SD Card, USB stick

Supported formats

Audio-CD, MP3 file, MP3-CD, WMA file, WMA-CD

Media player controls

CD ejector, Folder -, Folder +, Mode (CD / SD / USB), mute, Next Track, Play / Pause, Power / Volume, Previous Track, Program, Repeat, Shuffle, Stop

Transmission frequency range

863 - 865MHz

Mic / Line inputs

2 x RCA line, 2 x mic/line XLR/6.3 mm jack combi, 1 x Audio-link input XLR

Line Outputs

2 x RCA, 1 x Audio-link input XLR

Loudspeaker Outputs

1 x 6.3mm jack Speaker Out Switched,
1 x 6.3mm jack Speaker Out Unswitched

Rechargeable batteries

2 x 12 V / 5 Ah

Construction

Bass Reflex Aluminium & Plastic cabinet

Height x Width x Depth

610 mm x 355mm x 315mm

Weight

19 kg
