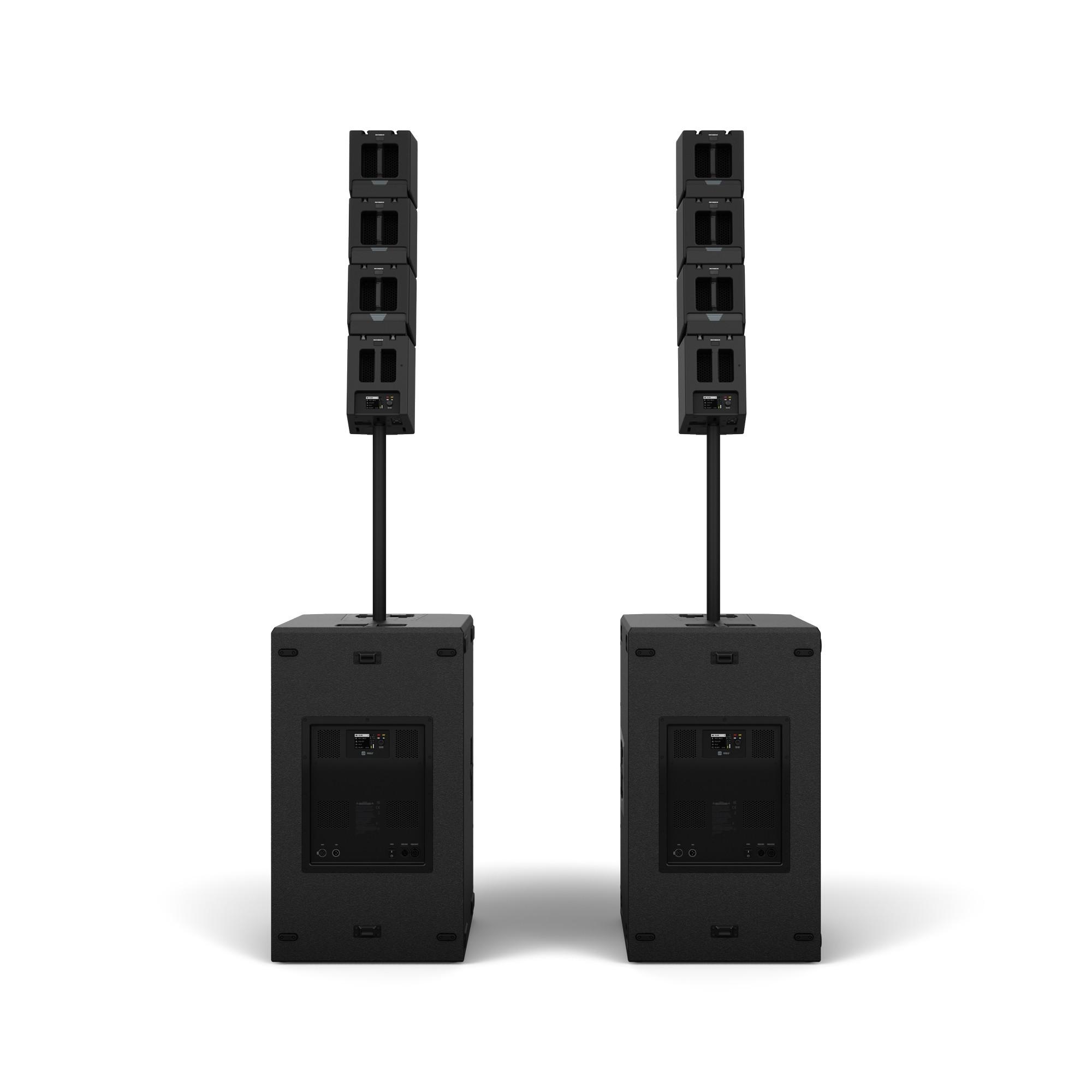

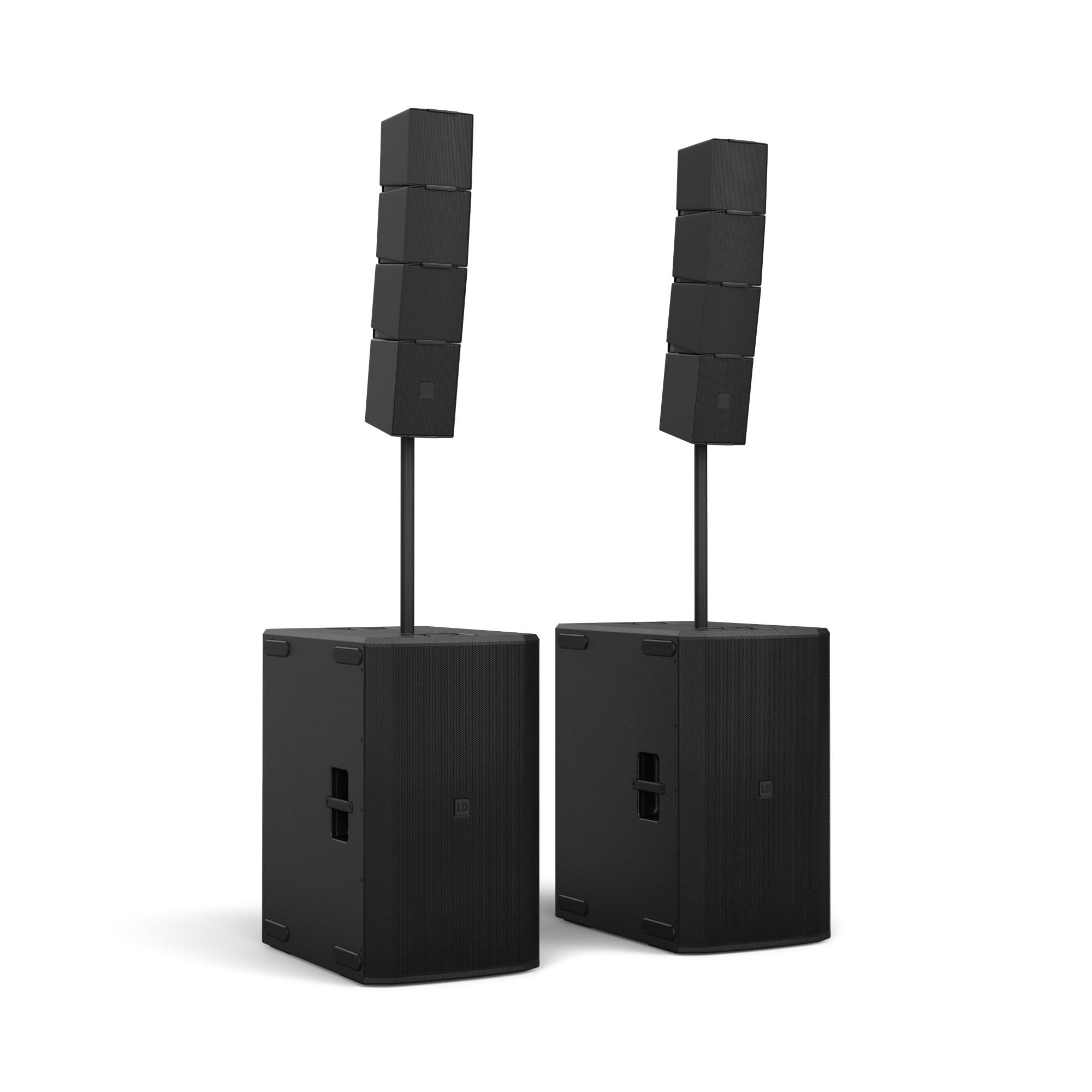

LD Systems MAILA S, the smallest MAILA configuration, is a ground stack, extremely powerful, active full-range stereo system. Each side of the stereo set up consists of one MAILA SUB 2x15'' high-performance subwoofer with cardioid function, three MAILA SAT satellites and one MAILA SPA amplifier module, which drives the satellites.

MAILA S, with its output power of 7500 Watts RMS, combines various acoustic concepts to maximise power and sound quality from an exceptionally compact and versatile PA system.

The MAILA SUB 2.5 kW 2x15'' high-performance subwoofer uses a bandpass design and delivers a massive and powerful bass foundation with its newly developed SysCore® DSP.

The elegant aluminium unibody MAILA SAT satellites feature Advanced WaveAhead® technology where five 1'' tweeters are placed in front of a 6.5'' midrange driver and coupled without interference via the SonicGuide® (two combined waveguides). The integrated passive membrane provides extended punch down to 100 Hz producing a classic line array dispersion with impressive throw.

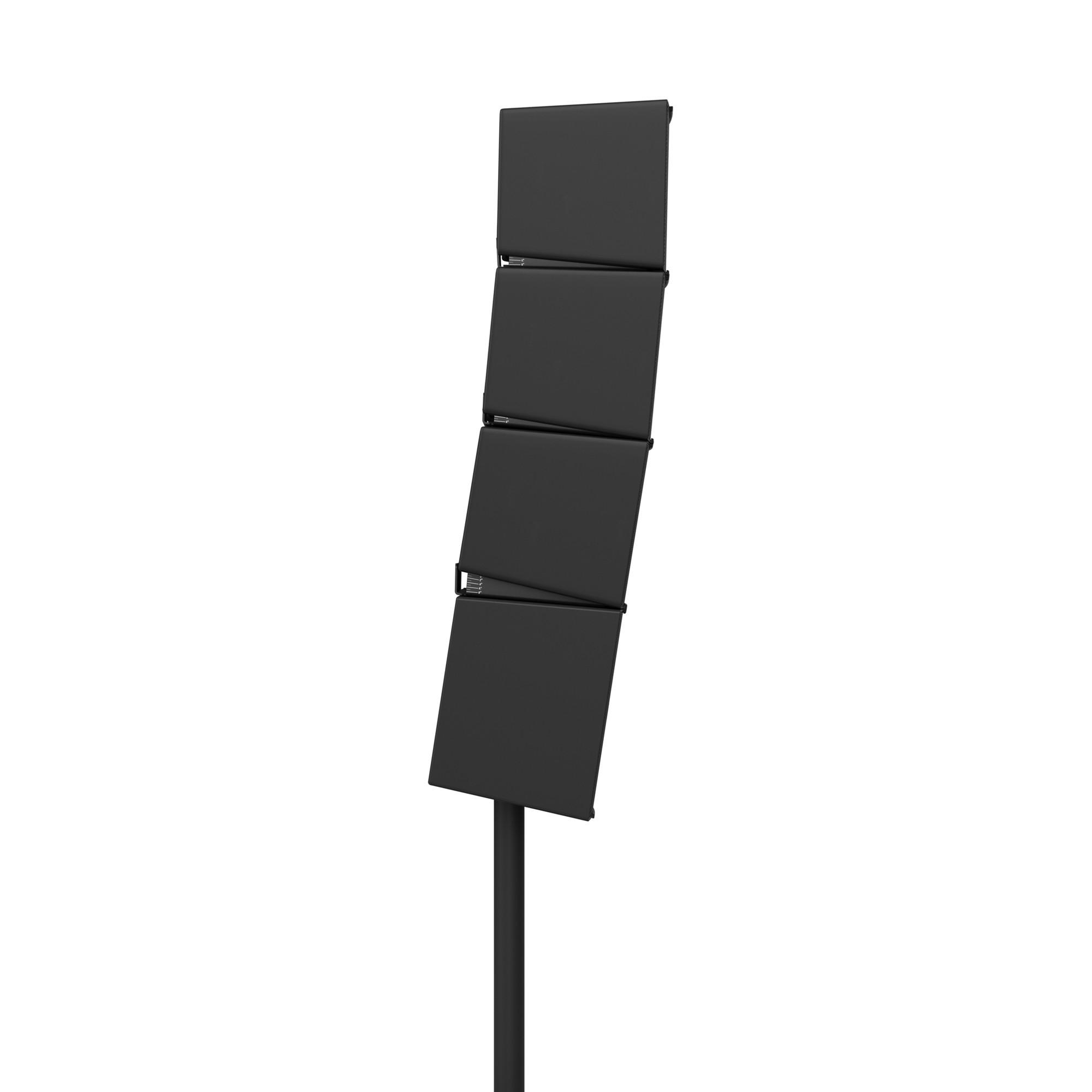

The angle of each MAILA SAT is easily adjusted via the EasySplay® mechanism - a rotating handle on the rear enables simple continuous adjustment of each individual satellite from 0° to 8°. The angle can be adjusted with just one hand, even under load.

The MAILA SPA amplifier module with its SysCore® DSP can control up to eight MAILA SAT’s enabling the system to be expanded upon in the future. The connection between SPA and SAT as well as between each of the satellites is completely cable-free via the newly developed SmartLink+® rails. It can be ground stacked or flown (with a separately placed subwoofer). In this way, MAILA S covers small conferences and lectures just as effortlessly and precisely as DJ performances at festivals and corporate events or a small live band.

Every MAILA system can be adjusted directly on the device or via the free MAILA app (iPadOS) with software updates wirelessly. Based on the integrated LogoLink® Wireless Connection where wireless antennas are invisibly integrated into the LD logos, operating ranges of up to 30 metres are no problem for MAILA under practical conditions. Once connected, the app automatically detects the available MAILA components and enables the system to be set up quickly and easily - including calculation of the SAT angles.

The MAILA S package includes:

• 6x MAILA SAT satellite
• 2x MAILA SPA amplifier module
• 2x MAILA SUB subwoofer
• 2 x MAILA POLE DB distance rod
• 2 x MAILA FC1 (Flight case for SATs
• 2 x MAILA SUB CB (SUB castor board)
• 2 x MAILA SUB PC (SUB padded cover)
• 4 x power cable.
