LD Systems SAT 62 G2
Click to expand

LD Systems SAT 62 G2

The LD Systems SAT 62 G2 black, 2 way, cabinet speakers are extremely compact and reliable, ideal for background music in bars and restaurants, retail shops or even at home.

Supplied and priced by the pair.

The bass-reflex design with a 6.5" custom woofer and a 1“ silk dome tweeter with wave guide provides a powerful and rich reproduction throughout a frequency range of 55 Hz - 20 kHz with a sound-level pressure of up to 108 dB. Rated at 80W RMS. 16 ohm impedance permits parallel operation of eight SAT62G2 speakers on 2 ohms.

Suitable for full-range use or can be paired with a subwoofer from the LD installation series.

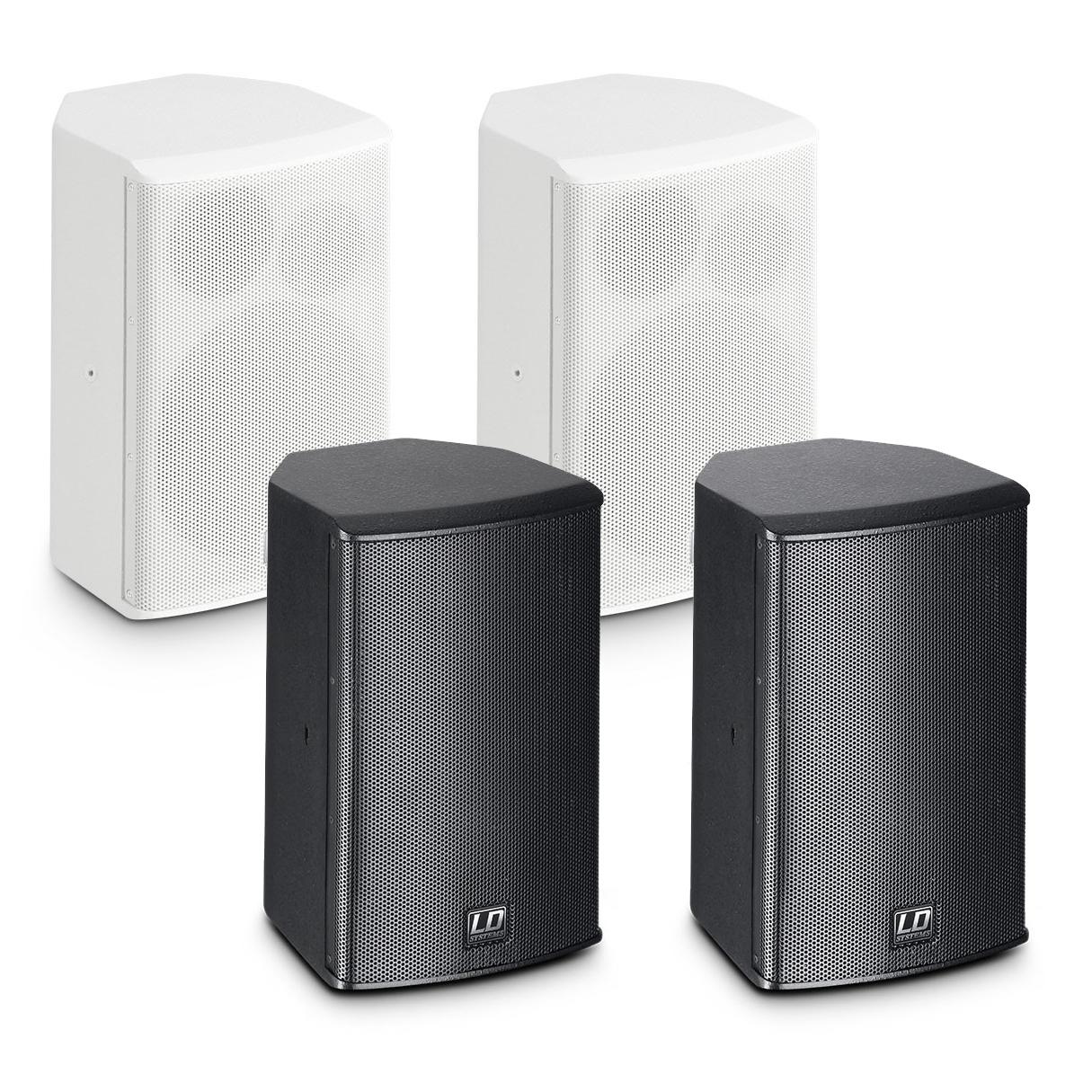

The SAT62G2 is constructed from 12 mm MDF with a rugged textured coating in black. Also available in white.

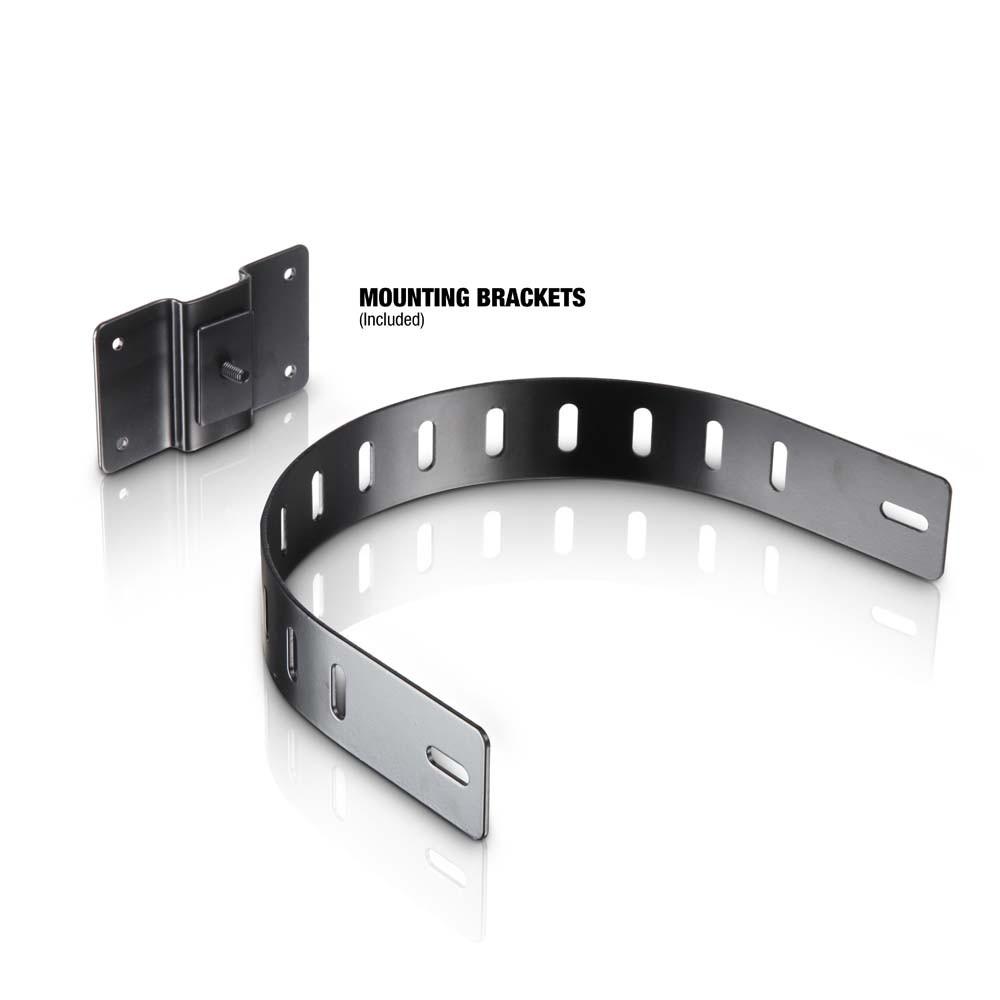

A mounting bracket is included and M6 rigging points offer extensive mounting possibilities; a universal joint mount is available as an accessory. See SAT WMB 10 B.

  • Item number: LDSAT62G2
  • Warranty: 2 Years
1g: 16ohms
List Ex VAT: Contact Us
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Low/mid Woofer dimensions

6.5" / 165 mm

Tweeter dimensions

1" / 25 mm

Dispersion

60⁰ x 60⁰

Load Rating

80W RMS

Impedance

16 Ohms

Frequency response

55 - 20000 Hz

SPL (1W/1m) / Max

89 dB / 108dB

Cabinet material / colour

12mm MDF / Black or White

Height x Width x Depth

320 mm x 200 mm x 200 mm

Weight

8.2 kg
