LD Systems ICOA 15 A BT W
Click to expand

LD Systems ICOA 15 A BT W

The LD Systems ICOA 15A BT W is an active 15" full-range loudspeaker with built-in Bluetooth decoder and impressive sound even at low frequencies. The versatile coaxial design, rotating, BEM-optimised CD horn and extensive and precisely calibrated DynX DSP presets means it is exceptionally flexible. Finished in white but also available in black, both models also available without Bluetooth - see related products.

The horn-loaded woofer's outstanding bass reproduction makes the ICOA 15A BT W powered loudspeaker the ideal choice for dance schools, musicians, bands and entertainers. It also allows DJs to play sets without the need for a subwoofer.

It’s also ideal for fixed installations. Deployed vertically, the speaker impresses as a satellite; horizontally, it's excellent in suspended systems or as a floor monitor. The efficient Class-D power amplifier delivers a maximum sound pressure level of 128 dB peak and 1200 Watt peak performance.

Drawing on DynX DSP technology by LD Systems, the speaker delivers perfect performance with maximum clarity and power under all conditions. 4 presets, a 3-band EQ and a delay function facilitate optimal adjustment of the sound to the venue conditions. The 2 line/mic input channels with individual gain controllers, plus mono mix output, allow a variety of signal sources to be connected.

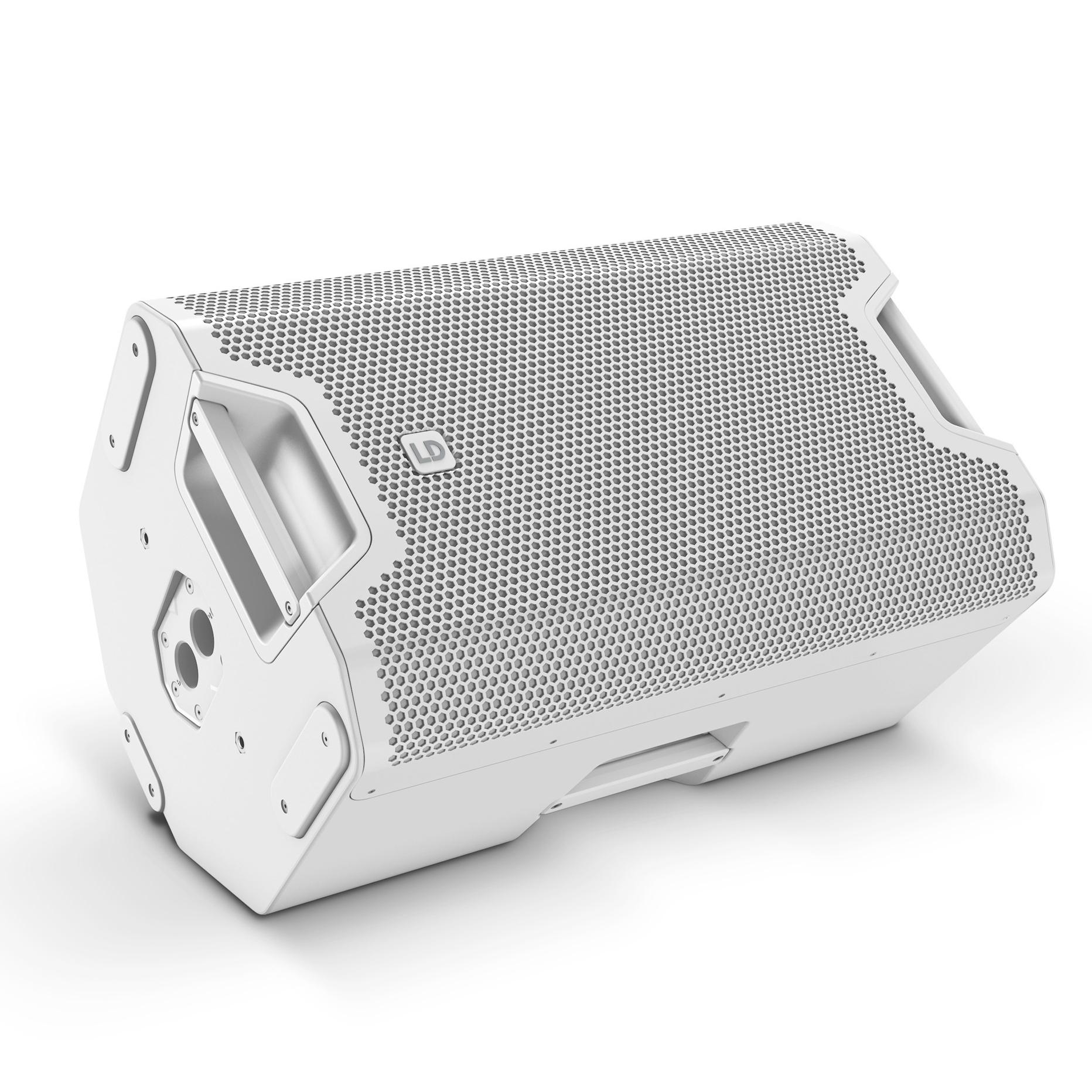

The shock-resistant front grille and 55° tilt angle make the ICOA15ABTW the perfect choice as a floor monitor. Placed vertically, the 36 mm dual tilt stand attachment offers the choice of a 0° or 5° tilt angle for optimally adapting the system to the local acoustic environment.

For mobile use, four aluminium handles with an ergonomic rubber surface provide optimal grip when carrying the speaker and an extensive selection of smart accessories for installation and transport are available separately.

  • A genuine all-rounder for full-range, satellite and monitor applications
  • Bluetooth 4.0 decoder
  • 128 dB max. SPL and 1200 W peak power
  • Vertical and horizontal use thanks to coaxial design with rotating, BEM-optimised CD horn (Patent pending)
  • Horn-loaded woofer
  • DynX DSP with 4 presets, 3-band EQ and delay function
  • 2 line/mic input channels with individual gain controllers plus mono mix output

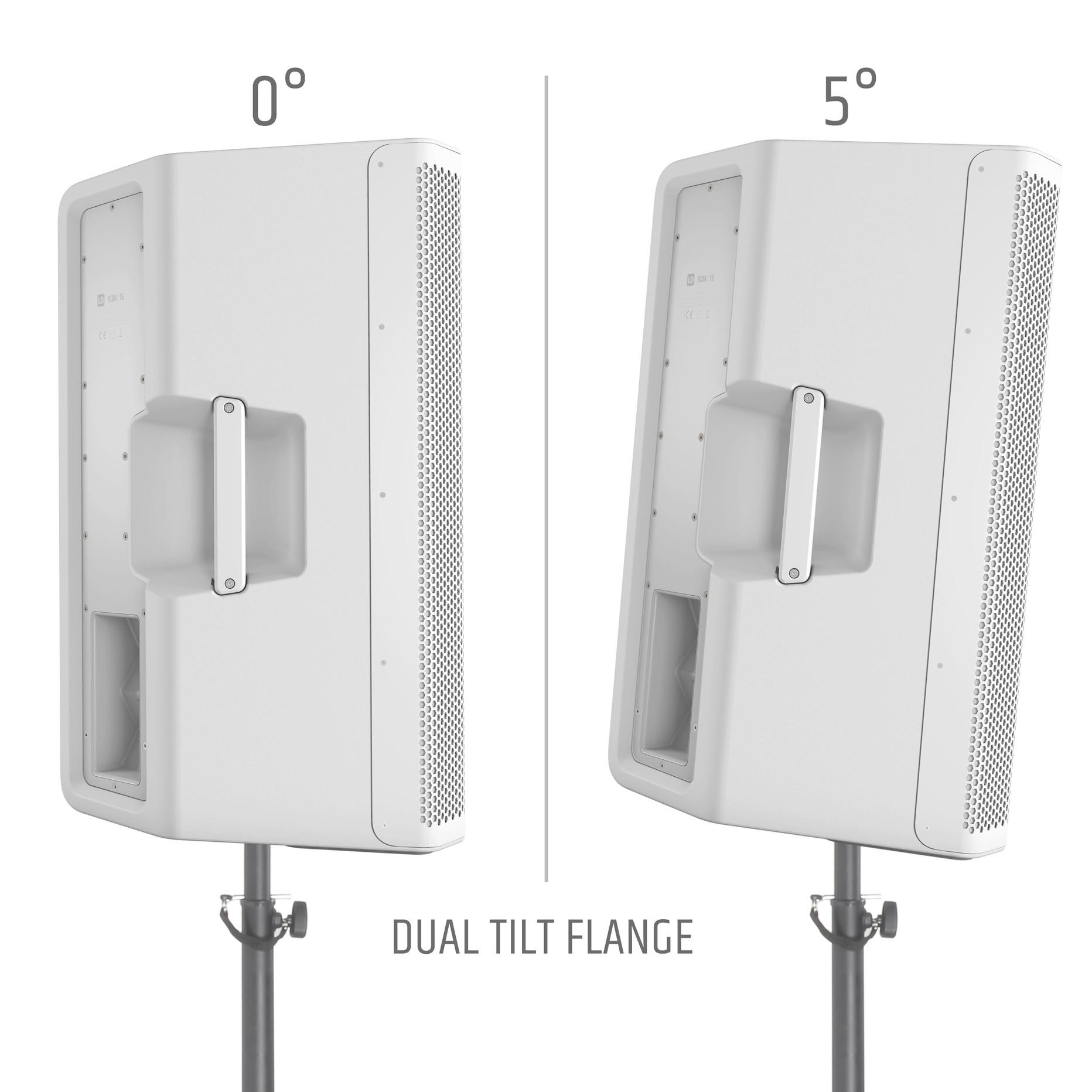

  • 36 mm dual tilt stand attachment with 0° and 5° tilt angle, 55° monitor angle with sturdy stand
  • 6 x M10 flying points
  • Shock-resistant front grille for optimal protection of the speaker
  • 4 aluminium grips with ergonomic, rubber surface
bluetooth
List Ex VAT: Contact Us
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Low/mid Woofer dimensions

15 " (381 mm)

Horn

BEM optimized CD Horn

HF driver dimensions

1 " (25.4mm) + 1.4 " (35mm) Voice Coil

Dispersion (H x V)

90° x 50°

Amplifier

Class-D

System Power (RMS)

300 W

Peak power

1200 W

Frequency response (Hz)

48 - 20000

Crossover frequency kHz

2 kHz

Max. SPL

128 dB

Protection Circuits

Multiband limiter, over voltage, over-current, thermal overload

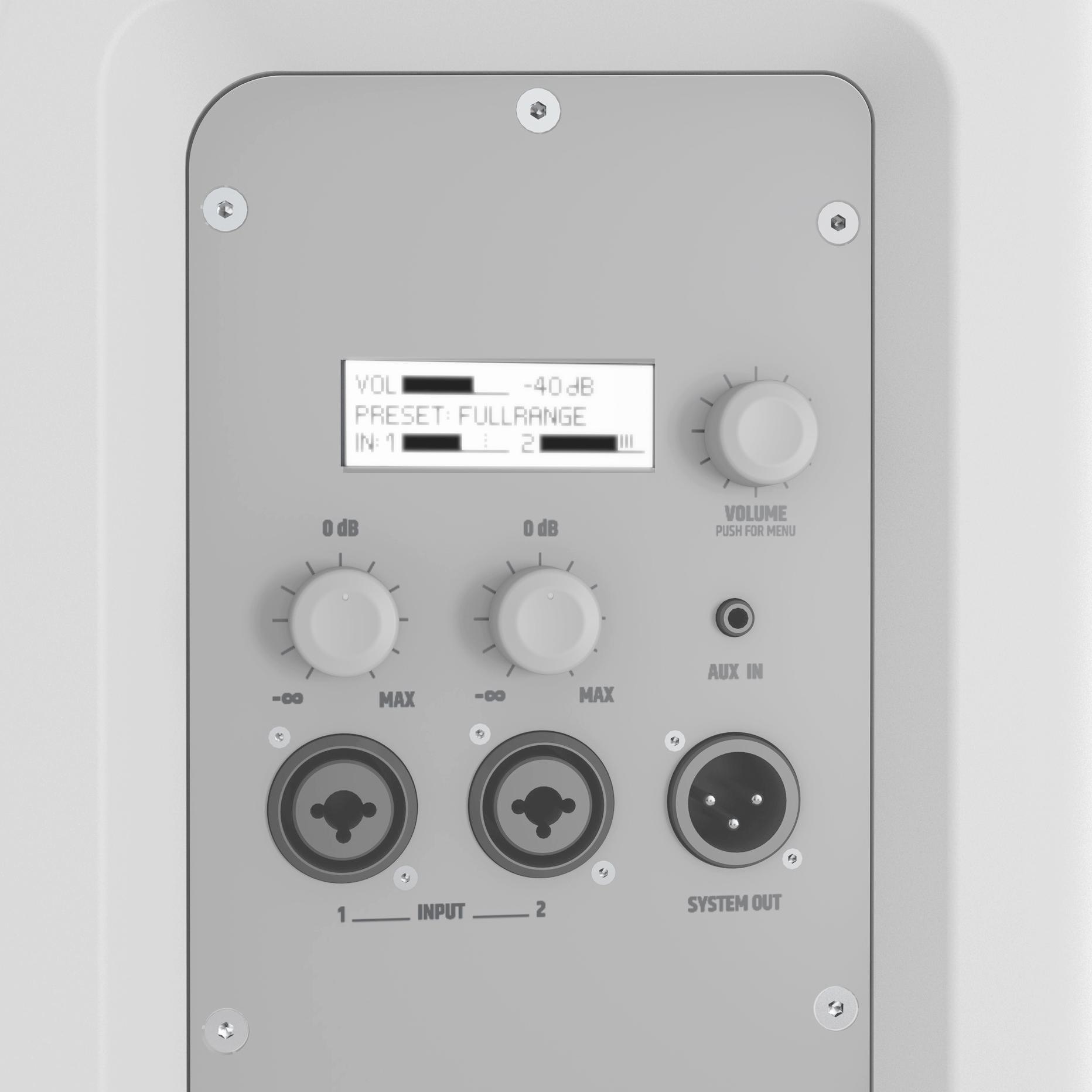

Controls

2 x gain, On / off switch, Rotary/push encoder

Mic / Line Inputs

2 x 6.3 mm jack Combination sockets (symmetrical), XLR

Line Input

1 x 3.5mm TRS

Line output

1 x XLR

Operating Voltage / Power consumption

100 V - 240 V AC / 50 - 60 Hz / 150W

Cabinet material

Polypropylene

Cabinet construction

Bass Reflex

Mounting

36mm flange (0°, 5°), 6 x M10 flying points

Height x Width x Depth

695 mm x 416 mm x 415 mm

Monitor Angle

55°

Weight

24.3 kg
