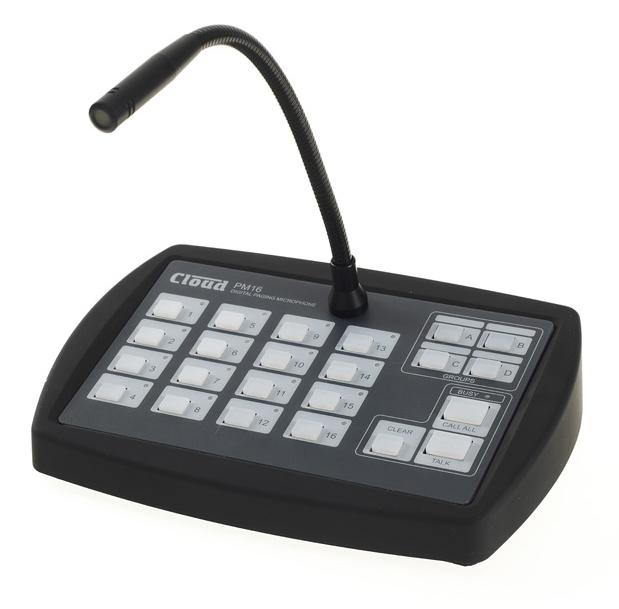

Cloud Electronics PM16
The Cloud Electronics PM16 is a 16 Zone paging microphone for use with Cloud Electronics mixers as well as non-Cloud products.
The Cloud PM range of paging microphones is primarily designed to provide zone paging facilities when used with the Cloud zoning mixers and multi-zone Mixer Amplifiers (via analogue interface).
They are also compatible with any products that offer “closed contact access” for paging purposes.
Four models are available and they differ only in the number of zones which can be paged, and therefore how many zone selection buttons are available on the microphone.
PM4 - 4 Zone paging microphone
PM8 - 8 Zone paging microphone
PM12 - 12 Zone paging microphone
PM16 - 16 Zone paging microphone
- High quality dynamic mic mounted on 300 mm gooseneck – windshield included. (Alternative 140 mm gooseneck also available)
- Individual and multiple zone selection
- User-definable or fixed zone groups with dedicated group selection buttons
- Group lock (internal jumper) prevents alteration of group definitions
- LED confirmation of all zone selections
- Legend area on panel for zone labelling
- ‘TALK’ and ‘CALL ALL’ buttons
- Adjustable mic level
- Choice of four pre-announcement chimes, with internal sounder and adjustable level
- ‘BUSY’ LED
- Configurable two-layer announcement priority system
- Auto zone reset after announcement (installer-selectable)
- Installer-selectable Zone disable function
- Zone offset function – permits PM4/8/12 units to address any consecutive subset of zones
- Cloud Digital Paging Interface (via CAT-5)
- Analogue interface with short-to-ground contacts
- Compatible with Cloud DCM1 Digitally Controlled Mixer (via Digital Paging Interface)
- Up to 32 PM units of any type can be daisy-chained over 1 km of CAT-5
- Compatible with Cloud Z4II, Z8II, CX163 and CX263 Zone Mixers, and 36/50 & 46/50 Multi-zone Mixer Amplifiers (via analogue interface)
- Compatible with third-party equipment equipped with short-to-ground access connectors
- No internal mains - powered by external PSU or via Digital Paging Interface
