AMC iPlay 5TW Archived
AMC iPlay 5TW Archived
Click to expand

AMC iPlay 5TW Archived

This product is no longer available. Please contact us for help in finding a suitable alternative.

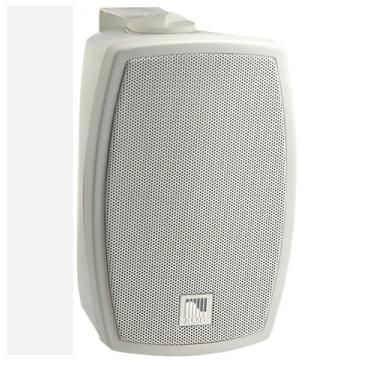

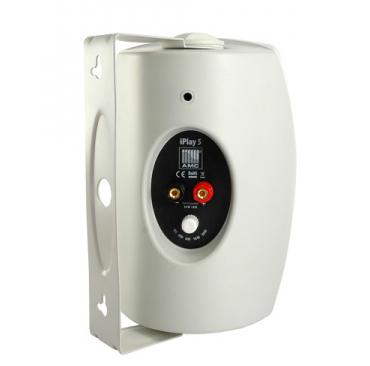

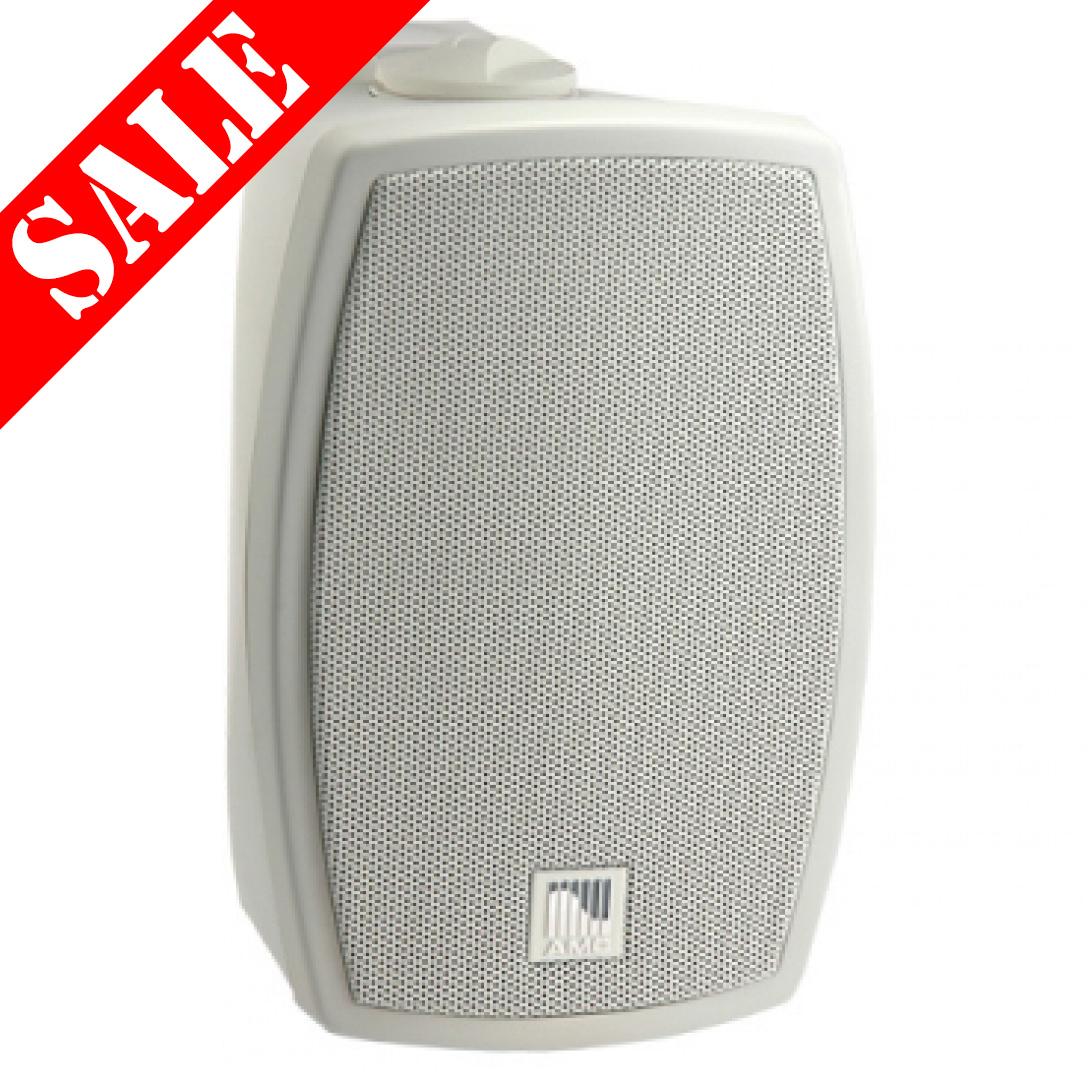

The AMC iPLAY 5TW wall mounted background music speaker is suitable for both 100 volt line distributed sound systems as well as 8Ω, low impedance music systems. Rated at 35 watts, 8 ohm and 30 watts, 100 volt line.

The cabinet is constructed from polypropylene with an aluminium grille and houses a 5" woofer with 1" tweeter.

White - iPlay-5TW and supplied with a wall mounting bracket.

1a: 100V 1e: 8ohms
List Ex VAT: Contact Us
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Rated Power: 35W (8 Ω)
Transformer Power Taps 30W - 16W - 8W - 4W - 8 Ω
Sensitivity 89 dB (1W/1 m)
Maximum SPL 109 dB (Pmax/1 m) at 5573 Hz
Frequency Response: 120 Hz – 20 kHz
Dispersion at 1000 Hz 180° (H), 160° (V)
Driver dimensions 5" (101 mm) woofer, 1" (25 mm) tweeter
Dimensions 240 mm x 165 mm x 160 mm
Weight 2.2 kg
Material Polypropylene housing with aluminium grill, U-bracket – steel
Colour Papyrus white (RAL 9018) or Black (RAL 9017)
