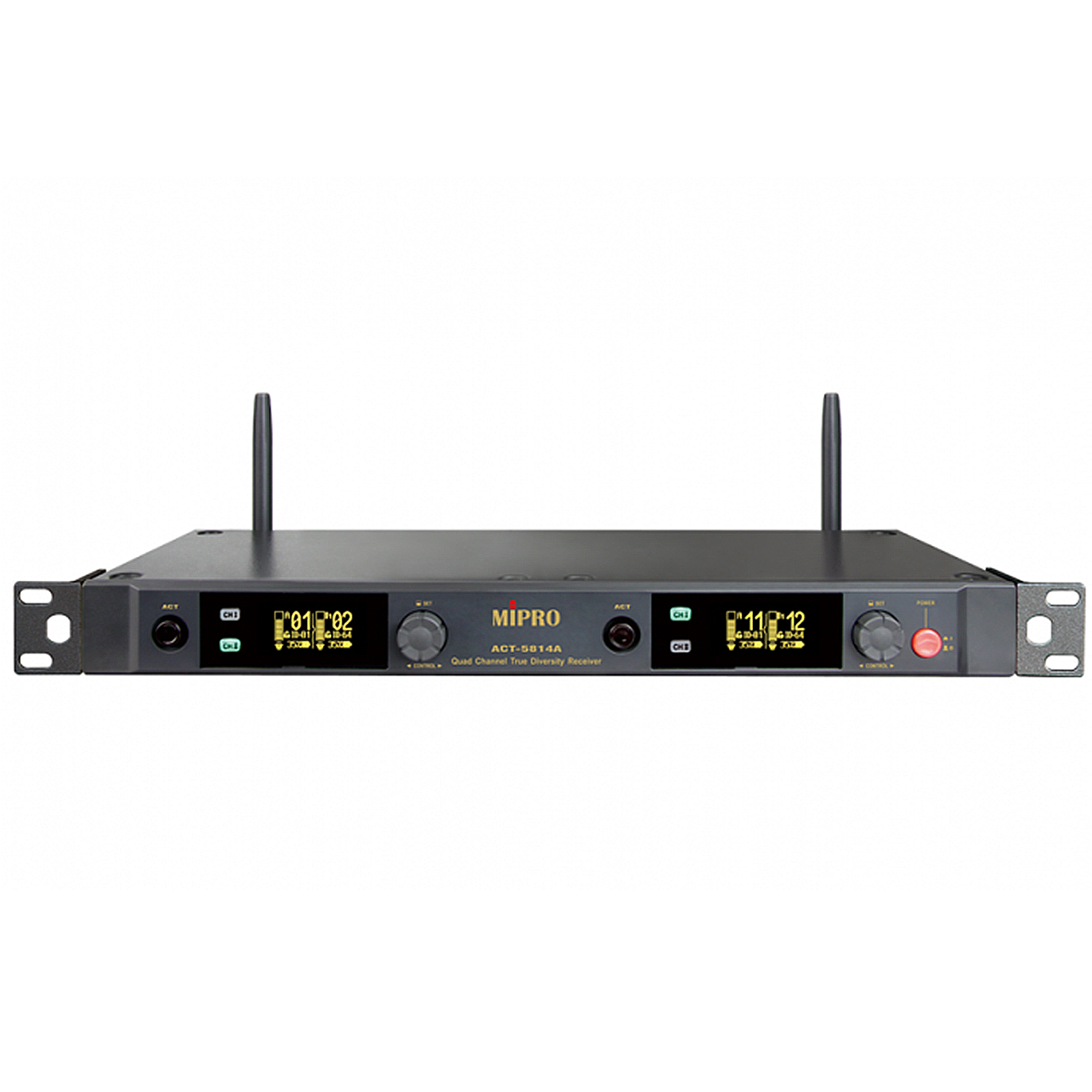

The Mipro ACT-5814A quad channel digital wireless receiver operates in the 5.8GHz band with true diversity reception and offers a range of up to 100m.

Licence free.

Stable digital modulation circuitry with 12 channels of interference free operation are located in a single frequency band.

Quad tuner true diversity receiving ensures long reception distance and eliminates signal drop-out.

The neat 1U receiver can be mounted in a rack using optional rack mount brackets, FB-72, as shown in the third image. Once in a rack, reception can be improved by mounting the antennas onto the rack ears in conjunction with FBC-72 rear to front antenna cables. See related products.

Please see related products for suitable microphone transmitters as well as other receivers in this range.

• 1U metal chassis with detachable rear mounted antennas.
• MIPRO’s unique control panel features a graphic OLED display for a wide viewing angle.
• Stable digital modulation circuitry. All frequencies are located in a single frequency band.
• Dual tuner true diversity receiving ensures long reception distance and eliminates signal drop-out.
• Effectively avoids the RF interference from UHF, Bluetooth, Wi-Fi and all 2.4 GHz communication products.
• Presets Group A and B. Group A has less interference. Group B is recommended when more channels or shorter latency is required. Group A and B can’t operate at the same time.
• Warranty: 1 Year
