Cloud Electronics CDI-CV2

Cloud Electronics CDI-CV2

The Cloud Electronics CDI-CV2 optional Dante card is a retrofit option exclusively for the Cloud CV Series amplifiers, adding 2 digital inputs to the amplifier for use with an Audinate Dante audio network.

The various CDI-CV Dante network cards provide up to eight channels of low-latency digital audio via a Dante or AES67 network/ Channel subscriptions are made using Audinate’s Dante Controller software. The card runs the latest Dante firmware, which gives compatibility with Dante Domain Manager (DDM).

CDI-CV network cards are compatible with the following amplifier models (power ratings quoted here assume equal power sharing across all channels):

CV2500 – 2 channels, 500 W/ch

CV4250 – 4 channels,  250 W/ch

CV8125 – 8 channels, 125 W/ch

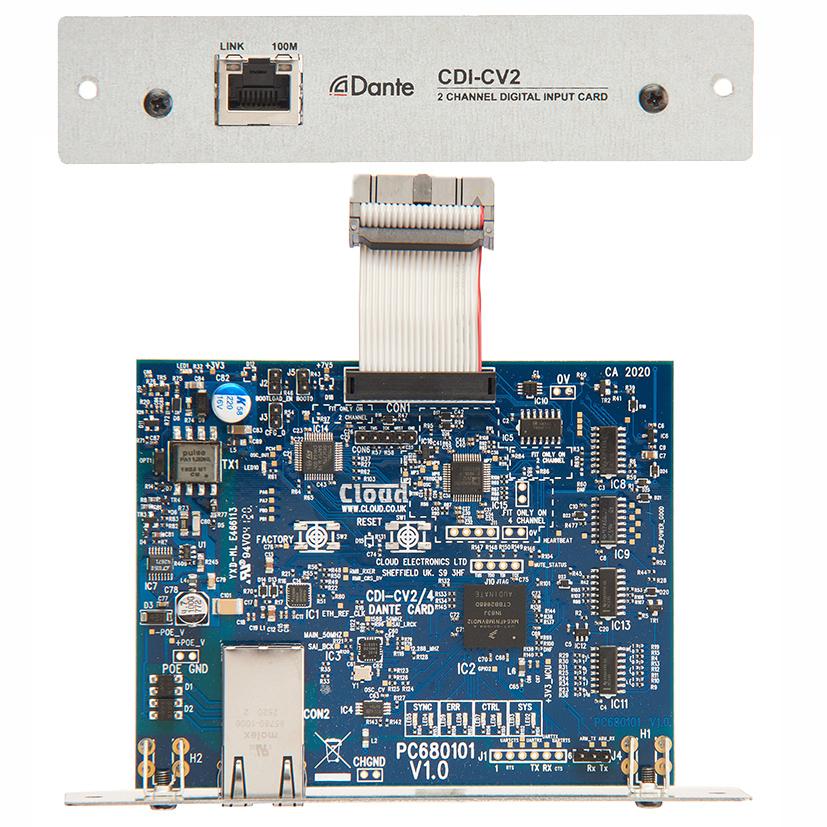

The card fits into the amplifier’s rear panel expansion bay. The CDICV2 is fitted with a standard RJ45 100 Mbit Ethernet port on the card faceplate to provide network connectivity.

The CDI-CV2, CDI-CV4 and CDI-CV8 cards are compatible with all models in the CV amplifier range, though some routing restrictions will apply when using a card with a different number of channels from the amplifier. Thus a CDI-CV2 card installed in a CV4250 four-channel amplifier will permit either of the Dante channels assigned to the card to be routed to any of the amplifier’s channels. A CDI-CV8 card installed in a CV2500 two-channel amplifier will permit any of the eight Dante channels assigned to the card to be routed to either amplifier channel. In either of these example cases, mono summing of a pair of Dante channels may be selected to a single amplifier channel via the channel’s Audio browser page.







List Ex VAT: £350.00
Log in for Trade Prices
CONTACT US

Add youtube video code here, make sure youtube video width is 430px, choose the custom option when embedding the video

SPECIFICATIONS

Dante Channels

2

Simultaneous receive flows

1 or 2

Sample rates

Dante: 48/44.1/88.2/96 kHz
AES67: 48 kHz

Encoding

16/24/32-bit PCM (default 24-bit PCM)

Data rates

100 Mb/s

Connectors

1 x RJ45

Secondary port modes

N/A

LEDs

Network speed, Link status

Power Consumption

0.7W

Software compatibility

Configuration: CV Series internal web browser.
Routing: Audinate Dante Controller.
Security & Domain management: Audinate DDM

DOWNLOADS

Cloud CDI-CV Dante Card Datasheet
