Ecler ARQIS205iB
Click to expand

Ecler ARQIS205iB

The ECLER ARQIS205iB 2-way wooden cabinet loudspeaker is one of our favourite products. The compact wooden format offers excellent sound quality and long term reliability and is rated at 140 Watts RMS @ 8 Ω. Fitted with two 5" woofers and a rotatable 1" HF compression driver. The badge can also be rotated to suit horizontal or vertical mounting.

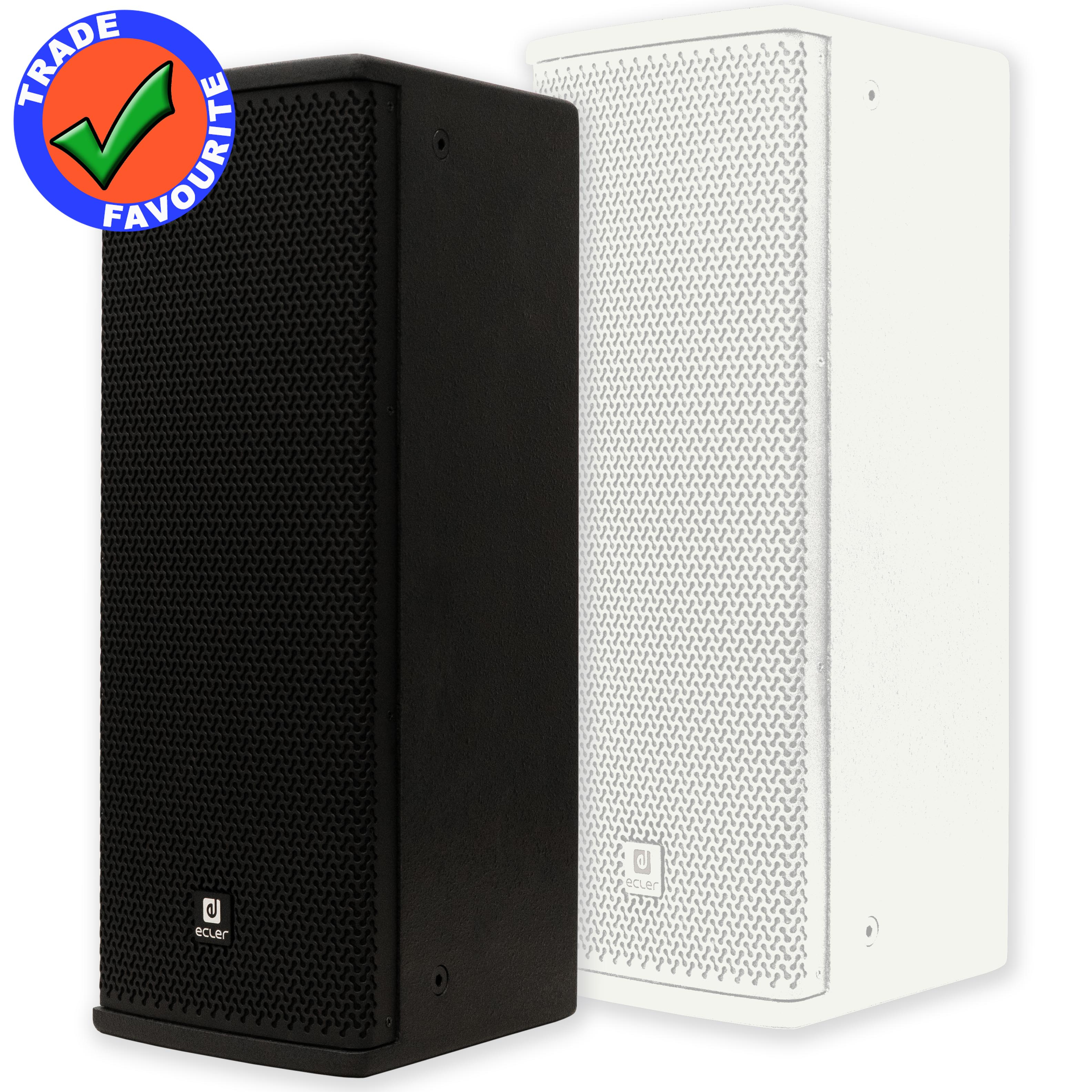

Black finish (ARQIS205iB), but also available in white (ARQIS205iW).

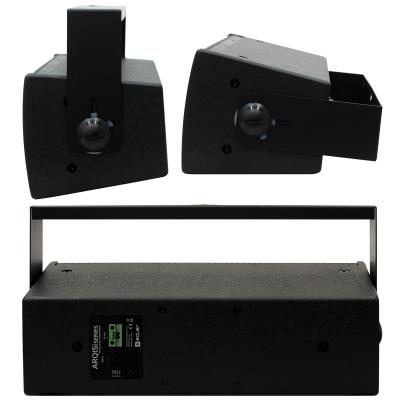

Supplied with a 'U' shape wall bracket which enables tilt adjustment.

  • Full range, 2-way architectural loudspeaker
  • 140 WRMS @ 8 Ω
  • 2 x 5,25" low frequency woofer
  • 1" high frequency compression driver
  • Double INPUT/STACK connector, Euroblock + Speakon© type, with security attachment screws to avoid accidental disconnection
  • "U" Shape wall bracket included, allowing for tilt adjustment
  • 4 x M6 &12 x M8 cabinet flying points.
  • Metal safety sling included, to avoid drops in case of accidental detachment from the wall surface
  • Available in black or white finish
  • EASE files available
  • Warranty: 5 Years.

Supplied and priced individually.

Click here to download the full
Ecler Product Catalogue.

Ecler Product Brochure



1e: 8ohms
List Ex VAT: £351.90
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Power output (RMS)

140W RMS / 560W peak

Maximum SPL (dB@1m)

111 dB continuous / 117 dB peak

Woofer Diameter

2 x 5”

HF driver

1” Compression driver (rotatable)

Sensitivity (dB@1m 1W)

90 dB

Frequency response

78 Hz - 20 kHz (-10dB)

Impedance

8Ω

Dispersion (HxV)

150⁰ x 40⁰

Connections

1 x Euroblock + 1 Speakon

Dimensions

480 x 210 x 186 mm / 18.89 x 8.26 x 7.32 in

Weight

8.4 kg / 18.52 lb

IP rating

IP31

Finished colour

Black (RAL9005) or White (RAL 9003)

Accessories included

Bracket / 5mm Allen key / 6mm Allen key
