Ecler ARQIS108iB
Click to expand

Ecler ARQIS108iB

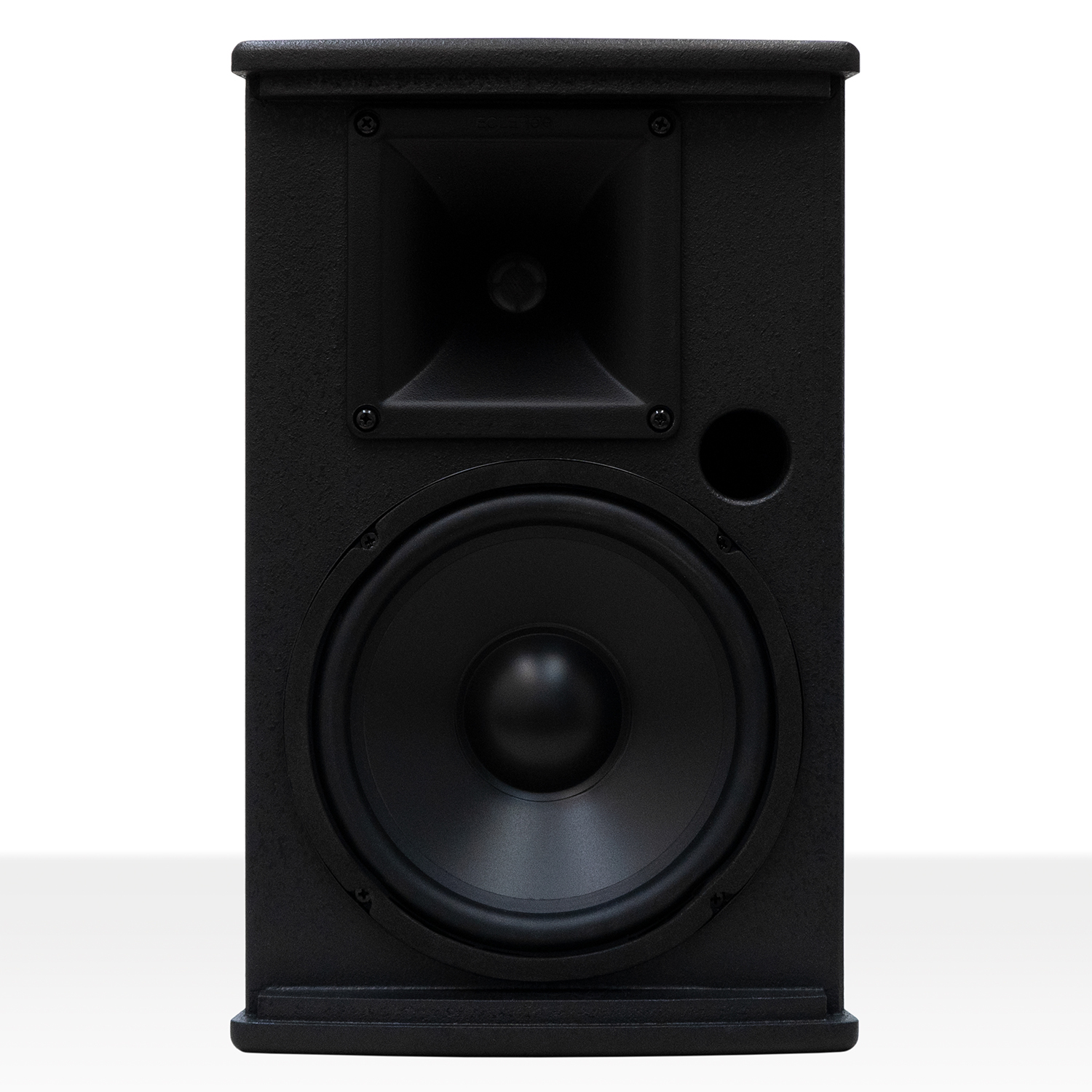

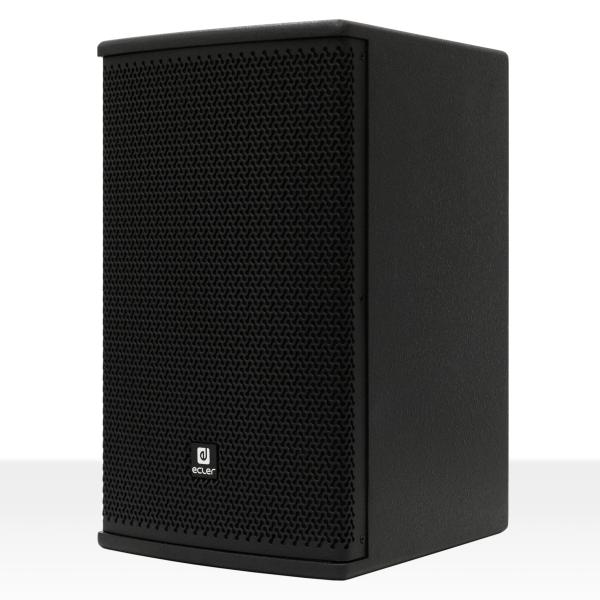

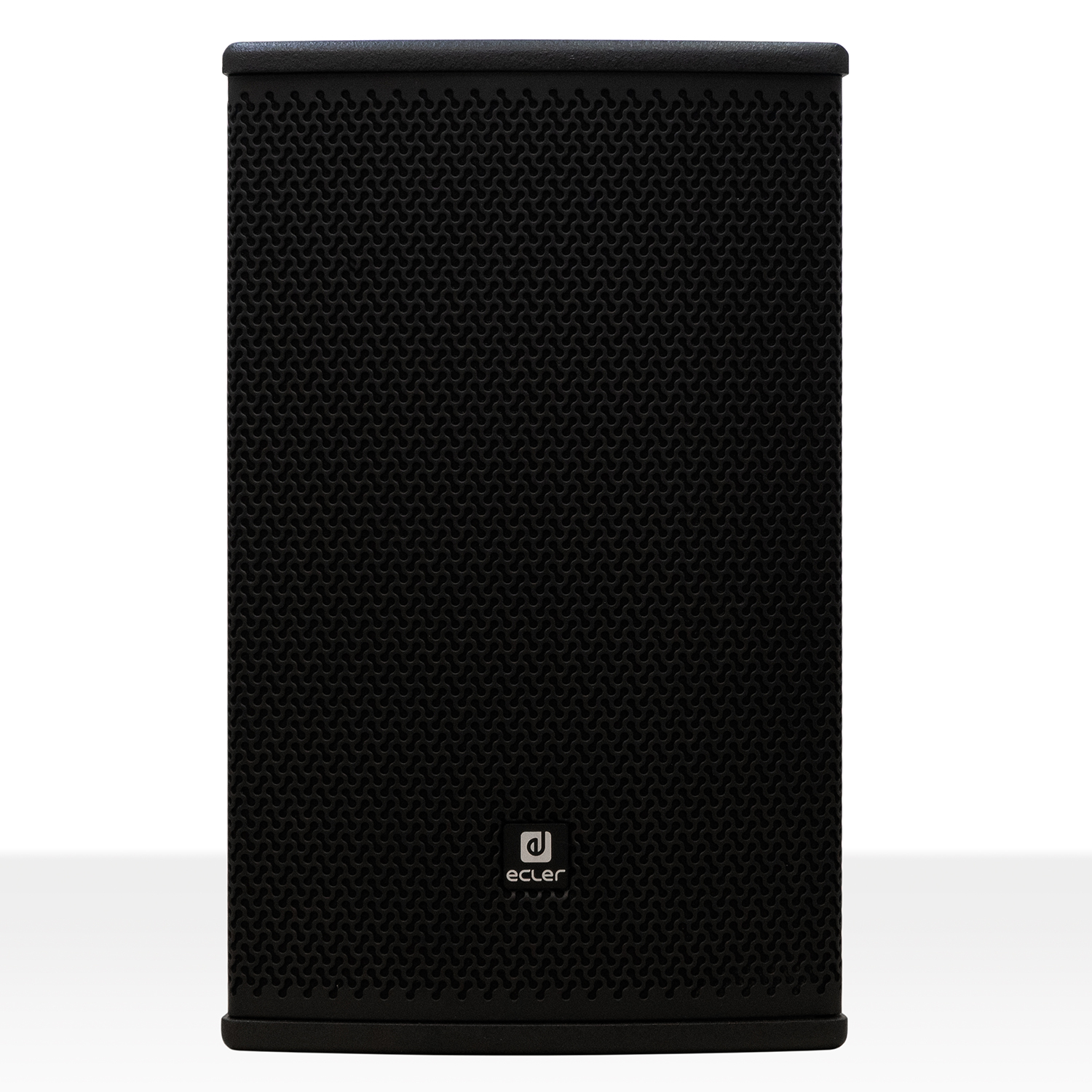

The ECLER ARQIS108i 2-way wooden cabinet loudspeaker is one of our favourite products. It offers excellent sound quality and long term reliability. Rated at 150 Watts RMS @ 8 Ω. Fitted with an 8" woofer and 1" rotatable HF compression driver.

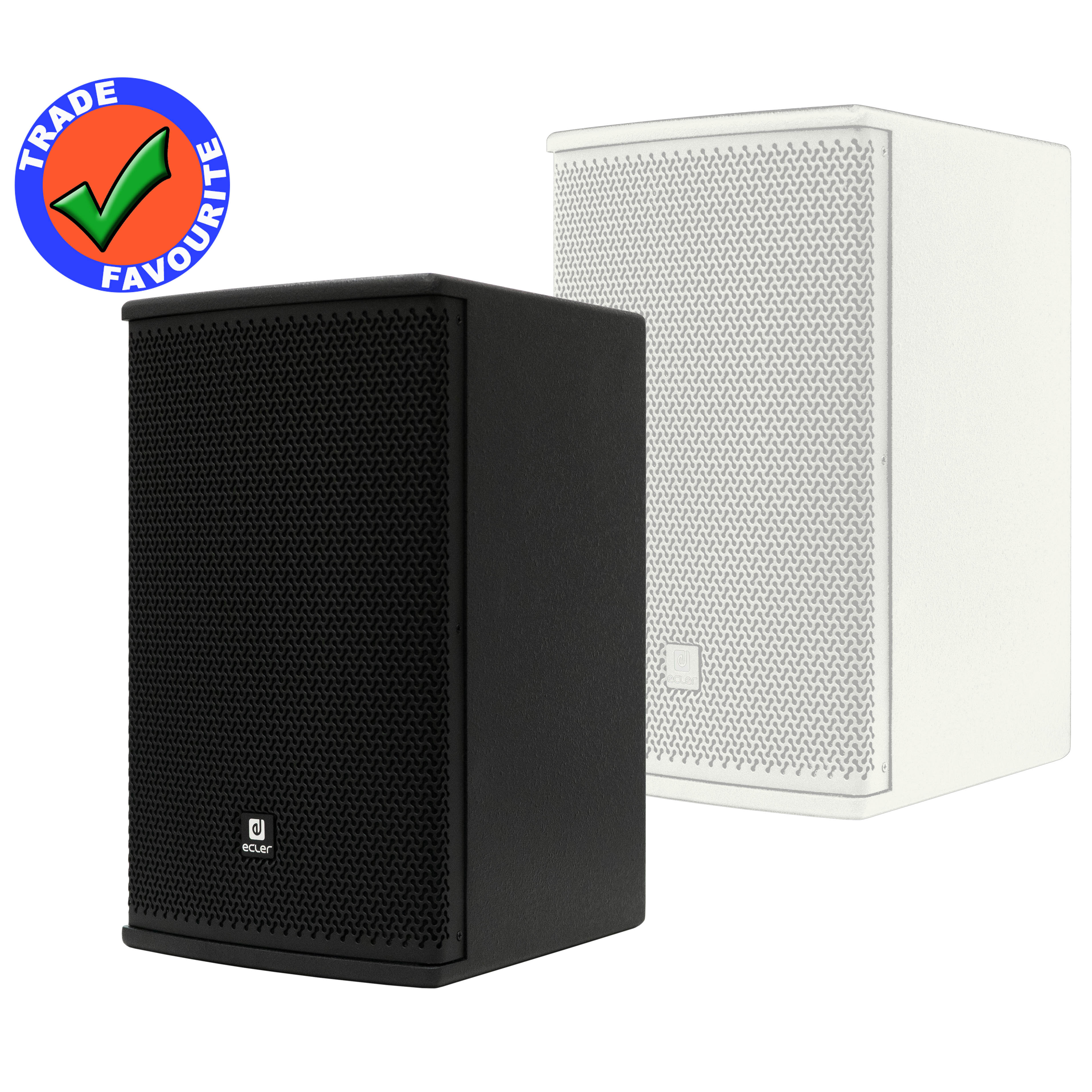

Black finish. Also available in white.

Supplied with a smart swivel and tilt wall bracket. A 'U' shaped mounting bracket is also available separately. (See related products.)

  • Full range, 2-way architectural loudspeaker
  • 150 WRMS @ 8 Ω
  • 8" low frequency woofer
  • 1" high frequency compression driver

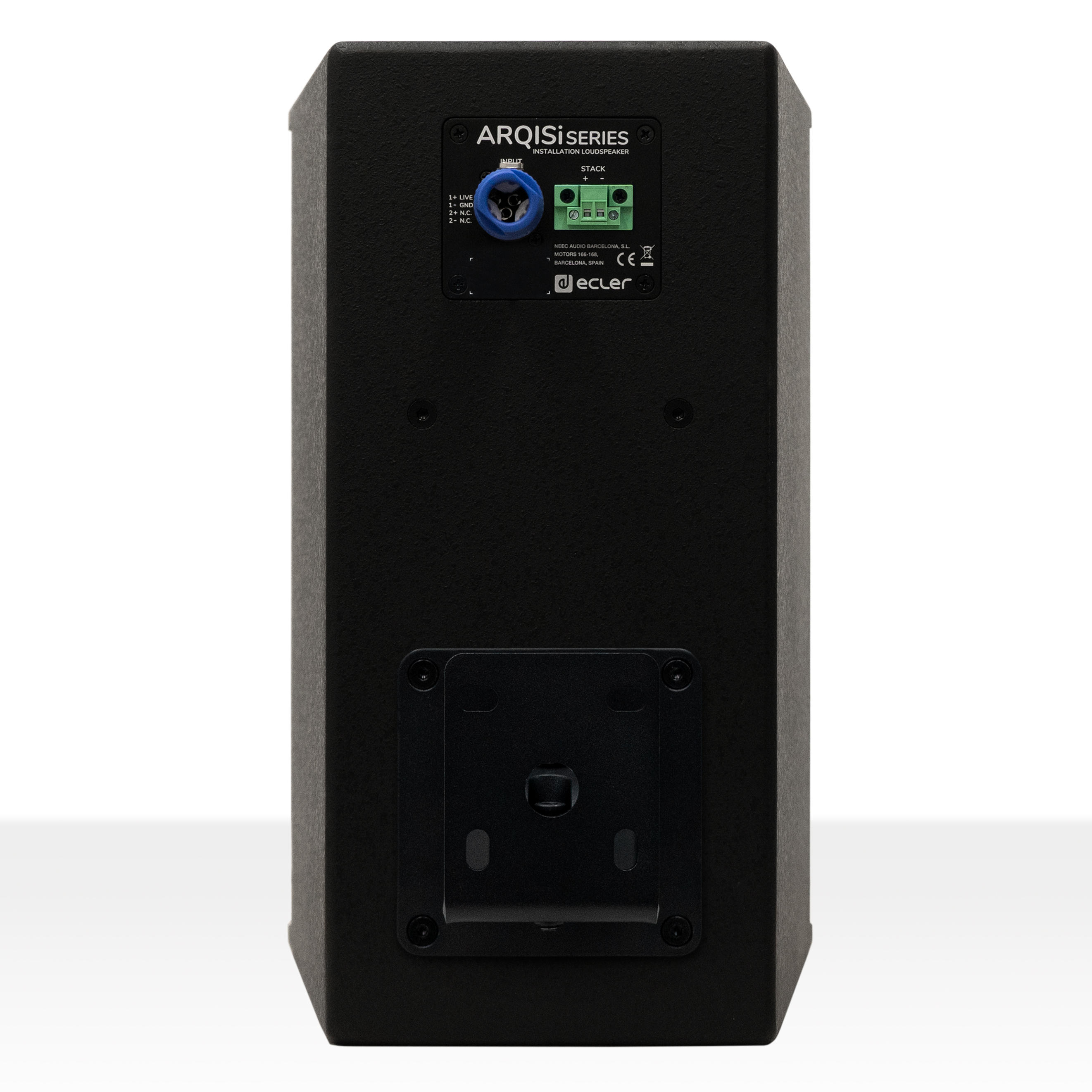

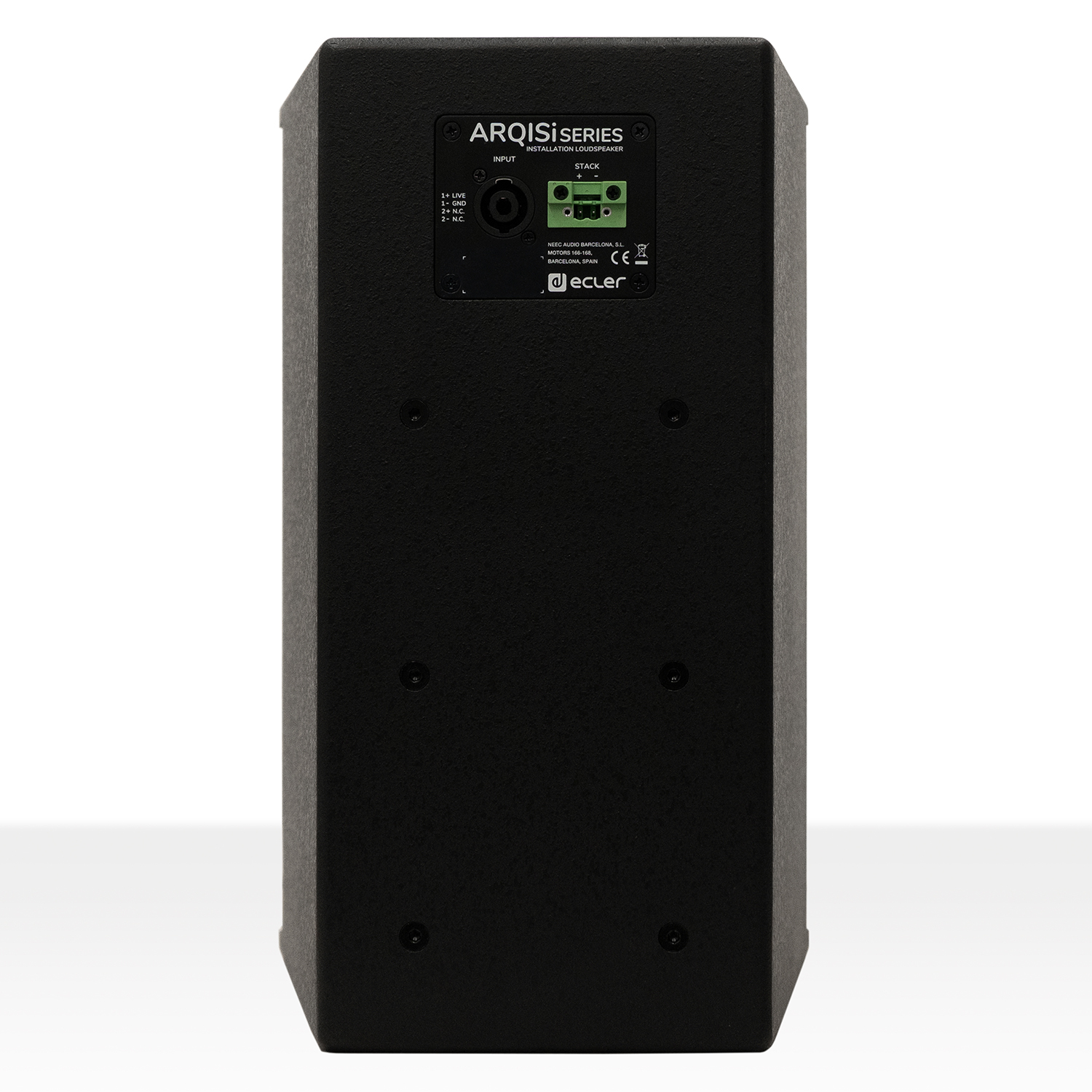

  • Double INPUT/STACK connector, Euroblock + Speakon© type, with security attachment screws to avoid accidental disconnection

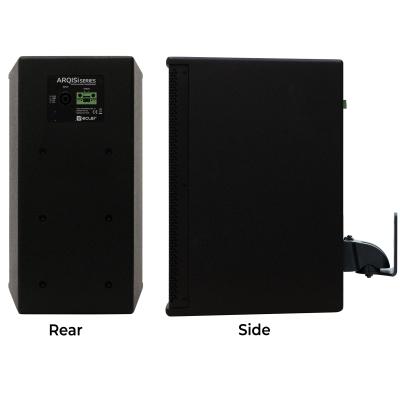

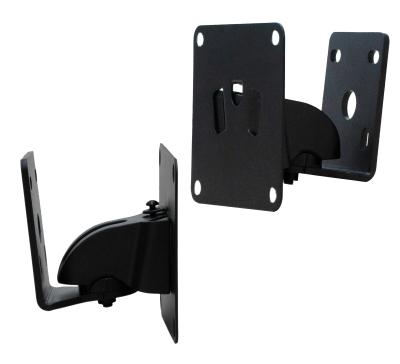

  • Wall bracket included, allowing for pan&tilt adjustment, employing a single screw for fastening. Robust, quick and easy to install, including jumps and markings for repeating speaker orientation.
  • Metal safety sling included, to avoid drops in case of accidental detachment from the wall surface
  • U-bracket wall-mount accessory compatible (not included)
  • Available in black or white finish
  • EASE files available
  • Warranty: 5 Years.

Supplied and priced individually.

Click here to download the full
Ecler Product Catalogue.

Ecler Product Brochure
1e: 8ohms
List Ex VAT: £357.00
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Power output (RMS)

150 W RMS / 600W peak

Maximum SPL (dB@1m)

109 dB continuous / 115dB peak

Woofer Diameter

8”

HF driver

1” Compression driver (rotatable)

Sensitivity (dB@1m 1W)

90 dB

Frequency response

65 Hz - 20 kHz (-10dB)

Impedance

8Ω

Dispersion (HxV)

130⁰ x 130⁰

Connections

1 x Euroblock + 1 Speakon

Dimensions

244 x 280 x 390 mm / 9,60 x 11,02 x 15,35 in

Weight

8.4 kg / 18.51 lb

IP rating

IP31

Finished colour

Black (RAL9005) or White (RAL 9003)

Accessories included

Wall Bracket / 3mm / 4mm / 6mm Allen key

  • Full range, 2-way architectural loudspeaker
