Cloud Electronics CS-S6W & CS-S6B

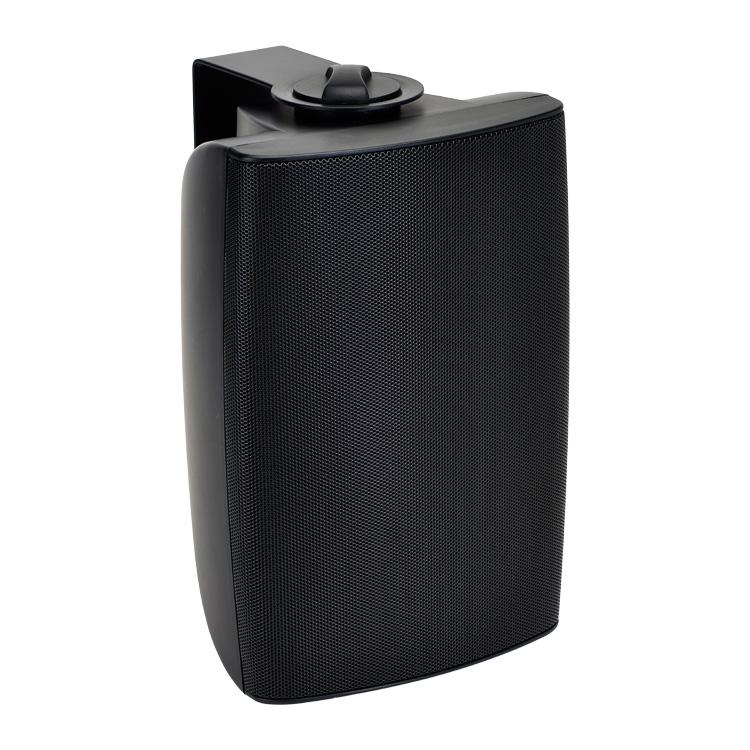

The Cloud Electronics CS-S6W & CS-S6B cabinet speakers are amongst our favourite products. These 6.5" coaxial two way loudspeakers are rated at 32 watts, 100 volt line / 16 ohms.

The Cloud CS-S6 is IP55 rated so is suitable for use outdoors as well as indoors when fitted with the supplied port plug.

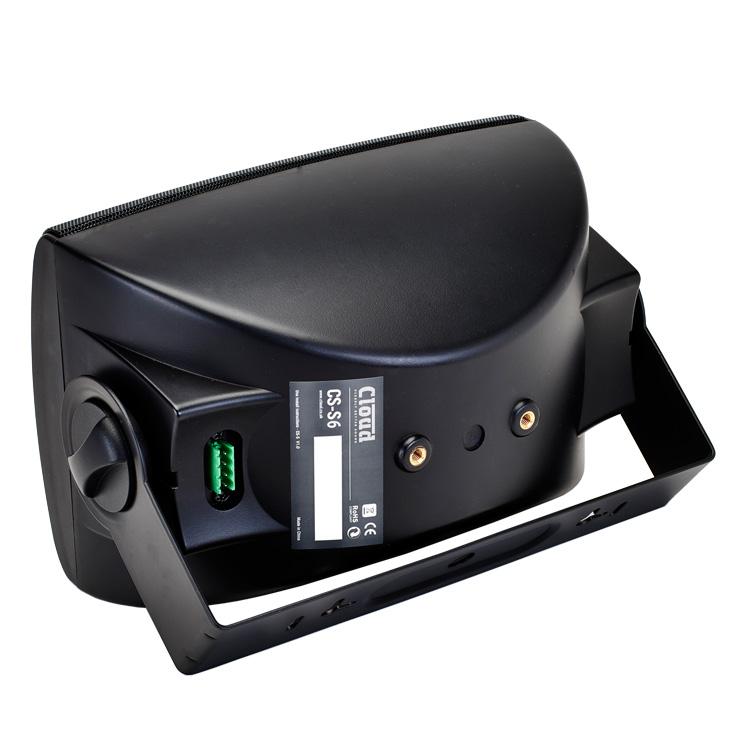

On the rear of the speaker there is a switch offering tappings at 32w, 16w, 8w and 4w as well as a bypass for 16 ohm operation.

Premium quality drivers and electronics are used in the CS-S6 for high sensitivity, smooth frequency response, and excellent off axis performance.

The 6.5 inch woofer incorporates a large magnet structure, a polypropylene cone, and a butyl rubber surround for lasting, low distortion performance. The 1" (25.4mm)   tweeter is a soft filk dome with a phase plug to smoothly distribute the high frequency energy.

A 32 W transformer provides plenty of power for even high SPL applications and 16 ohm impedance allows for easy low impedance daisy chaining. The Cloud Electronics CS-S6 is ideal for a wide range of business music / commercial audio applications.

  • 6.5" Polypropylene Woofer with rubber surround.
  • 1" Silk Dome Tweeter with phase plug.
  • 2-way drivers offering consistent dispersion across broad frequency ranges.
  • Water resistant, rated IP55.
  • Accessible high-impedance or low impedance switch settings.
  • Removable logos to allow for discreet use.
  • Available in Black (CS-S6B) or White (CS-S6W).
  • Warranty: 5 Years

Sold & priced individually.

Download the full
Cloud Electronics Product Catalogue here.

Cloud Electronics Product Brochure
100V IPxx 16ohms
List Ex VAT: £165.00
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Description

6” 2-way surface-mount, U-bracket

Response (f3)

90 Hz -20 kHz

Response (f10)

70 Hz -20 kHz

Impedance

16 ohm

Sensitivity (2.83V/1m)

88 dB

Sensitivity (1W/ m)

91 dB

Power handling

50 W

Maximum SPL

108 dB

Transformer taps

32,16,8,4 W

Tweeter

1 inch polypropylene with rubber surround

Woofer

6.5” treated paper with rubber surround

Input

Euroblock

Included accessories

U bracket, male Euroblock, rubber port plug

Acoustic Description

Musical, with high intelligibility.

Prioritize perceived bass response over sensitivity.

Packaging

1 per box

Dimensions

304.0mm x 218.0mm x 193.5mm

Net weight/Gross weight

3.6 kg (7.9 lb) / 4.4 kg (9.7 lb)

Conformance

UL1480 / 2043 planned, RoHS, CE approved, IP55
