CES Audio CAL-5300U
Click to expand

CES Audio CAL-5300U

The CES Audio CAL-5300U loudspeakers are fitted with a high quality 2-way speaker system using a 5” polypropylene bass / mid cone & 10-ounce magnet with a mylar laminate dome tweeter.

Clearance line – last pair.

The CAL5300U is rated at 30 watts RMS and is compatible with both 100V and 8Ω loudspeaker circuits.

The attractive trapezoidal cabinet design improves directivity and allows versatile mounting.

U mount bracket included as a standard accessory.

Supplied and priced as a pair.

100V 8ohms
List Ex VAT: £50.00
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Model No.

CAL-5300

Rated Power (rms)

30W

Impedance

333Ω, 667Ω, 1.30kΩ & 2.60kΩ

Power Taps @ 100V

Power Taps @ 70V

30W, 15W, 7.5W, 3.75W & 8Ω

15W, 7.5W, 3.75W,1.9W & 8Ω

SPL (1W / 1M)

89 dB

Max. SPL (Rated W / 1M)

104 dB

Frequency Range (-10dB)

75 Hz ~ 25K Hz

Dispersion 1K Hz / 4K Hz

190˚ / 125˚

Ambient Temperature

-20˚C ~ +60˚C

Power Selection

Selecting Switch

Termination

Push Terminal

Material

Housing: High impact polystyrene, Grille: Steel.

Colour / Finish

Black (RAL 9005)

Dimensions

241 W X 189 H X 175 D mm.
9.49 W X 7.44 H X 6.89 D in.

Net Weight (ea)

2.66 kgs (5.86 lbs.)

Mounting

U Type Steel Bracket

Related Products

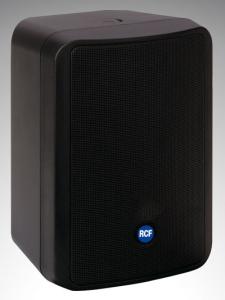

RCF MR 33TB Discontinued

Compact reflex cabinet loudspeaker. 20 watts at 100 volt line / 40 watts at 4 ohm. BLACK.

see more
List Ex VAT: Contact Us
AMC iPlay 5TB

Pair cabinet speakers. 5" driver, 35 watts, 8 ohm / 30 watts, 100 volt line.
CLEARANCE LINE - Last Pair.

see more
List Ex VAT: £50.00
TOA BS-1030

Two way full range cabinet speaker with sleek curved design. Black or White. 30 watts, 100 volt line / 8Ω.

see more
List Ex VAT: £95.00

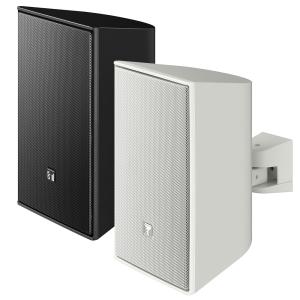

TOA F-05BT / F-05WT
