TOA F-05BT-WP-UE / F-05WT-WP-UE
Click to expand

TOA F-05BT-WP-UE / F-05WT-WP-UE

The TOA F-05BT-WP-UE / F-05WT-WP-UE is a powerful, yet compact, outdoor speaker with enhanced bass response, perfect for background music or voice announcements in commercial environments. It’s IP65 rated making it suitable for use outdoors and EN54-24 compliant for use in Voice Alarm & Evacuation PAVA Systems.

The TOA F-Box Series F-05BT-WP-UE (Black) and / F-05WT-WP-UE (White) are compatible with both high impedance and low impedance audio systems, rated at 30 watts at 100V or 60 Watts at 8 Ohms, and are ideal for discreet installations in boutiques, restaurants, or conference rooms as well as outdoor areas such as terraces & gardens.

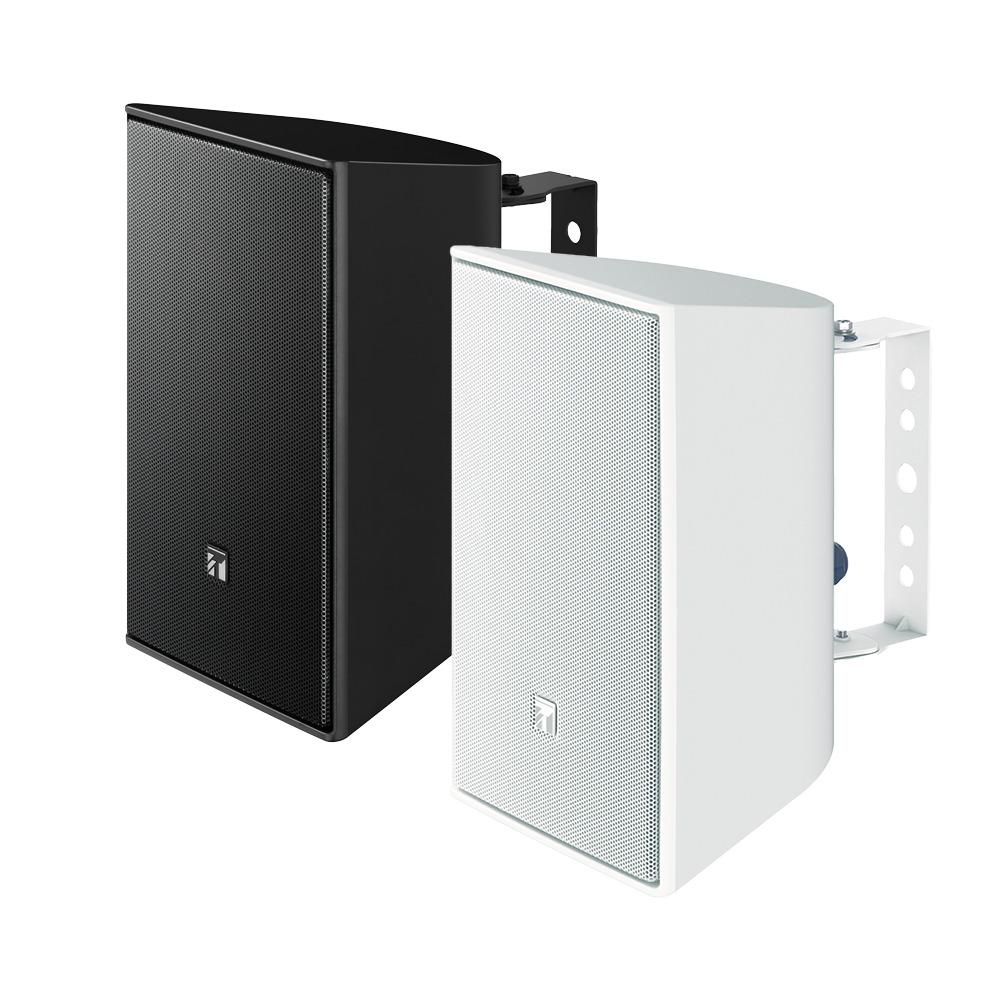

Available in black (F-05BT-WP-UE) or white (F-05WT- WP-UE) and supplied with a ‘U’ shaped wall mounting bracket, with swivel adjustment only, for both wall and ceiling use.

  • Versatile 5-inch 2-way surface-mount speaker system
  • EN-54-24 certified
  • IP65 weather protection
  • Perfect for music and announcements
  • Sleek design for seamless integration with walls and ceilings
  • Safe and easy installations with included mounting bracket
  • Flexible angle adjustment for wall, ceiling, and pole mounting
  • Ideal for permanent installs or portable setups
  • Available in black and white (BT = black, WT= white)
  • Supplied and priced individually
  • Warranty: 1 Year

The TOA F-BOX Series loudspeakers feature a minimalist, flat design to blend seamlessly into any architectural environment and there are models suitable for use indoors and outdoors.

Available in choice of sizes and fitted with a 3.5" full-range speaker or 5" / 8" two-way system. There’s also a matching 8” subwoofer. Please see related products below.

These surface-mount speakers deliver clear audio and sleek aesthetics, ideal for voice announcements and background music on both high-impedance and low-impedance audio systems.

Outdoor models are dustproof splashproof (IP65) and EN54-24 certified, making them ideal for voice evacuation systems.

100V IPxx Evac 8ohms
List Ex VAT: £375.00
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Frequency range

80 Hz - 20 kHz

Sensitivity (1 W, 1 m)

89 dB

Rated input (100 V)

30 W

Tappings (100 V)

30/10/3/1 W

Rated input (low impedance)

Rated noise power:60 W (8 Ω),
Continuous program 120 W (8 Ω)

Rated impedance

8 Ω

Speaker component

Low frequency 13 cm (5'') PPcone-type,
High frequency: 25 mm (1'') dome tweeter

Cord connector

M4 screw terminal (distance between barriers: 9 mm)

Operating temperature

−10 °C to +50 °C

Finish

Aluminium grill, black (RAL 9011 or equivalent)

Dimensions

162 x 274 x 164 mm (W x H x D)

Weight

2.8 kg

Related Products

TOA F-03BT / F-03WT

3.5" full-range compact cabinet speaker. 30W @ 8 ohm / 15W @ 100V.

see more
List Ex VAT: £135.00

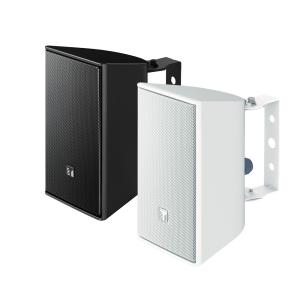

TOA F-03BT-WP-UE / F-03WT-WP-UE
