Wharfedale Pro Titan-X12B
Click to expand

Wharfedale Pro Titan-X12B

The Wharfedale Titan-X12B low impedance cabinet loudspeaker is fitted with a moisture resistant 12" LF driver / 2.5" voice coil and 1.75" HF compression driver with Hybrid Symmetry 100° x 80° waveguide for smooth and wide HF dispersion. Rated at 250 watts RMS.

Black finish. Also available in white.

IP54 certified.

Front ports enhance bass performance.

The Titan X12 can be arrayed for additional coverage and SPL requirements. M8 flying points are fitted and there is also a 35mm pole mount in the base.

  • HF Drivers have been honed acoustically for HF frequency detail and power
  • LF Drivers reject moisture for resistance in all environments
  • Proprietary 100° x 80° Hybrid Symmetry Horn design
  • Tough, yet lightweight Dynamic Polypropylene cabinet with rubber padded handles
  • 10 x M8 rigging points and integral tripod stand adapter
  • Rugged protective grille and top-stacking receptacles
  • Trapezoid design for arrays as well as stage monitor applications
  • 12″ passive
  • 1.75″ HF compression driver
  • 2.5″ LF voice coil
  • Available in black or white
  • IP 54 certified
  • Warranty: 3 Years
IPxx 1e: 8ohms
List Ex VAT: £234.58
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

SYSTEM TYPE

12" 2-way passive

FREQUENCY RESPONSE +/- 3DB

55-20kHz

SENSITIVITY (DB 1W@1M)

98dB

SYSTEM IMPEDANCE

8 ohms

MAXIMUM SPL PEAK DB

128dB

POWER HANDLING (WATTS)

Continuous: 250W
Program: 500W
Peak:1000W

LF Driver / Voice Coil Size

1x12" / 2.5"

HF VOICE COIL SIZE

44mm/1.75"

HF TYPE

Compression Driver

HF DIAPHRAGM MATERIAL

Titanium

HORN DISPERSION (H X V)

Hybrid Symmetry Horn 100 x 80

HF EXIT SIZE MM / INCHES

25mm/1"

HANDLE QUANTITY

2 carry handles (one on each side)

SUSPENSION POINTS

(10) M8 points

POLE MOUNT

35mm with lock screw

ENCLOSURE TYPE

Moulded Polypropylene, Trapezoidal, Black or White

Height x Width Front / Rear x Depth

582.7mm x 384mm/180mm x 318.6mm
22.9” x 15.1" / 7.1" x 12.5"

Weight

Net: 12kg/26.4lbs
Gross: 15.1kg/33.2lbs

Related Products

Wharfedale Pro Titan-X12W

2 way, 12", professional music speaker. 250 watts, 8 ohm. White.

see more
List Ex VAT: £234.58

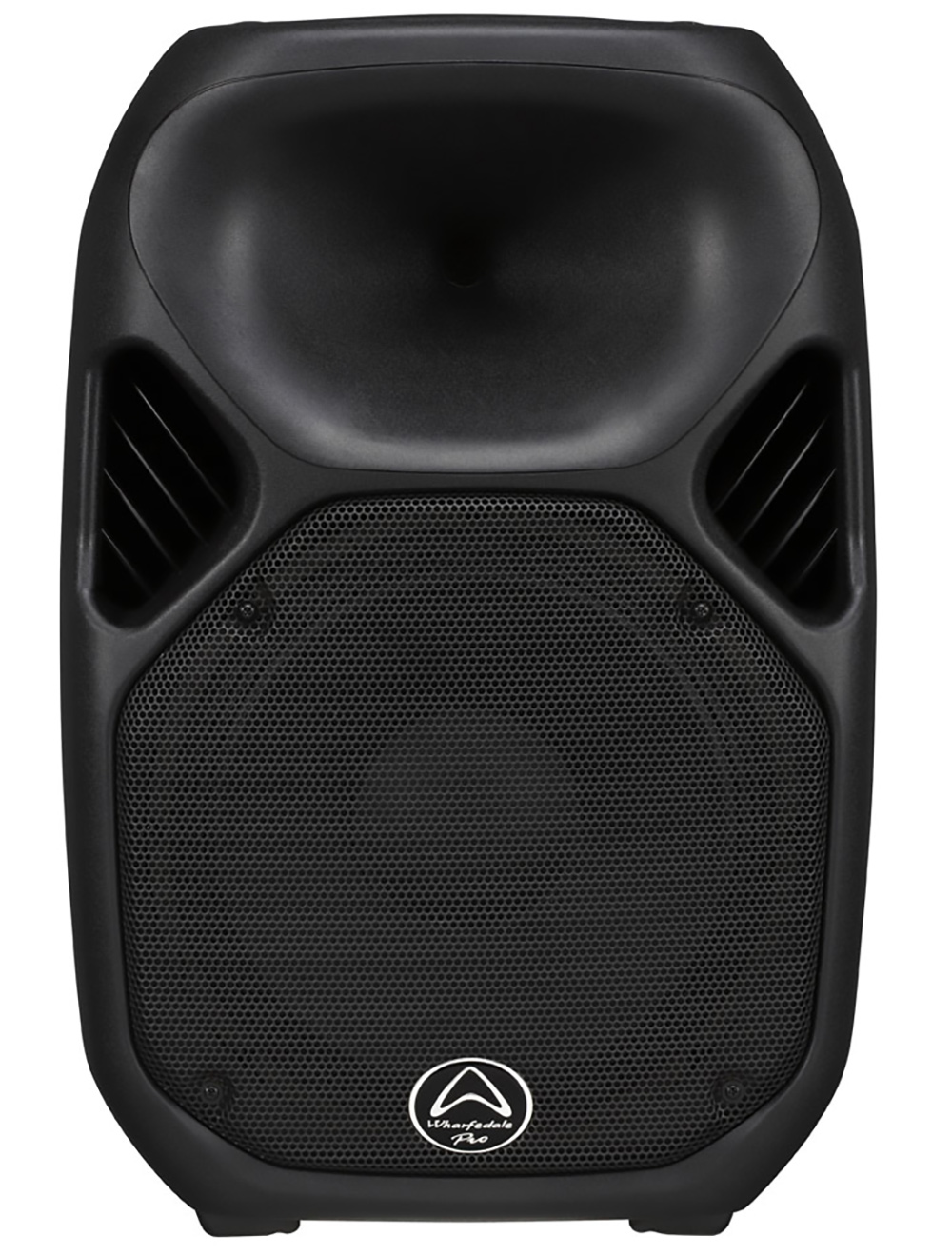

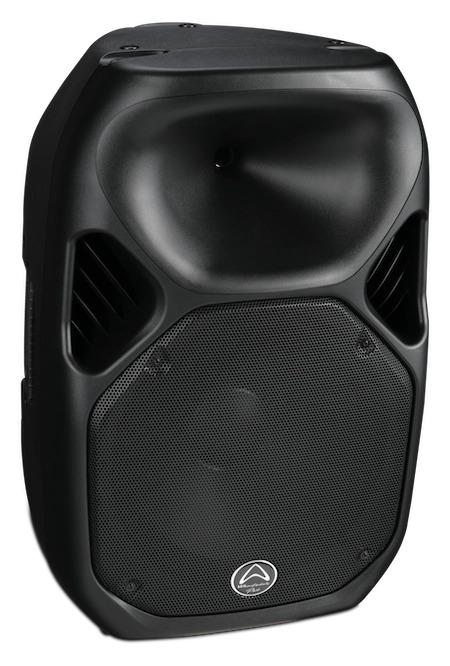

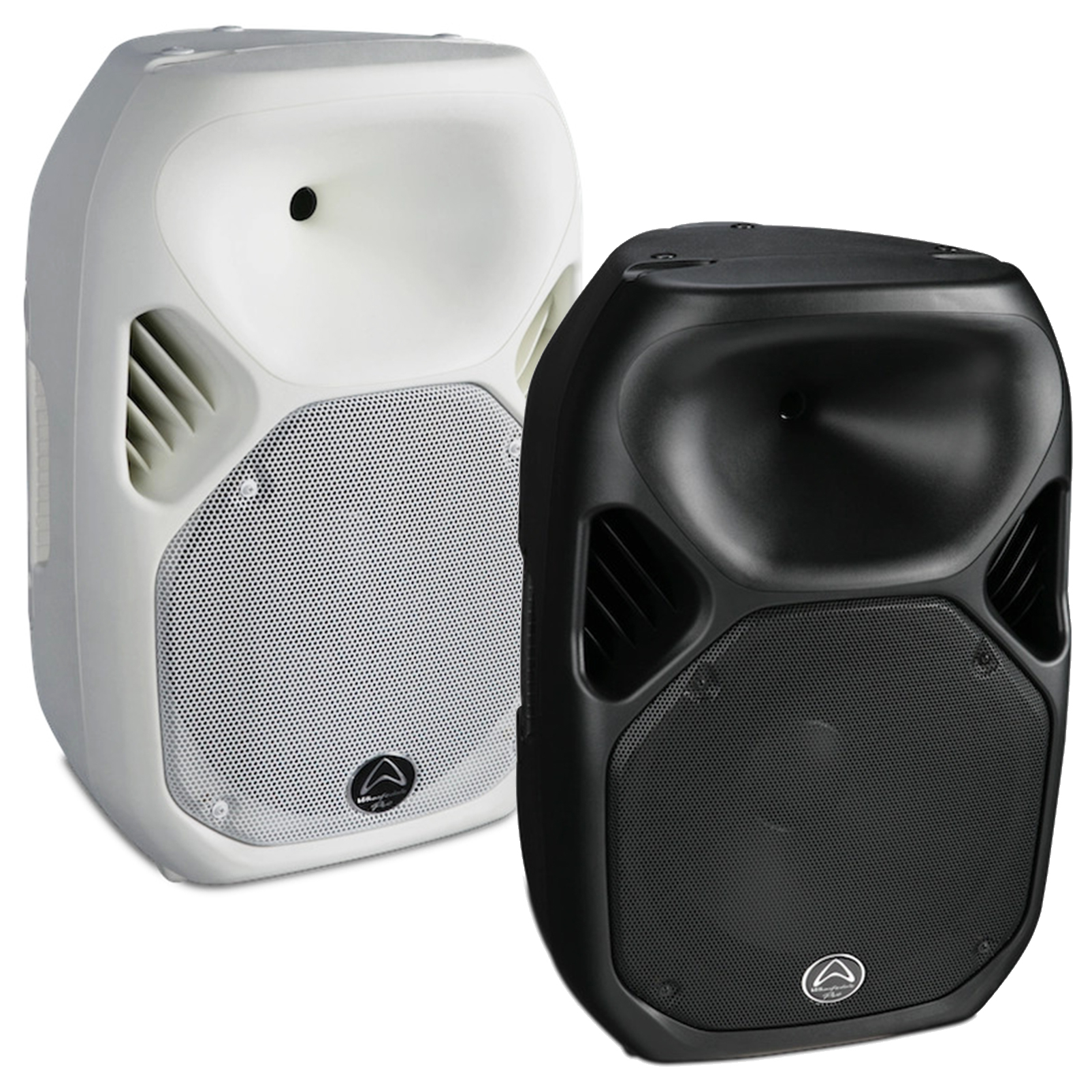

Wharfedale Pro Titan-AX12B

Bi-amplified active loudspeaker. 300 watts + 50 watts. Black or White.

see more
List Ex VAT: £326.36
Wharfedale Pro Titan-AX12W

Bi-amplified active loudspeaker. 300 watts + 50 watts. White.

see more
List Ex VAT: £326.36
Wharfedale Pro TITAN-X15B

2 way, 15", trapezoidal professional music speaker. 400 watts, 8 ohms. Black.

see more
List Ex VAT: £316.18
Wharfedale Pro TITAN-X15W

2 way, 15", trapezoidal professional music speaker. 400 watts, 8 ohms. White.

see more
List Ex VAT: £316.18

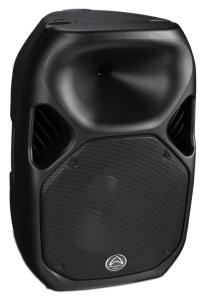

Wharfedale Pro Titan-AX15B

Bi-amplified powered speaker. 350 watts + 70 watts. Black.

see more
List Ex VAT: £456.81

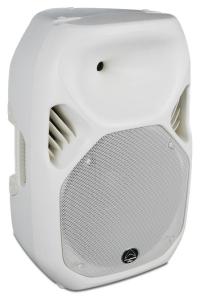

Wharfedale Pro Titan-AX15W
