Wharfedale Pro Titan-8AB MKII
Click to expand

Wharfedale Pro Titan-8AB MKII

The Wharfedale Titan-8AB MKII is a powered loudspeaker ideal for portable sound or fixed installation background music and paging applications.

Black finish. Also available in white.

A 2 band EQ is built into this compact active loudspeaker for fine tuning of the overall sound.

A rear mounted horn LED on/off switch allows discreet use.

Class D technology for the LF and HF sections results in a more efficient and powerful system, and even lighter than the previous generation.

The Titan8 Active is bi-amplified with independent LF and HF signal limiting.

Suitable for a standalone vocal PA for A/V and presentation work or when combined with a subwoofer it is ideal for use in a portable band or DJ setup.

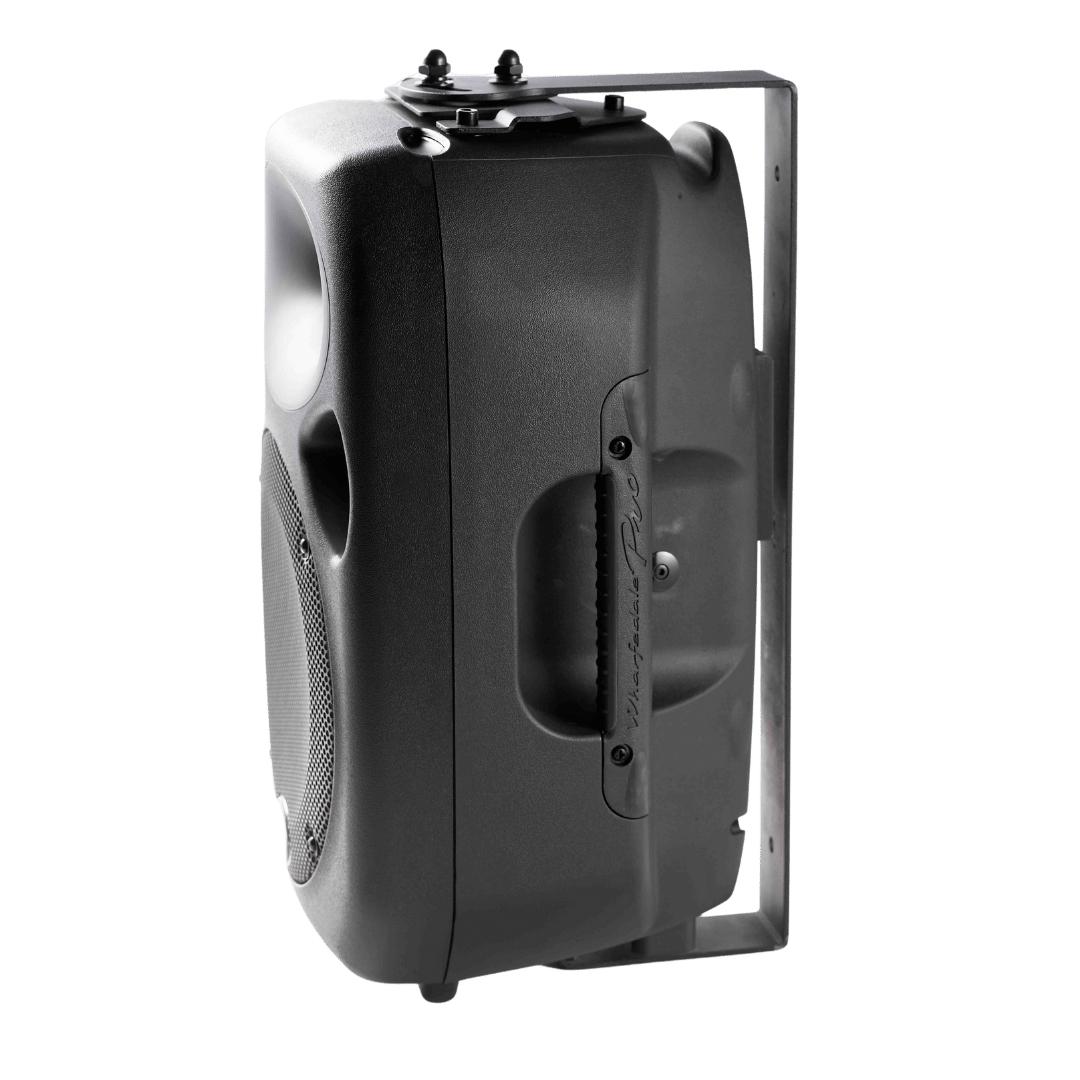

Compact and stylish, with a range of compatible Wharfedale Pro WPB brackets and versatile rigging points.

  • 2-way bi-amplified
  • Dual class D amplifier modules
  • Switch mode power supply
  • Horn LED defeat switch
  • Custom 8" moisture proof low frequency driver
  • Custom 1.2" exit compression driver
  • 150W continuous LF power output
  • 30W continuous HF power output
  • Independent LF and HF signal limiting
  • Thermal, DC and short circuit fault protection
  • 2 band EQ
  • Balanced line level XLR output
  • Eight threaded M6 inserts for flown applications

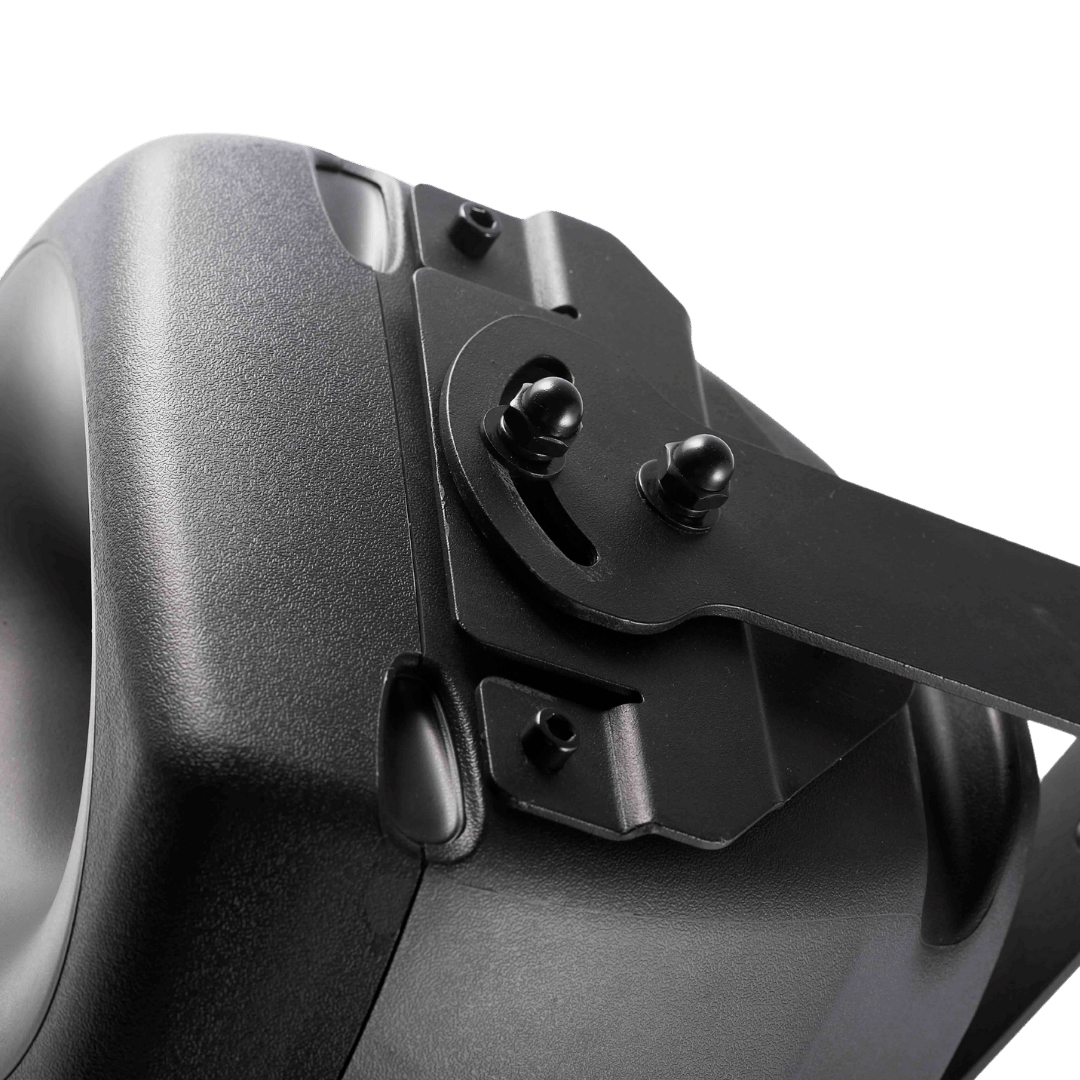

  • Wall mounting bracket options available separately (WPB-T8 & WPB-3)

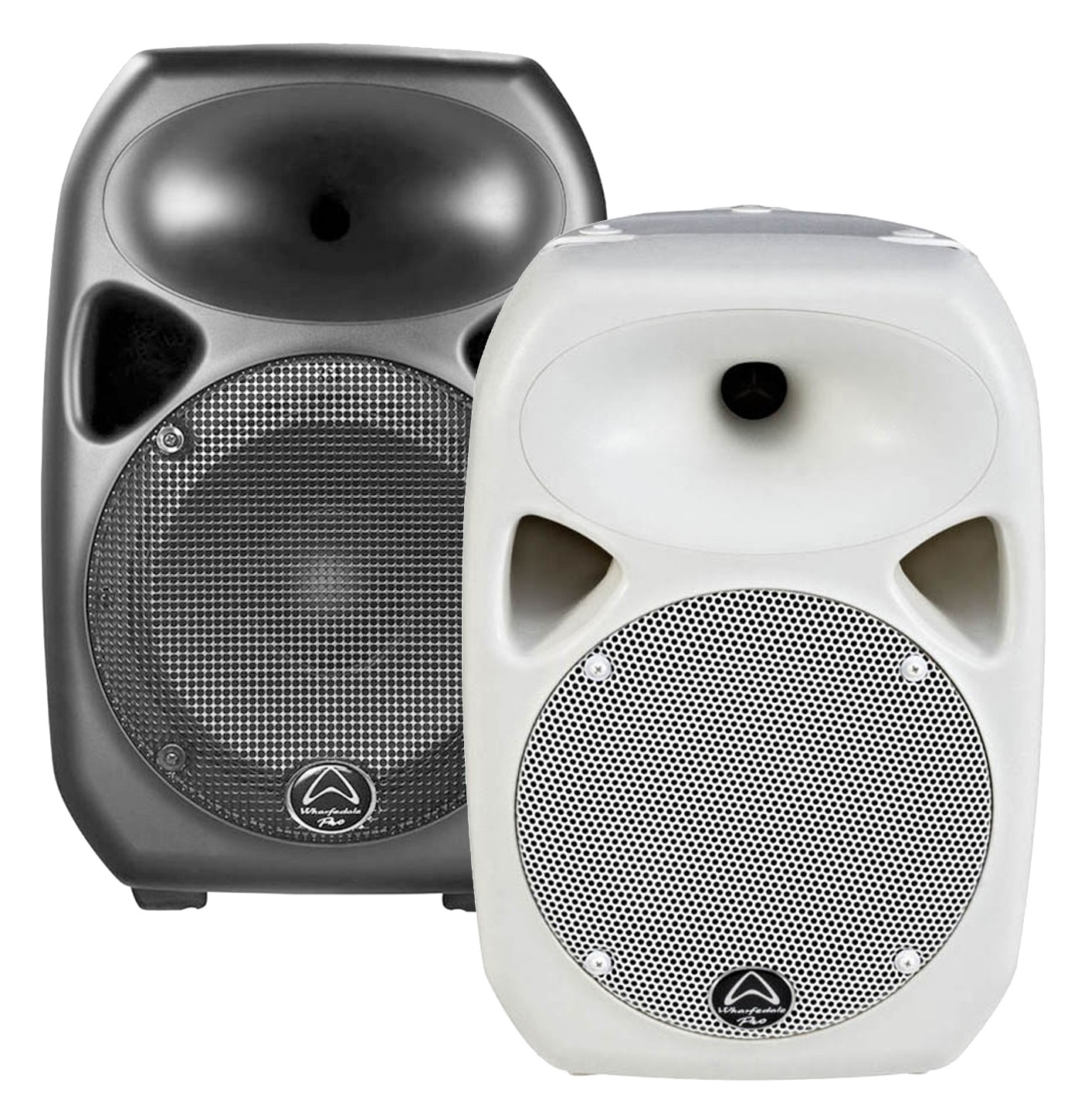

  • Available in Black, grey or white
  • IP54 certified
  • Warranty: 3 Years
1a: 100V IPxx
List Ex VAT: £241.41
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Model

TITAN 8 ACTIVE MKII

System Type

Active 8” 2-way Bi-Amplified system

Frequency Response +/- 3db

70-20kHz

Max SPL (Calc)

119dB

Line Output Connector

Switchable LOOP / MIX Balanced Male XLR Connector

Input Connector

XLR / 1/4” Combo jack

Input Impedance

Balanced: 20kΩ - Unbalanced: 10kΩ

Bass Response - Subsonic Filter

30Hz, Second-order filter

Amplifiers



Low-Frequency (Class D)

Rated 150W RMS, 300W Peak

High- Frequency (Class D)

Rated 30W RMS, 60W Peak

Electronic Crossover:

24dB per octave Linkwitz-Riley

Crossover Frequency

2.4kHz

Controls

High (±10dB) 10kHz Shelving

Equalization:

Low (±10dB) 100Hz Shelving

Low Frequency Transducer



Size (Mm / Inches)

205mm / 8”

Coil Size (Mm / Inches)

38.86mm / 1.53”

Impedance

4 Ω

High Frequency Transducer



Type

Compression Driver

Coil Size (Mm / Inches)

25mm / 1”

Exit Size (Mm / Inches)

30mm / 1.2”

Diaphragm Material

Cloth

Impedance

8 Ω

High Frequency Coverage (H X V)

90° x 60°
