Ecler ARQIS106iW
Click to expand

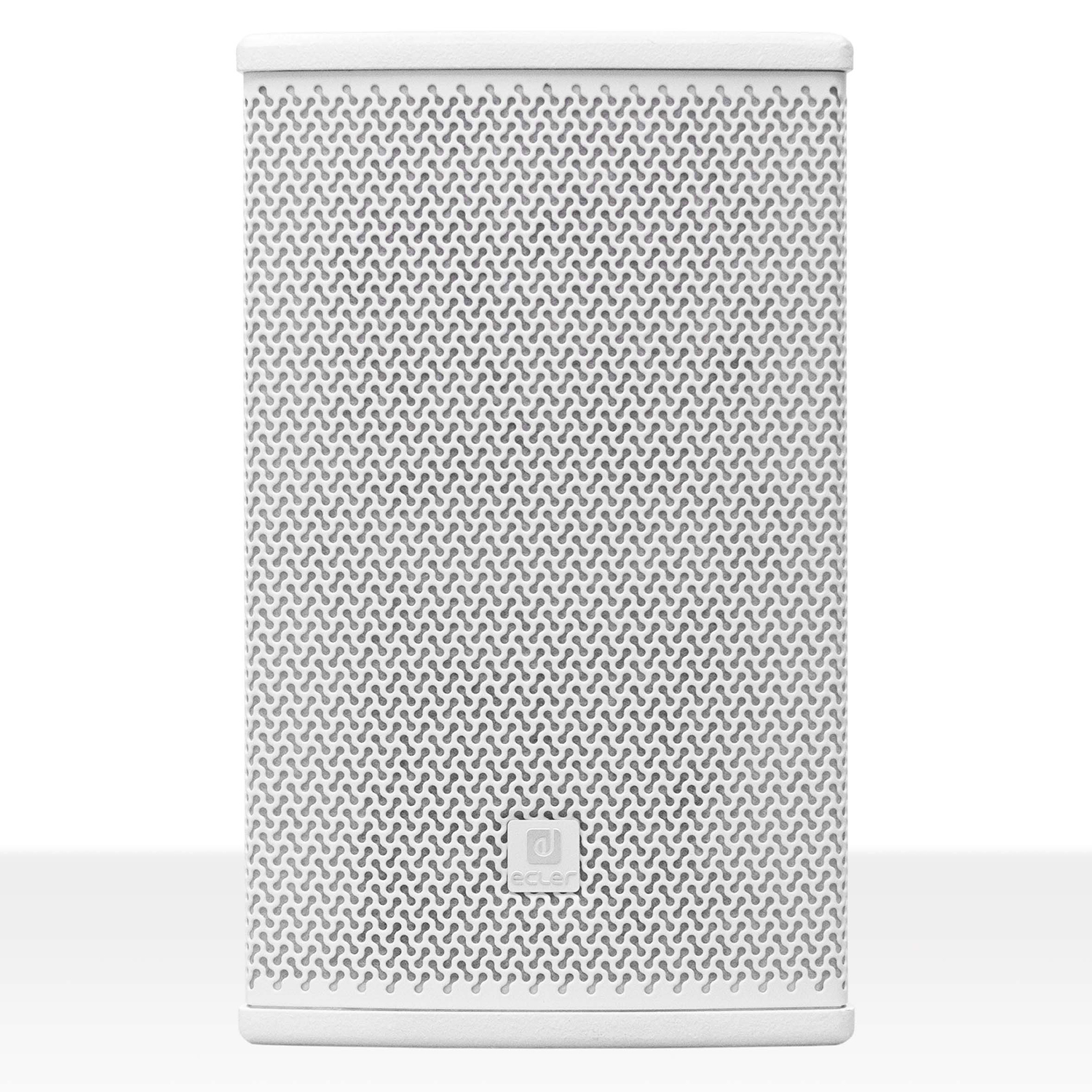

Ecler ARQIS106iW

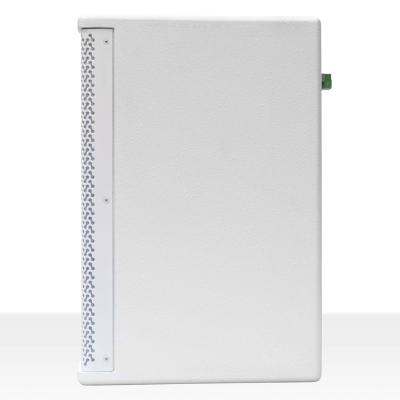

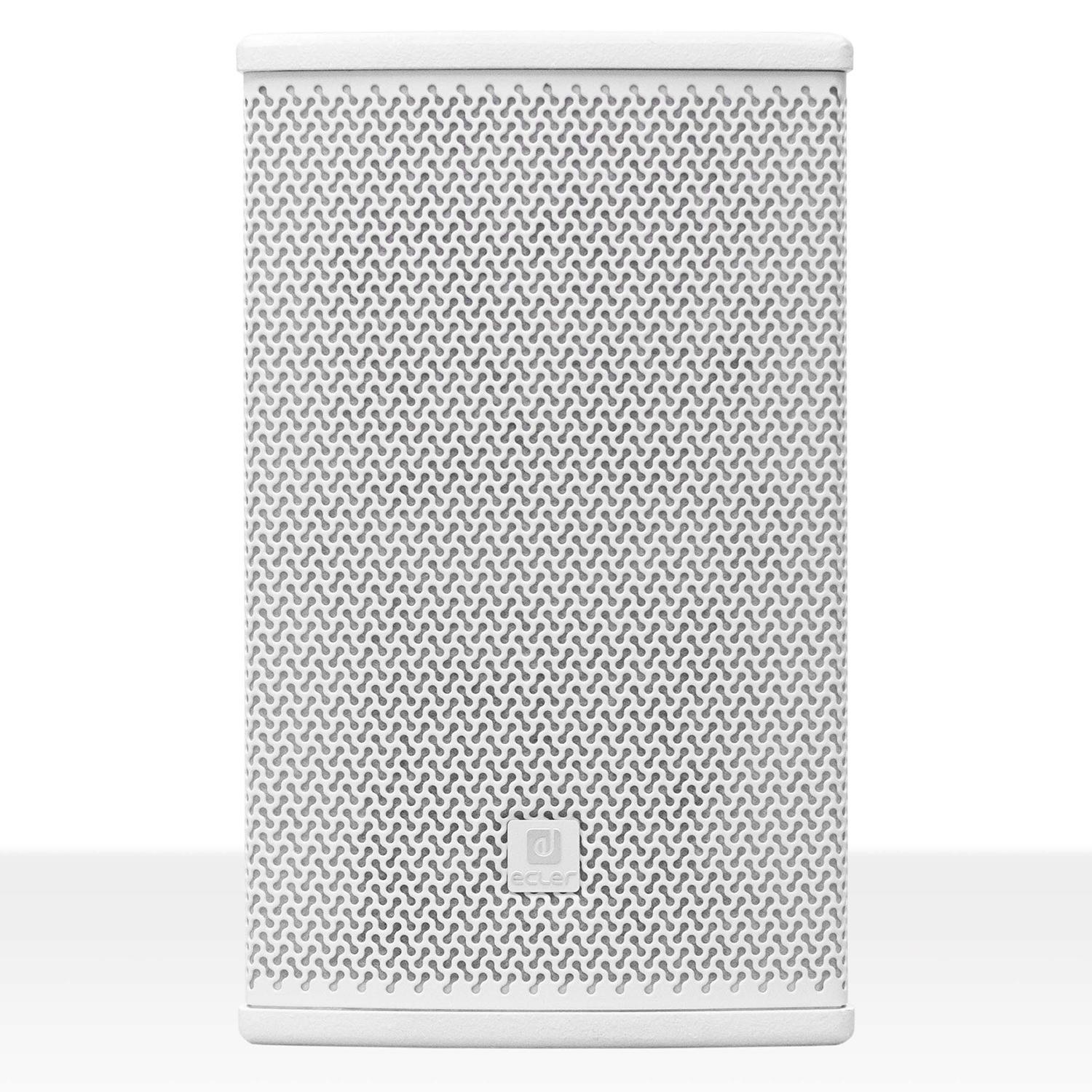

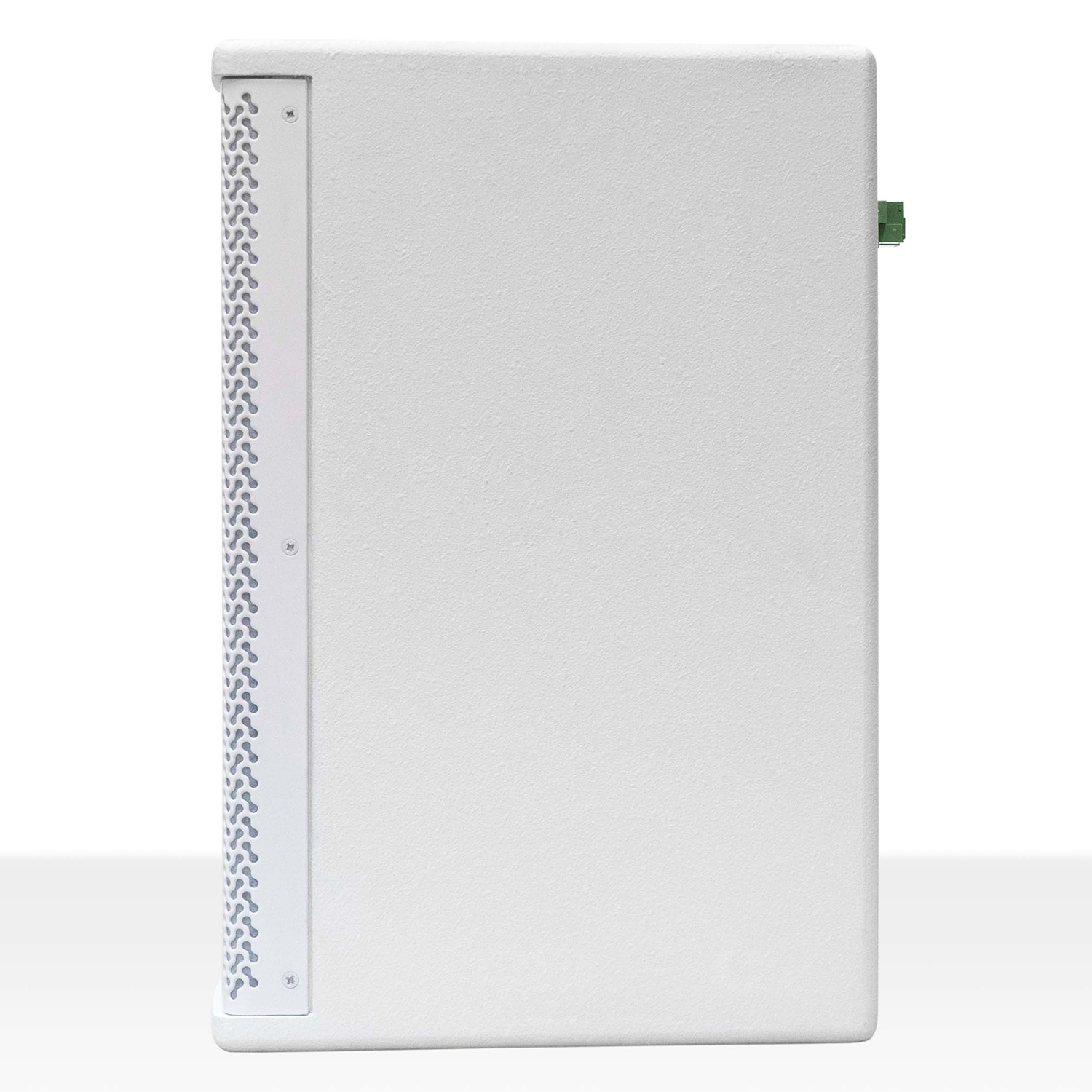

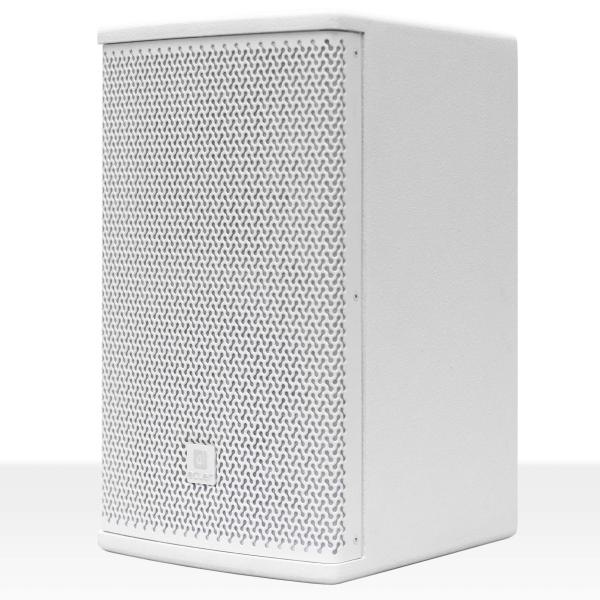

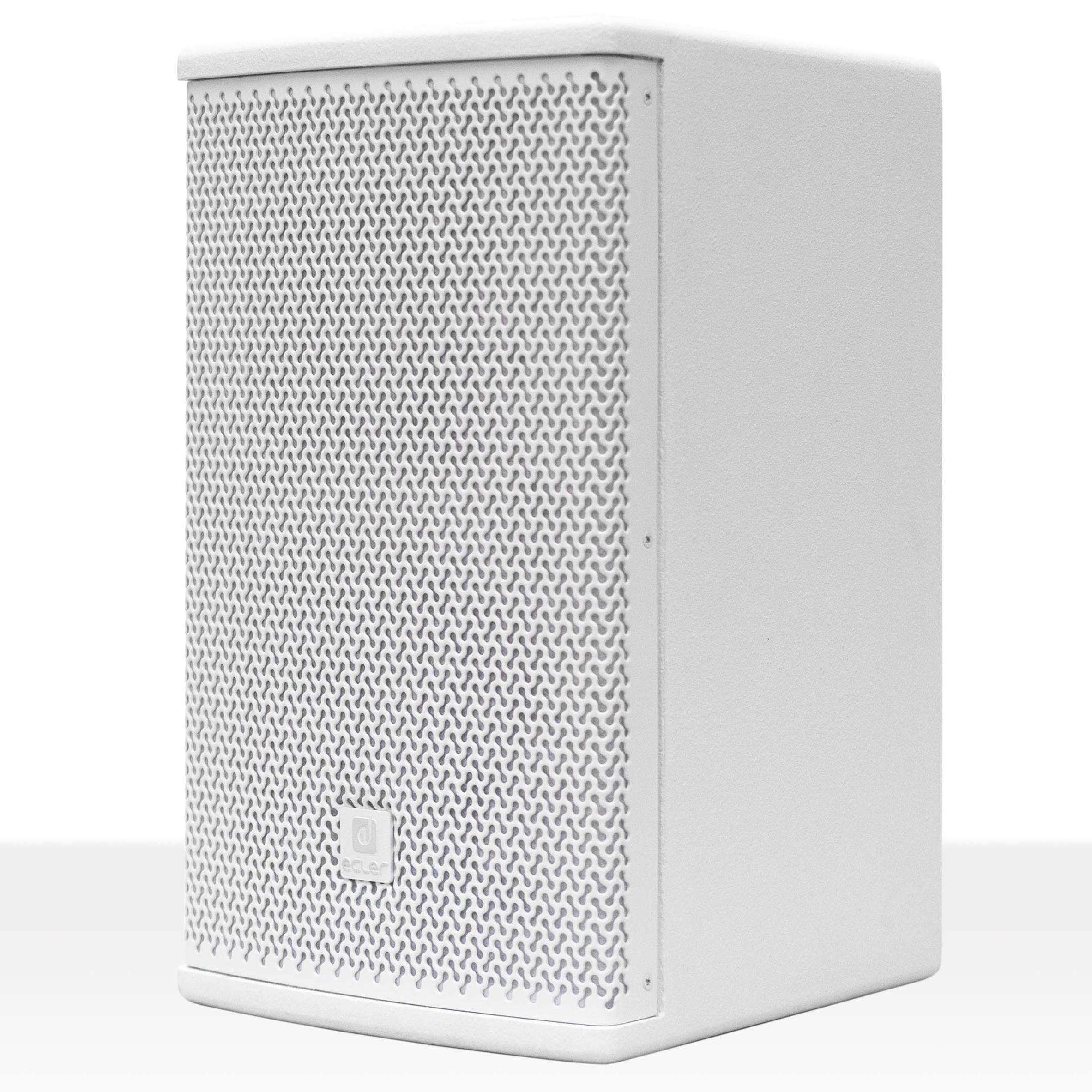

The ECLER ARQIS106iW 2-way compact wooden cabinet loudspeaker is one of our favourite products. It offers excellent sound quality and long term reliability and is rated at 120 Watts RMS @ 8 Ω.

Fitted with a 6" woofer and 1" HF compression driver.

White finish.

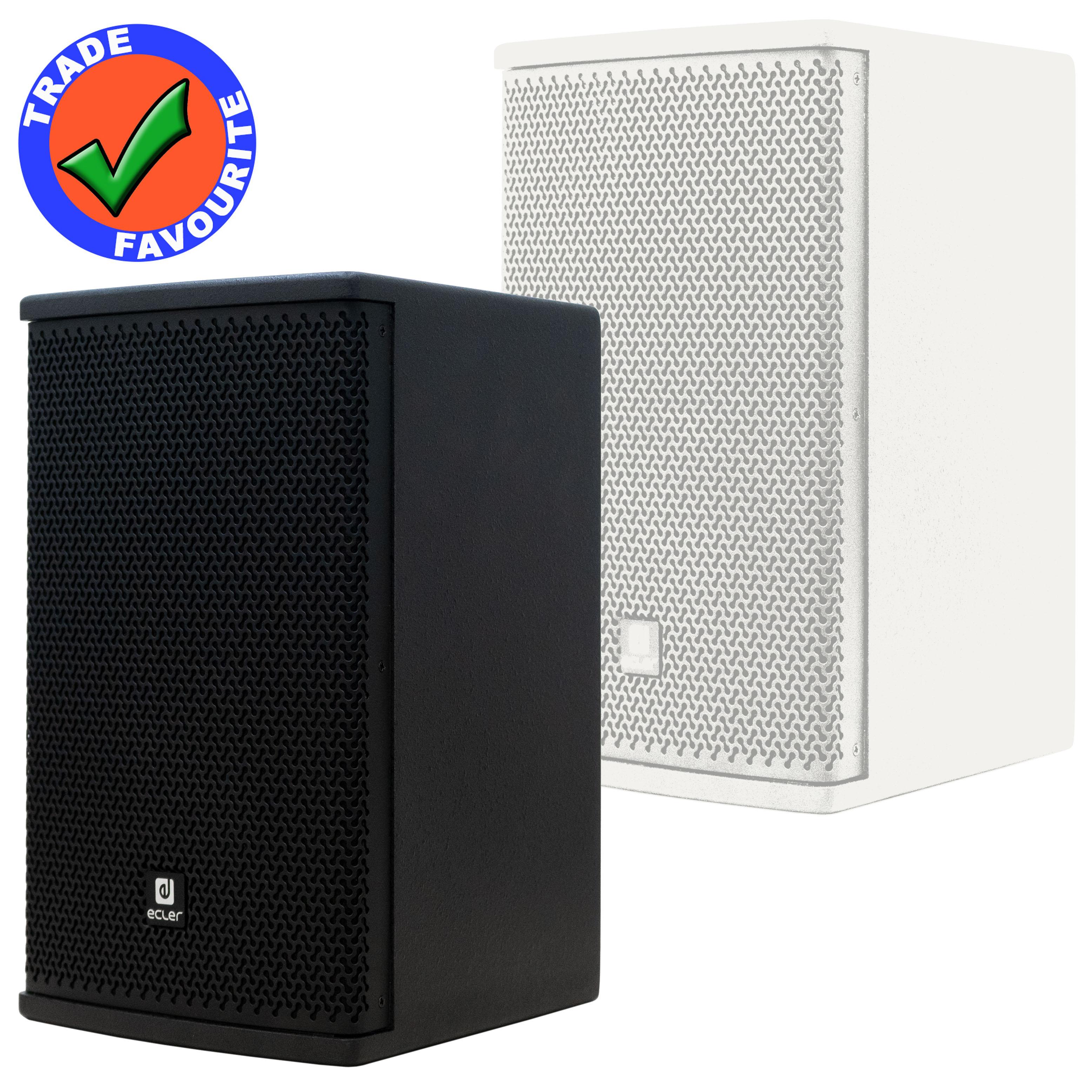

Also available in black - ARQIS106iB.

Supplied with a smart swivel and tilt wall bracket.

  • Full range, 2-way architectural loudspeaker
  • 120 WRMS @ 8 Ω
  • 6" low frequency woofer
  • 1" high frequency compression driver (rotatable)

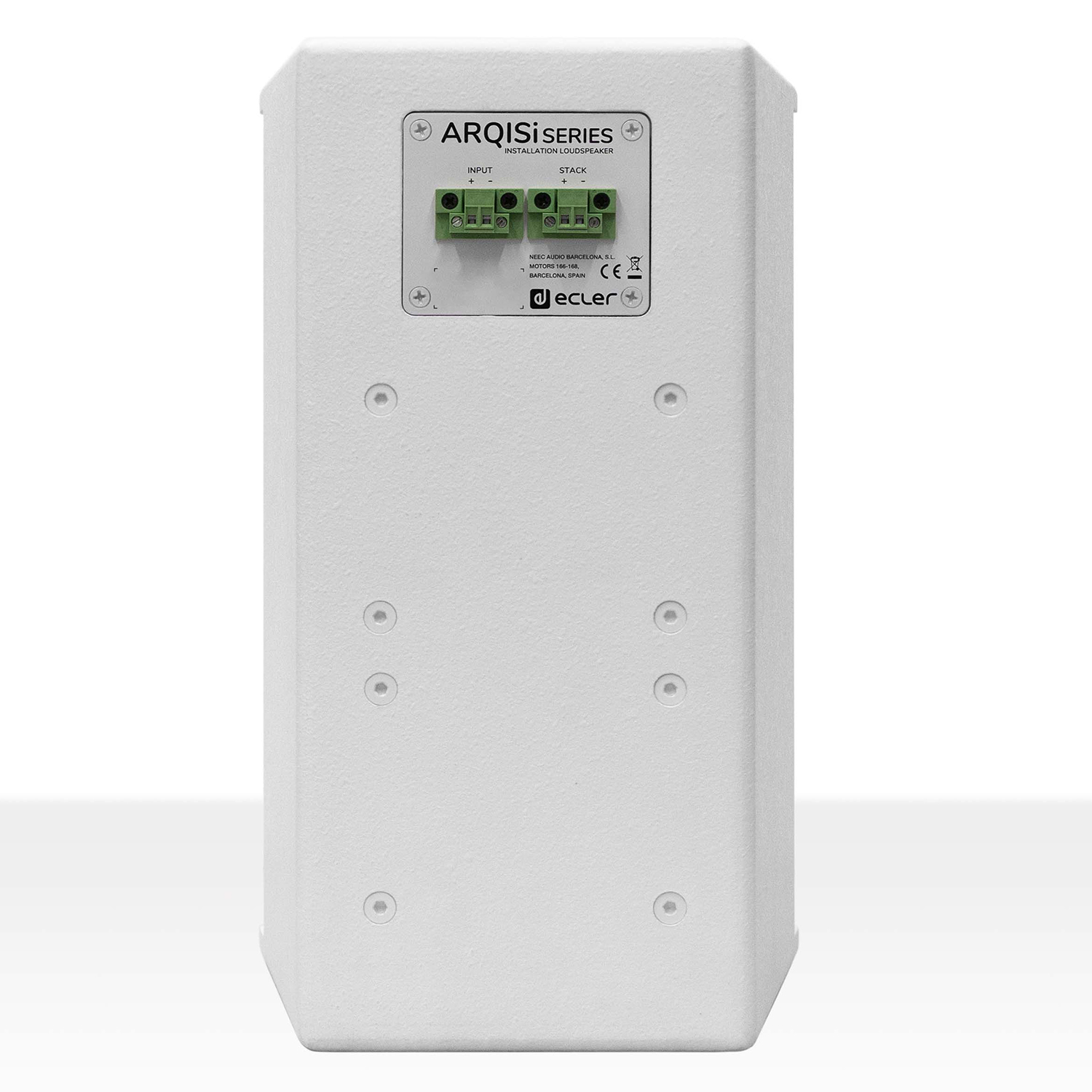

  • Double INPUT/STACK connector, Euroblock type, with security attachment screws to avoid accidental disconnection

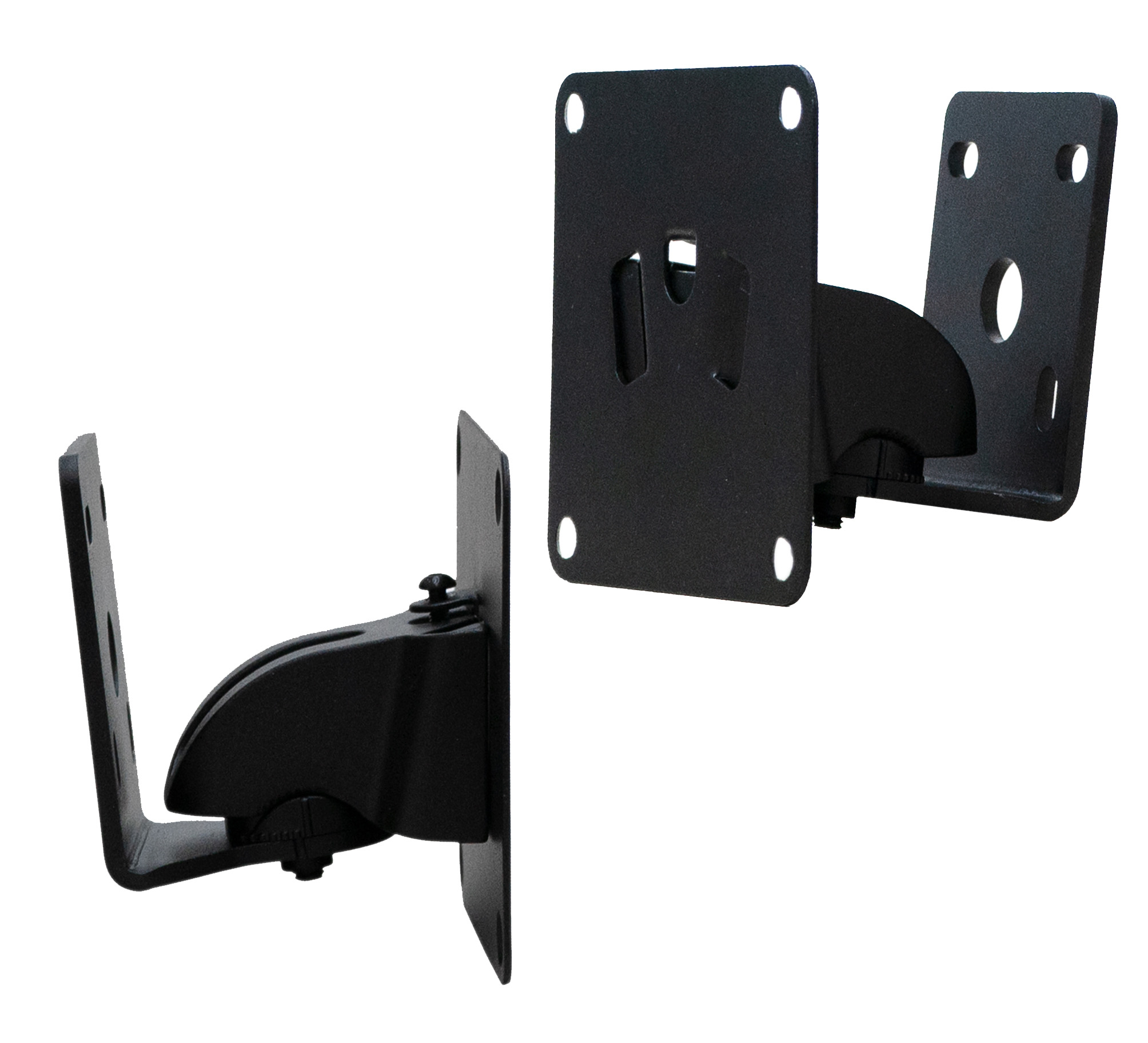

  • VEASY wall bracket included, allowing for pan  &tilt adjustment, employing a single screw for fastening. Robust, quick and easy to install, including jumps and markings for repeating speaker orientation.
  • Metal safety sling included, to avoid drops in case of accidental detachment from the wall surface
  • Available in black or white finish
  • EASE files available
  • Warranty: 5 Years.

Supplied and priced individually.

Click here to download the full
Ecler Product Catalogue.

Ecler Product Brochure



1e: 8ohms
List Ex VAT: £301.75
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Power output (RMS)

120 W RMS / 480W peak

Maximum SPL (dB@1m)

109 dB continuous / 115dB peak

Woofer Diameter

6”

HF driver

1” Compression driver (rotatable)

Sensitivity (dB@1m 1W)

88 dB

Frequency response

75 Hz - 20 kHz (-10dB)

Impedance

8Ω

Dispersion (HxV)

140⁰ x 160⁰

Connections

2 x Euroblock

Dimensions

217 x 350 x 240 mm / 8,50 x 13,77 x 9,44 in

Weight

7.4 kg / 16.31 lb

IP rating

IP31

Finished colour

Black (RAL9005) or White (RAL 9003)

Accessories included

Wall Bracket / 3mm / 4mm / 6mm Allen key
