Ecler ARQIS105iW
Click to expand

Ecler ARQIS105iW

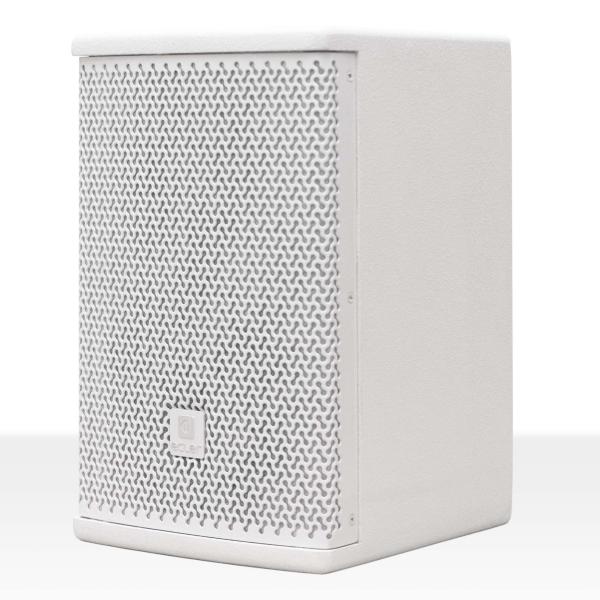

The ECLER ARQIS105iW 2-way compact wooden cabinet loudspeaker is one of our favourite products. It offers excellent sound quality and long term reliability rated at 70 Watts RMS @ 8 Ω. Fitted with a 5.25" woofer and 1" HF tweeter.

Finished in white and supplied with a smart swivel and tilt wall bracket. Also available in black.

Supplied and priced individually.

  • Full range, 2-way architectural loudspeaker
  • 70 WRMS @ 8 Ω
  • 5.25" low frequency woofer
  • 1" high frequency tweeter

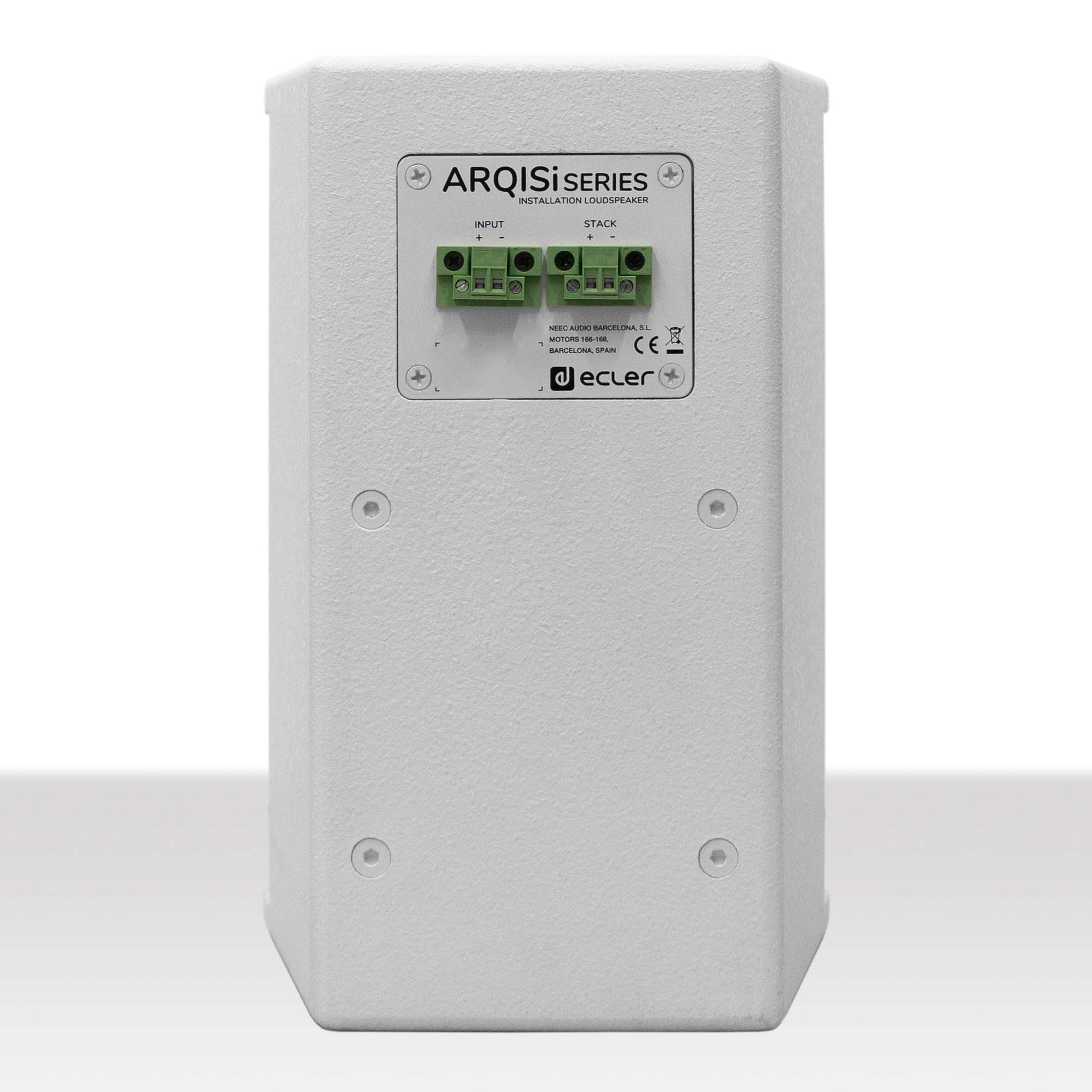

  • Double INPUT/STACK connector, Euroblock type, with security attachment screws to avoid accidental disconnection

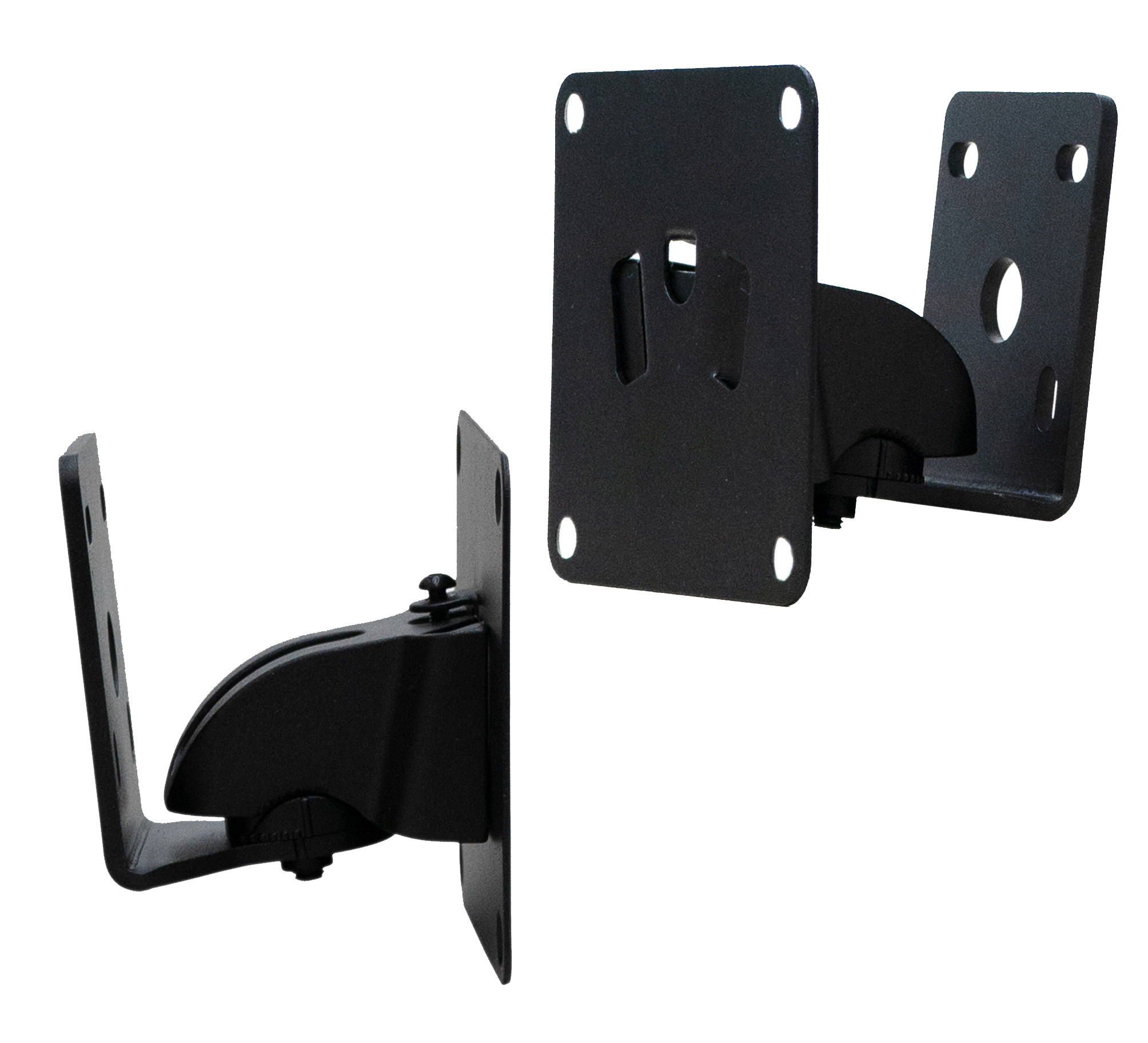

  • Wall bracket included, allowing for pan&tilt adjustment, employing a single screw for fastening. Robust, quick and easy to install, including jumps and markings for repeating speaker orientation.
  • Metal safety sling included, to avoid drops in case of accidental detachment from the wall surface

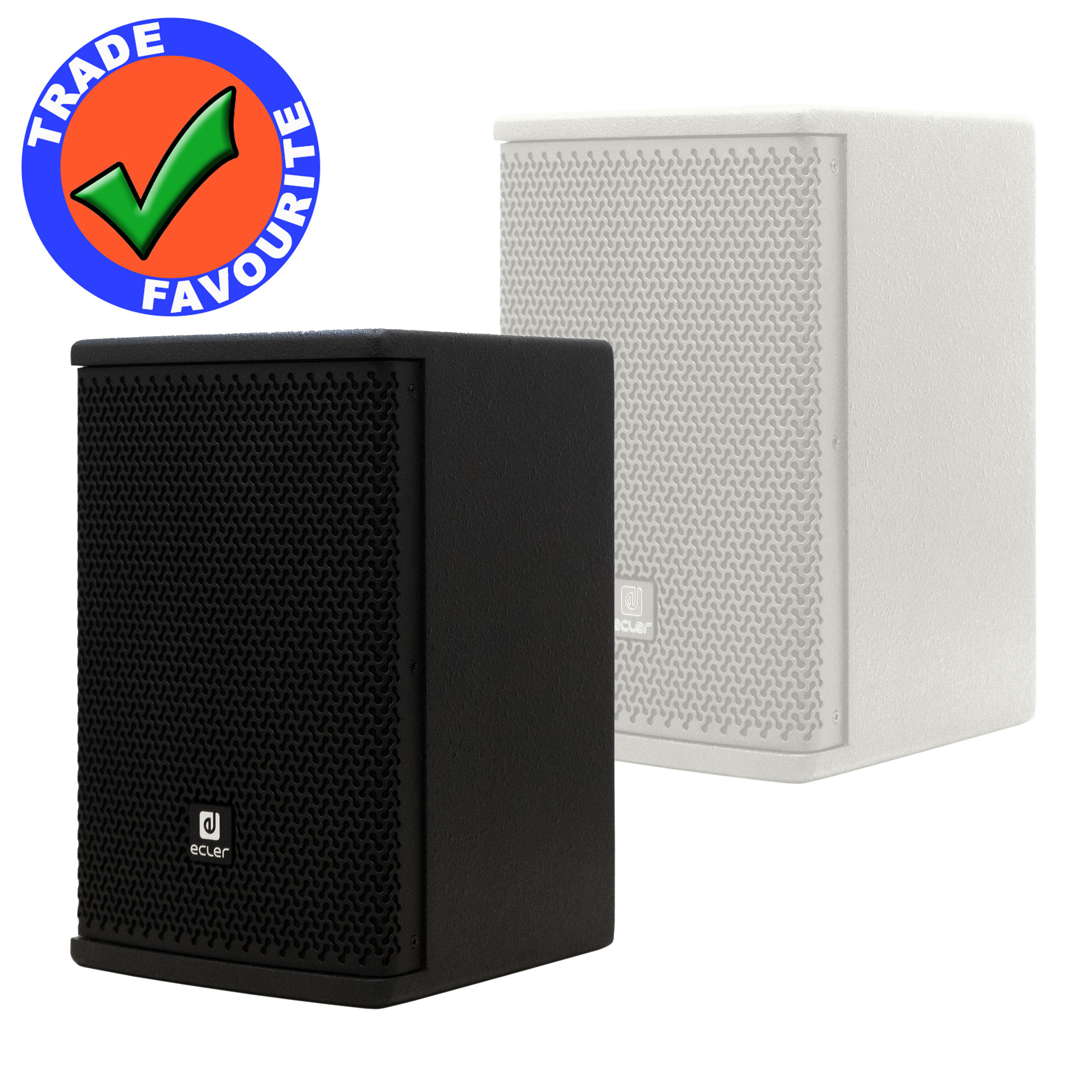

  • Available in black or white finish
  • Warranty: 5 Years.

Click here to download the full
Ecler Product Catalogue.

Ecler Product Brochure



1e: 8ohms
List Ex VAT: £221.00
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Power output (RMS)

70 W RMS / 280W peak

Maximum SPL (dB@1m)

107 dB continuous / 113dB peak

Woofer Diameter

5,25”

HF driver

1” tweeter

Sensitivity (dB@1m 1W)

89 dB

Frequency response

80 Hz - 20 kHz (-10dB)

Impedance

8Ω

Dispersion (HxV)

150⁰ x 130⁰

Connections

2 x Euroblock

Dimensions

86 x 280 x 210 mm / 7.32 x 11.02 x 8.26 in

Weight

3.6 kg / 7,93 lb

IP rating

IP31

Finished colour

Black (RAL9005) or White (RAL 9003)

Accessories included

Wall Bracket / 3mm / 4mm / 6mm Allen key
