RCF PL 8X
Click to expand

RCF PL 8X

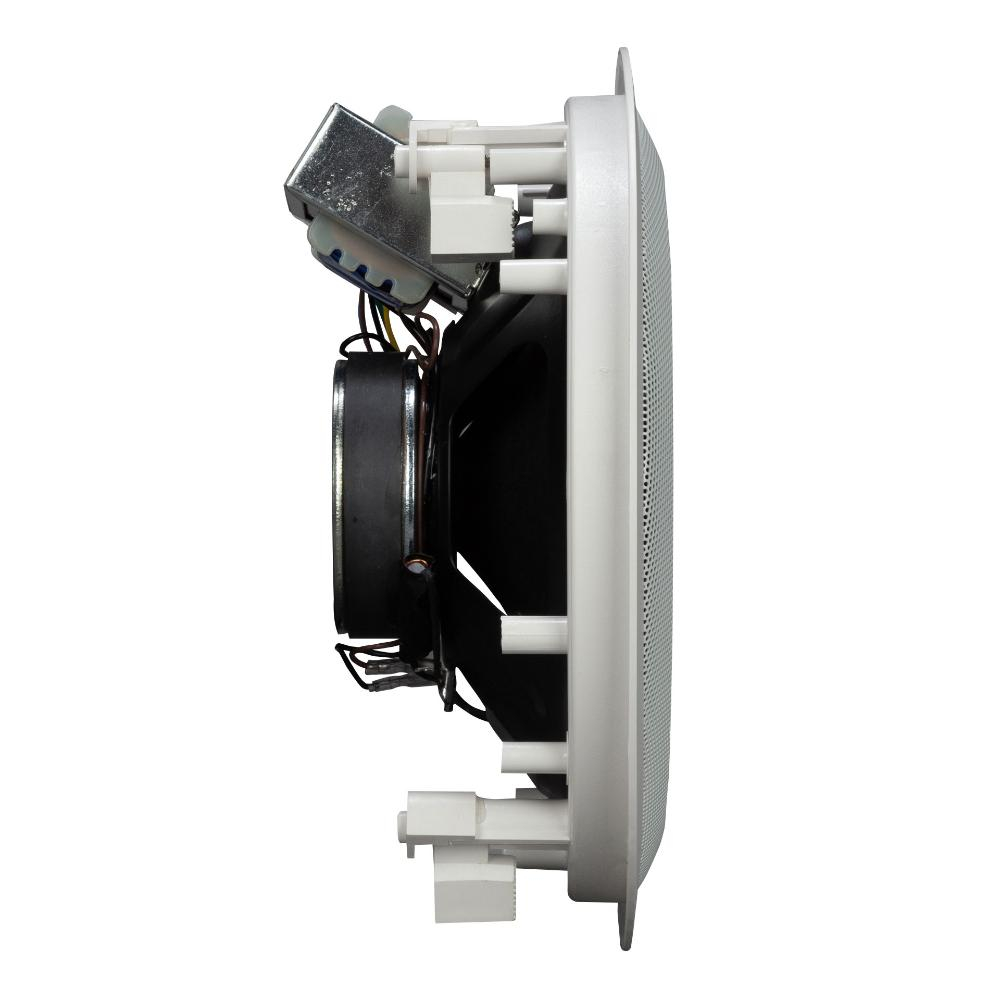

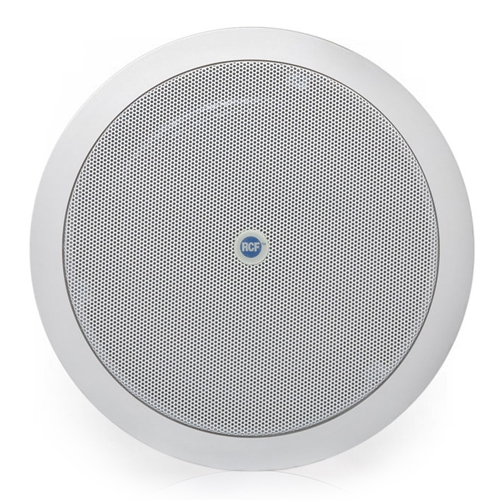

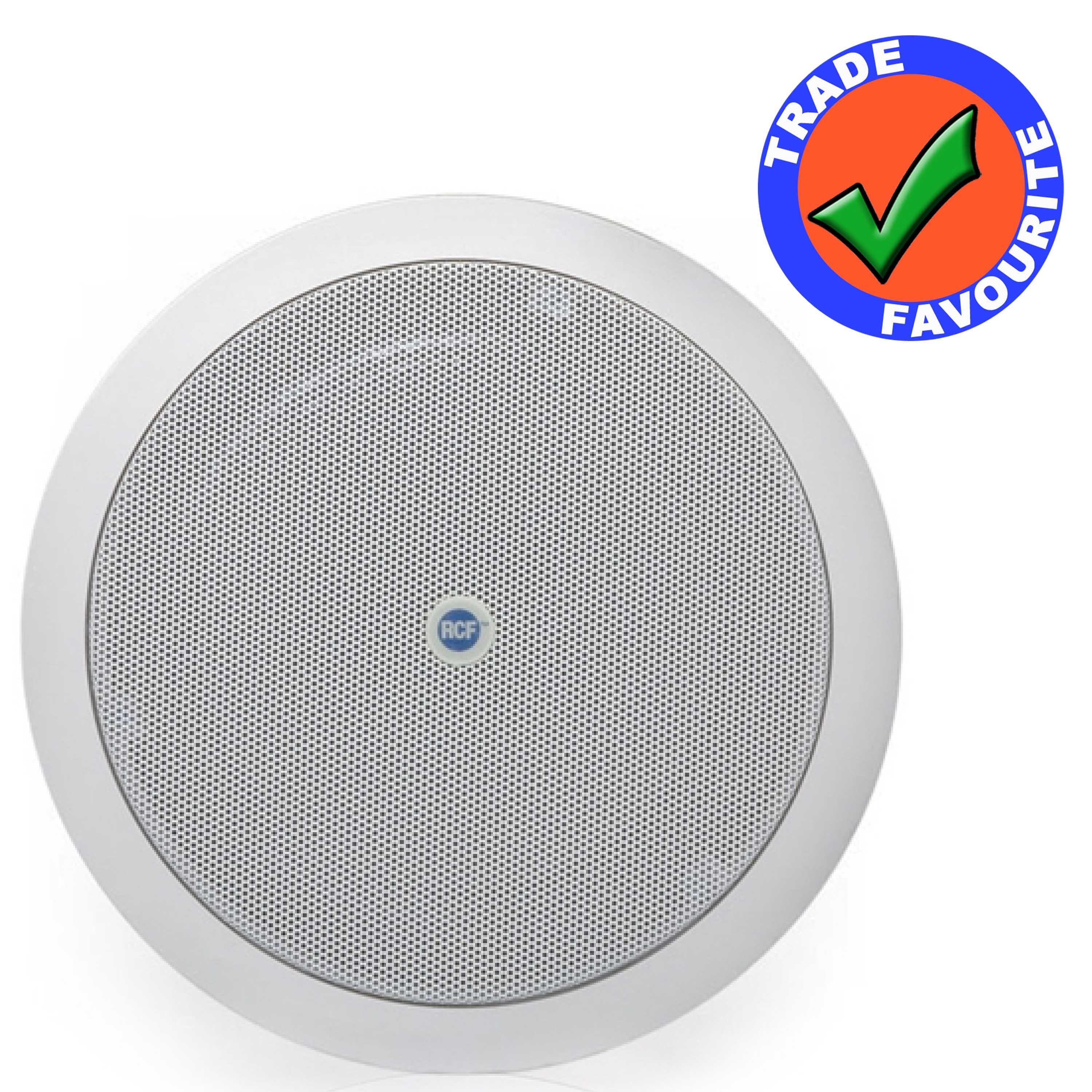

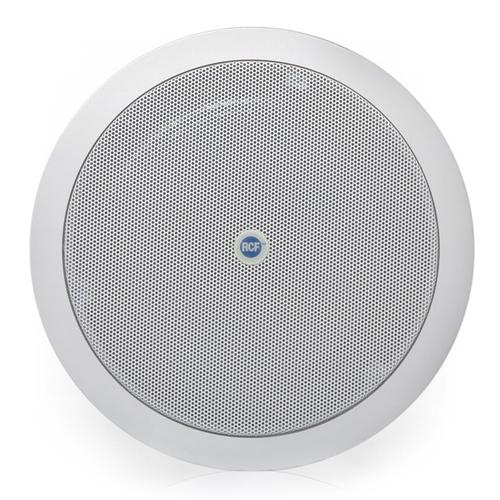

The RCF PL 8X is a 20 watt flush mounted ceiling speaker with 8" driver and 1" coaxial tweeter suitable for 100 volt line distributed sound / business music systems.

The PL8X ceiling speaker features an 8" wide band woofer with a 1" dome tweeter on a bridge support.

When used on 100 volt line, power tappings are available at 20W, 10W, 5W & 2.5W. Installation is quick and easy due to a 3 hook system which requires no screws or other hardware.

Water resistant, rated IP44.

  • 8" woofer
  • 1" tweeter
  • 20 watts RMS
  • 20w, 10w, 5w, 2.5w tappings on 100 volt line
  • Warranty: 3 Years
100V IPxx 8ohms
List Ex VAT: £60.00
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Power RMS 20 W (20 - 10 - 5 - 2,5W tappings)
Line transformer 100 V / 70 V
Speaker 8" woofer + 1" tweeter
Speaker Impedance 8 Ω
Frequency response 60 - 20,000 Hz
Sensitivity (1W/1m) 93 dB SPL in anechoic chamber
Max SPL @ 1m 109 dB
Colour White, RAL 9003
Dimensions (mm)  247 mm Ø
Weight (kg) 1.23

Related Products

AMC PCR 8T

8" Ceiling Speaker with magnetic rimless grille. 25 watts / 100 volt line. White.
Clearance line – limited stock.

see more
List Ex VAT: £25.00
Penton RCS8/T

Flush mount ceiling speaker. 8". 10 watts, 100 volt line.

see more
List Ex VAT: £56.59
Cloud Electronics CVS-C82TW

Dual impedance ceiling speaker. 8” coaxial loudspeaker, 25 watts, 8 ohm or 24 Watts, 100V line.

see more
List Ex VAT: £65.00
Cloud Electronics CVS-C83T

Ceiling speaker with enhanced music reproduction. 8” coaxial loudspeaker, 25 watts, 8 ohm or 24 Watts, 100V line.

see more
List Ex VAT: £87.00
Bosch LC2-PC30G6-8

PAIR of "Premium Sound' 8" ceiling speakers. 8", 30 watts, 100V,

see more
List Ex VAT: £306.00

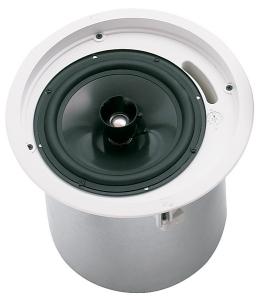

Electro-Voice EVID C8.2
