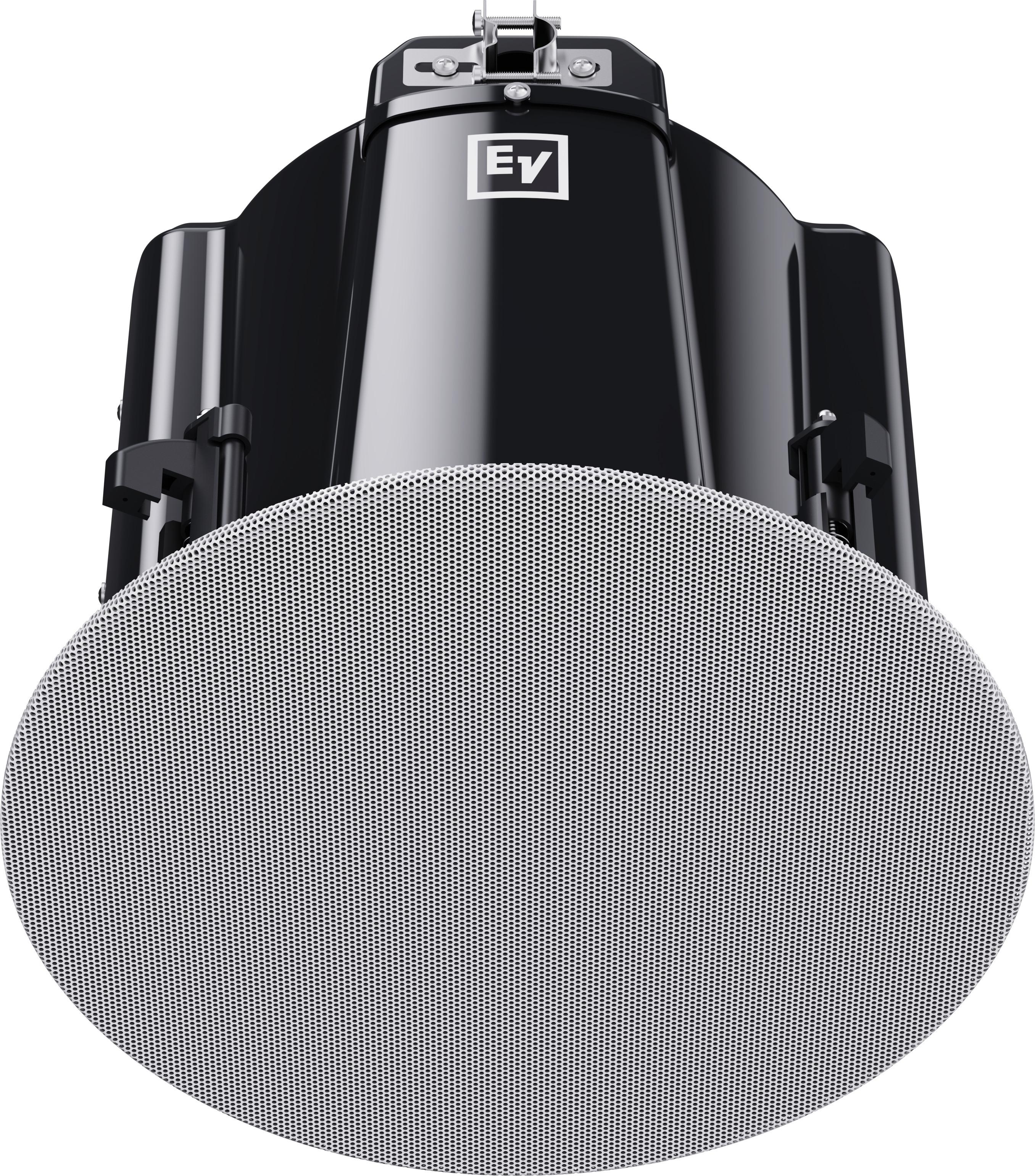

Electro-Voice EVID-C8.2-G2
The Electrovoice EVID-C8.2-G2 is a dual impedance 8", two way, coaxial ceiling speaker rated at 60 Watts on 8 Ohm or 70/100V line. Selection is via a convenient switch on the front baffle.
SOLD BY AND PRICED PER PAIR.
This ceiling speaker system offers excellent sound quality and outstanding reliability with first-class aesthetics. It includes the SwiftLock mounting system for quick and easy installations that are fast and reliable without compromising on safety.
The perforated grille is finished in semi-gloss white powder-coated enamel. The baffle is constructed from UL 94V-0 rated ABS and the rear enclosure is constructed from heavy gauge coated steel.

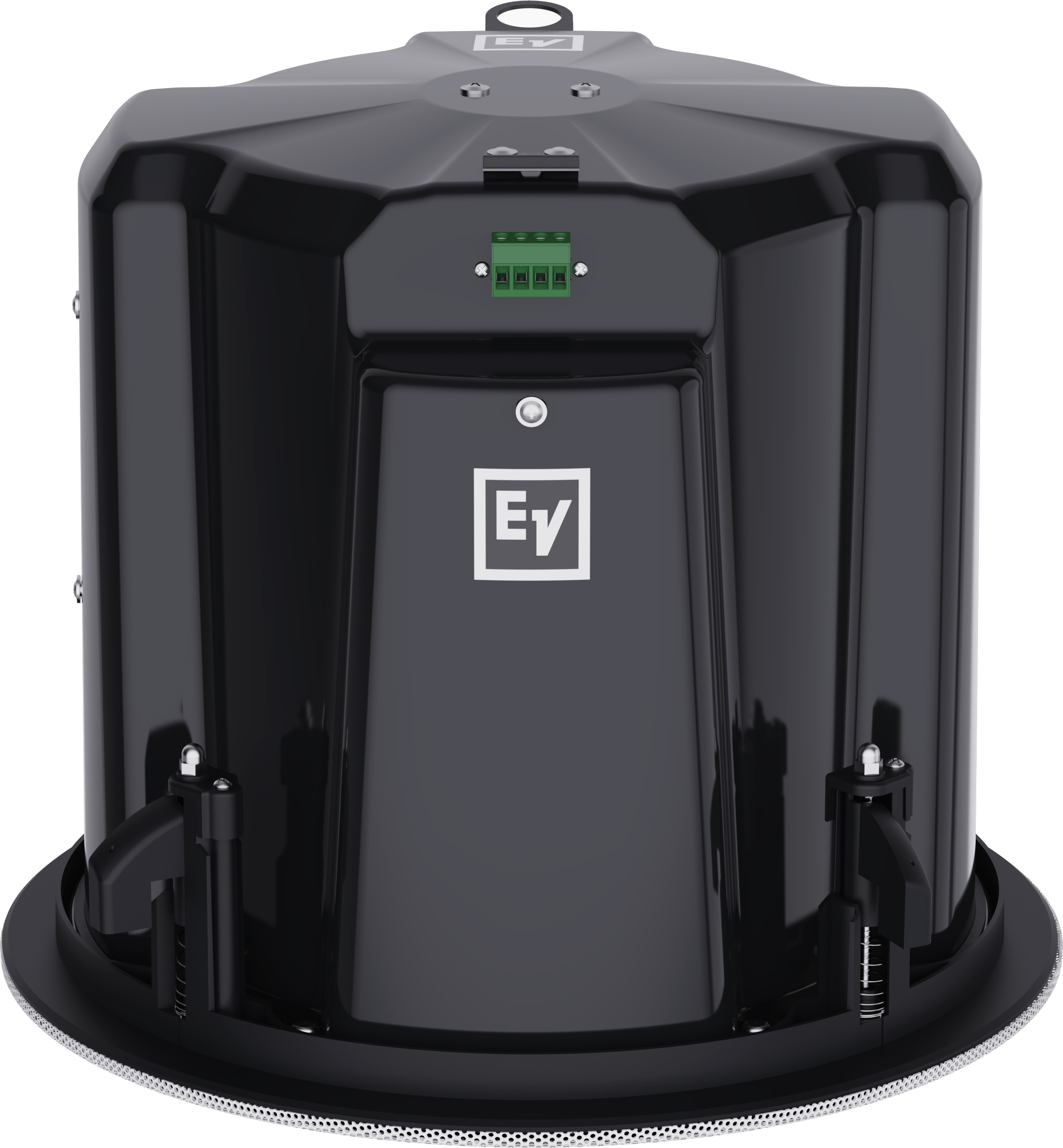

The low-profile enclosure makes the EVID 8.2-G2 easy to mount in very tight spaces. A side terminal-cover provides access to a 4-pin terminal block that allows direct connection to the speaker with 12-gauge and 3.3 mm2-wire and provides pass through to additional speakers.
Complete with mounting support ring and tile bridge. No additional accessories needed for most installations. A low profile option is also available for installations where space is an issue - see C8.2LP.
- SwiftLock mounting system for quick, safe, and reliable installation.
- Bezel-less design with easy-attach grille.

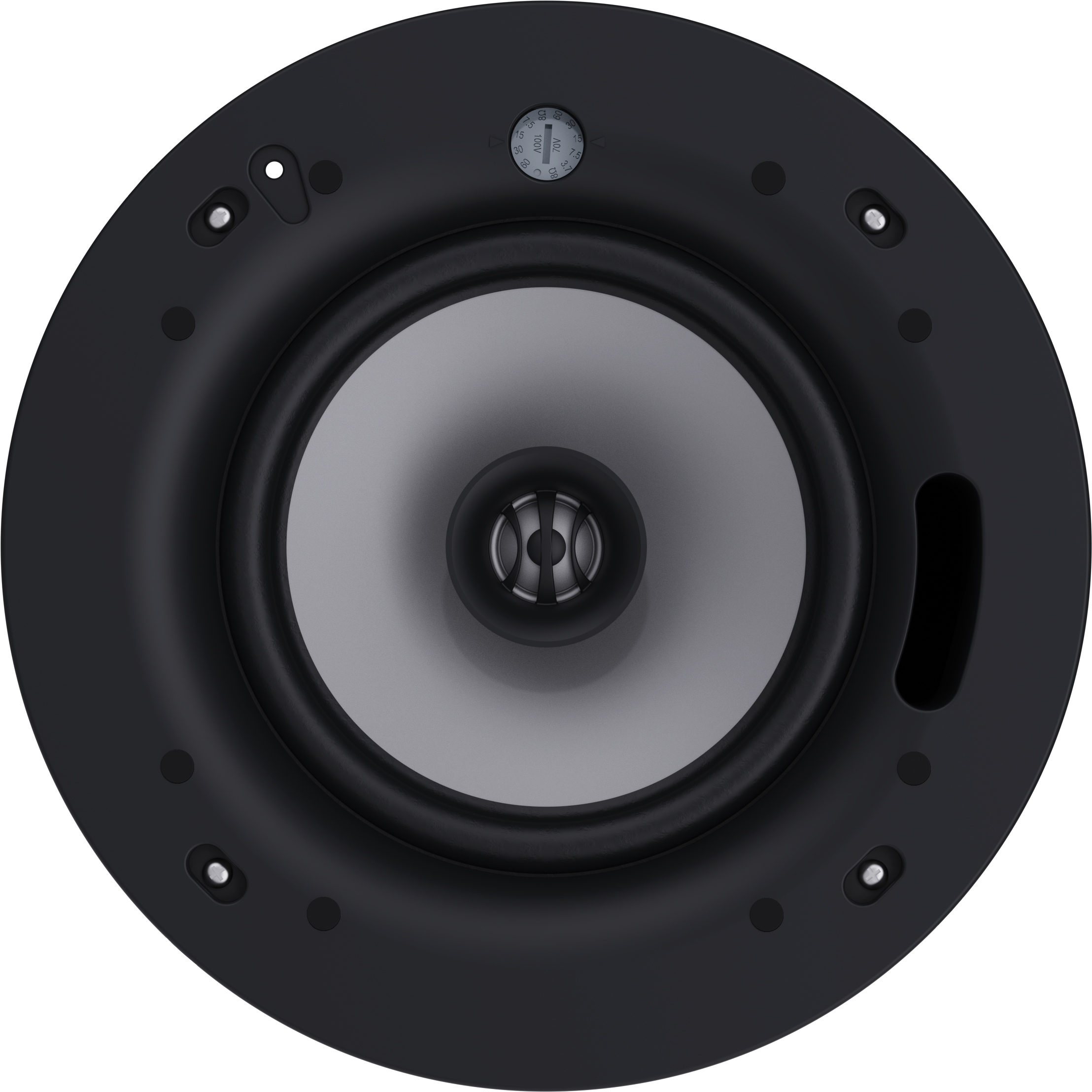

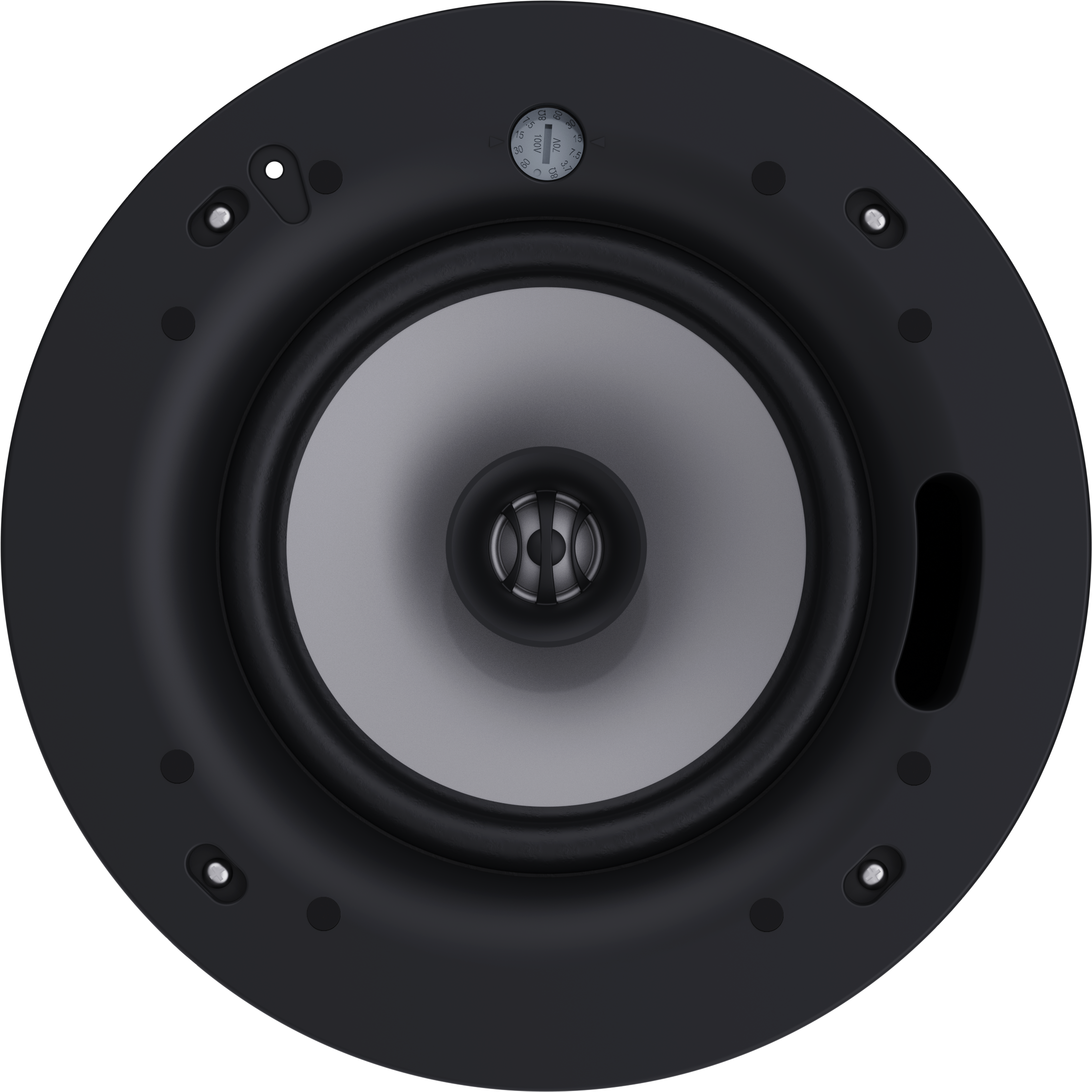

- Front baffle wattage tap adjustment.
- UL 1480A, UL 2043 and CSA 22.2 205 certified.
- Integrated transformer for 70 V, 100 V, or 8 Ω use
- Front-panel mode/wattage selector
- Safe, easy installation with included tile bridge and mounting ring
- White semi-gloss perforated grille
- Part number: F.01U.417.783
Note, an alternative to this loudspeaker is available from Bosch - see the Bosch LC2-PC30G6-8 which has similar specifications with the addition of fire-rated terminals.
