Cloud Electronics CVS-C82TW
Click to expand

Cloud Electronics CVS-C82TW

The Cloud Electronics CVS-C82TW ceiling speaker is fitted with an 8” 2 way coaxial driver with 1” silk dome tweeter and is rated at 25 watts, 8 Ohms or 24 Watts, 100V line.

The CVSC82TW is part of the Cloud CVS Contractor Series - a low-cost range of quality loudspeakers for flush in-ceiling installation.

Ideal for background music and announcements in general public areas and buildings where good musical reproduction and high speech intelligibility are required.

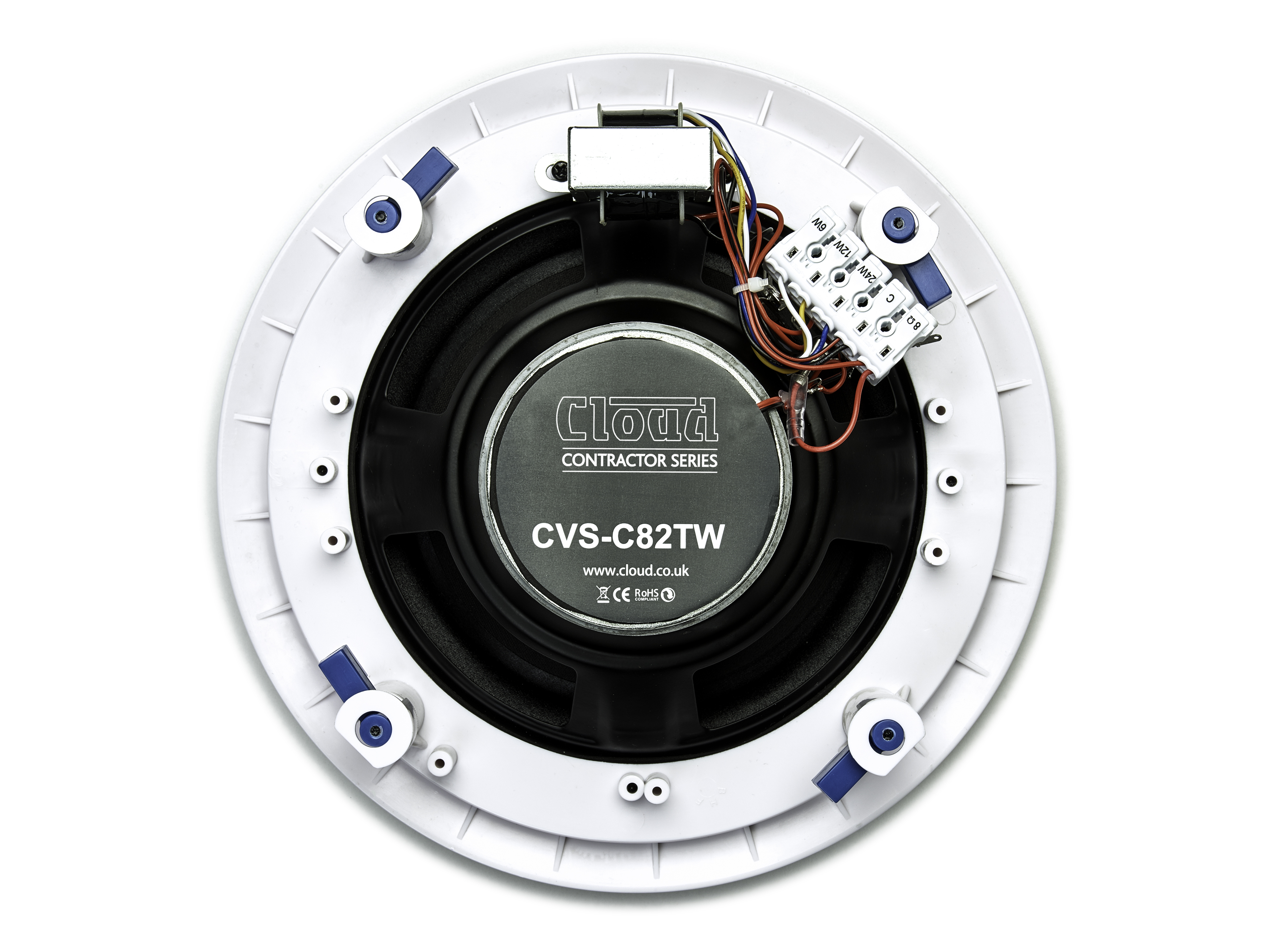

Constructed in lightweight ABS plastic with open back, infinite baffle characteristics and a painted aluminium grille. Connections are made via a multi-pin “Easy Connect” terminal block on a flying lead.

Finished in white, RAL9010.

  • 2-way Coaxial driver design
  • 1” Silk dome Tweeter & 8” treated paper Woofer

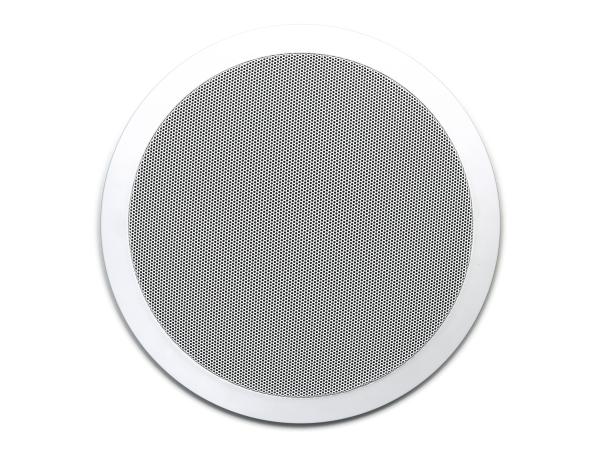

  • Snap-on grille – easy to fit and remove
  • Cutting template supplied
  • Good musical quality and speech intelligibility
  • 100 V-line - 24W, 12W or 6W via integral multi-tap transformer
  • Low impedance 8Ω - Max 50W
  • Low profile back can for installation into ceiling voids with limited height
  • “Easy Connect” terminal block simplifies installation
  • Warranty: 2 Years.

Download the full
Cloud Electronics Product Catalogue here.

Cloud Electronics Product Brochure
1a: 100V 1e: 8ohms
List Ex VAT: £65.00
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Nominal driver diameter

8”

Type

2-way coaxial

Tweeter design

1” Silk dome

Woofer design

8” treated paper, with cloth surround

Frequency Response (-3 dB)

40 Hz – 20 kHz

Frequency Response (-10 dB)

36 Hz – 20 kHz

Crossover frequency

6 kHz

Driver impedance

8 ohms

Sensitivity (1 W @ 1m)

89 dBA

Dispersion Angle

90°

Coverage (CM²)

219.04

Power rating

25 W

Max power input

50 W

Transformer taps

24 W, 12 W, 6 W, lo-Z

Cutout hole size

241 mm

Grille type

Painted aluminium

Overall dimensions (dia x height)

10.7” x 4”

(271.5 mm x 100 mm)
