TOA PC-1868W-EB

TOA PC-1868W-EB

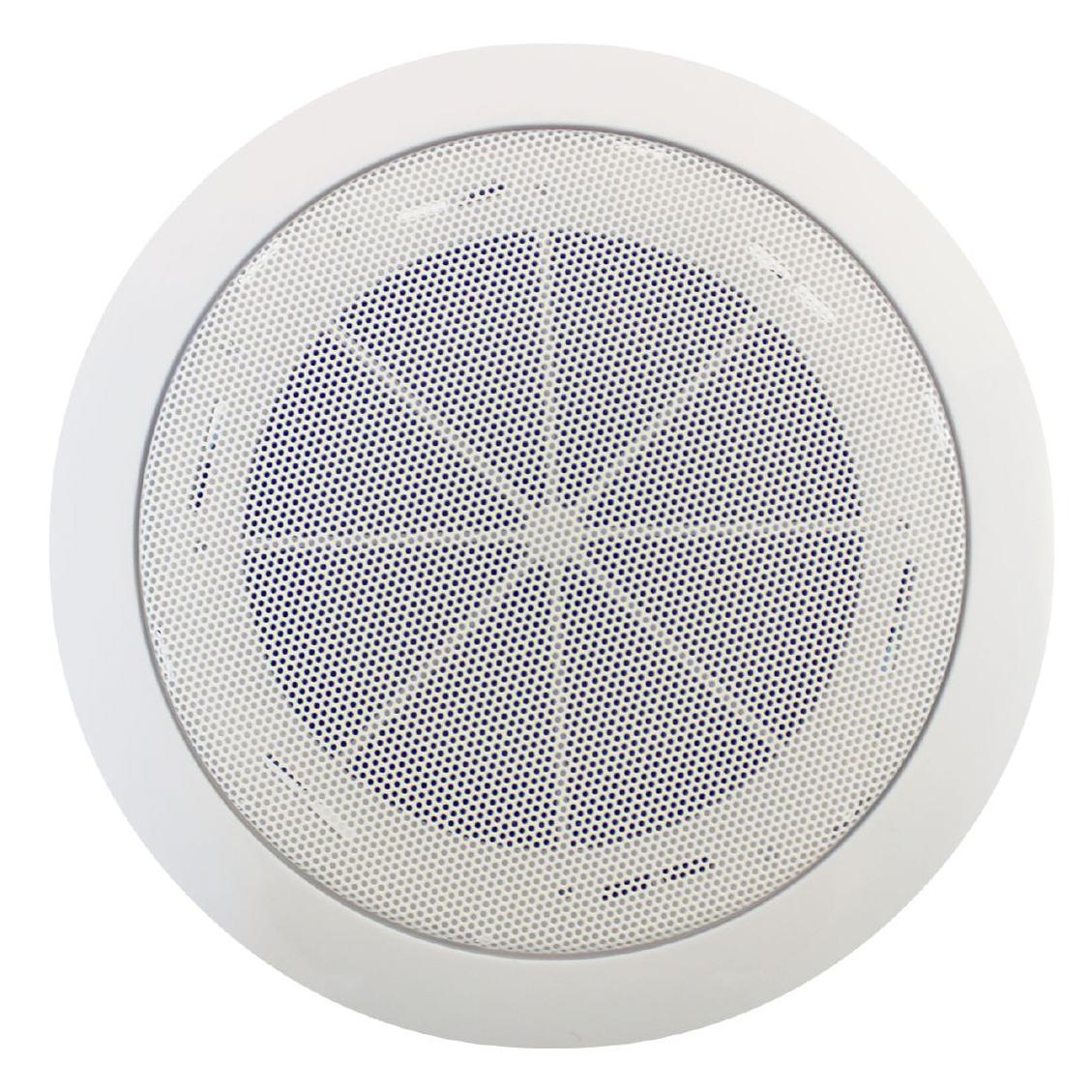

The TOA PC-1868W-EB is a 6 watt, 100 volt line flush mount ceiling speaker for background music and paging. The face of the speaker is quite flat resulting in a streamlined, low profile appearance in the ceiling.

The PC1868W is suitable for all kinds of business music & commercial audio systems in shops, offices, hospitals and restaurants for example.

This loudspeaker includes a bridge support / mounting bracket which may give a more secure fit in weaker ceiling substrates.

  • 12cm speaker
  • Metal grille, ABS resin baffle
  • Flush-mounted and easily installed with a spring catch mount
  • Pure white finish
  • Warranty: 1 Year
100V
List Ex VAT: £23.50
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Rated Power (rms) 6W
Rated impedance 100V 1.7kΩ (6W), 3.3kΩ (3W), 10kΩ (1W)
Rated impedance 70V 1.7 kΩ (3 W), 3.3 kΩ (1.5 W),
10 kΩ (0.5 W)
SPL (1W/1m) 90dB
Frequency Range (-10dB) 100HZ - 16KHZ
Mounting Method Spring catch
Material Housing: Steel, Grille: Steel
Colour White, RAL 9016
Dimensions mm 180 Dia. X 11 (exposed section) + 110 D
Cutout diameter 150mm ±3mm

DOWNLOADS

TOA PC-1868W Datasheet
PC1868W Ceiling Loudspeaker
