Cloud Electronics CVS-C5W

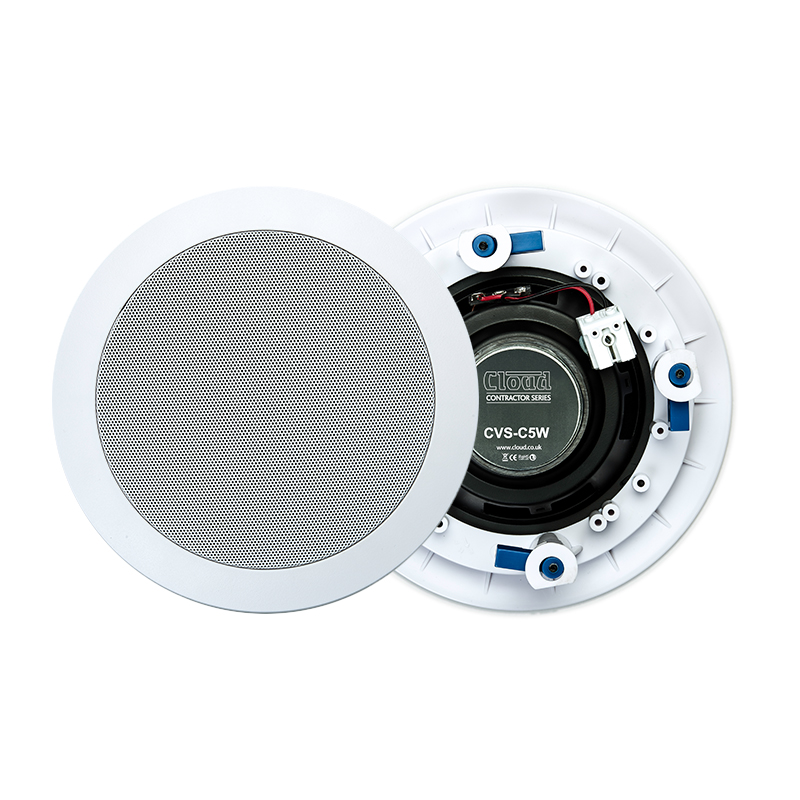

The Cloud Electronics CVS-C5W low impedance ceiling speaker is fitted with a 5¼” dual cone driver and is rated at 10 watts, 16Ohms.

The CVSC5W is part of the Cloud CVS Contractor Series - a low-cost range of quality loudspeakers for flush in-ceiling installation.

Ideal for background music and announcements in general public areas and buildings where good musical reproduction and high speech intelligibility are required.

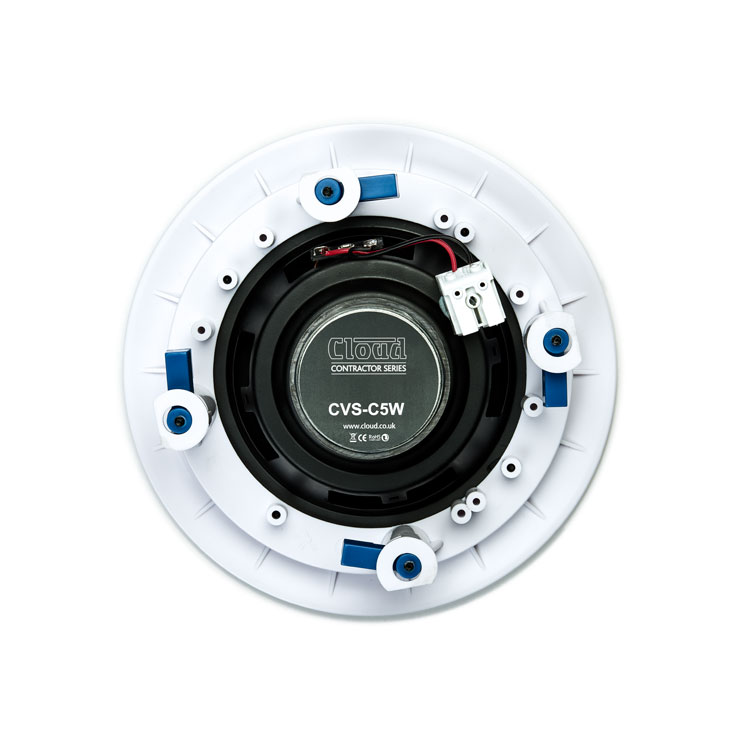

Constructed in lightweight ABS plastic with open back, infinite baffle characteristics and a painted steel grille. Connections are made via a multi-pin “Easy Connect” terminal block on a flying lead.

Finished in white, RAL9010.

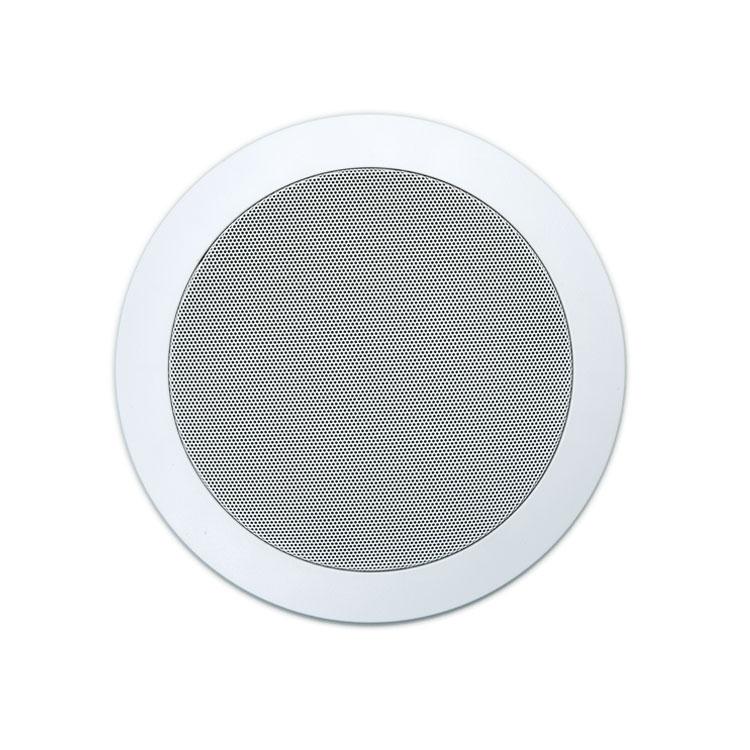

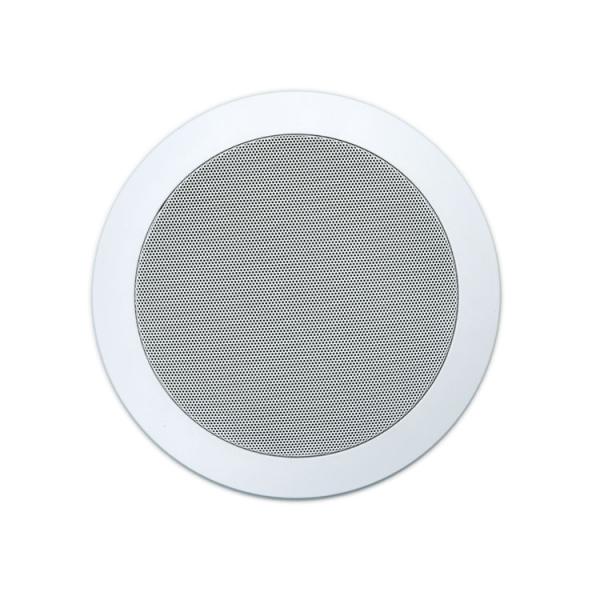

  • Snap-on grille – easy to fit and remove
  • Cutting template supplied
  • Good musical quality and speech intelligibility
  • Low impedance 16Ω
  • Low profile back can for installation into ceiling voids with limited height
  • “Easy Connect” terminal block simplifies installation
  • Warranty: 2 Years.

Download the full
Cloud Electronics Product Catalogue here.

Cloud Electronics Product Brochure
16ohms
List Ex VAT: £21.00
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Nominal driver diameter

5¼”

Type

Dual cone

Tweeter design

n/a

Woofer design

5¼” treated paper, with cloth surround

Frequency Response (-3 dB)

73 Hz – 20 kHz

Frequency Response (-10 dB)

57 Hz – 20 kHz

Crossover frequency

n/a

Driver impedance

16 ohms

Sensitivity (1 W @ 1m)

85 dBA

Dispersion Angle

90°

Coverage (CM²)

96.769

Power rating

10 W

Max power input

20 W

Transformer taps

n/a

Cutout hole size

169 mm

Grille type

Painted steel

Overall dimensions (dia x height)

8.1” x 3.2”

(205 mm x 80 mm)
