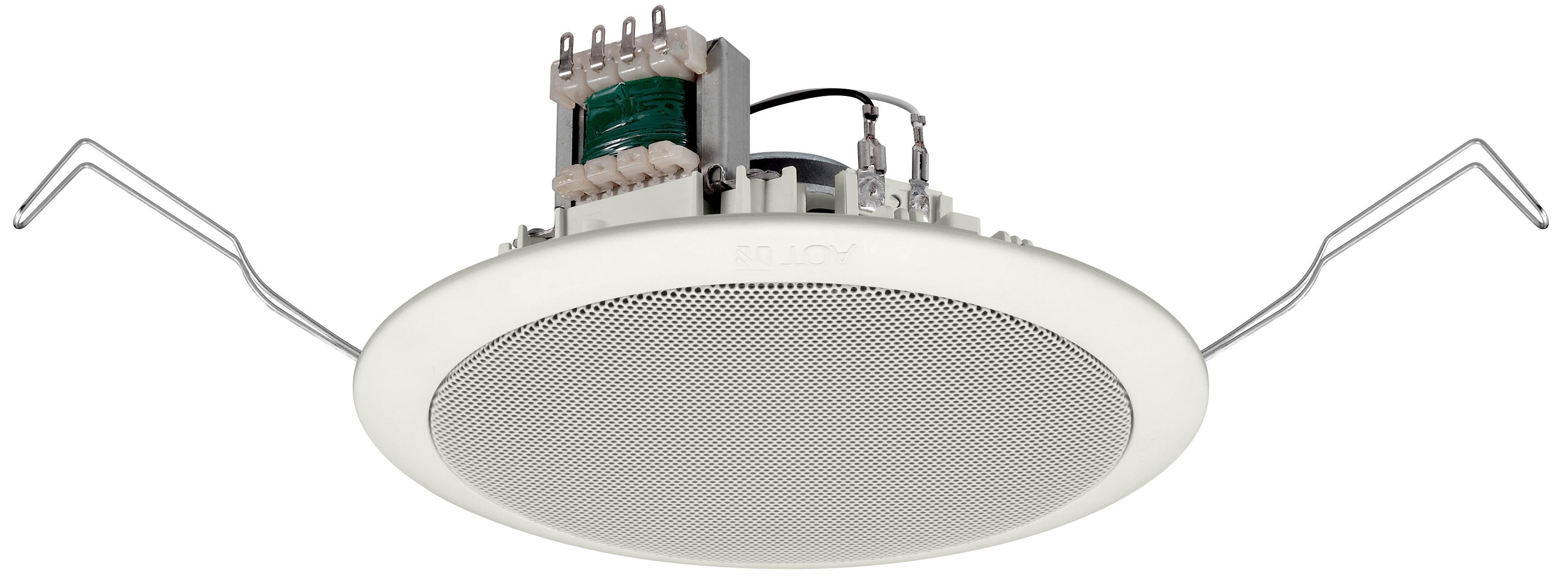

The TOA PC-648R is a 6 watt, 100 volt line 5" ceiling speaker with a white finish.
Simple, spring clip mounting for quick and easy installation.
The PC648R is suitable for background music (BGM) and paging in most business music and commercial audio systems.
| Rated Power (rms) | 6 W (for 100 V Line), 3 W (for 70 V Line) |
| Rated Impedance 100 V line |
1.7 kΩ (6 W), 3.3 kΩ (3 W), 10 kΩ (1 W) |
| Rated Impedance 70 V line |
1.7 kΩ (3 W), 3.3 kΩ (1.5 W), 10 kΩ (0.5 W) |
| SPL (1W/1m) | 90dB |
| Frequency Range (-10dB) | 100HZ - 18KHZ |
| Material | Baffle: Polypropylene resin, paint finish Grille: Surface-treated steel, paint finish |
| Colour | White (RAL9010) |
| Dimensions mm | 168 Ø x 77 mm |
| Weight | 470 g (1.04 lb) |
| Mounting | Spring loaded quick-mount bracket assembly |
Quick fit ceiling speaker. White. 5", 6 watts 100 volt line.
Clearance Line - Limited Stock.
Wide dispersion, high power ceiling speaker. Two way, 5". 30 watts, 100 volt line.
Clearance line - Two only. Ex demo.
Dual impedance ceiling speaker. 5¼” dual cone loudspeaker, 10 watts, 8 ohm or 6 Watts, 100V line.
Dual impedance ceiling speaker. 5¼” coaxial loudspeaker, 20 watts, 8 ohm or 6 Watts, 100V line.
