Yamaha VXS3FT

The Yamaha VXS3FT is stylish slim profile background music speaker rated at 15 watts, 100 volt line.

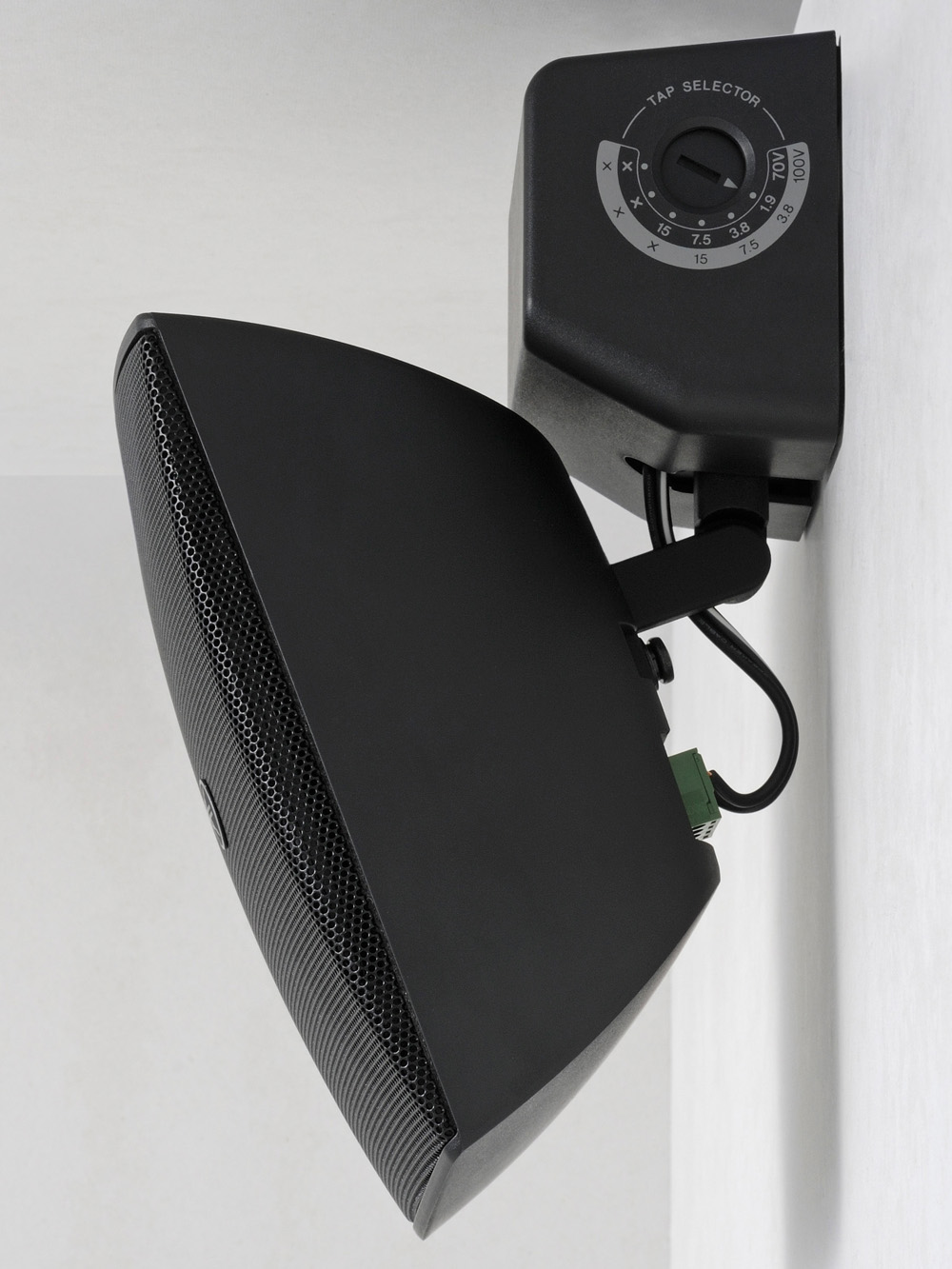

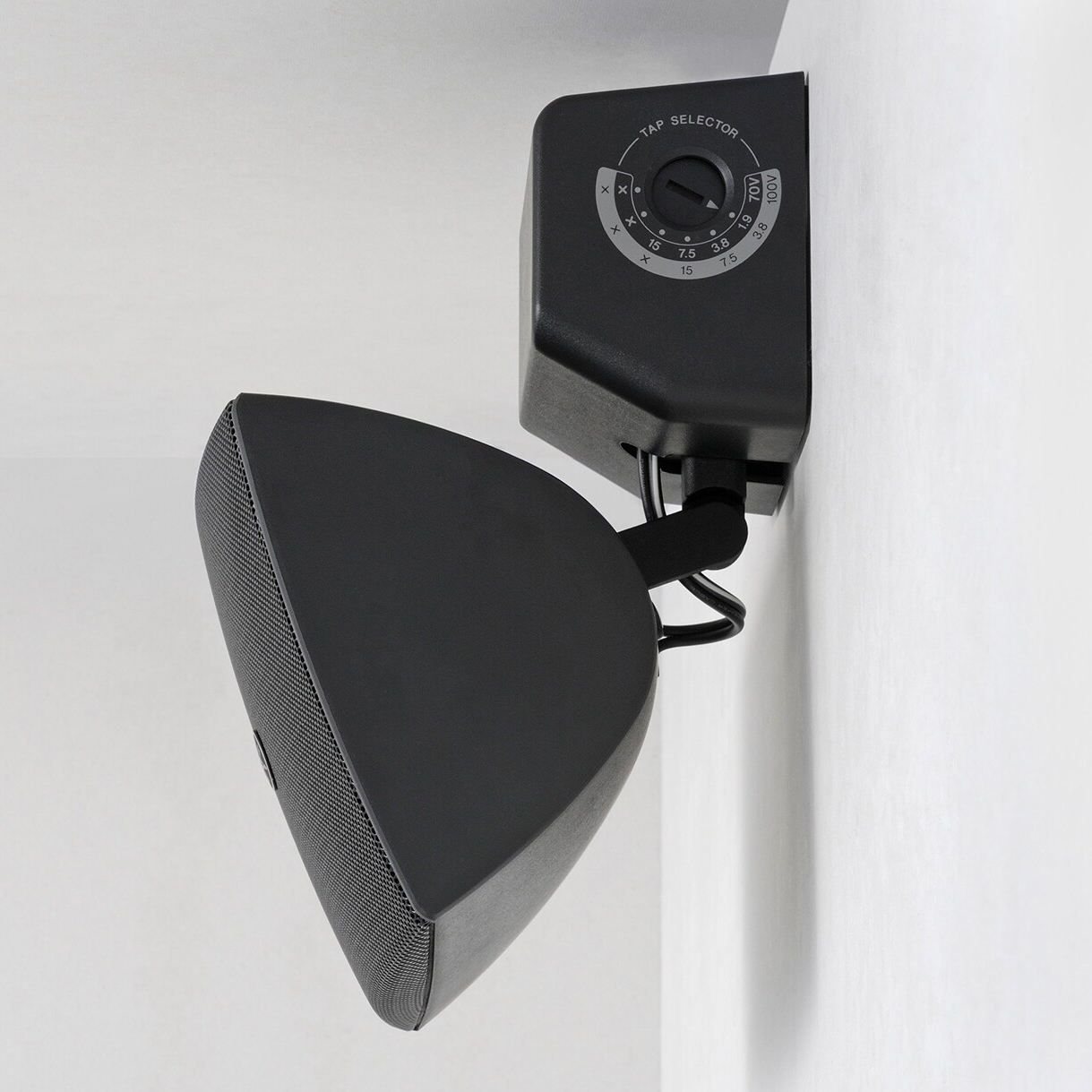

Tappings are available at 15, 7.5 and 3.8 watts and are selected via the rotary dial on the mounting bracket.

The curved back design presents a discreet appearance which blends into any environment.

Quality drivers and components ensure a rich refined and natural sound, even at low volumes.

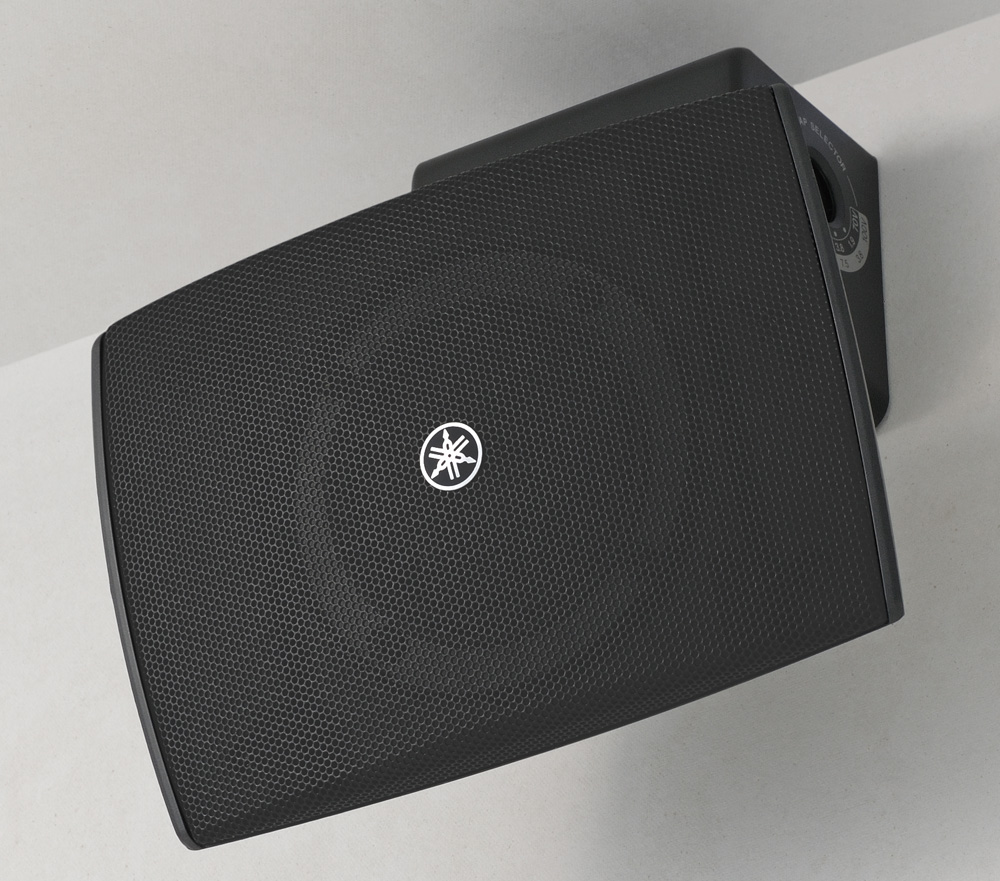

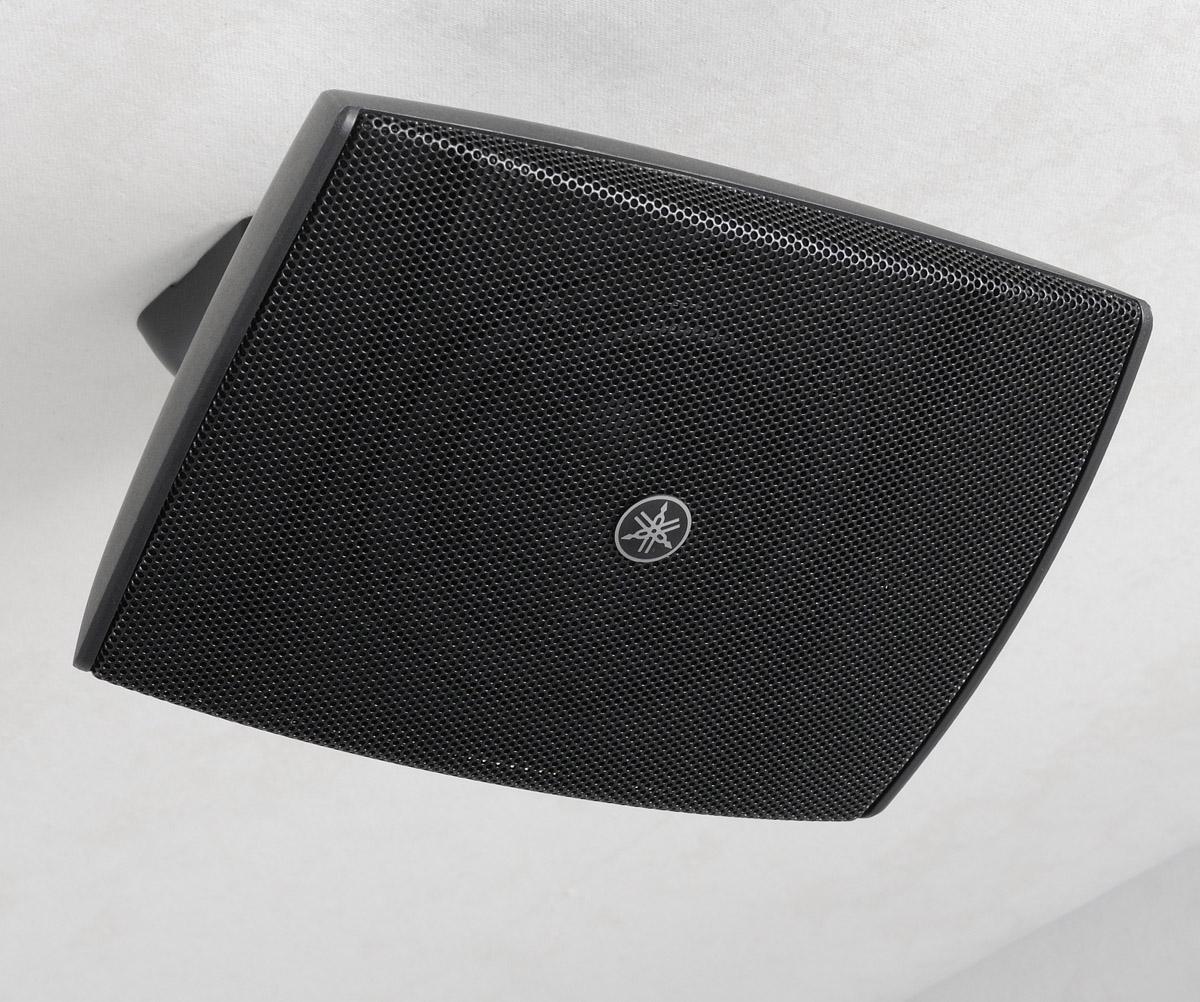

A wall mounting bracket is included.

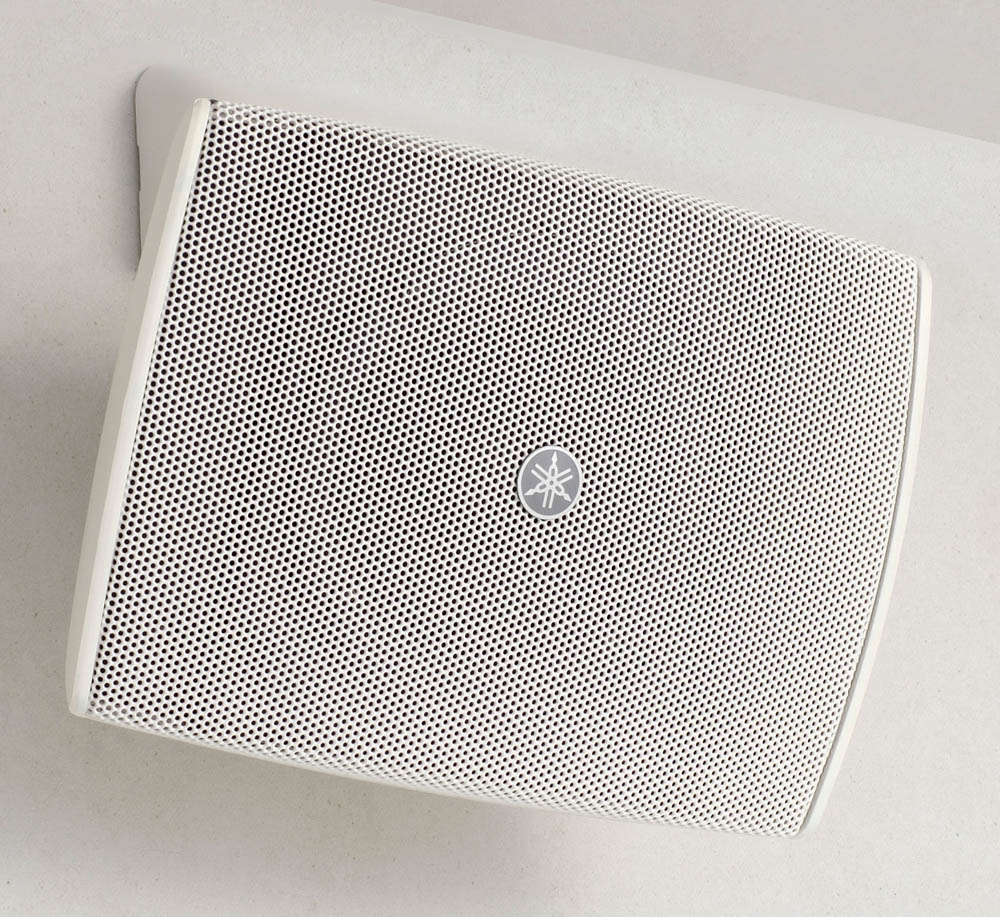

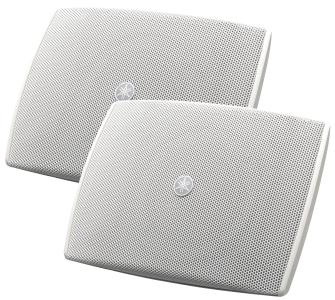

Available in black (VXS3FTB) or white (VXS3FTW).

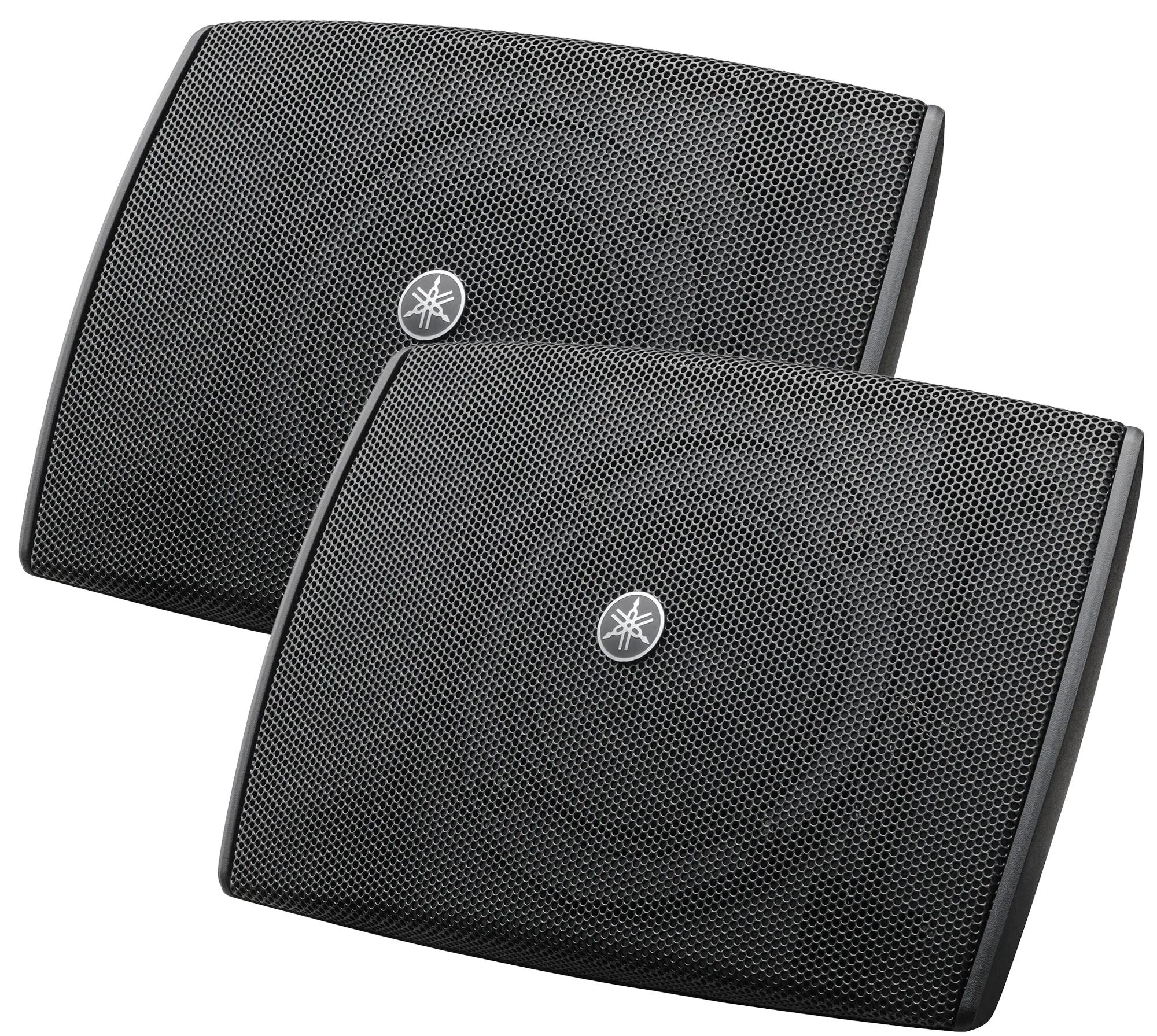

**Supplied & priced as a pair*

  • 3.5” full-range speaker units
  • High-impedance model for large installations
  • Attractive, discreet design complements elegant décor

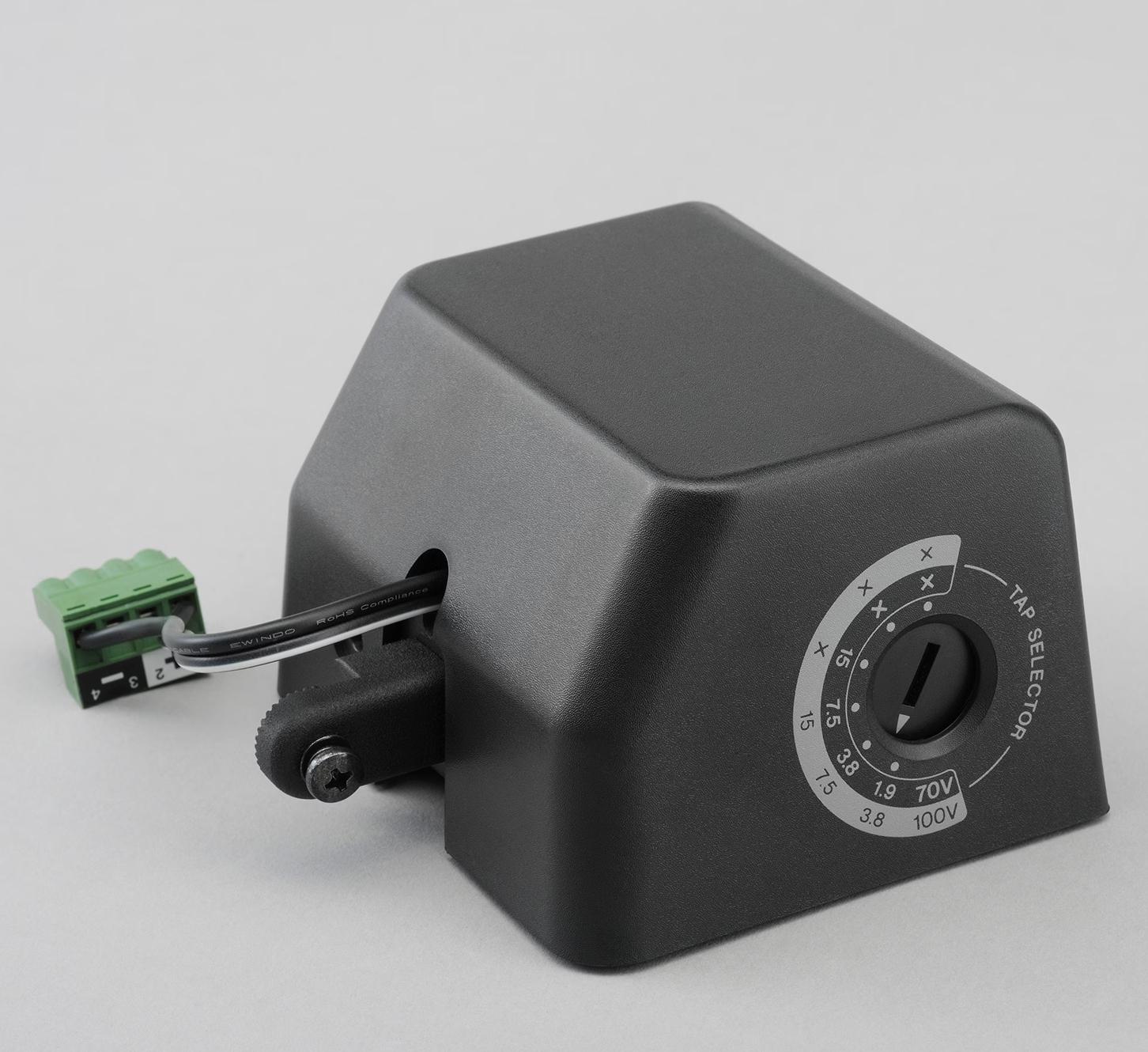

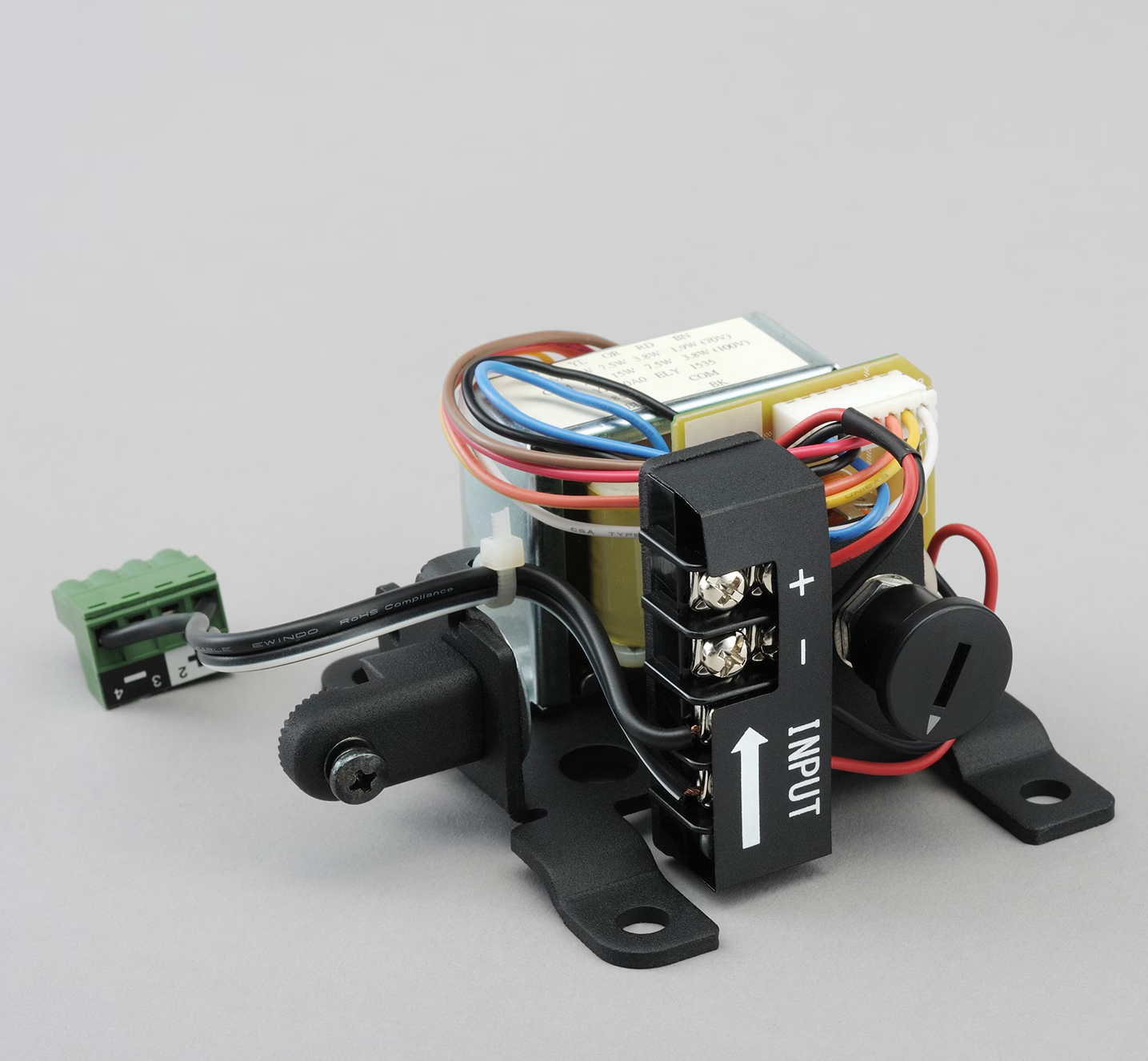

  • Supplied bracket with dedicated transformer complements the overall design
  • Acoustic design for sophisticated, natural reproduction
  • Individual speakers cover a wide angle
  • Paintable enclosures and grilles

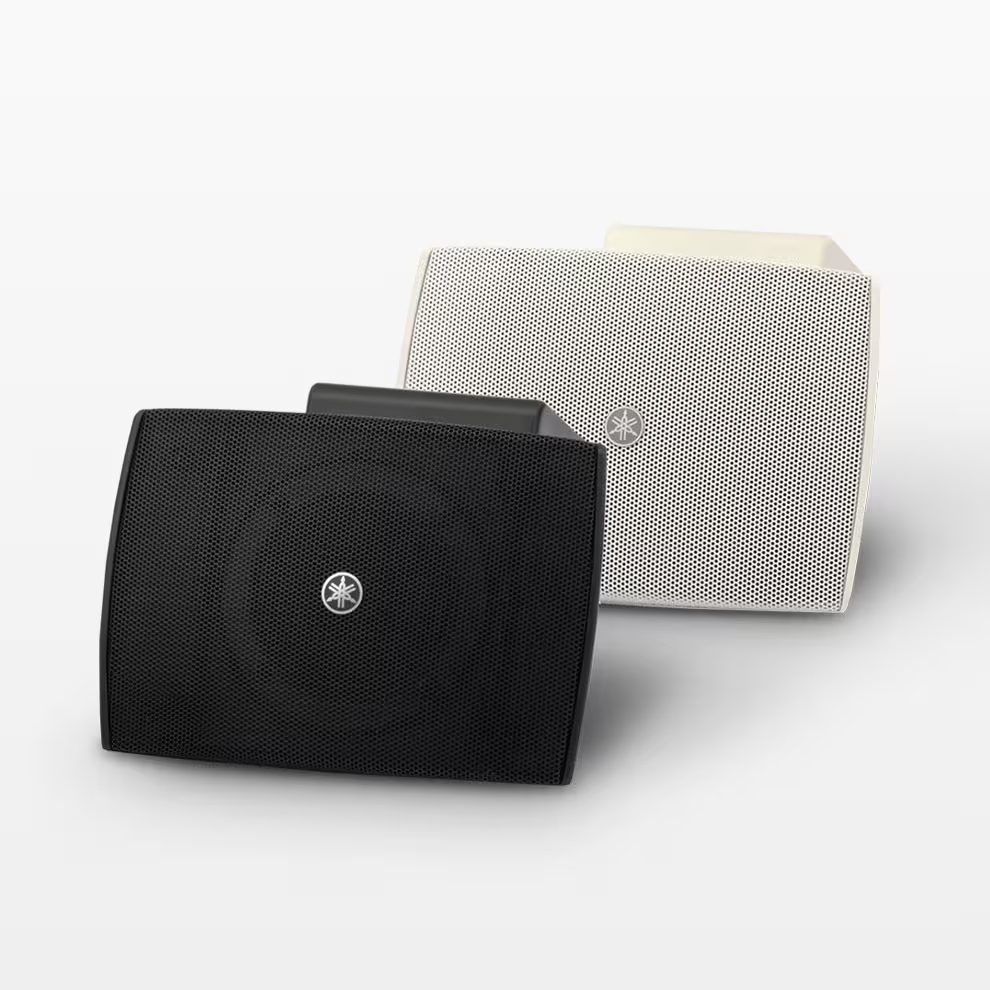

  • Black and white models available
  • 1.7kg (3.7 lbs) Including bracket
  • W 184mm x H 178mm x D 139 mm (W 7.3" x H 7.0" x D 5.5") Including bracket
  • Warranty: 5 Years.

(An 8 ohm, low impedance model is also available - see related products)

Click here to download the Yamaha Commercial Installations Brochure.

Click to download the Yamaha Brochure

100V
List Ex VAT: Contact Us
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

General specifications

VXS3FT / VXS3FTW

Speaker Type

Full-range, Acoustic suspension

Frequency response (-10dB)

130Hz-20kHz

Nominal coverage

150° horizontal, 160° vertical

Components

LF: 3.5" cone

Transformer Taps (100V)

15W, 7.5W, 3.8W

Transformer Taps (70V)

15W, 7.5W, 3.8W, 1.9W

Nominal impedance

-

SPL Sensitivity (1W; 1m on axis)

86dB SPL

SPL Peak (Calculated)

-

I/O connectors

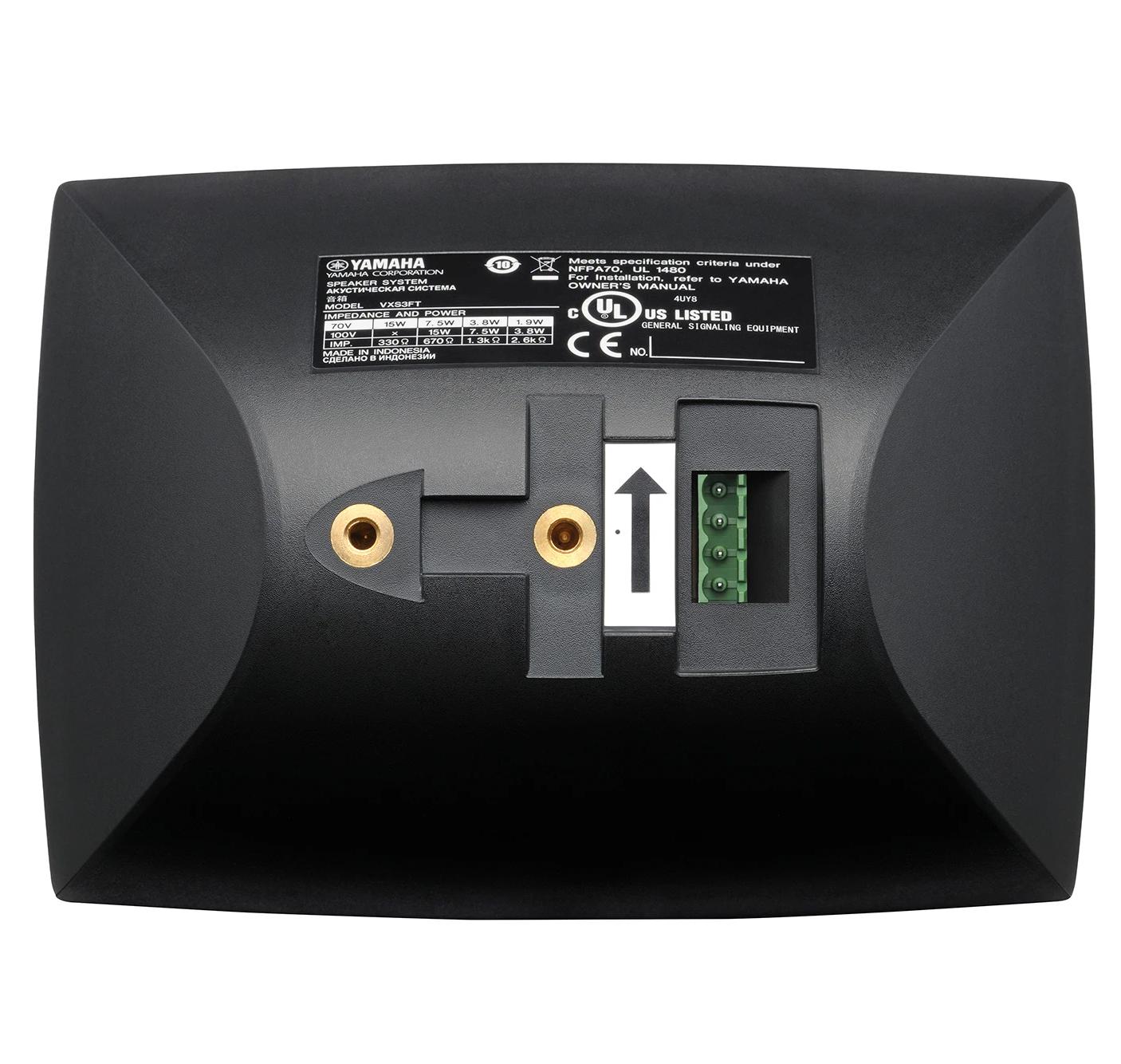

1x Barrier strip (Input: + / -)

Load Protection circuit

Full-range power limiting for protecting network and transducers

Finish

VXS3FT: Black (approx. Munsell N3),

VXS3FTW: White (approx. Munsell N9)

Dimensions W x H x D

184mm (7.3") x 130mm (5.1") x 94mm (3.7")

Net weight

Speaker: 1.0kg (2.2lbs),

Speaker & Bracket: 1.1kg (2.4lbs)

Accessories

Bracket Gear, Bracket Base (with transformer), Bracket Cover, Safety Wire
