TOA PC-658R

TOA PC-658R

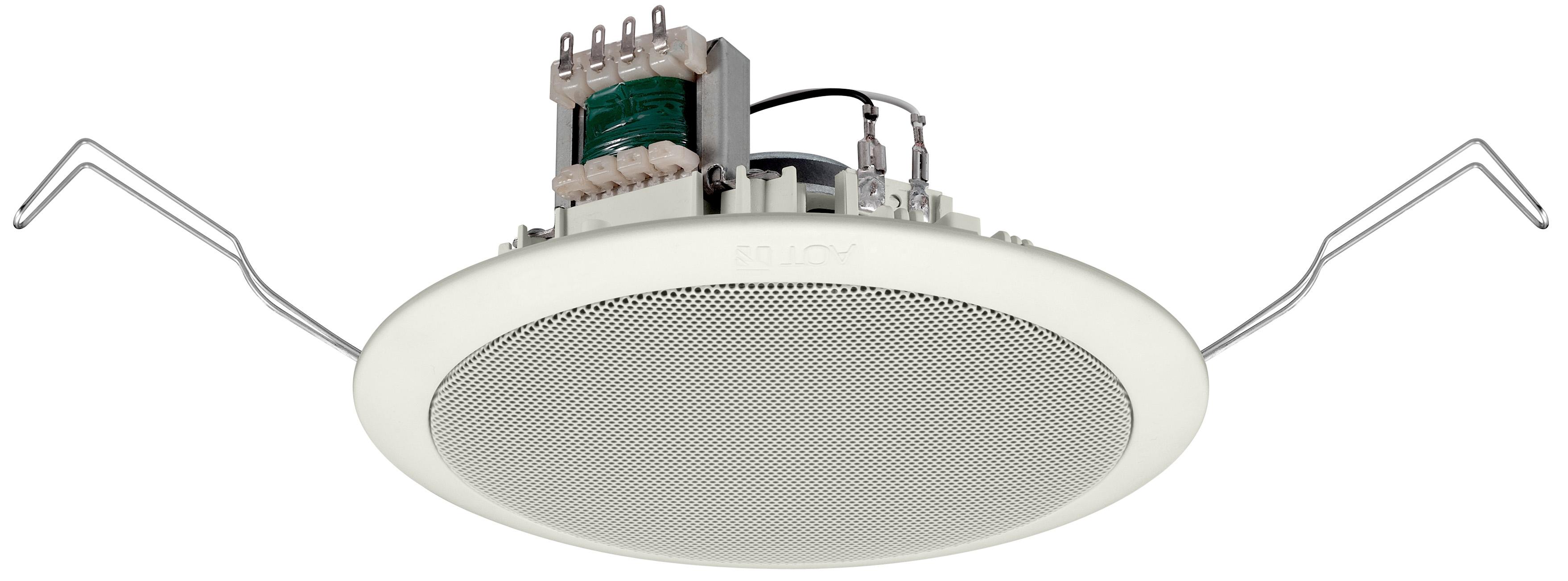

The TOA PC-658R is a 6 watt, 100 volt line 6" ceiling speaker for background music (BGM) and paging.

Simple, spring clip mounting for quick and easy installation.

The PC658R ceiling speaker is finished in white.

  • Warranty: 1 Year
1a: 100V
List Ex VAT: £23.00
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Rated Power (rms) 6 W (for 100 V Line), 3 W (for 70 V Line)
Impedance

Rated Impedance 100 V line.......1.7 kΩ (6 W), 3.3 kΩ (3 W), 10 kΩ (1 W)
Rated Impedance 70 V line.........1.7 kΩ (3 W), 3.3 kΩ (1.5 W), 10 kΩ (0.5 W)
SPL (1W/1m) 90dB
Frequency Range (-10dB) 65HZ - 18KHZ
Mounting Method Spring clamp
Material Baffle: Polypropylene resin, off-white (RAL 9010 or equivalent color),
Grille: Surface-treated steel plate net, off-white (RAL 9010 or equivalent color), paint
Colour White (RAL9010)
Dimensions mm 192 Ø x 73 mm
Weight 500 g (1.1 lb)

DOWNLOADS

TOA PC648R and PC658R Ceiling Loudspeaker
