JBL Control 426LP

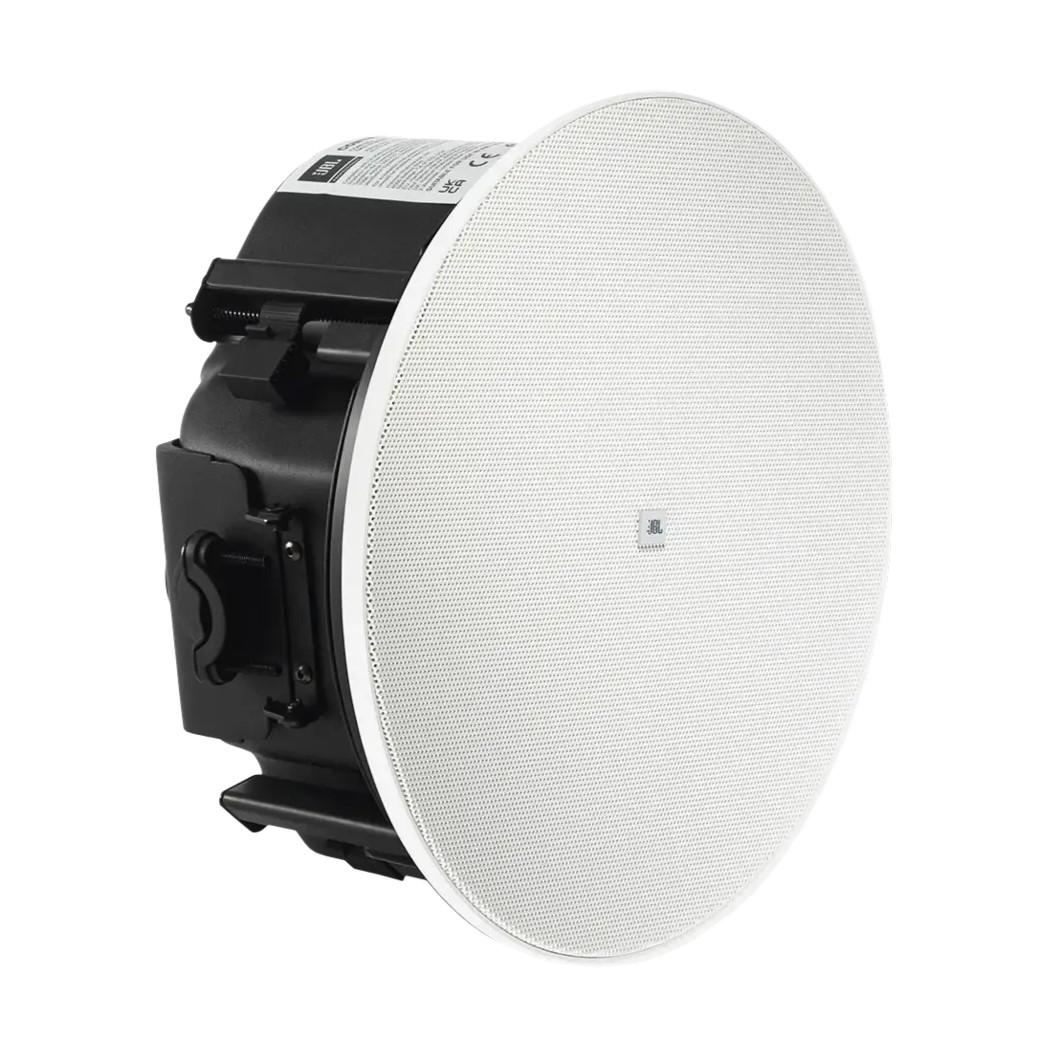

The JBL Control 426LP two-way coaxial ceiling loudspeaker features a 6.5” woofer and integrated low profile enclosure that is ideal for installation in where ceiling plenum space is restricted. Compatible with both 70V/100V and low impedance circuits, the 426LP is rated at 110W on the 12 Ohm setting and has a multitap 60 Watt transformer for 70/100V line use.

Part of the JBL Series 400 enhanced coverage ceiling speaker range, the Control 426LP offers wide 110° coverage angle and integrated CRBI™ technology provides consistent coverage and full, rich sound throughout the listening area.

A full-face magnetic grille blends seamlessly with modern decors and optional black and square grilles are available.

Mechanical improvements include redesigned terminal covers with top and side cable entry ports and an extremely reliable new dogear design that works with a wide range of ceiling thicknesses.

The Coplanar RBI™, or CRBI™ delivers an especially smooth sound character that remains consistent, clear, and pleasant across a wide coverage area. It reduces on-axis hot spots and off-axis cold spots and improves the listening experience for users as they move throughout a space. This enhanced coverage results in fewer speakers, amplifier channels, and project costs, required to cover a space.

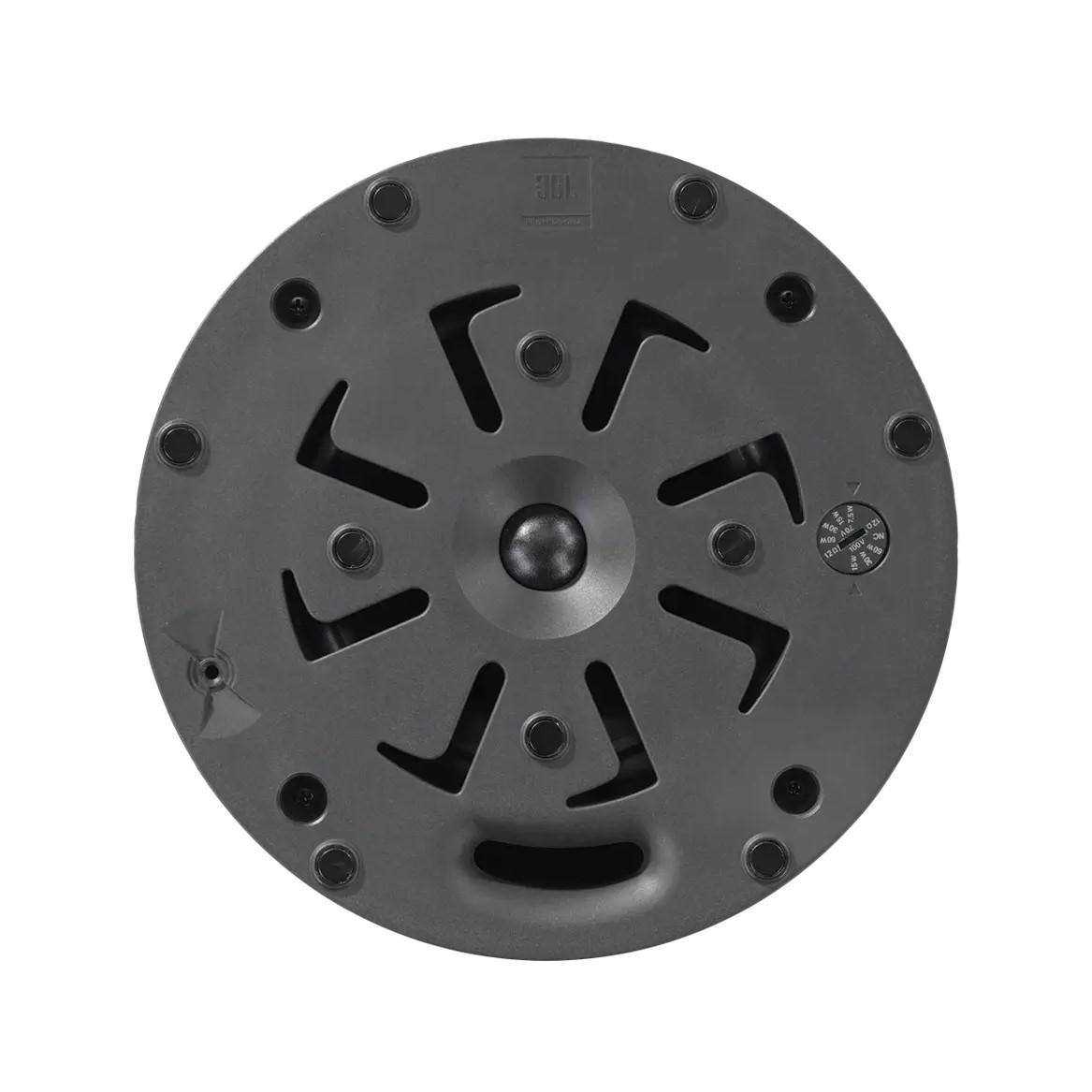

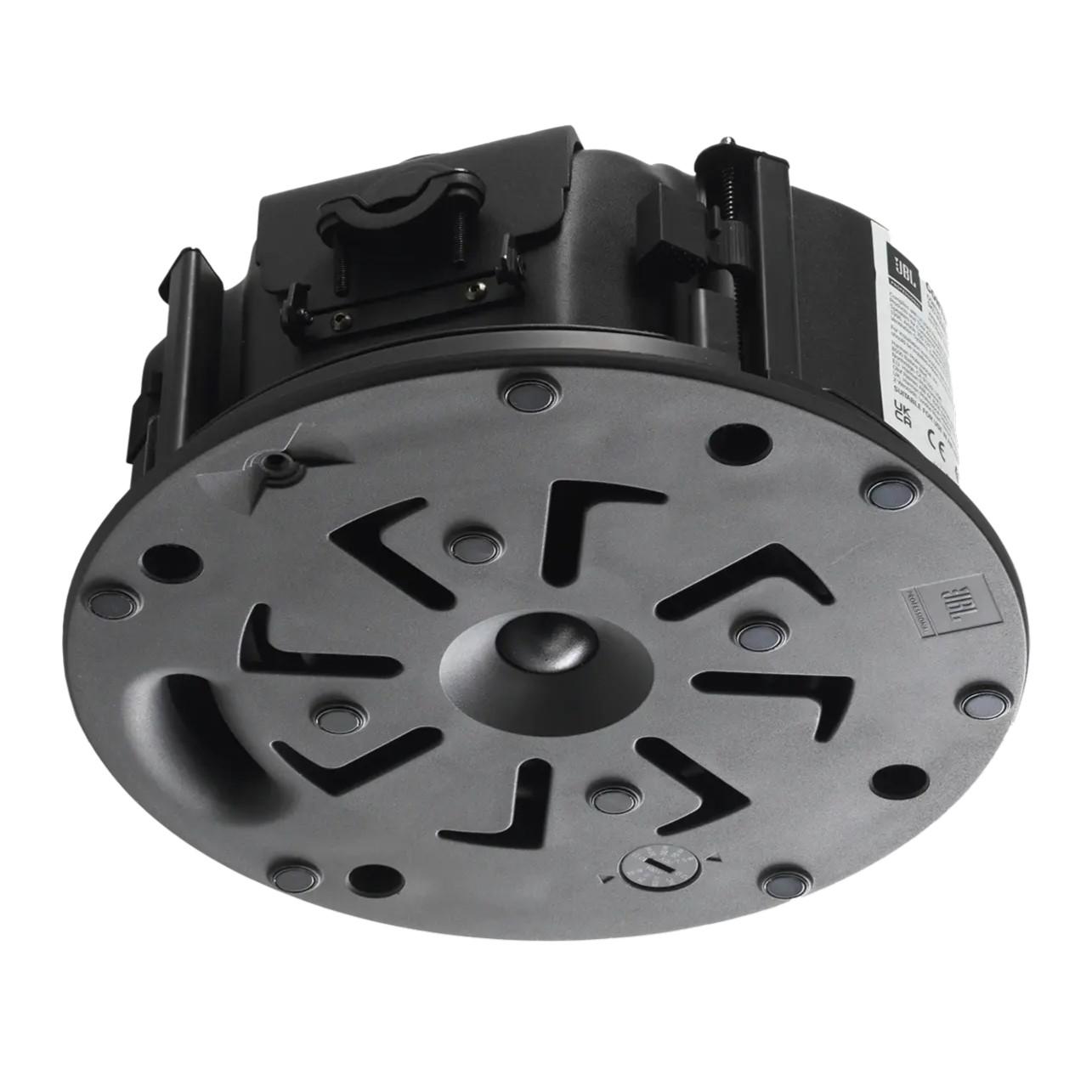

  • Coaxially mounted 165 mm (6.5 in) woofer and 25 mm (1.0 in) soft-dome tweeter
  • Low-profile enclosure (under 100 mm deep) for use in shallow ceiling spaces.
  • CRBI™ technology for consistent 130° coverage across the listening area
  • Built-in 70V/100V multi-tap transformer, plus 12-ohm direct input
  • Full-face, easily paintable magnetic grilles
  • Top and side exit cable entry options

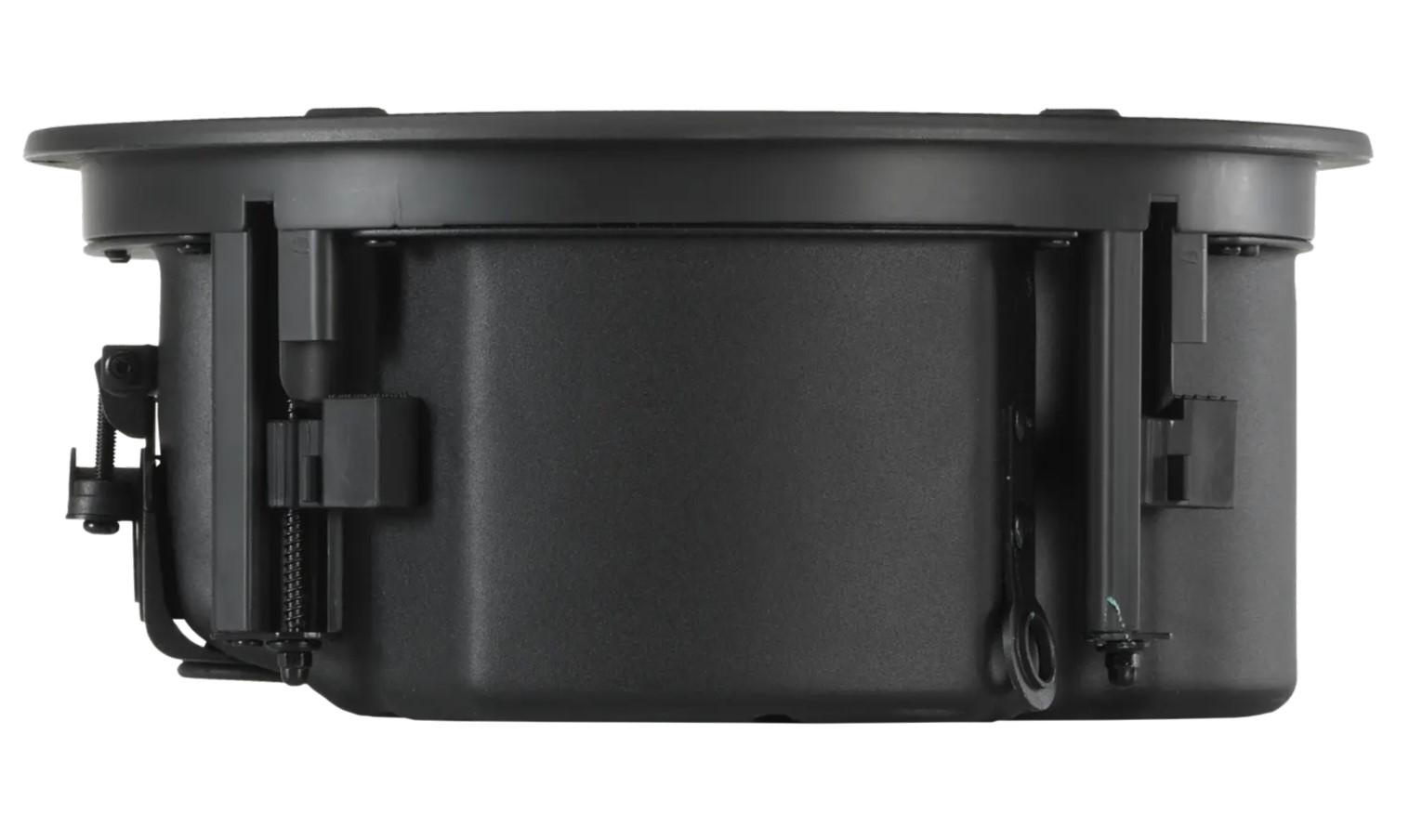

  • Robust and adaptable dogears for wide range of ceiling thicknesses
  • IP33 rated
  • Warranty: 2 Years

Please Note: Sold and priced as a pair.

1a: 100V 1i: Lo-Z
List Ex VAT: £650.00
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Frequency Range (-10 dB)

 95 Hz – 19 kHz

Frequency Response (±3 dB)

 150 Hz – 17 kHz

Power Capacity

 220W Continuous Program (2 hrs),

 110W (440W peak) Continuous Pink Noise (2 hrs),

 75W (300W peak) Continuous Pink Noise (100 hrs)

Sensitivity

89 dB (ave.100 Hz – 10 kHz)

Nominal Coverage Angle

110° conical

Directivity (Q)

 4.3

Directivity Index (DI)

 6.3 dB

Rated Maximum SPL

 109 dB Continuous (115 dB peak) @ 1m

Nominal Impedance

 12Ω

Minimum Impedance

 LF Range: 16.8 ohms at 310 Hz; System: 12 ohms at 7.9 kHz

Transformer Taps

70 V: 60 W, 30 W, 15 W & 7.5 W
100 V: 60 W, 30 W, 15 W

LF Driver

165 mm (6.5 in) treated paper cone, high-performance magnet, 25 mm (1.0 in) copper voice coil on aluminum voice coil
former

HF Driver

25 mm (1.0 in) textile soft-dome, neodymium magnet assembly, Kapton™ voice coil former

Enclosure Material

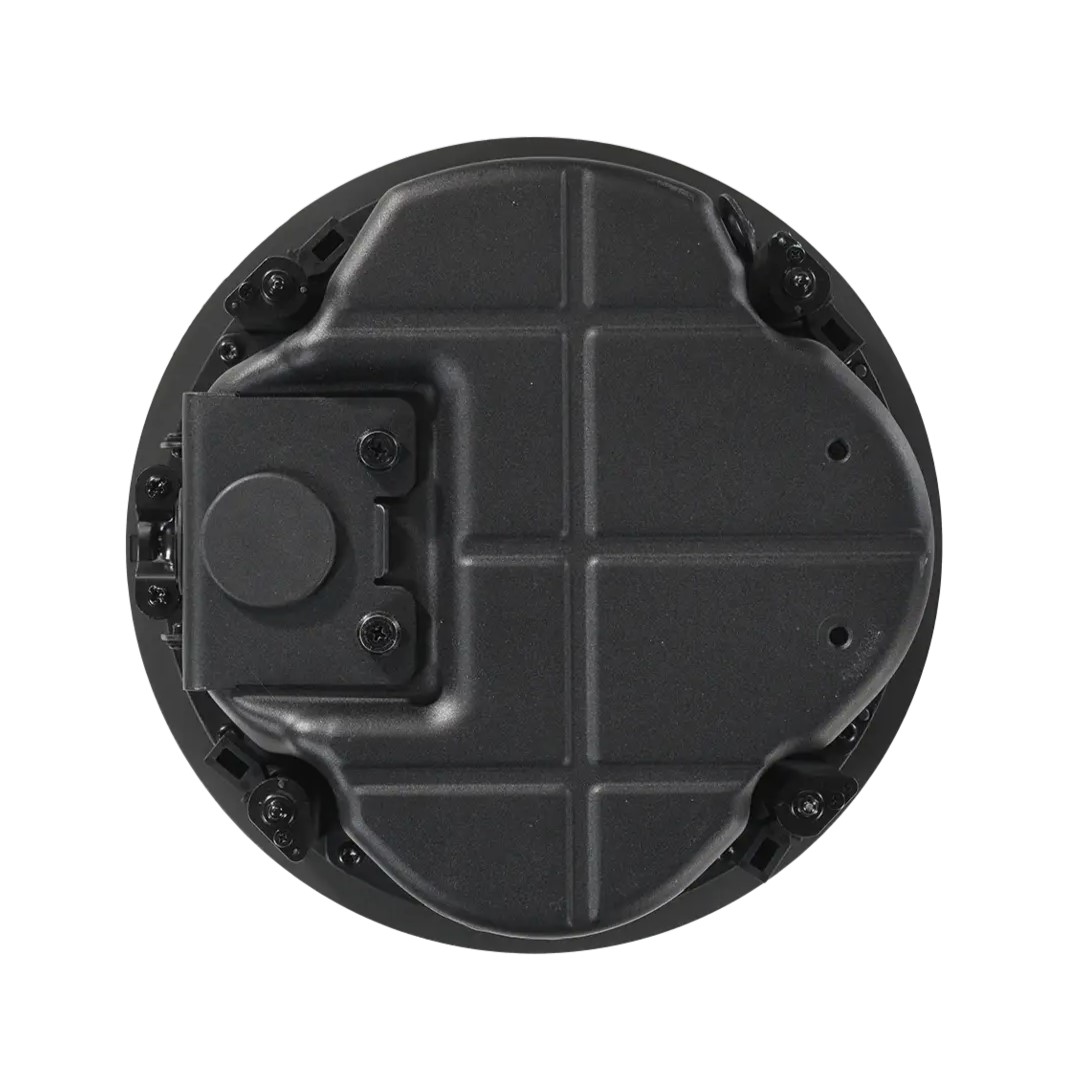

Backcan: Powder-coated formed steel.
Baffle: Polypropylene, flammability rated UL94V-0

Grille

Magnetic bezel-less, SPCC steel grille with powder-coat finish, decorative minimal-edge trim, flammability-rated backing (removable and re-applicable for painting).
Stock grille is white (RAL9003), round. Black (RAL9004) round & white square available as optional accessories.
Safety tether with tether stake pre-attached to grille.

Termination

 Two removable locking euro-block 2-pin connectors with screw-down terminals for bare wire. Connectors paralleled
for input and loop-thru. Min. wire size 20 AWG (0.5 mm2); Max. wire size 14 AWG (2.5 mm2). Terminal cover hinged
with 2 captive screws for attachment (no loose hardware).

Dimensions

190 mm (7.4 in) H x 253 mm (9.9 in) dia.
181 mm (7.1 in) from bottom of ceiling tile to top of backcan (with wire exit positioned on side of backcan).

Cutout Size

223 mm (8.8 in)
