Soundtube SM400i-WH
Click to expand

Soundtube SM400i-WH

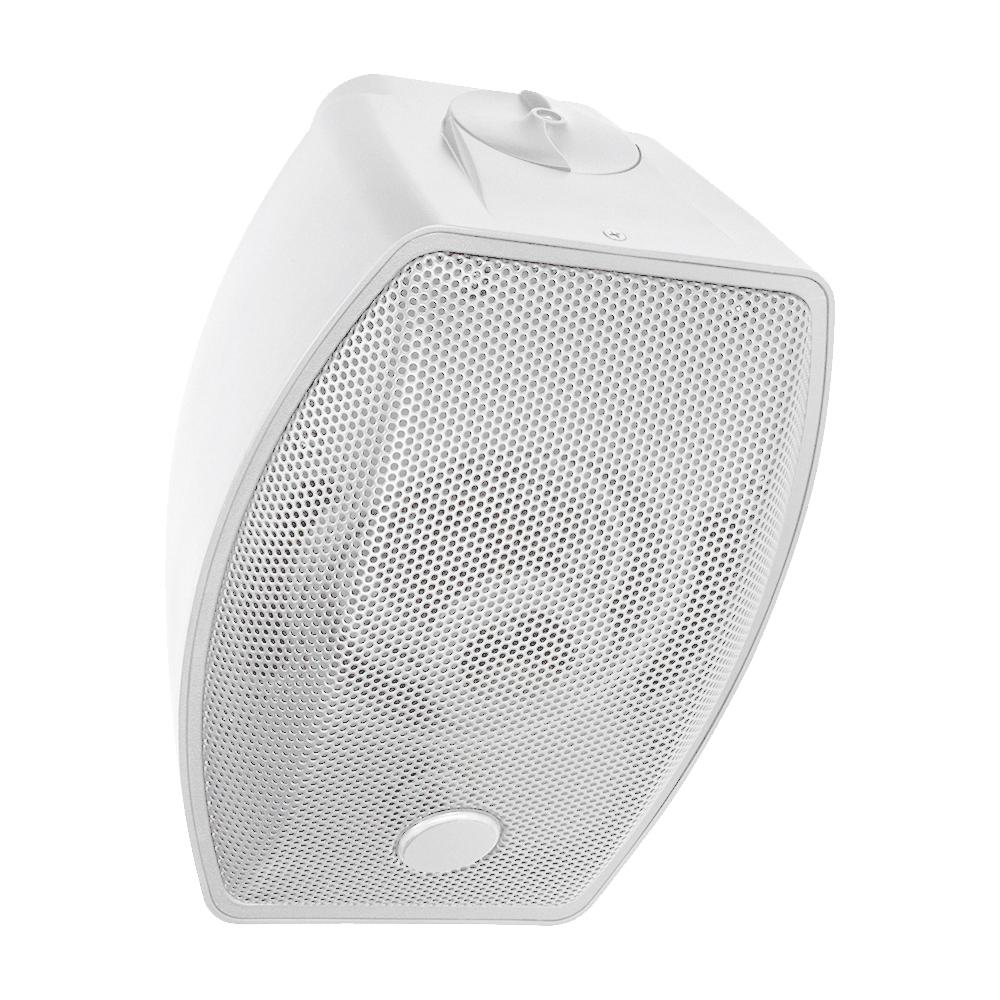

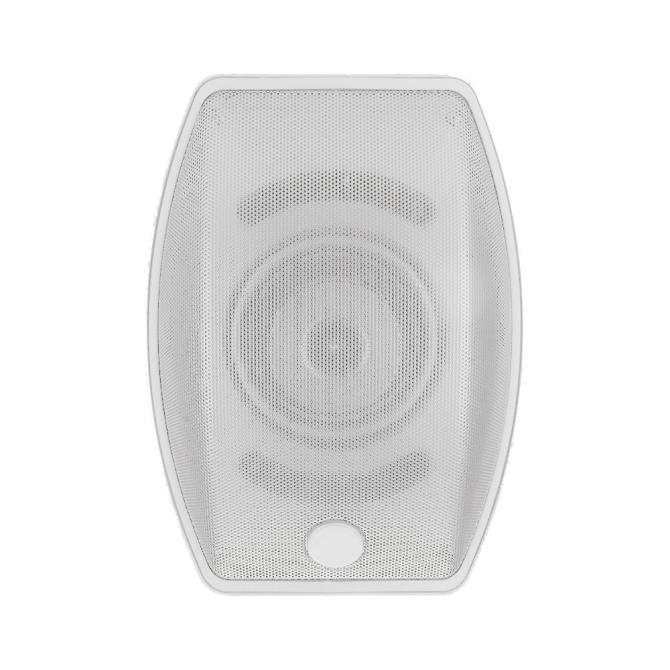

Soundtube SM400i-WH mkII, white, 4″ coaxial wide dispersion surface mount loudspeaker designed for both low impedance (4 ohm) and high impedance (100 volt line or 70.7 volt line) public address sound systems. Rated at 20 watts, 100 volt line or 4 ohms, low impedance.

White finish, also available in black - see RS400i-BK.

The smart design cabinet is constructed from glass reinforced ABS and is weather resistant making it ideal for use indoors or outdoors.

The versatile mounting bracket with integral safety cable is included for an easy and flexible installation.

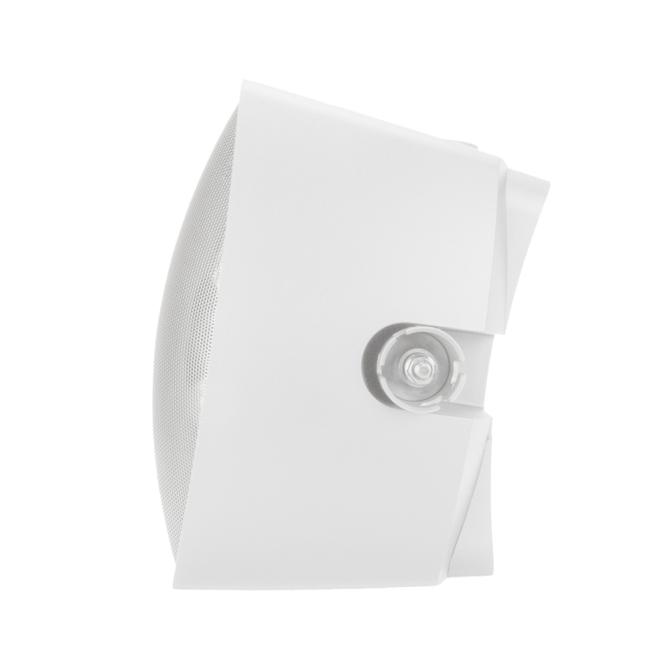

  • Tool-free Stealth u-bracket mounting system provides fast & secure installation included with each SM400i speaker
  • Vertical and horizontal pivoting offer precision aiming for indoor & outdoor applications

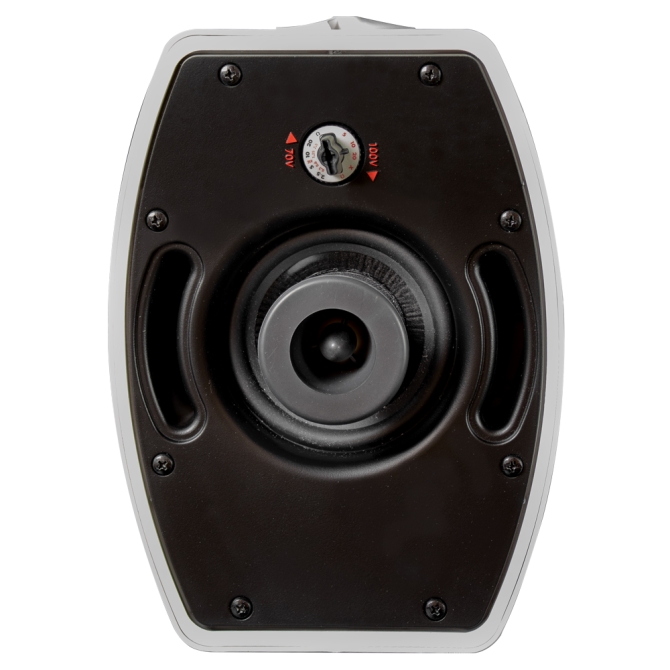

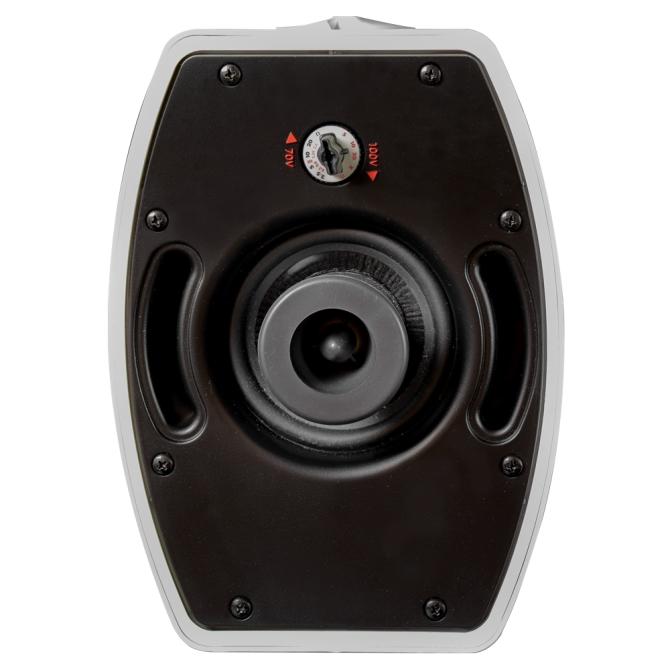

  • New speed-tap power settings save customers time and money on ordering, inventory tracking, installation and system tuning
  • 25, 70.7 and 100 Volt transformer options with voice coil / 8 Ohm direct
  • High-frequency driver protection with automatic reset
  • Durable construction, powder-coated grille, weatherized components and terminal weather boot allow for indoor or outdoor installations
  • Optional port plugs provided for added weather resistance
  • Warranty: 5 Years
1a: 100V IPxx 1c: 4ohms
List Ex VAT: £198.89
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Frequency Response(-3 dB)

97 Hz - 22 kHz

Low Frequency(-10 dB)

76 Hz - 22 kHz

Sensitivity

82.5 dB

Power Capacity RMS

20 W

Max SPL dB @ 1 M

95.5 dB

Nominal Impedance

4 ohm

Tweeter

1" / 25 mm Convex Aluminium w/ BroadBeam® Waveguide

Woofer

4" (102mm) Poly

Connections

4-pin Euroblock

Height

246 mm (9.68 in)

Width

177 mm (6.97 in)

Depth

190 mm (7.47 in)

Weight

2.4 kg (5.3 lbs)

Colour

Black or White
