DNH HP-10-54T-MED

DNH HP-10-54T-MED

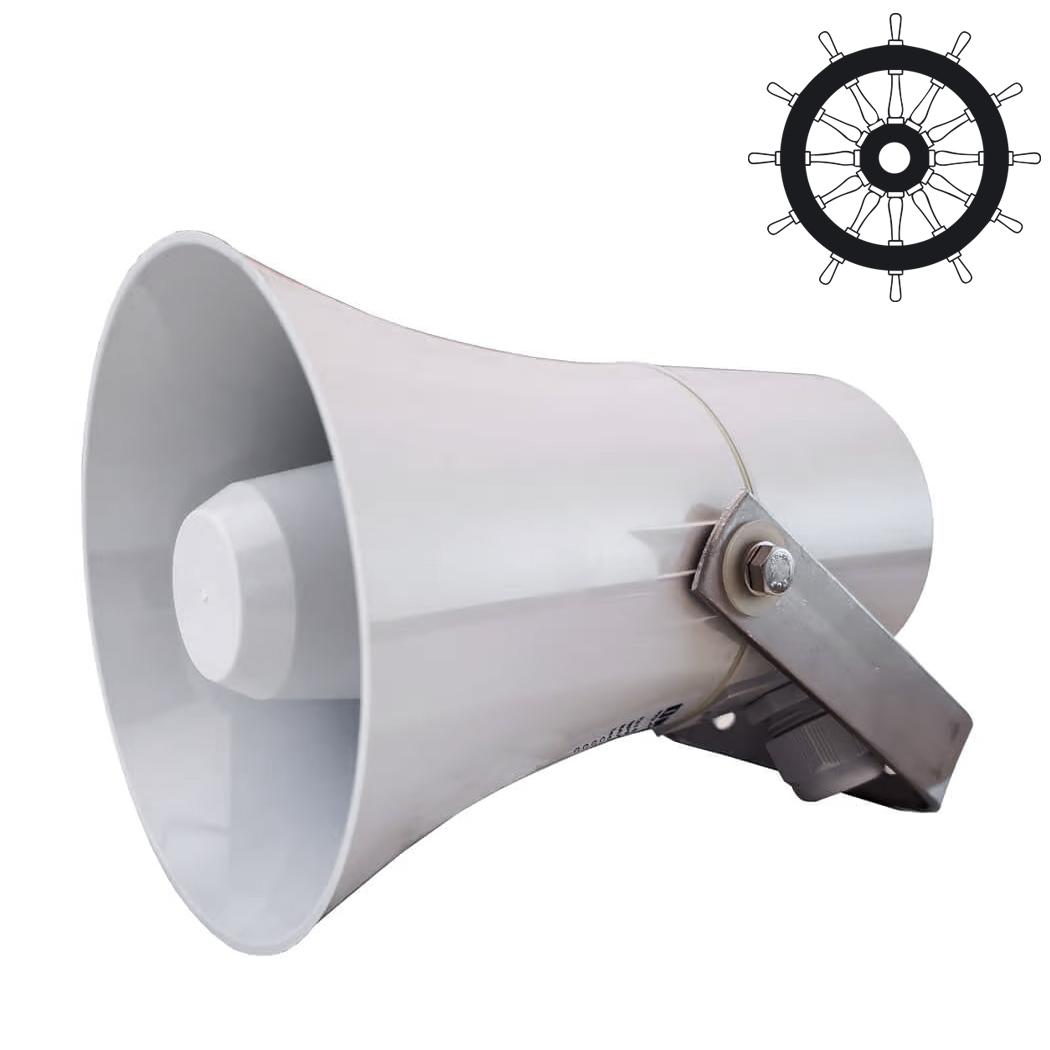

The DNH HP-10-54T-MED is a 10 watt plastic horn loudspeaker suitable for 100 volt line public address sound systems and supplied complete with a stainless steel mounting bracket.

Compliant with EN54-24 for use in Voice Alarm emergency evacuation systems and with the Marine Equipment Directive 2014/90/EU standard for Safety of Life at Sea (SOLAS) Maritime applications.

This small, lightweight outdoor horn is water resistant, rated IP66 / IP67.

Constructed from light grey Ronfalin C110 polycarbonate/ABS - a material which offers good ductility, strength, stiffness, heat resistance and impact resistance at low temperatures.

M-20 glands.

Ideal for installation on ships and offshore installations.

Warranty: 2 Years

100V Evac IP66 IP67 MED
List Ex VAT: £151.00
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Rated Power (rms) 10W
Power Taps @ 70/100V 10W, 5W, 2W & 1W
SPL (1W/1m) 87dB
Max SPL (rated/1m) 96dB
Frequency Range (-10dB) 100HZ -11KHZ
Dispersion 1K Hz / 4K Hz 360° / 65°
Termination Screw terminal
Max. / min. amb. temp 90°C / -50°C
IP rating IP66 / IP67
Material Ronfalin C110 (PC+ABS)
Colour Grey (RAL7035)
Weight (kg) 1.1 kg
Dimensions (Ø x D) mm 139 x 200
Mounting Stainless Steel bracket

DOWNLOADS

DNH HP-10-54T-MED Datasheet
DNH HP-10-54T-MED Compliance Certificate
