DNH DSP-15T MED

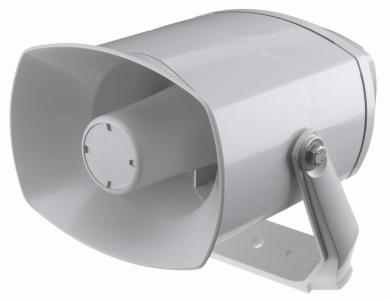

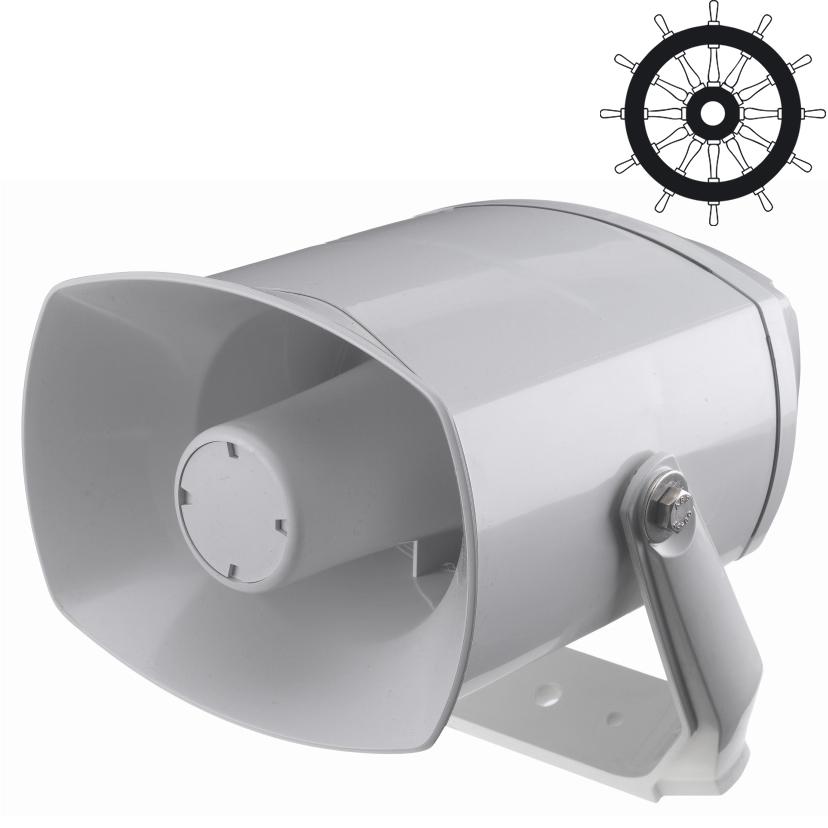

The DNH DSP-15T MED is a 15 watt, plastic marine grade, weatherproof horn loudspeaker with an extra large termination chamber for easy installation.

Compliant with the Marine Equipment Directive 2014/90/EU standard for for Safety of Life at Sea (SOLAS) Maritime applications.

Suitable for 70V / 100 volt line public address sound systems,  with transformer tappings at 15W, 7.5W, 4W and 2W.

IP67 rated, the DSP15T MED is waterproof and weatherproof.

Supplied complete with mounting bracket and constructed from ASA material: an extremely tough plastic polymer.

M-20 cable gland.

Warranty: 2 Years

100V IPxx MED
List Ex VAT: £185.00
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Rated Power (rms) 15W
Input impedance 70V / 100 volt line
SPL (1W/1m) 106dB
Max SPL (rated/1m) 117dB
Frequency Range (-10dB) 350HZ - 11KHZ
Dispersion (-6dB) 1K Hz / 4K Hz 200° / 47°
Termination Spring Clamp
Max. / min. amb. temp 90°C / -50°C
IP Rating IP67
Material ASA
Colour Grey (RAL7035)
Weight (kg) 1.8 kg
Dimensions (W X H x D) mm 186 x 144 x 207
Mounting Bracket supplied
