DNH HP-15T-MED

DNH HP-15T-MED

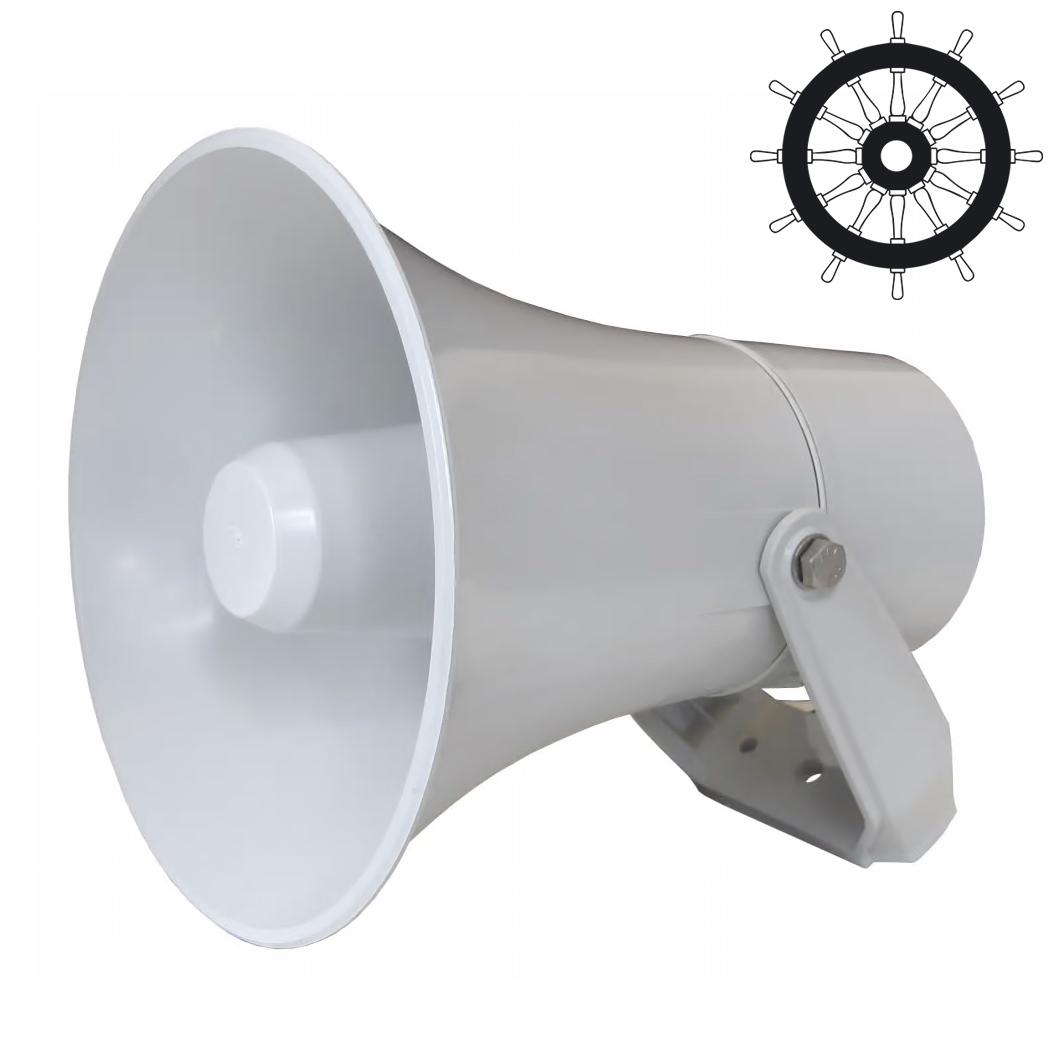

The DNH HP-15T-MED is a 15 watt plastic horn loudspeaker suitable for 100 volt line public address sound systems and supplied complete with a stainless steel mounting bracket*.

Compliant with the Marine Equipment Directive 2014/90/EU standard for Safety of Life at Sea (SOLAS) Maritime applications.

This small, lightweight outdoor horn is water resistant, rated IP66 / IP67.

Constructed from light grey ASA, a thermoplastic known for its excellent weather and UV resistance.

M-20 gland.

Ideal for installation on ships and offshore installations.

Warranty: 2 Years

* Image shows plastic bracket, but a stainless steel mounting bracket will be supplied.

100V IP66 IP67 MED
List Ex VAT: £160.00
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Rated Power (rms) 15W
Power Taps @ 70/100V 15W, 7.5W, 4W & 2W
SPL (1W/1m) 108dB
Max SPL (rated/1m) 118dB
Frequency Range (-10dB) 330HZ -8KHZ
Dispersion 1K Hz / 4K Hz 130° / 33°
Termination Spring Clamp
Max. / min. amb. temp 90°C / -50°C
IP rating IP66 / IP67
Material ASA
Colour Grey (RAL7035)
Weight (kg) 1.4 kg
Dimensions (Ø x D) mm 200 x 250
Mounting Stainless steel bracket

DOWNLOADS

DNH HP-15T-MED Datasheet
DNH HP-15T-MED Compliance Certificate
