DNH HP-20T-MED

DNH HP-20T-MED

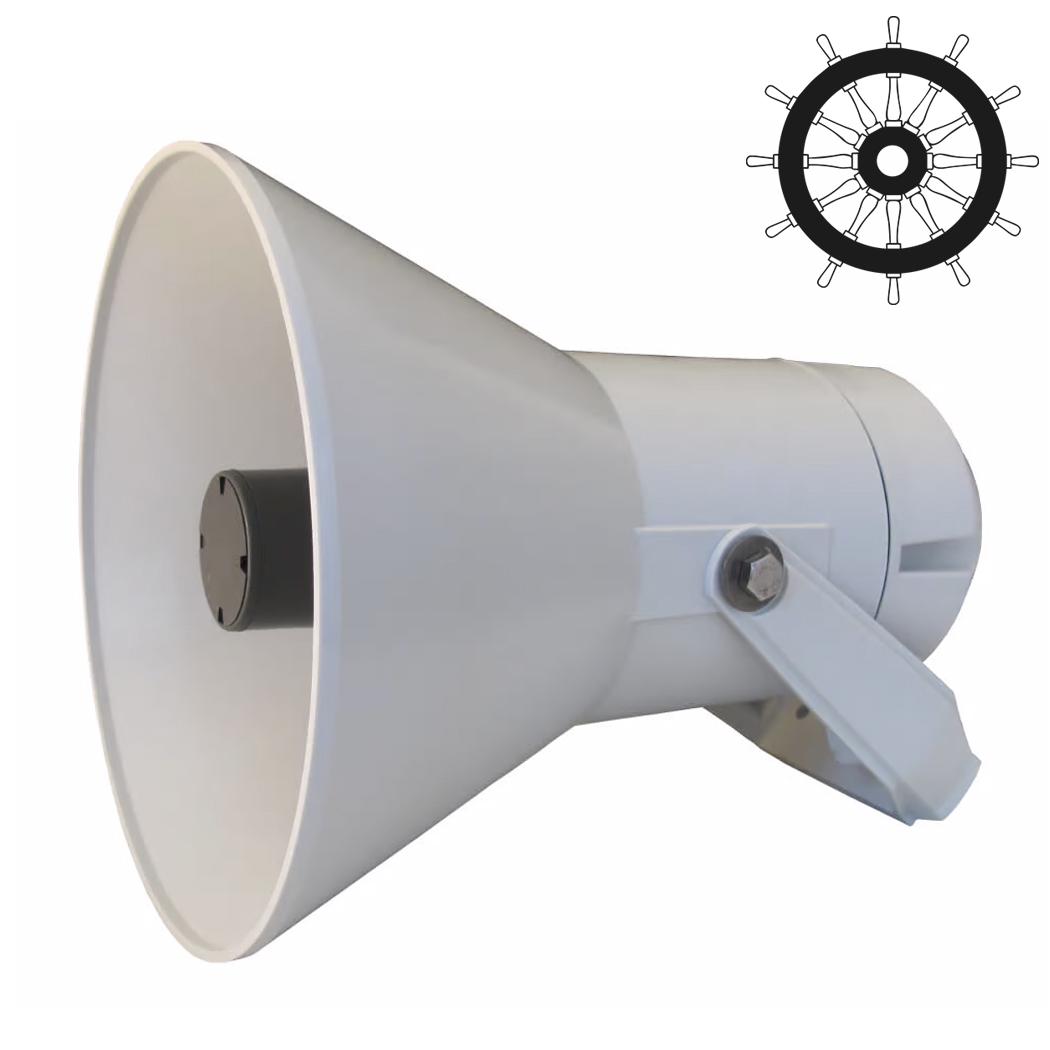

The DNH HP-20T-MED is a 20 watt marine grade horn loudspeaker suitable for 100 volt line public address sound systems and supplied complete with a steel mounting bracket.

Compliant with the Marine Equipment Directive 2014/90/EU standard for Safety of Life at Sea (SOLAS) Maritime applications.

This HP20T-MED outdoor horn is extremely water & weather resistant, rated IP67.

Constructed from light grey polyamide, with M-20 gland.

Ideal for installation on ships and offshore installations.

Warranty: 2 Years

100V IP67 MED
List Ex VAT: £285.00
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Rated Power (rms) 20W
Power Taps @ 70/100V 20W, 15W, 7.5W, 3.5W & 2W
SPL (1W/1m) 110dB
Max SPL (rated/1m) 122dB
Frequency Range (-10dB) 310HZ -8KHZ
Dispersion 1K Hz / 4K Hz 110° / 32°
Termination Spring Clamp
Max. / min. amb. temp 110°C / -50°C
IP rating IP67
Material Polyamide
Colour Grey (RAL7035)
Weight (kg) 2.1 kg
Dimensions (Ø x D) mm 237 x 286
Mounting Steel bracket

DOWNLOADS

DNH HP-20T-MED Datasheet
DNH HP-20T-MED Compliance Certificate

Related Products

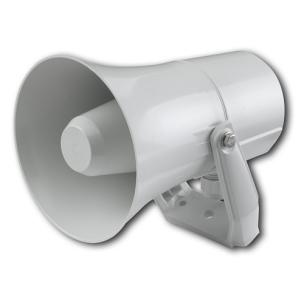

DNH HP-10(T)
