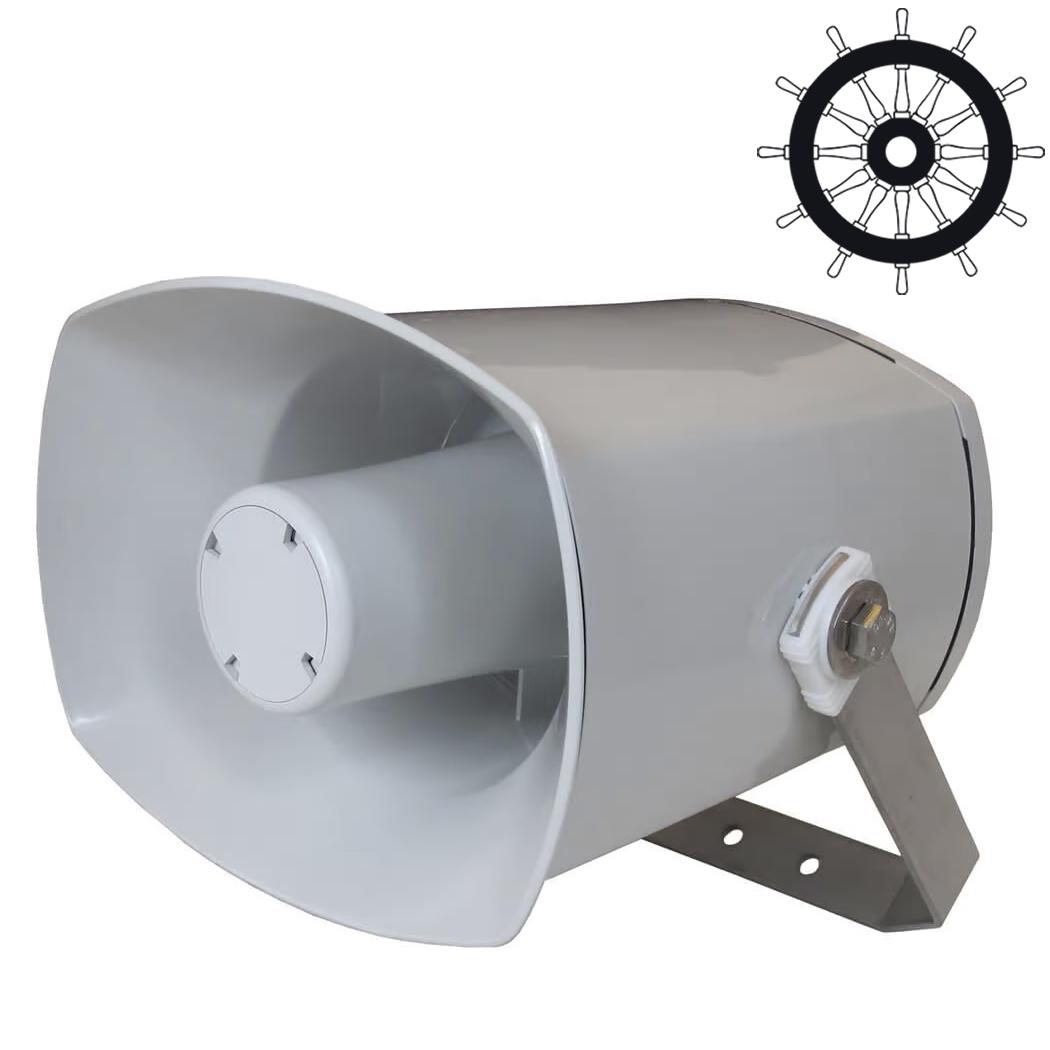

DNH DSP-15-54T MED

The DNH DSP-15-54T is a 15 watt plastic marine grade, weatherproof horn loudspeaker with an extra large termination chamber for easy installation. EN54-24 certified for voice alarm & evacuation systems.

Compliant with the Marine Equipment Directive 2014/90/EU standard for Safety of Life at Sea (SOLAS) Maritime applications.

Suitable for 70V / 100 volt line public address sound systems,  with transformer tappings at 15W, 7.5W, 4W and 2W.

IP67 rated, the DSP15 is waterproof and weatherproof.

Supplied complete with steel mounting bracket and constructed from flame retardant polycarbonate/ABS material: an extremely tough thermoplastic alloy.

M-20 cable gland.

Warranty: 2 Years

100V Evac IP67 MED
List Ex VAT: £185.00
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Rated Power (rms) 15W
Input impedance 100 volt line
SPL (1W/1m) 106dB
Max SPL (rated/1m) 117dB
Frequency Range (-10dB) 100HZ - 11KHZ
Dispersion 1K Hz / 4K Hz 125° / 44°
Termination Spring clamp
Max. / min. amb. temp 90°C / -40°C
IP Rating IP67
Material PC/ABS
Colour Grey (RAL7035)
Weight (kg) 1.8 kg
Dimensions (W X H x D) mm 186 x 144 x 207
Mounting Steel Bracket supplied
