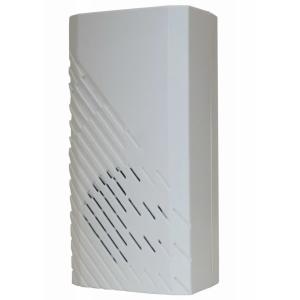

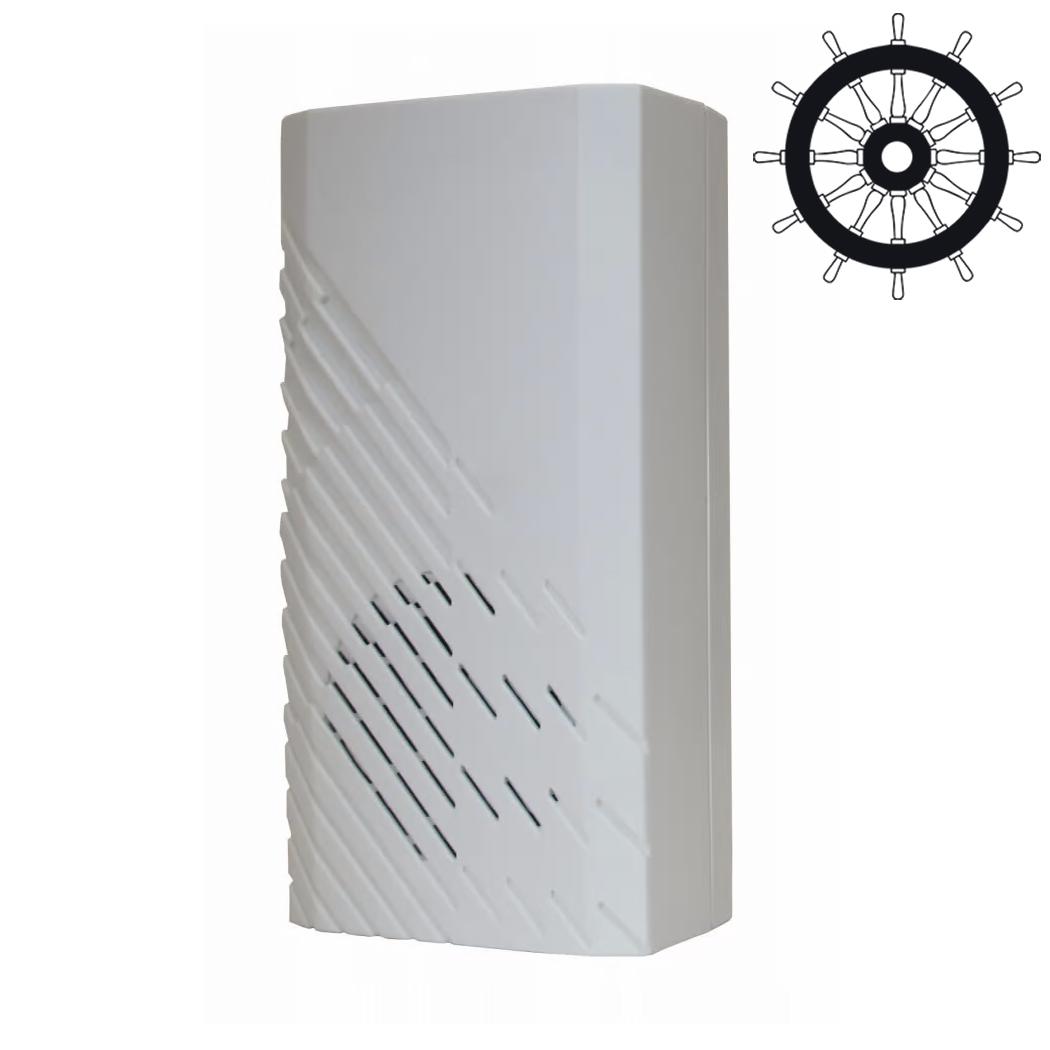

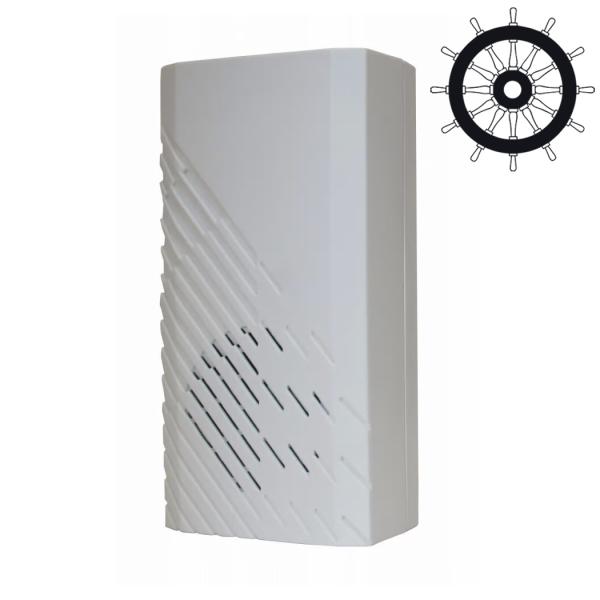

The DNH SAFE-10PT MED is a 10 watt, 100 volt line, plastic IP55 rated cabinet speaker fitted with separate internal compartment for electronic components.
Compliant with the Marine Equipment Directive 2014/90/EU standard for for Safety of Life at Sea (SOLAS) Maritime applications.
The SAFE-10PTMED is often used in indoor applications and bathrooms on ships.
Water resistant, rated IP55.
Warranty: 2 Years.
| Rated Power (rms) | 10W |
| Power Taps @ 100V | 10W, 5W, 2.5W, 1W |
| SPL (1W/1m) | 87dB |
| Max SPL (rated/1m) | 97dB |
| Frequency Range (-10dB) | 160HZ - 17KHZ |
| Dispersion 1K Hz / 4K Hz | 115° / 70° |
| Termination | Inside screw terminal |
| Max. / min. amb. temp | 90°C / -40°C |
| IP Rating | IP55 |
| Material / Colour | ABS / White RAL9010 |
| Weight (kg) | 0.8kg |
| Dimensions (H x W x D) mm | 104 x 206 x 53 |
| Mounting | 4 screws |
Plastic cabinet speaker. 10 watts, 100 volt line.
Water resistant, rated IP55.
