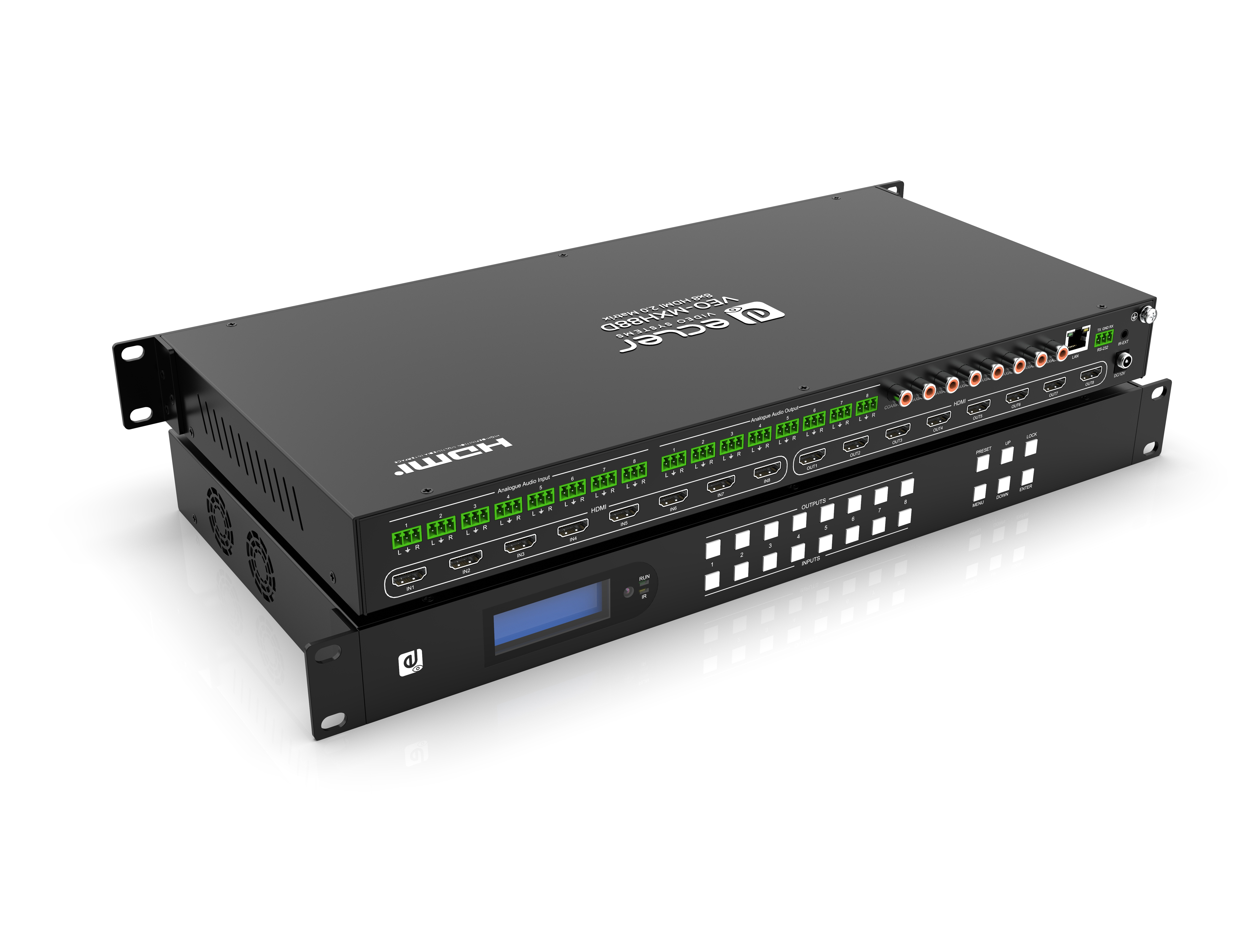

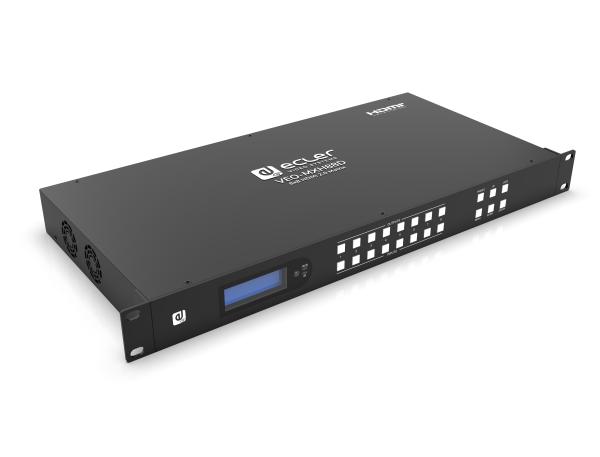

Ecler VEO-MXH88D
The Ecler VEO-MXH88D 8x8 HDMI 2.0 matrix supports up to 4K/UHD video resolution at 60 Hz with 4:4:4 chroma sampling.
It features 8 HDMI inputs (routable to any of the 8 HDMI outputs) with 8 analogue and 8 digital audio de-embedding outputs.
It has EDID management, an LCD display, and an integrated web GUI, providing a user-friendly configuration and control interface.
HDMI sources can be selected with the buttons on the front panel or via serial commands, TCP/IP, and IR.
The VEO-MXH88D is compliant with HDCP 2.2 and 1.4 standards.Up to 8 presets are available for convenient recall of specific configurations.
- 8 HDMI 2.0 inputs and 8 HDMI 2.0 outputs for flexible signal routing.
- Supports 4K @60Hz, 4:4:4 chroma sampling, and HDR (4K @60Hz, 4:2:0 10-bit).
- Stores up to 8 presets for easy configuration recall.
- Supports audio formats like Dolby TrueHD, Atmos, DTS-HD Master Audio, and
DTS:X. - Allows analog audio insertion/extraction and digital audio extraction.

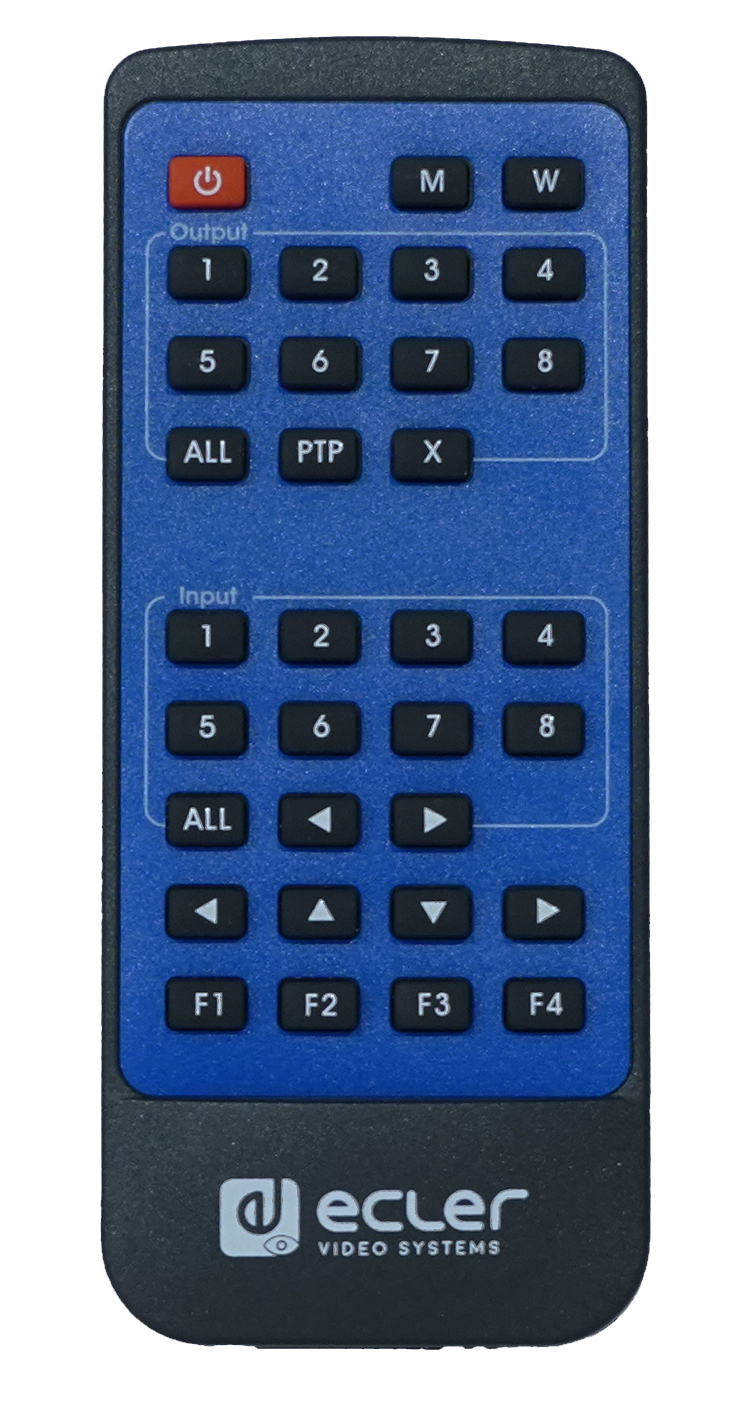

- Control options include front panel buttons, IR remote, RS-232, IP control, and WebGUI.
- Advanced EDID management, CEC, and ARC capabilities.
- HDCP 2.2 compliant for secure content transmission.
- Supplied with a 12V DC power supply.
- Warranty: 5 Years.
For further information, please download the Datasheet and/or User Manual.
To see more of the Ecler video range, please download the Ecler Video Brochure here or download the full Product catalogue below.
 |
