Ecler VEO-SWM44
The Ecler VEO-SWM44 compact 4K presentation switcher includes 2 HDMI 2.0, a USB-C and wireless input selection via VEOCast to a single HDMI 2.0 output, supporting resolutions up to 4K/60Hz 4:4:4 HDR10 and Dolby Vision.
Smart EDID management and HDCP 2.2 support ensures optimum compatibility and an integrated audio de-embedder provides stereo analogue balanced outputs on Euroblock connectors.
The VEOSWM44 switcher includes 2 USB 3.0 type B and 2 USB 3.0 type A to support soft codec applications and external devices like webcam and KVM kits.
Inputs can be selected via Auto-switching function, front panel buttons or RS-232.
Display control via front panel buttons through CEC or RS-232.
- Bandwidth up to 18Gbps, resolution up to 4k @60hz, YUV, 4:4:4, HDR10 and Dolby Vision
- Wireless BYOD (bring your own device) capability via VEOCast (for macOS, iOS, Android and Windows devices).
- Provides up to 60W powering supply, USB data and 4K video over USB-C.
- HDMI Audio de-embedded via balanced analog audio port on Euroblock connectors.
- HDCP2.2 Compliant.

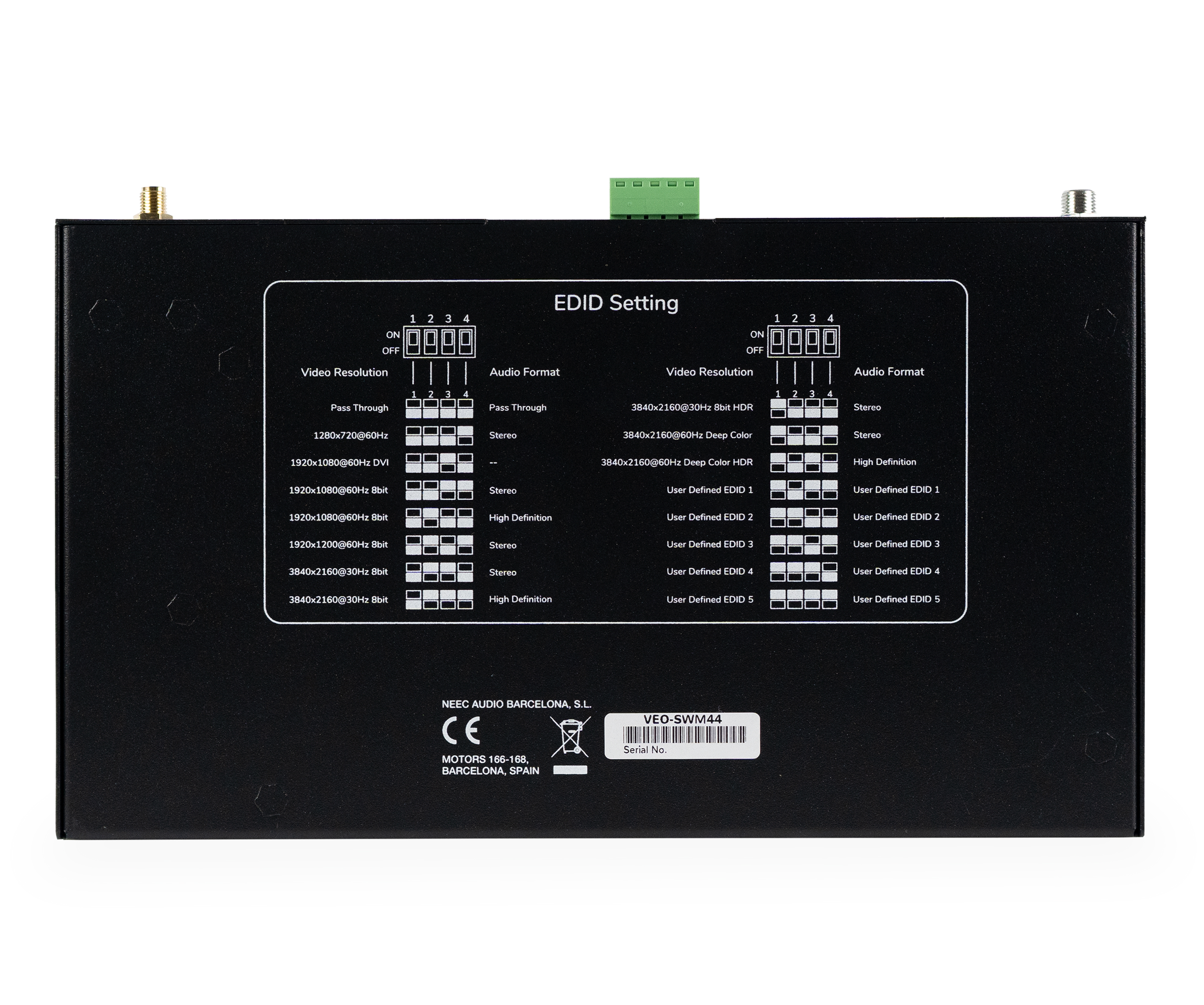

- EDID Smart Management (via Dip-switch).
- Switching function via front panel, auto-switching function, RS-232.
- Configuration via web-page (WiFi).
- CEC and RS-232 commands for display control.
- Warranty: 5 Years.
For further information, please download the Datasheet and/or User Manual.
To see more of the Ecler video range, please download the Ecler Video Brochure here or download the full Product catalogue below.
 |
