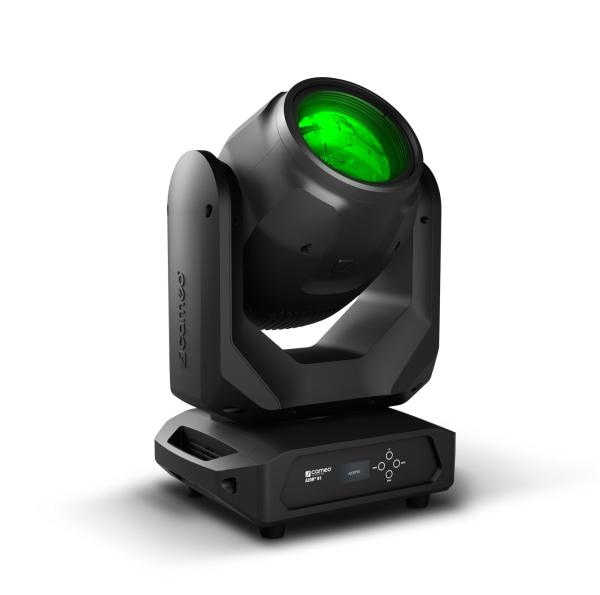

The Cameo AZOR B1 is a powerful yet compact Beam Moving Head featuring a high-quality glass lens, an extremely narrow 2° beam angle and motorised focusing.

A cold-white 100 W LED with 9,400 K colour temperature achieves incredible 180,000 lx light intensity at 3 metres, while the colour wheel offers 14 intense colours, plus white and split colours, to choose from.

16-bit, three-phase motors provide 540° panning and 270° tilting with automated position correction.

The AZOR B1 also includes 17 static gobos as well as a circular eightfold and a linear sixfold prism that are rotatable and indexable.

When using as a standalone, four macros are available to freely program and can be perfectly synchronised in master-slave operation or inverted.

The spotlight also features a rapid strobe function and a quiet, temperature-controlled fan.

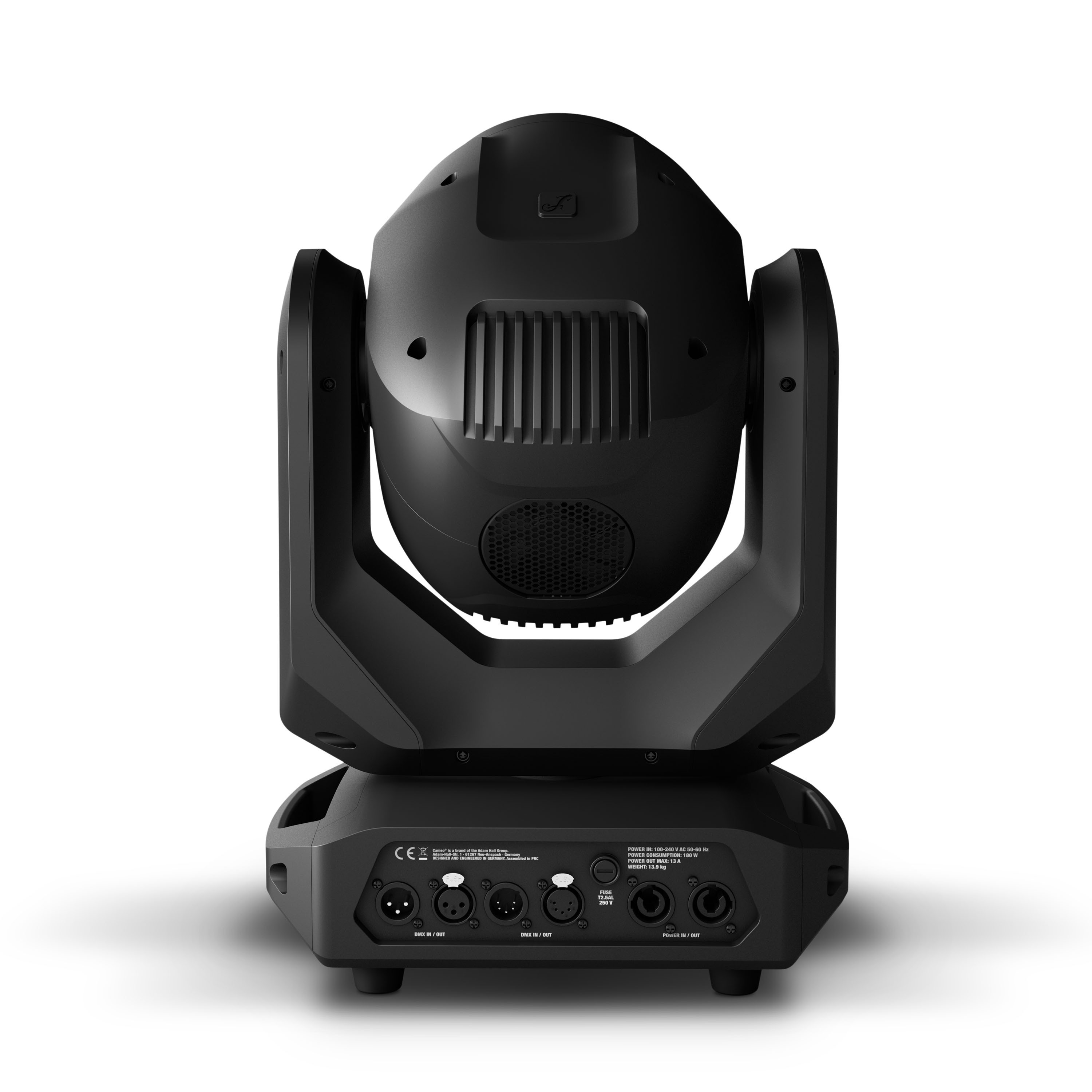

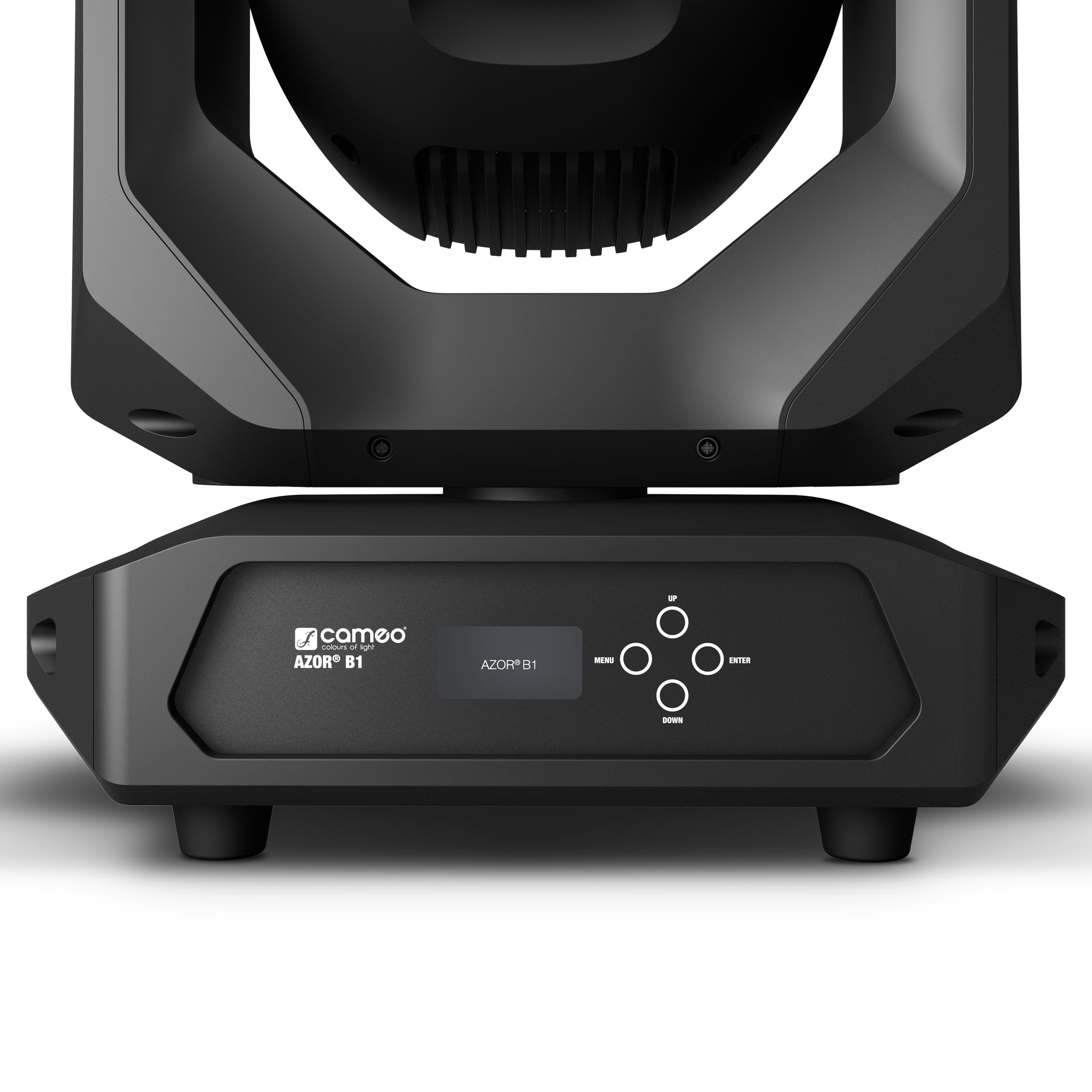

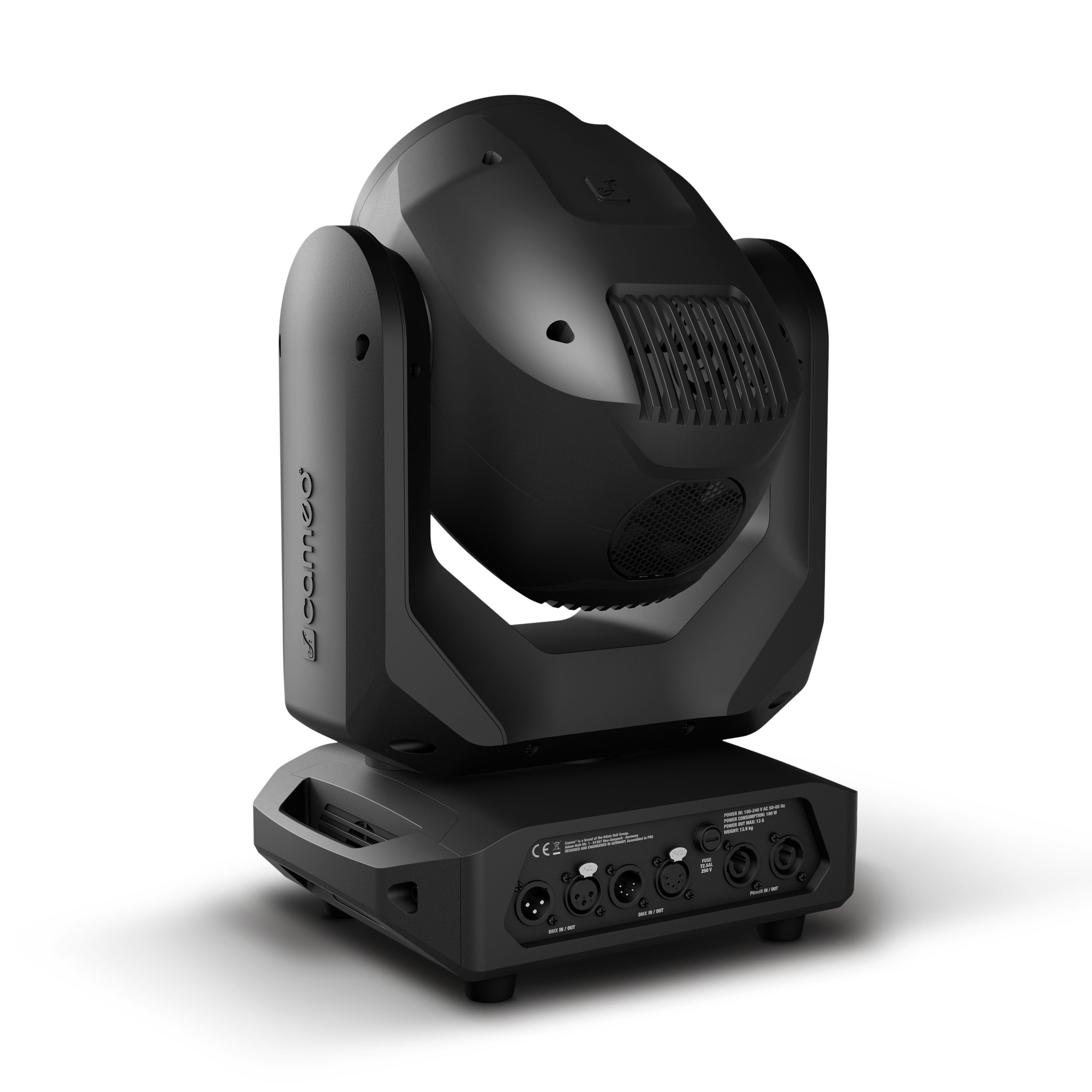

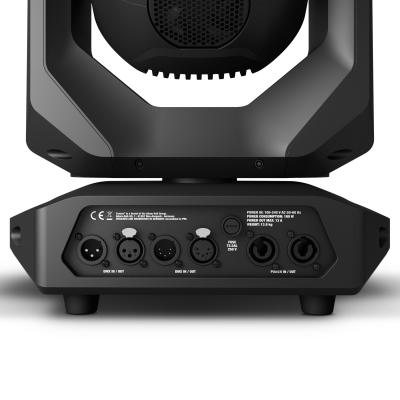

An OLED display with four buttons enables easy configuration. There are 3- and 5-pin DMX inputs and outputs, while Power Twist sockets ensure easy daisy chaining.

Supplied with three Omega brackets and a power cable.

• Beam Moving Head with 180,000 lx light intensity @ 3m
• Optical glass lens with extremely narrow 2° beam angle
• 16-bit three-phase motors
• 540° panning and 270° tilting with automated position correction.
• Motorised focusing
• 14 colours plus open and split colours
• 17 static gobos plus open
• Rotatable and indexable circular eightfold prism
• Rotatable and indexable linear sixfold prism
• 4 programmable macros for standalone and master-slave operation
• 3-pin & 5-pin DMX sockets and Power Twist power in and power out sockets
• Two Omega brackets and power cable included

For more details, please download the Cameo AZOR B1 datasheet and User Manual via the links below.

You may also like to download the Cameo Lighting Brochure here.

Please see the Cameo Lighting Glossary for more information on any of the following features:
