Waves System AP420 | Audio Player & Broadcaster |Built-in scheduler | USB & MicroSD card input | Remote configuration & monitoring | Pro audio quality DAC

The Waves System AP420 audio player offers endless automated audio streaming possibilities.

Whether you have one location or multiple sites, it’s ideal for broadcasting your webradio, playlists or commercial messages. The built-in scheduler enables your background music, store information or promotional messaging to play at just the right time.

Audio playlists can be configured & monitored remotely via ‘Wavespark’ using the Ethernet port. The AP420 also supports streaming via Icecast or Shoutcast or local playback via USB input or MicroSD card.

In addition to accepting files on USB & MicroSD cards, the AP420 has 4Gb memory built-in. This can be extended to 64Gb with the optional memory extension - see AP420-64EXT in related products.

Control is possible via the front panel or your mobile.

The exceptional pro audio quality DAC ensures the best performance and audibility.

The ‘Continuum’ feature facilitates a 24/7 secured broadcast, switching seamlessly to local input if the internet signal is lost.

A single input contact and 2 relay outputs enable connection to an external trigger and devices.

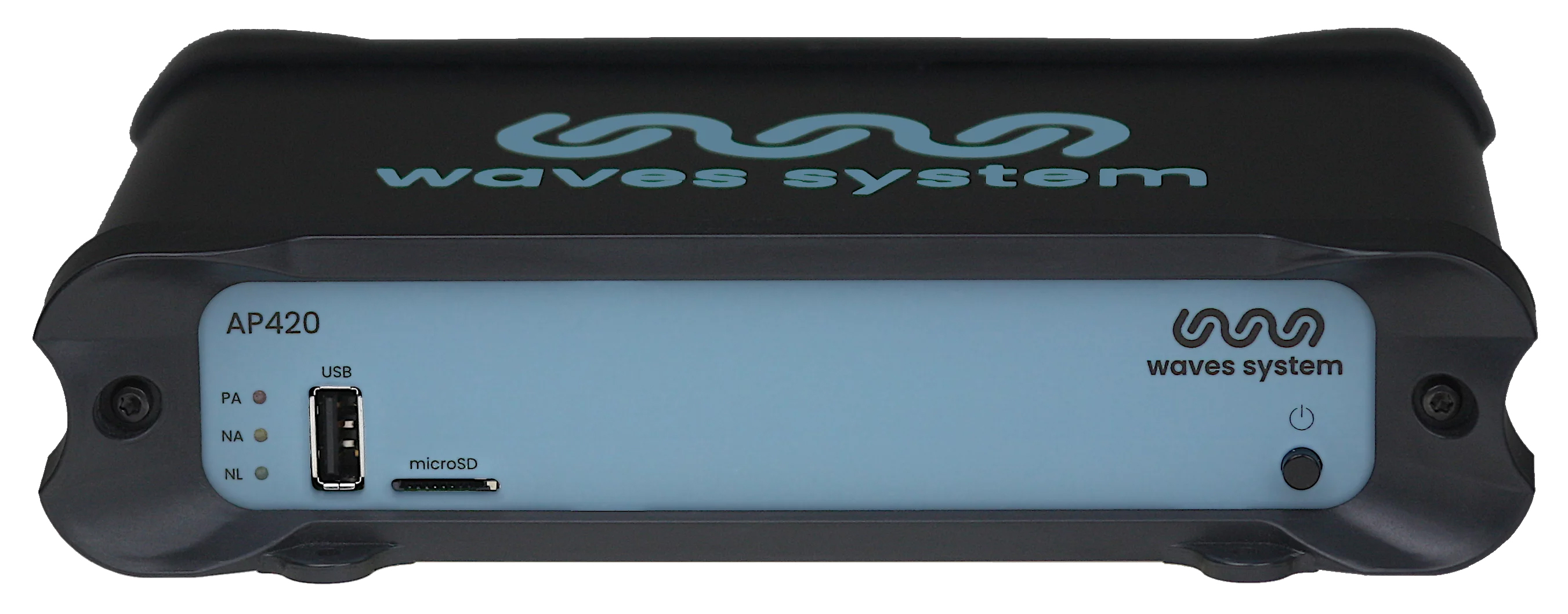

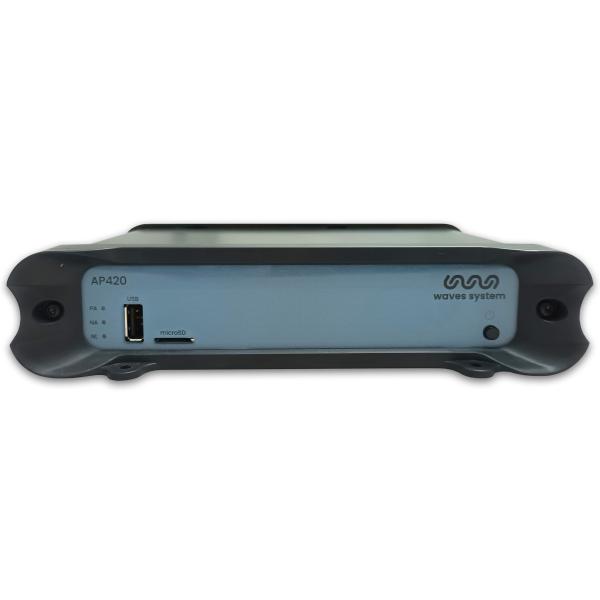

• Standby / Power multi purpose switch
• Status LEDs (Network, Activity)
• 4Gb internal memory, extendable to 64Gb with optional card
• MicroSD card slot

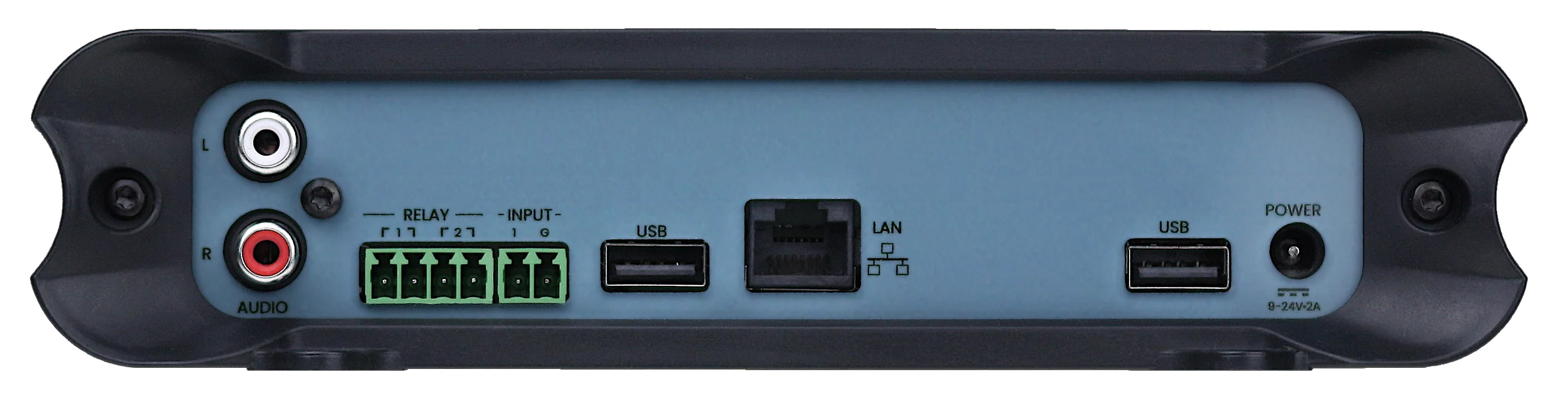

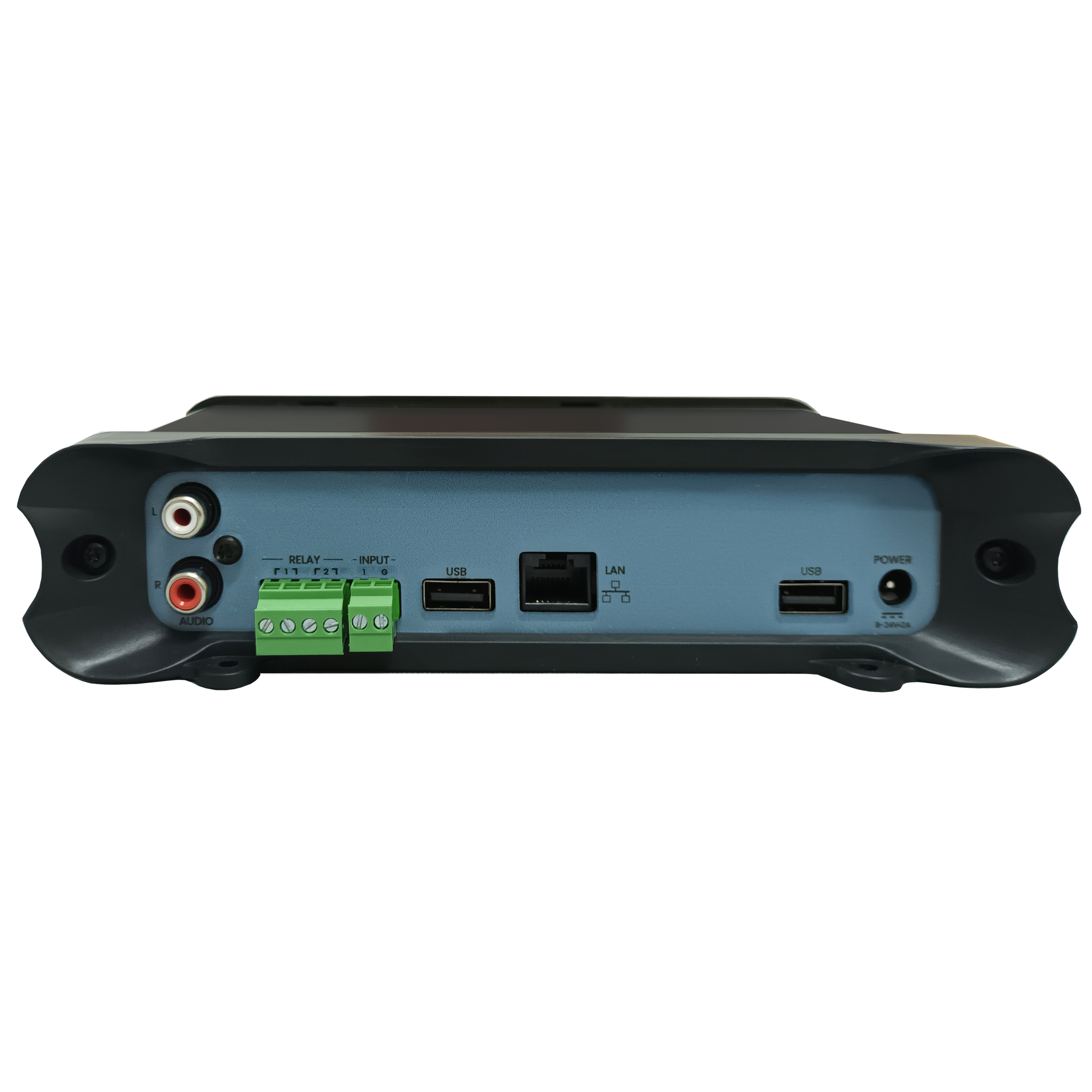

• Unbalanced line-level stereo audio output on standard RCA connectors (configurable level -10 dBv to +4 dBu)
• 10/100 Mb Ethernet on RJ45 connector
• 3 x USB Host 2.0 High Speed (480 Mb/s), type-A receptacle
• 1 input contact on 3.81 mm pluggable terminal block
• 2 MOSFET relays (normally open - 2A per output, max 24 V) on 3.81 mm pluggable terminal block
• Warranty: 3 Years
