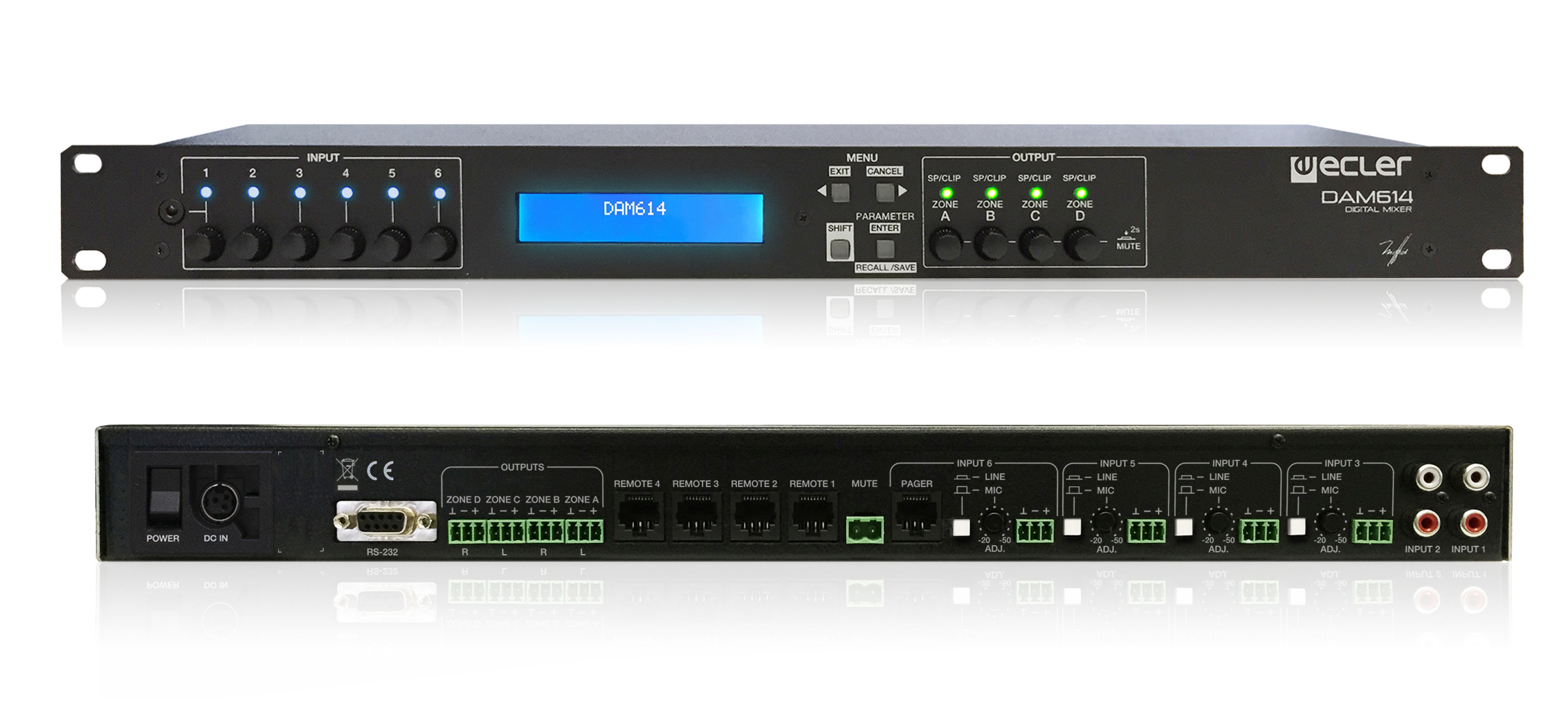

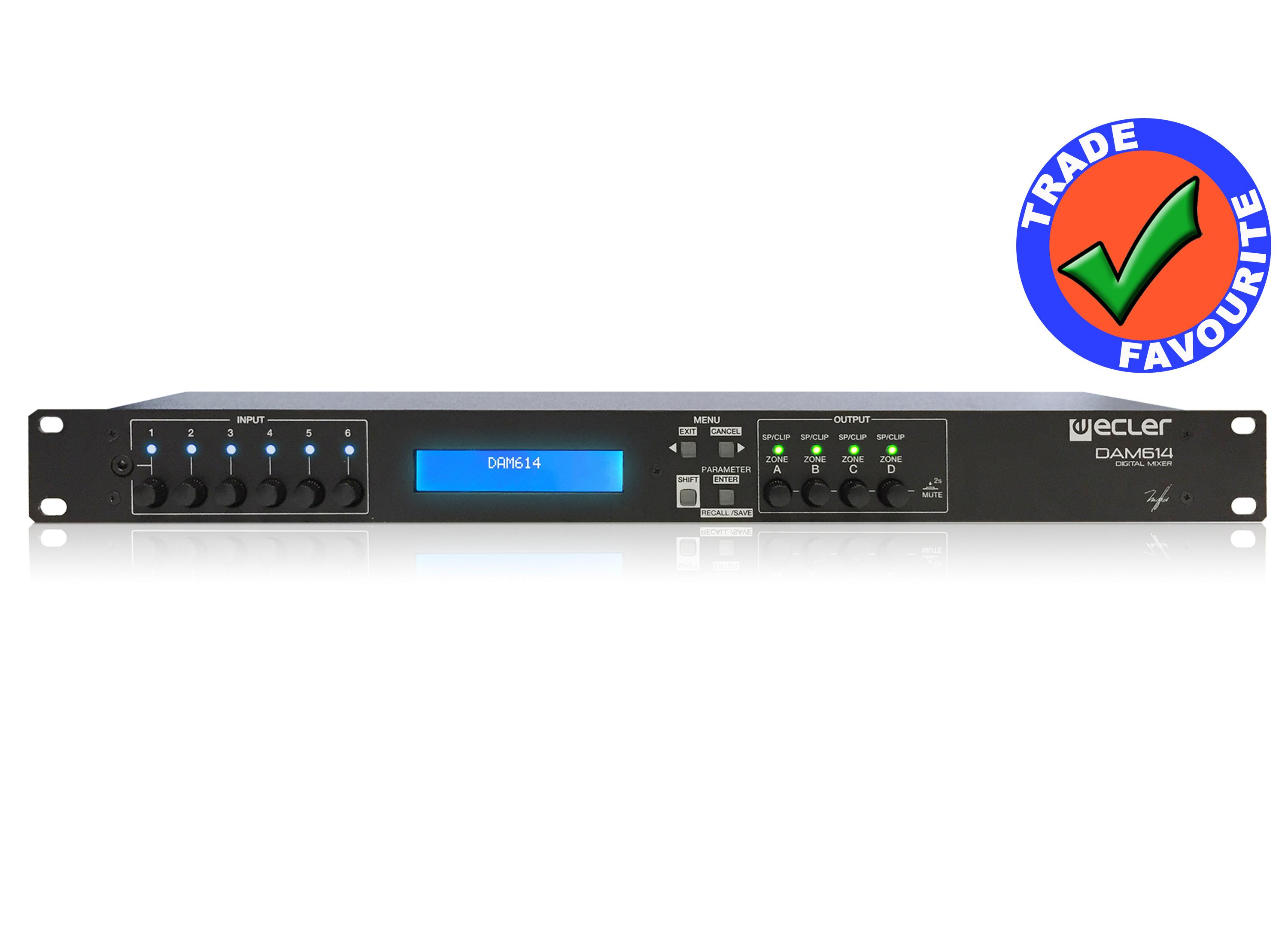

Ecler DAM614
The ECLER DAM614 fully programmable audio digital mixer is one of our favourite products. It features 6 audio inputs and 4 audio outputs, front panel inputs and outputs level controls, DSP processing, RS-232 connectivity and 4 remote control ports (0-10VDC). Its 4 outputs can be used as mono independent zones or coupled as stereo zones.
The first 2 inputs are stereo LINE inputs. The 3rd, 4th, 5th and 6th inputs are MIC/LINE ready (phantom available), and can be used either independently (mono) or as stereo-coupled inputs.
Key Features
- DSP @ 24 bits / 48kHz
- Front panel LCD display
- 6 front panel input control digital knobs (one per input)
- 4 front panel output control digital knobs (one per output)
- 4 front panel keys, for parameters adjustment and menus navigation
- Processing:
- Independent level control for each input and output
- Independent mixer for each output zone
- Crossover filters available for each output
- Independent 10 band graphic EQ for each output
- Independent and adjustable High-pass filter available for MIC/LINE inputs
- 2 level priority PAGER / DUCKER function, triggered by MIC/LINE inputs
- Independent Noise Gate function for MIC/LINE inputs
- Independent Feedback Suppressor Function for MIC/LINE inputs
- Adjustable delay time for 2 outputs
- Warranty: 5 Years.
 |
