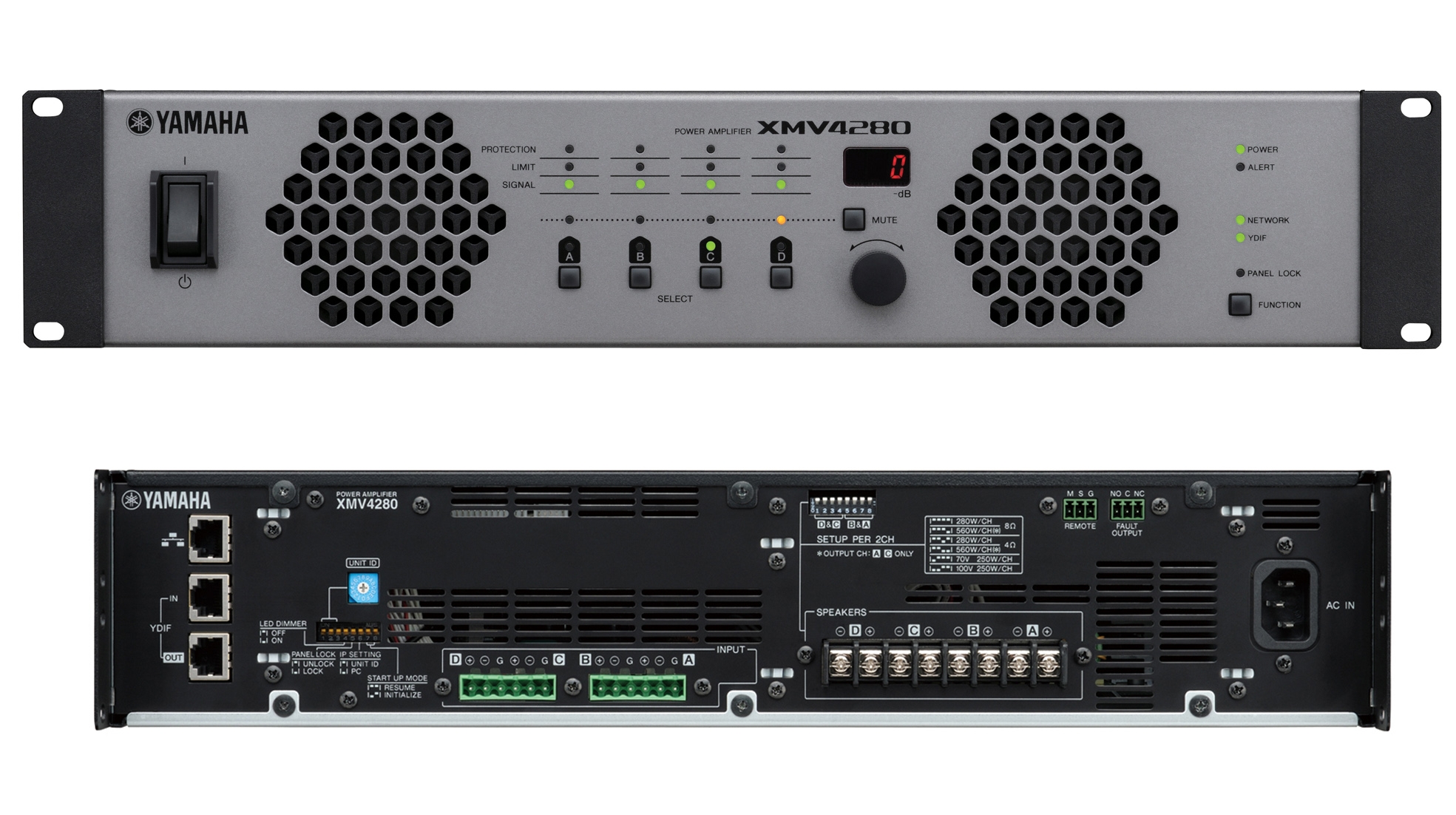

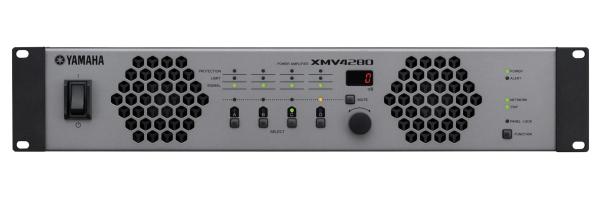

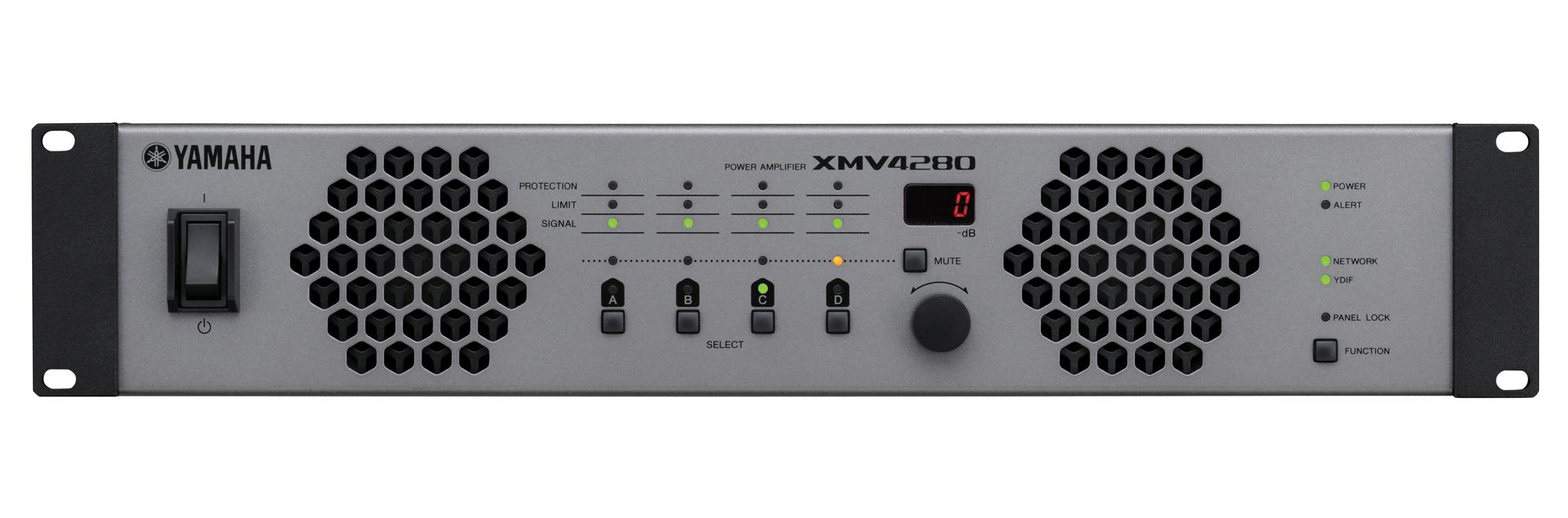

The Yamaha XMV4280 4 channel power amplifier combines Class D efficiency and versatile features for commercial installations.
Rated at 4 x 250W on 70 / 100V line or  4 x 280W on 4Ω / 8Ω.

Available in two power output versions and with the option of Dante control. Please see related products.

• Four-channel power amp that can operate in both high-impedance (70V/100V line) or low-impedance (4Ω/8Ω) modes simultaneously.
• 70V or 100V mode can be assigned to every pair of channels without affecting the number of available output channels.
• The newly developed Double Power Mode function effectively doubles the output power of selected channels.
• Equipped with YDIF* digital audio format for simple and fast system configuration.
• Easy setting such as the mute on/off or attenuator changes with MTX Editor when used in system with MTX Series.
• An innovative, new, patent pending circuit improves the already highly efficient Class D circuit topology, bringing the efficiency level of the amplifier's output stage up to over 90%.
• Feature a Power Factor Correction equipped switching power supply, ensuring harmonic control and decreasing the amount of current draw while maintaining the same output power.
• Powerful, intelligent protection features for more reliable operation.
• Warranty: 5 Years.

*YDIF: the newly developed digital transmission format; a unique propriety Yamaha technology that delivers 16ch audio and word clock transmission via standard CAT5 Ether cable.

Click here to download the Yamaha Commercial Installations Brochure.
