Yamaha VXS10S

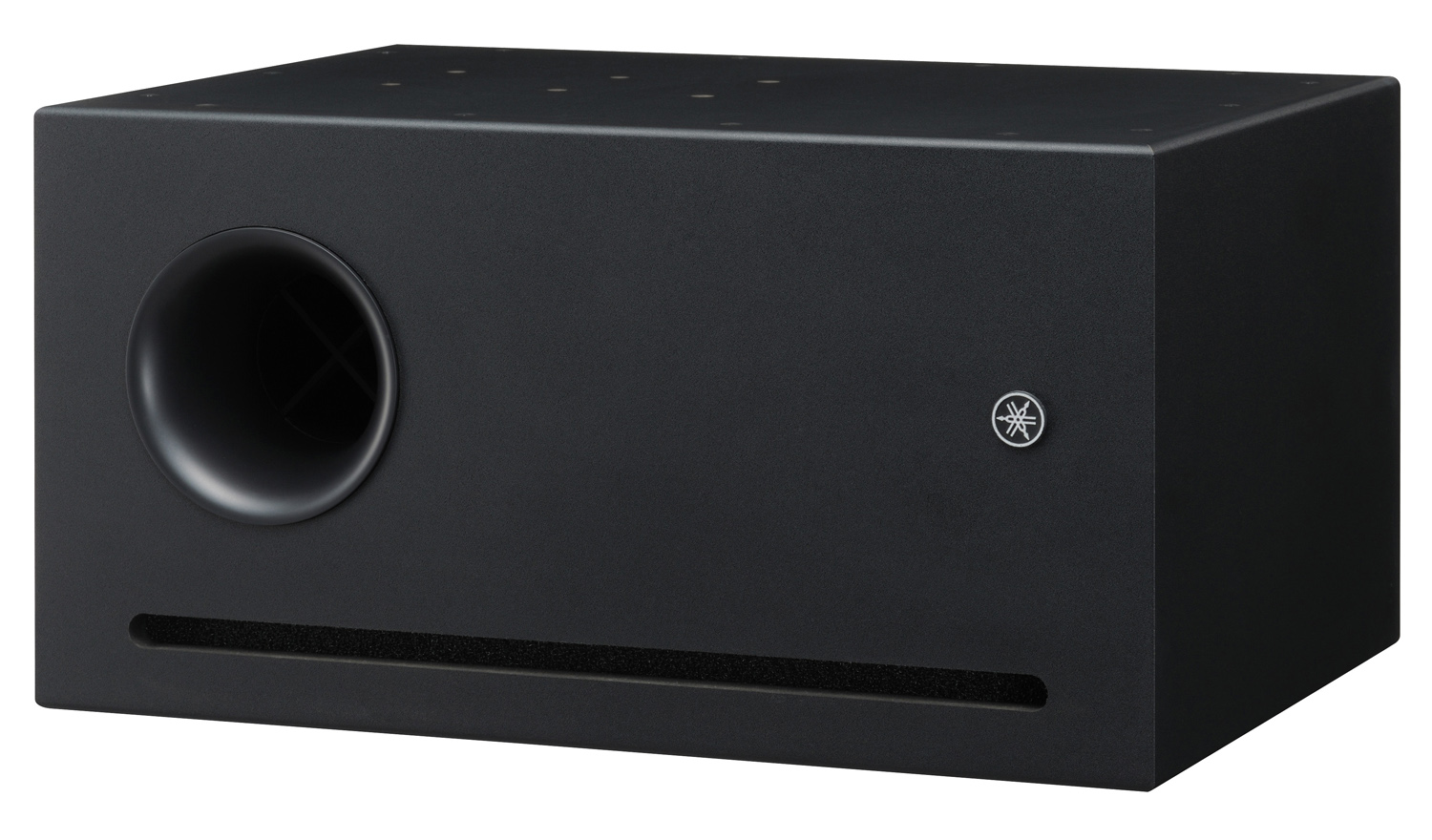

The Yamaha VXS10S subwoofer loudspeaker is fitted with a 10" (25cm) cone driver with a dual voice coil. 10". Rated at 200 watts + 200 watts Program power and compatible with 8Ω low impedance music systems.

Supplied with wall mounting bracket.

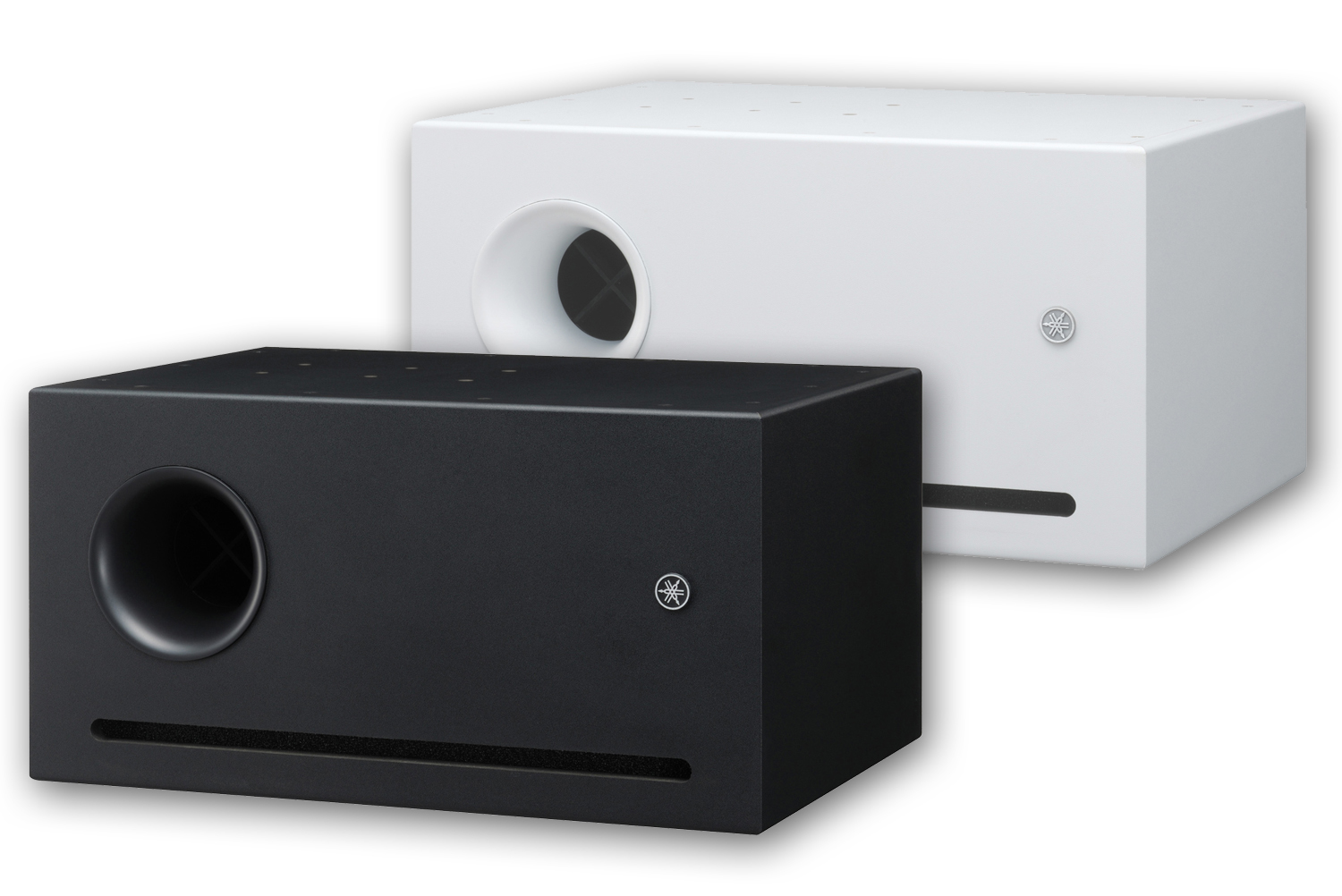

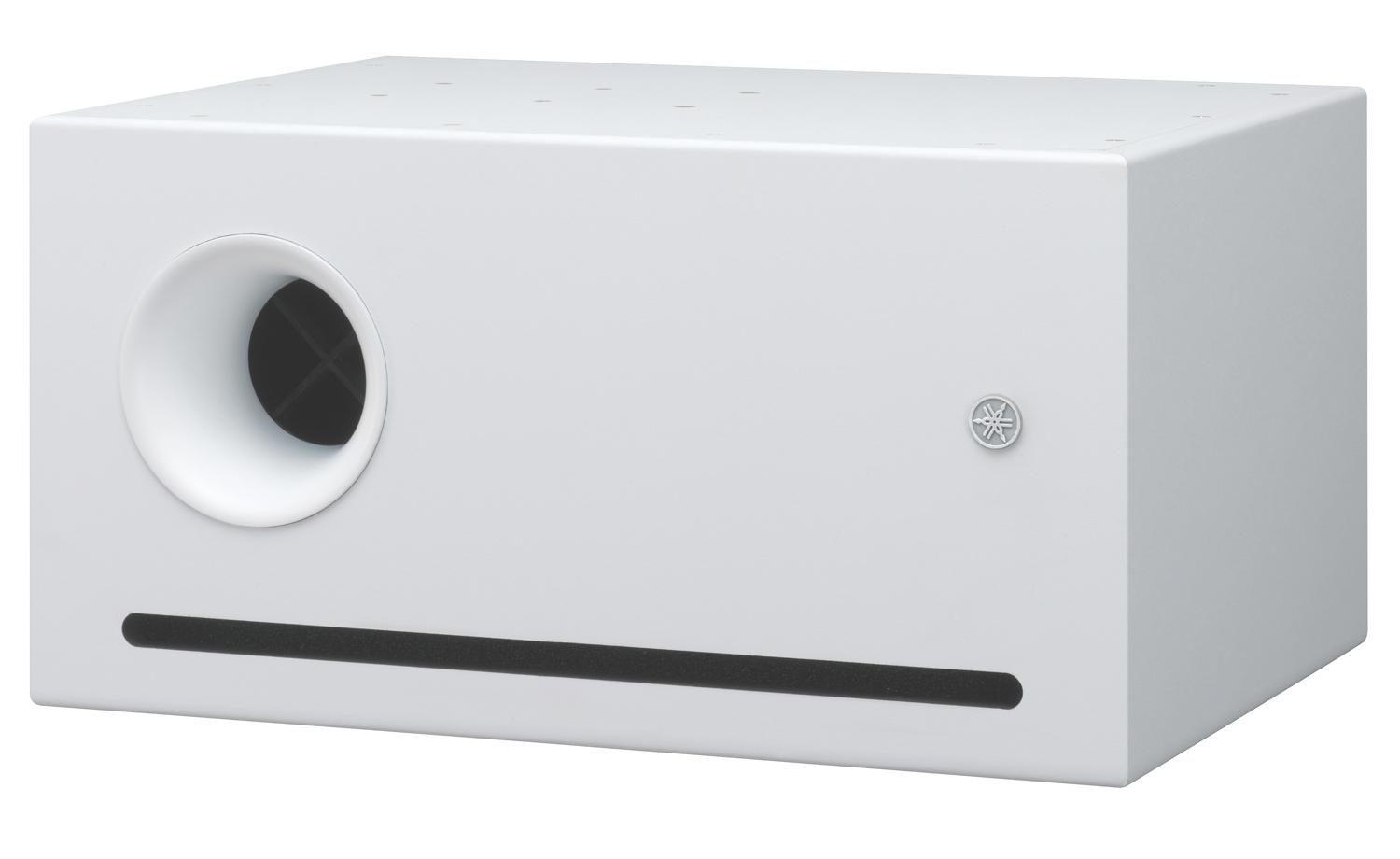

Available in black - VXS10S, or white - VXS10SW.

  • Versatile low-impedance subwoofer
  • Sound and size ideally matched to the VXS and VXC series
  • Bass-reflex design ensures smooth, distortion-free low-frequency extension
  • Dual voice coil configuration supports stereo sources
  • Ideal response can be achieved with a satellite
  • Dedicated wall-mount hardware supplied
  • Black and white models available
  • Warranty: 5 Years.

*****SUPPLIED & PRICED INDIVIDUALLY*****

Click here to download the Yamaha Commercial Installations Brochure.

Click to download the Yamaha Brochure

8ohms
List Ex VAT: Contact Us
Log in for Trade Prices
CONTACT US

SPECIFICATIONS



General specifications

VXS10S / VXS10SW

Speaker Type

Subwoofer

Frequency response (-10dB)

45Hz-250Hz

Components

10” Dual Voice Coil

Power rating

100W + 100W noise / 200W + 200W programme

Nominal impedance

8Ω + 8Ω

Satellite impedance

8Ω load per satellite output recommended

SPL Sensitivity (1W; 1m on axis)

96dB SPL

SPL Peak (Calculated)

125dB SPL

I/O connectors

Input: 1x Euroblock (4P)(CH1: + / -, CH2: + / -), Satellite Output: 1x Euroblock (4P)(ST 1: + / -, ST 2: + / -)

Cabinet material

MDF

Finish

VXS10S: Black, VXS10SW: White

Dimensions W x H x D

260mm (10.2") x 500mm (19.7") x 389mm (15.3")

Net weight

16.5 kg (36.4 lbs)

Accessories

Wall mount bracket

DOWNLOADS

Yamaha VXS10S Datasheet
