Bosch Plena PLE-1CS

Bosch Plena PLE-1CS

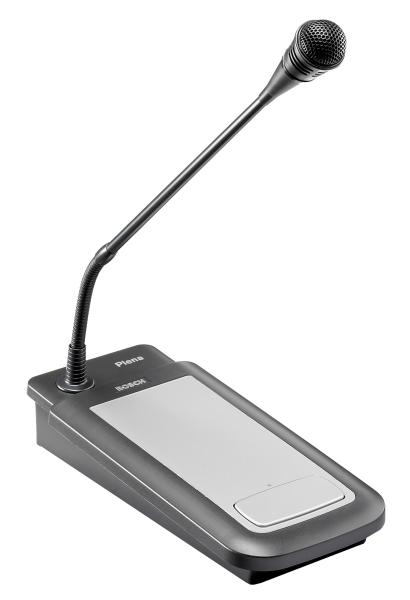

The Plena PLE-1CS tabletop unidirectional condenser paging microphone is a high-quality call station with a sturdy metal base designed for use with the BOSCH PLE series of amplifiers.

Please note, there is only limited stock available of this product. Please contact us for up to date availability.

In addition to tabletop use, the special design enables the unit to be neatly flush-mounted.

The PLE1CS microphone features a large press to talk call button for uease of use and the flexible gooseneck enables the microphone to be positioned as required. A green LED confidence light illuminates to let you know the mic is in use.

  • PTT-key for calls for activation
  • Momentary or toggle
  • Green LED, indicating microphone active
  • Stable metal base design with fixed 2 m cable and lockable Euro style connector
  • Phantom powered by amplifier
  • Warranty: 3 Years



List Ex VAT: £137.10
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Electrical



Phantom power supply



Voltage range

12 to 48 V

Current consumption

<8 mA

Performance



Sensitivity

0.7 mV @ 85 dB SPL (2 mV/Pa)

Maximum input sound level

110 dB SPL

Distortion

<0.6% (maximum input)

Input noise level (equiv.)

28 dB SPLA (S/N 66 dBA ref. 1 Pa)

Frequency response

100 Hz to 16 kHz

Output impedance

200 ohm

Mechanical



Base dimensions (H x W x D)

40 x 100 x 235 mm (1.57 x 3.97 x 9.25 in)

Weight

Approx. 1 kg (2.2 lb)

Colour

Charcoal with silver

Stem length with mic.

390 mm (15.35 in)

Cable length

2 m (6.56 ft)

Environmental



Operating Temperature

-10 ºC to +45 ºC (14 ºF to +113 ºF)

Storage Temperature

-40 ºC to +70 ºC (-40 ºF to +158 ºF)

Relative humidity

<95%

DOWNLOADS

Bosch PLE-1CS Call Station Paging Microphone Datasheet
EC Declaration of Conformity: PLE-1CS
