E2S BExL15

E2S BExL15

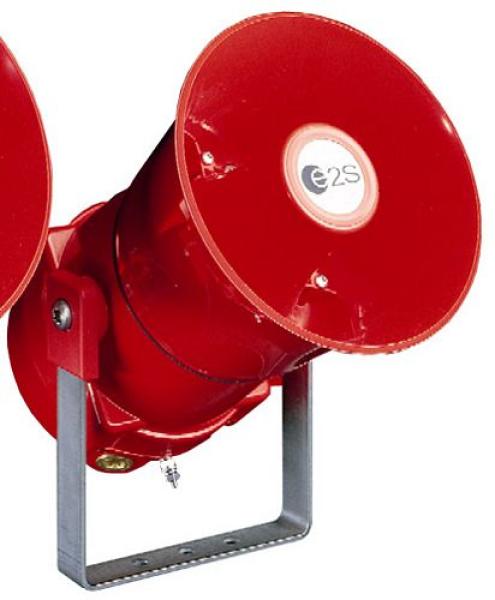

The E2S BEXL15 horn loudspeaker is designed for use in hazardous areas including explosive atmospheres involving petrochemicals or fine dust particles.

Rated at 15 Watts RMS.

This lightweight explosion proof (will not cause an explosion in an explosive atmosphere) horn speaker is constructed from corrosion resistant marine grade copper free LM6 aluminium with chromate and Red powder coat finish.

All versions feature stainless steel fixings and mounting bracket, dual cable entries & large termination areas.

Approvals:
  • IECEx KEM 10.0003X
  • ATEX KEMA 99ATEX6312X
  • TR-CU Ex EAC certificate: RU С-GB.НА65.В.01252_21
  • INMETRO certificate: 10-IEx-0009
Features:
  • Marine grade, corrosion proof, LM6 aluminium enclosure.
  • Ingress protection IP66/67
  • Stainless steel fixings
  • Dual M20 cable entries – adaptors available.
  • Stopping plug included.
  • Very large termination area.
  • Ratchet adjustable stainless steel ‘U’ bracket.
  • 70V line, 8 Ohm and 16 Ohm low impedance versions also available.
  • Multiple tappings from 15W to 1W.
  • Wide frequency response and angle of dispersion.

Please note, the following options need specifying upon order. Please contact us with your requirements for pricing.

Part Code:

Identifier:

Description:

Product type:

BExL15

Explosion proof PA Loudspeaker

Type:

DF

Ex d, Flare re-entrant horn

Input:

V100
V070
R016
R008

100V Line Transformer
70V Line Transformer
16 Ohm Low Impedance
8 Ohm Low Impedance

Cable entries: [e]

A
B
C
D
E
F
G

2 x M20x1.5mm
2 × 1/2" NPT – adaptors
2 × 3/4" NPT – adaptors
2 x M25x1.5mm – adaptors
1 × 1/2" NPT – adaptor
1 × 3/4" NPT – adaptor
1 x M25x1.5mm – adaptor

Stopping plug/
adaptor material: [m]

B
N
S

Brass
Nickel Plated
Stainless Steel

Bracket matl & tag: [s]

1
2
3
4

A2 304 Stainless Steel
A4 316 Stainless Steel
A2 304 St/St with Equip. Tag
A4 316 St/St with Equip. Tag

Product version: [v]

A1

Default – IECEx, ATEX, Ex EAC & INMETRO

Enclosure colour: [x]

R
G
S

Red
Grey
Special – contact E2S

Accessories:

SP65-0001-A4
SP65-0003-A4

Pole Mount Bracket Kit St/St A4 (316)
Sunshade – St/St A4 (316)

  • Warranty: 10 Years
100V IPxx
List Ex VAT: Contact Us
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

SPL:

102dB +/-3dB @ 1w @ 1m (Pink)
113dB +/-3dB @ 15w @ 1m (Rated)

Rated power:

15 Watts RMS

70v line tappings:

15w / 7.5w / 3w / 1w
(z=336.67 Ohms /653.33 Ohms /
1.6k Ohms / 4.9k Ohms)

100v line tappings:

15w / 7.5w / 3w / 1w
(z=666.87 Ohms /1.34k Ohms /
3.34k Ohms / 10k Ohms)

Low impedance:

8 Ohm or 16 Ohm

Dispersion:

120° @ 1kHz & 32° @ 4kHz

Frequency range:

400Hz to 8000 Hz

DC Line monitoring:

2.2µF Capacitor (Transformer)
470µF Capacitor (Low impedance)

Ingress protection:

IP66/67

Enclosure material:

Marine grade copper free LM6 Aluminium

Enclosure finish:

Chromate & powder coated finish – anti-corrosion.

Colour:

RAL3000 Red
Grey RAL7038
Special – available on request

BExL15 flare:

High impact UL94 V0 & 5VA FR ABS

Cable entries:

Dual M20 ISO (one stopping plug inc)

Terminals:

0.5 – 2.5mm² (20-14 AWG)

Relative humidity:

95% – Additional tropicalisation is recommended for applications where both high relative humidity and high ambient temperatures exist

Weight:

70/100V line: 3.45kg/7.59Ibs
Low imp.: 3.10kg/6.82Ibs

DOWNLOADS

e2s BExL15 Datasheet
EC Declaration of Conformity: e2s BExL15, BExL25
KEMA certificate - BEXL horns
